1989 NAUTOR SWAN 86
Yacht for Sale

JOSEFINA, formerly known as Hamilton (very successful racing program), was designed and built for unlimited offshore cruising and easily accommodates ten passengers and crew for world-wide passage-making.

Her owners have given her long-term crew full license to keep her in top condition.

She is a remarkably well kept version of the iconic Swan.86

Winter of 2023-2024 she will be located in the Caribbean. Please call for current location and to arrange a visit.

Josefina is Not For Sale in U.S. Waters.

Engine Make: Volvo
Engine Model: TAMD74A
Engine Year: 2001
Total Power: 290hp
Engine Hours: 4918
Engine Type: Inboard
Drive Type: Direct Drive
Fuel Type: Diesel
Propeller Type: 4 Blade
Propeller Material: Bronze
Folding Propeller

Dimensions
Length Overall: 86ft
Max Draft: 11.5ft
Beam: 20.33ft

Tanks
Fresh Water Tank: 400 gal (Stainless Steel)
Fuel Tank: 660 gal (Stainless Steel)
Holding Tank: 14 gal (Plastic)

Accommodations
Guest Cabins: 5
Guest Heads: 5

ACCOMMODATION

JOSEFINA was designed and built for unlimited offshore cruising and easily accommodates ten passengers and crew for world-wide passage-making.

There is a spacious main saloon with a dining table to port, seating 8 people. There is a settee with table opposite. The galley is aft, to starboard and is fully equipped.

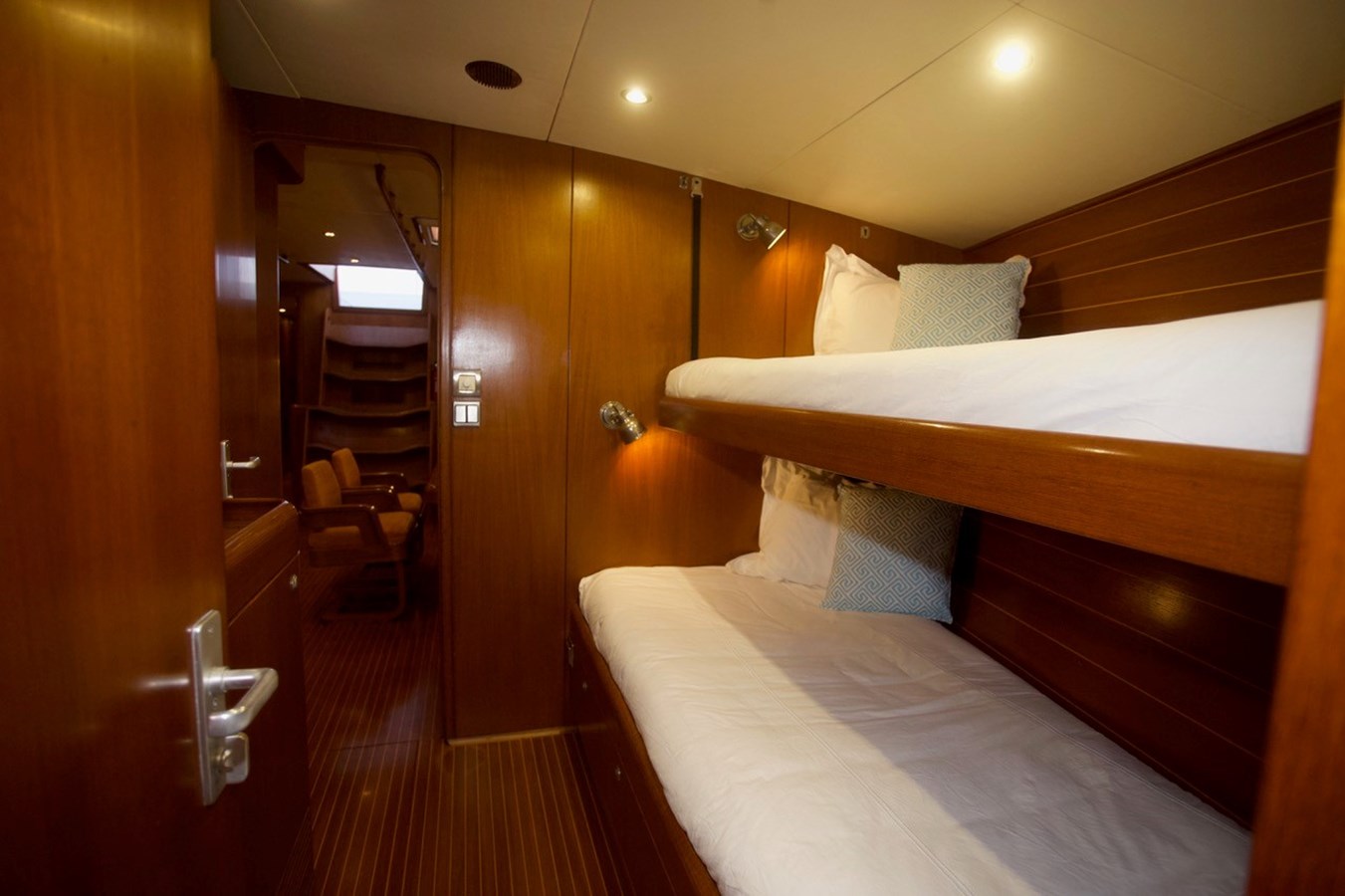

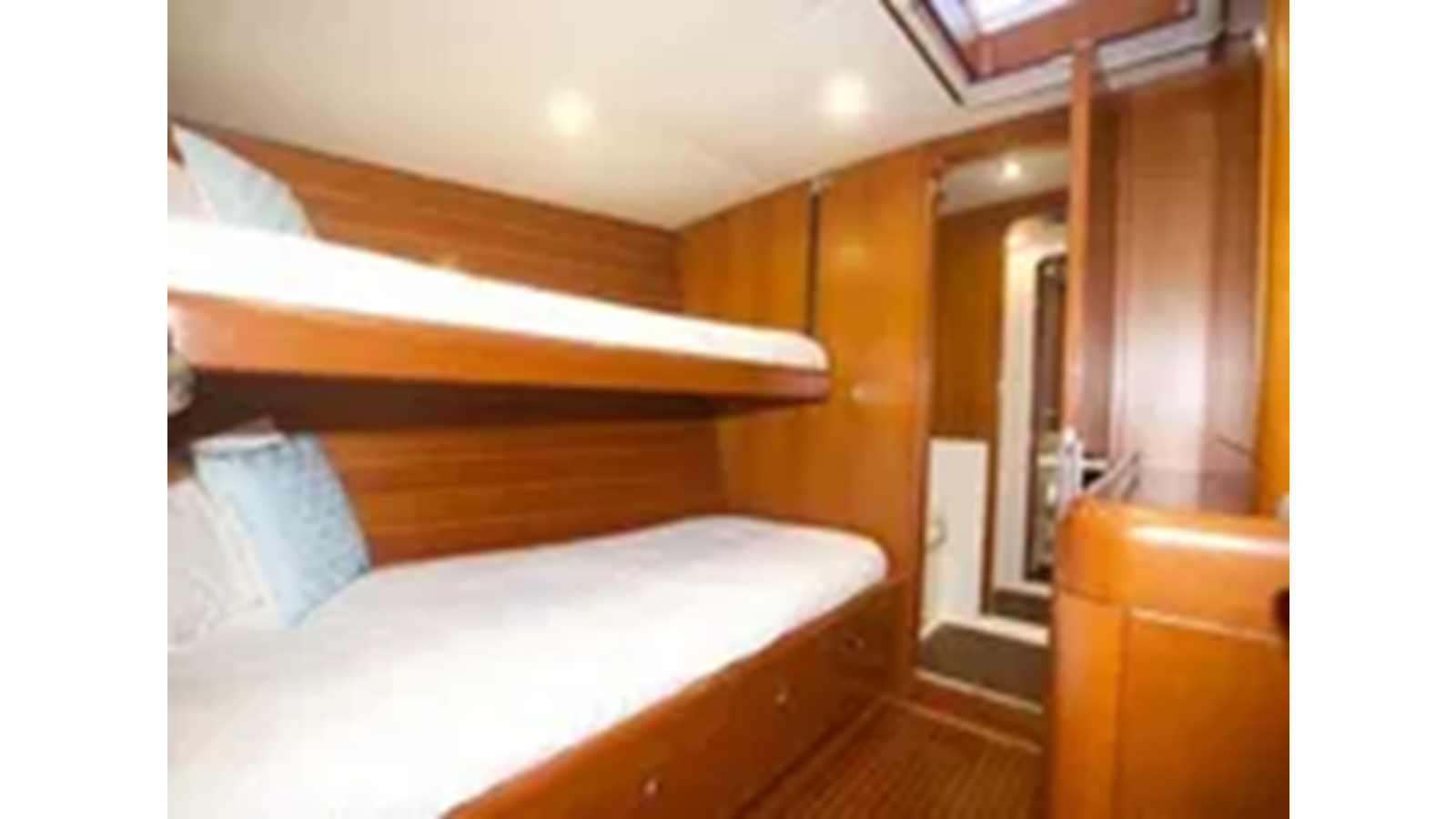

Starting forward, the focs'l has two crew berths. There is a double berth cabin forward of the saloon, to port and a double berth stateroom to starboard.

A double bunked Captain's cabin is aft of the saloon, to starboard, in the passageway leading to the aft cabin. The fully equipped navigation station is just aft of this cabin.

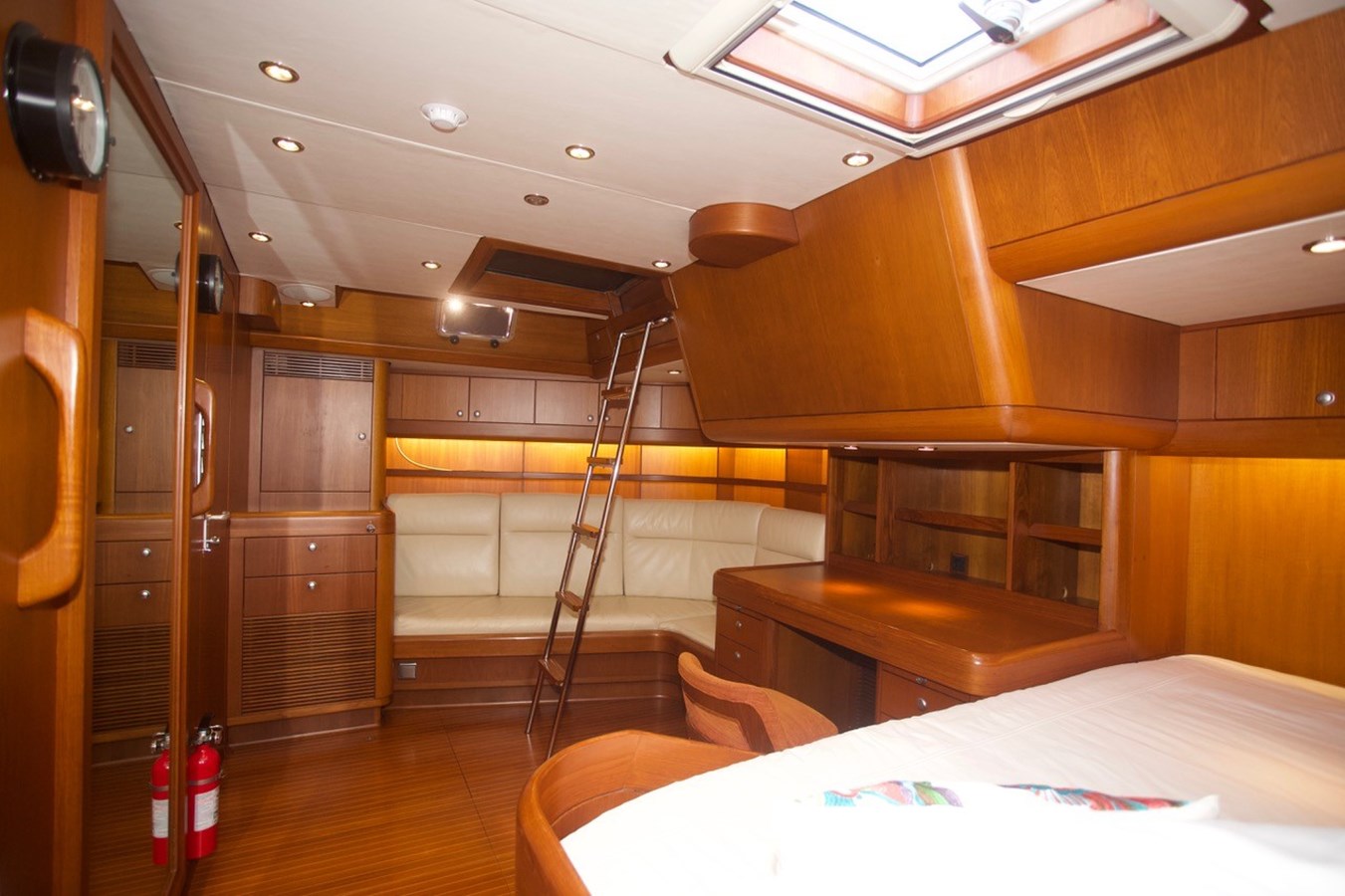

The aft Master Cabin has a queen double berth and settee. The large en suite head contains a stall shower.

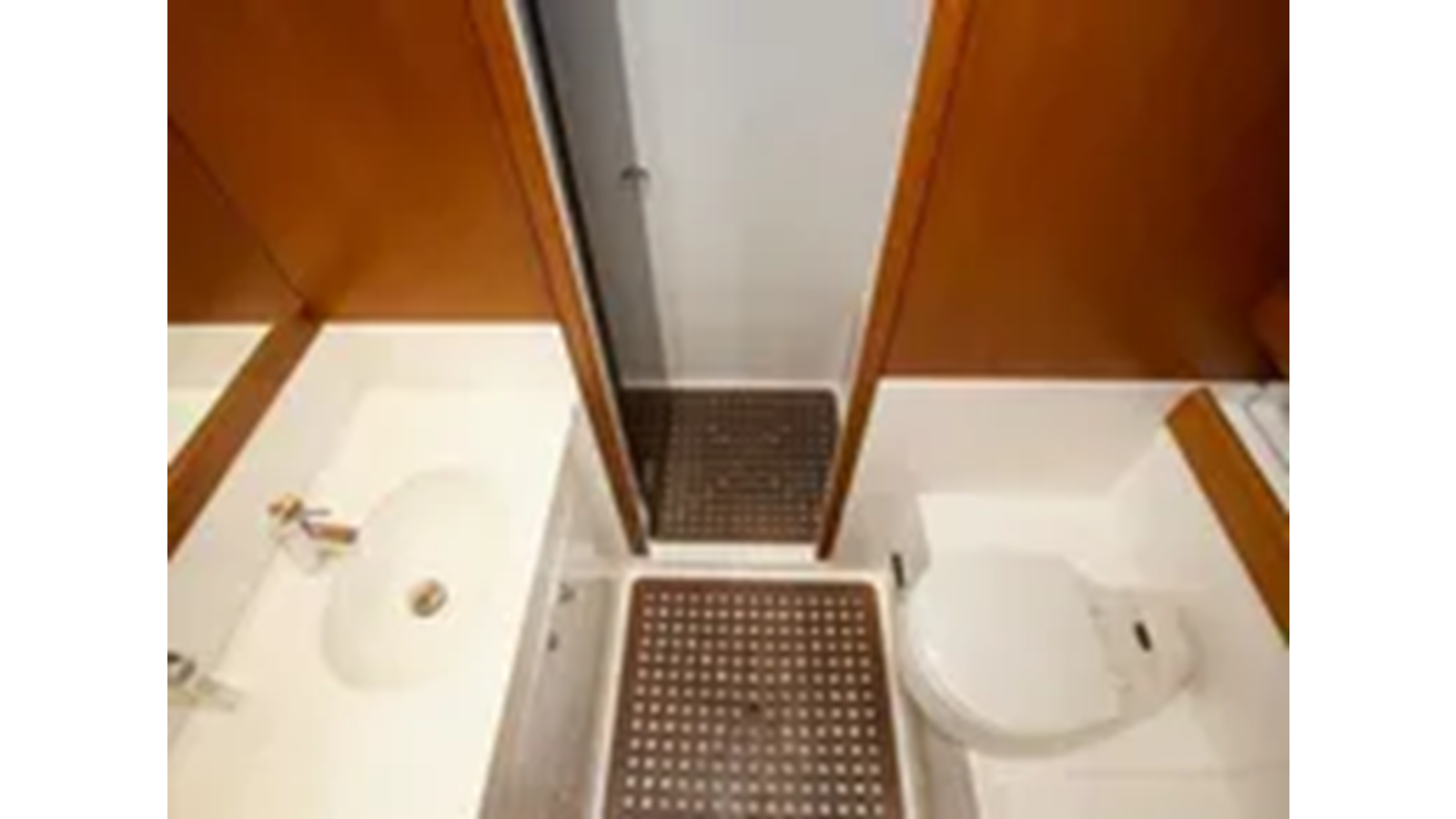

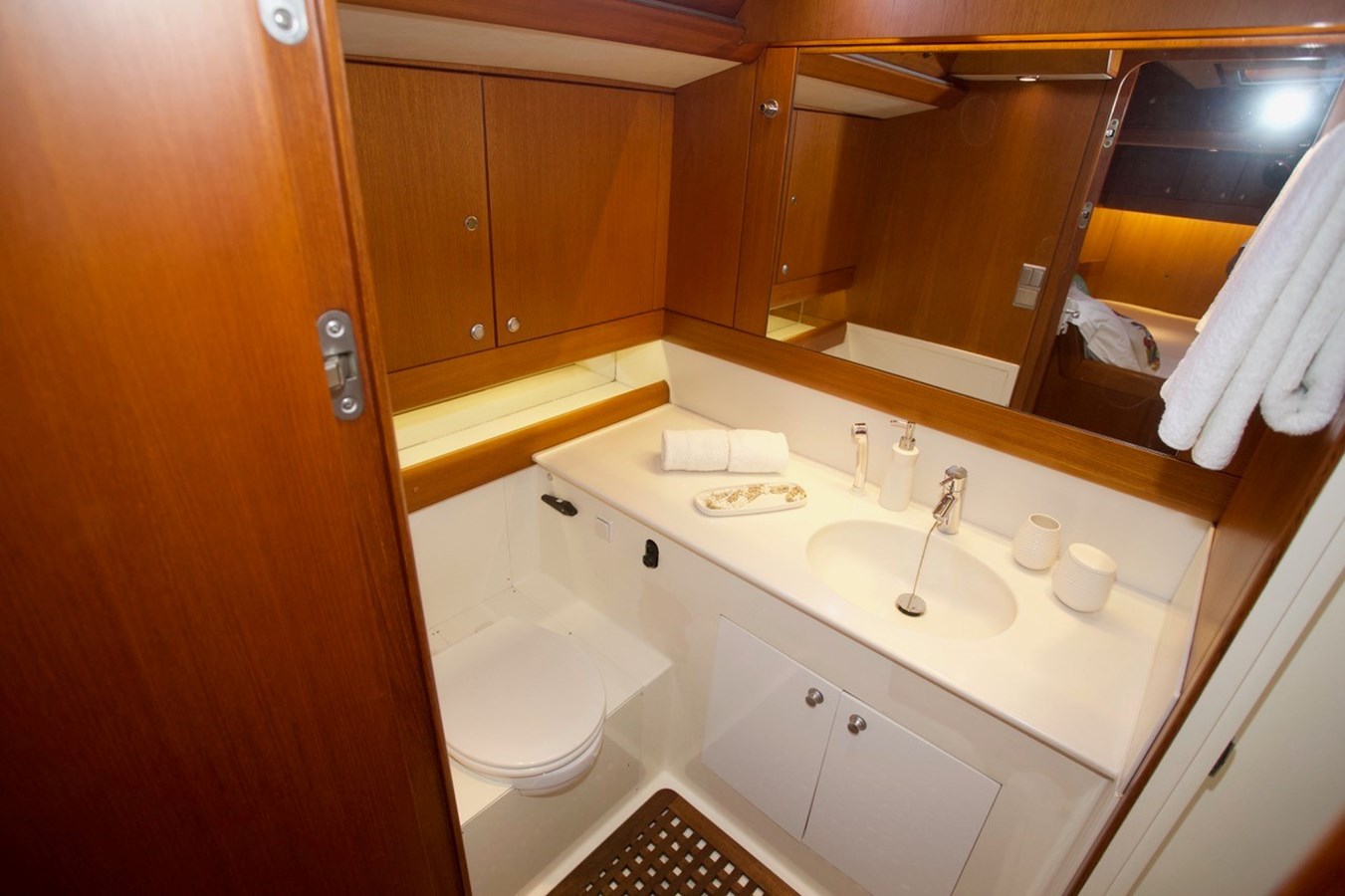

There are heads with showers for all cabins.

The finish below is classic Swan; varnished teak joinery of the highest quality materials and workmanship, very nicely maintained.


CONSTRUCTION
SWAN is well known for its superior building techniques. During the epoch of JOSEFINA's build, there was no better producer of FRP yachts.


ELECTRONICS and NAVIGATION:
Ritchie 7" SS Binnacle Compass
B&G 4G Radar
Brookes & Gatehouse Knotmeter, Depth, Wind
Brookes & Gatehouse Auto Pilot with Dual Capilano Hydraulic Cylinders/ 2021
3 B&G H3000 Mast Mount Displays
3 B&G H3000 Companionway Mount Displays
2 B&G H3000 Nav Station Displays
2018 Zeus Touch 3, installed at helm and nav station
2 ICOM Ic-M504 VHF Radios
Philips 20" LCD Display at Nav Station
50" LED TV/ 2023
Sonos, Ubiqoti network, Peplink routers, Sim injector x 4, Pepware HD Dome Pro for Wifi and cell antenna
Aft radar mast was removed for the cleanest look of all the Swan 86s.

New helm panel to updated Swan look.

A complete B&G electronics package was installed 2014.

2016 complete mast rewire with air craft cabling and new antennas.

Sealink Marine Hardware antenna, 30 mbps mid ocean

ELECTRICAL:
JOSEFINA is equipped with ASEA Systems AC12 Phase Shore power converters, allowing for world-wide compatibility with 50 or 60 hz, 110 or 220 V.
Service Bank is 12 X 2V 1150AH AGM / new 4/2023
Start Batteries are 2 AGM 6D batteries
Emergency Bank is 2 AGM 6D
Engine Alternator is Balmar 24V 180 Amp with external regulator
Wiring is multi strand plastic coated copper
AC Battery Charger: 2 - Victron Skylla -1 -24 - 100 amp 1+1
Victron Smart Shunt & Cerbo Controller. Also, manual controller, new 4/2023
Generator: Leyroy Somer LSA42.2L9: 315 kw, 2014
Generator Motor: Caterpillar C2.2

PLUMBING:
3 Stainless Steel Water Tanks with 400 Gallon Capacity
Sea Recovery 70 GPH Water Maker; model A92M 1800-2. New motor/ pump 2022
Pressure hot & cold 24V Pump/ 2 x Headhunter Excalibur/ new 2023
Bilge Pumps: 3 Automatic Electric; 3 high volume manual; 1 Engine Driven Crash Pump
(4) Vacuflush toilets, 1 Royal Flush toilet by Headhunter in Master cabin

Refrigeration is 4- Sea Frost BD-XP 24V Compressors cooling 3 Refrigerators & 1 Freezer/ Compressor new 2022
Galley Stove is Force 10, 4-Burner with Oven fueled by Propane Gas/ new 7/22

SAFETY EQUIPMENT:
8 - Type II Adult Life Preservers
8 - Type V Inflatable Life Preservers
Man Overboard Device: MOM8A
EPIRB; ACR 406
Life Raft: Viking 8 Person Valise; Serviced 2023
Flares: Paines & Wessex Offshore Kit, O2
MedAir Offshore Kit with First responder Kit and Defibrillator
7 Fire Extinguishers; ABC & Dry Chemical
Engine Compartment Fire Extinguisher: Fire Boy, remote CO2
Xintex Carbon Monoxide Detectors
7 Smoke Detectors
Vetus Propane Sensor - galley

INVENTORY:
Lewmar V8 Hydraulic Anchor Windlass/ new 2021
MaxPower Retractable Bow R300 thruster, Hydraulic Drive, rebuilt 2023
7 Zone Air Conditioning & Heat ; Marine Air: 1 - VTZ-6KZ50; 2 - VDT16KZ50; 3 - VTZ10KZ50; 1 Split 16,000 BTU
Fireboy FR200
Reverso Oil Change Pump
Ice Maker
Clothes Washer & Dryer/ new 2022
Bauer Junior II Dive Tank Compressor
Full Vessel Sound & AV System / new 2023
Stow-Away Transom Swim Platform
Rudder bearings from Swan, 2014
Anchor: 1 - 140 Lb CQR, new 2018
2 - Fortress FX-55's
Chain: #1: new 20182; #2; 3/8" X 60'/ 12 mm AACO 400'
Anchor Rode: 1" X 250' 3 Strand Nylon
Docklines: 8 - Mega Braid 34"
Fenders: 12, new 6 New Aire fenders with covers, 2023 covers/ 2 new long fenders
New Mattresses 2021
New Lexan Hatch Lenses/ 2021

SAILS and RIGGING:
North Fully Battened Mainsail, 2019
North 110% Genoa, 2019
North Asymetric Spinnaker, 2014
Storm Jib, 2014
Dodger, 2019
Cockpit awning New 2021

Lewmar Dual Pump Winch Power Pack
4 - Lewmar 1100 Custom Primary Winches
2 - Lewmar 52 Self-Tailing Winches
1 - Lewmar 77 Self-Tailing Secondary Winch
2 - Lewmar 56 Self-Tailing Halyard Winches
4 - Lewmar 650 Self-Tailing Halyard Winches
2 - Lewmar 66 Self-Tailing Winches for Runners
Reckmann Hydraulic Roller Furling Headstay/ rebuilt 2021
Rigid Hydraulic Boom Vang/ rebuilt 2022
2016 full replacement of BSI standing rigging to Southern Spars/ New Zealand
2016 full disassemble / repaint of mast/ Southern Spars

MACHINERY:
Volvo Penta 290, 290 HP, Model TAMD74A Primary Engine
Engine Hours 4918, July, 2019 (Complete rebuild/ overhaul @3800HRS 2016 Ovlov Volvo Auckland New Zealand)
Reduction Gear: Twin Disc MG5075; 2.53:1
Engine Controls: Push / Pull Sheathed Cables, Kolbelt SS
Propeller Shaft: 2.5" SS with Line Cutter
Propeller: Verifold 4- Blade Feathering, 32d X 27p
Shaft Seal: PSS Dripless
Generator Full Rebuild Gough CAT New Zealand 2016@ 7500HRS (Current hours 16142)
