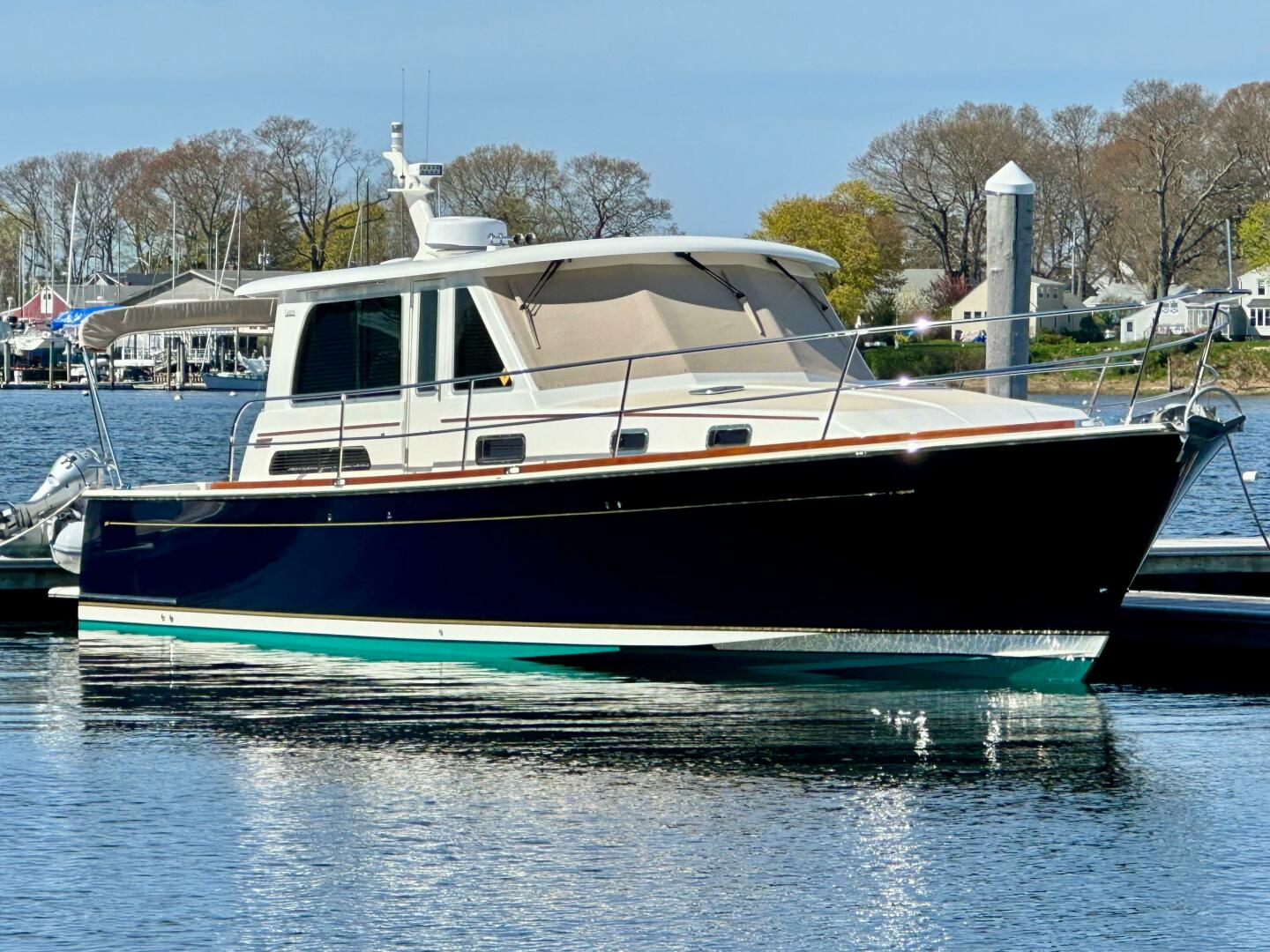

ENCORE
Yacht for Sale
Length:
40′ 0″ / 12.19m
| Builder: Friendship Yachts, NZ
| Year: 2008

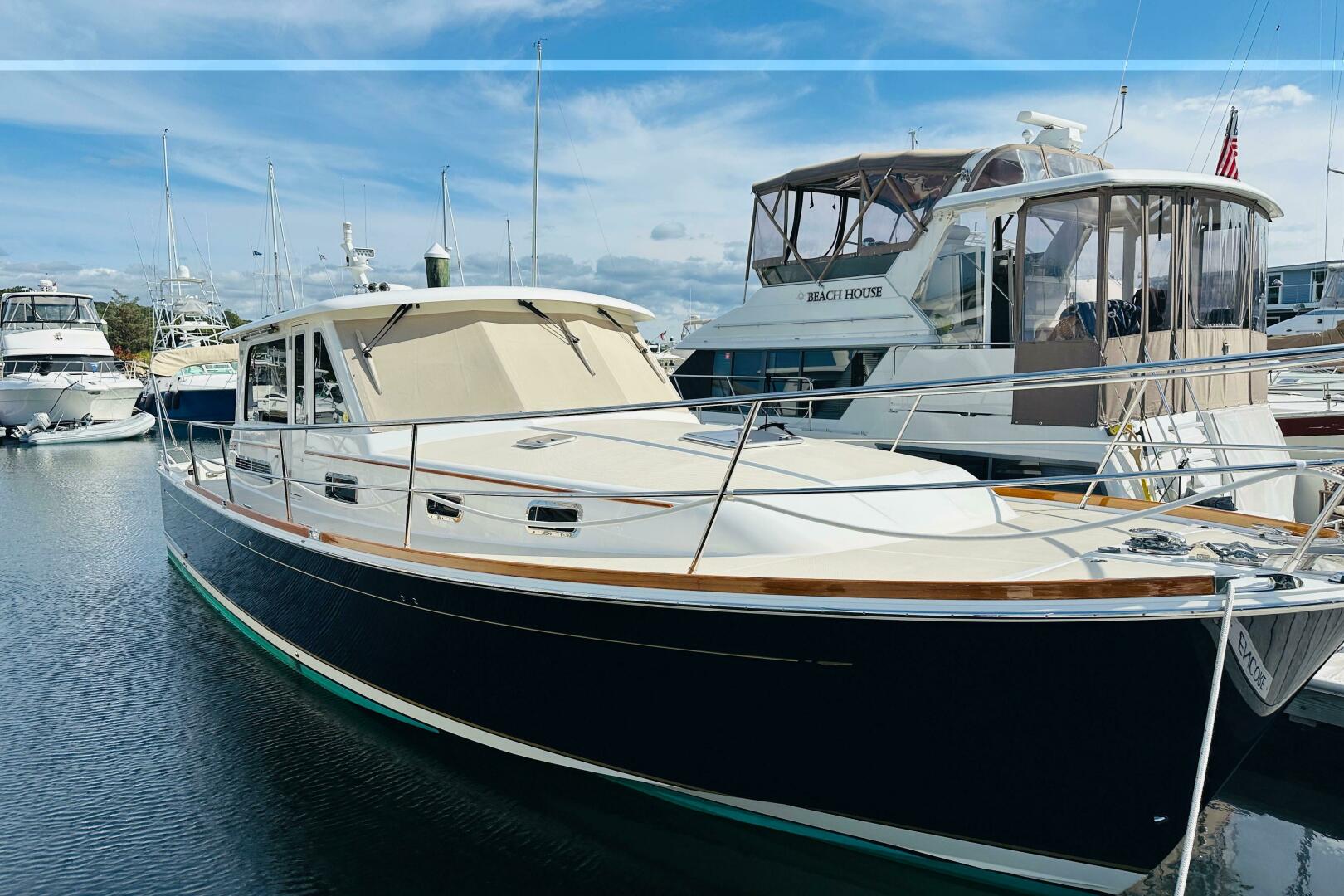

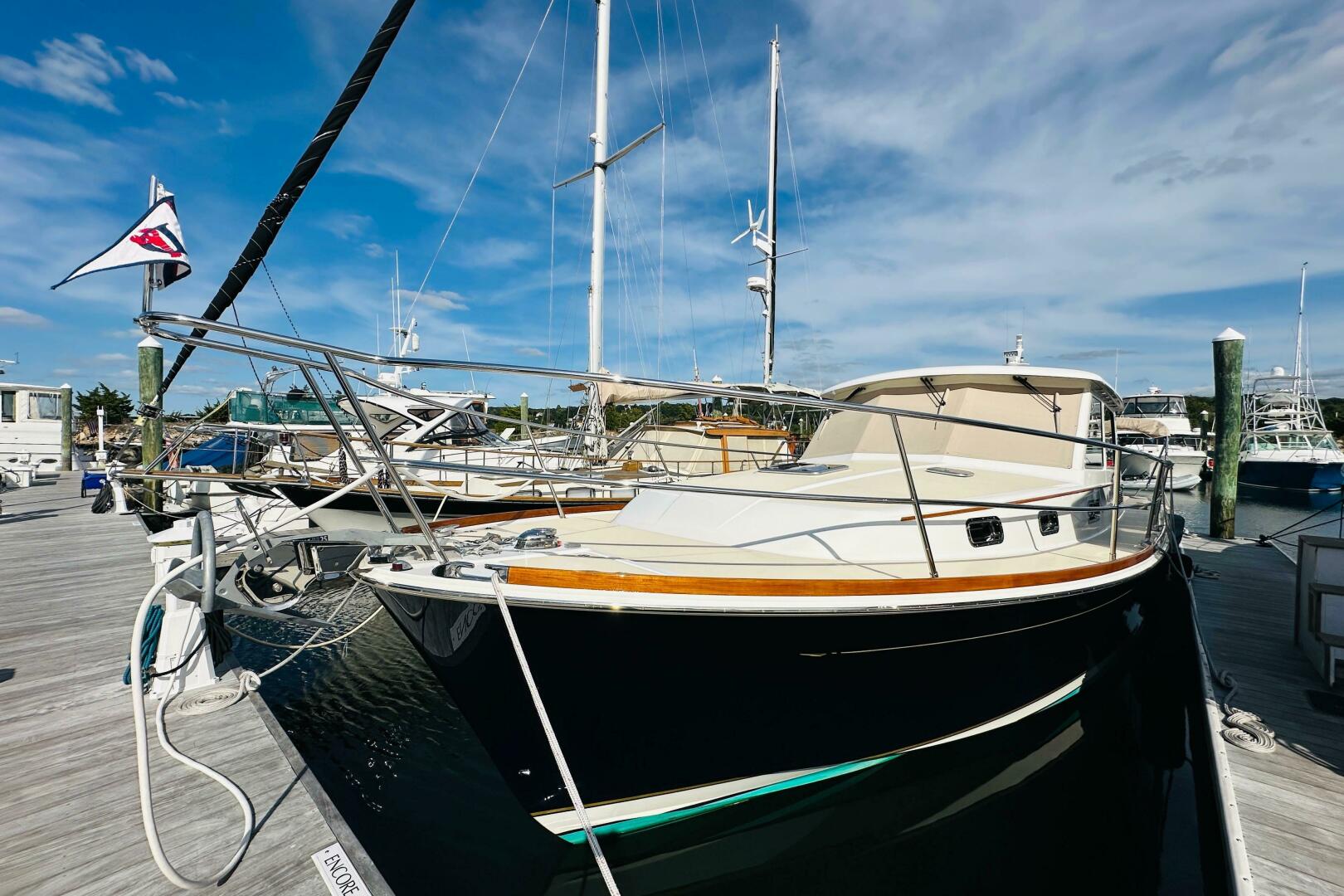

ENCORE Yacht for Sale - 40′ Friendship Yachts, NZ
The Friendship 40 is the perfect daysailer for sophisticated yachtsman. Drawing inspiration from larger sister ships, designer Ted Fontaine designed a luxury daysailer that set a standard in the industry that remains to be matched. With a unique, customized design and exquisite detailing, the Friendship 40 offers push-button sailing, easily operated by a single person. Its spacious cockpit, a feature typically found on larger yachts, provides an ideal setting for a cocktail cruise accommodating up to 10 guests.
Contact Us For More Information
Detailed Information
Overview
The Friendship 40’s spacious, ergonomically designed cockpit is bordered by a wide teak coaming, creating a generous seating area. The low-profile cabin top offers a complete 360-degree sightline, allowing an unobstructed view from bow to stern. Every detail has been considered toward the perfect balance of performance and style.
Key Features
• One of only two Friendship 40’s with a generator
• Interior and exterior luxury packages
• New 3Di sails
• Custom stainless steel welded Sunshade
• All sail handling is done using push buttons located within finger’s reach from the helm seat
• Many recent upgrades

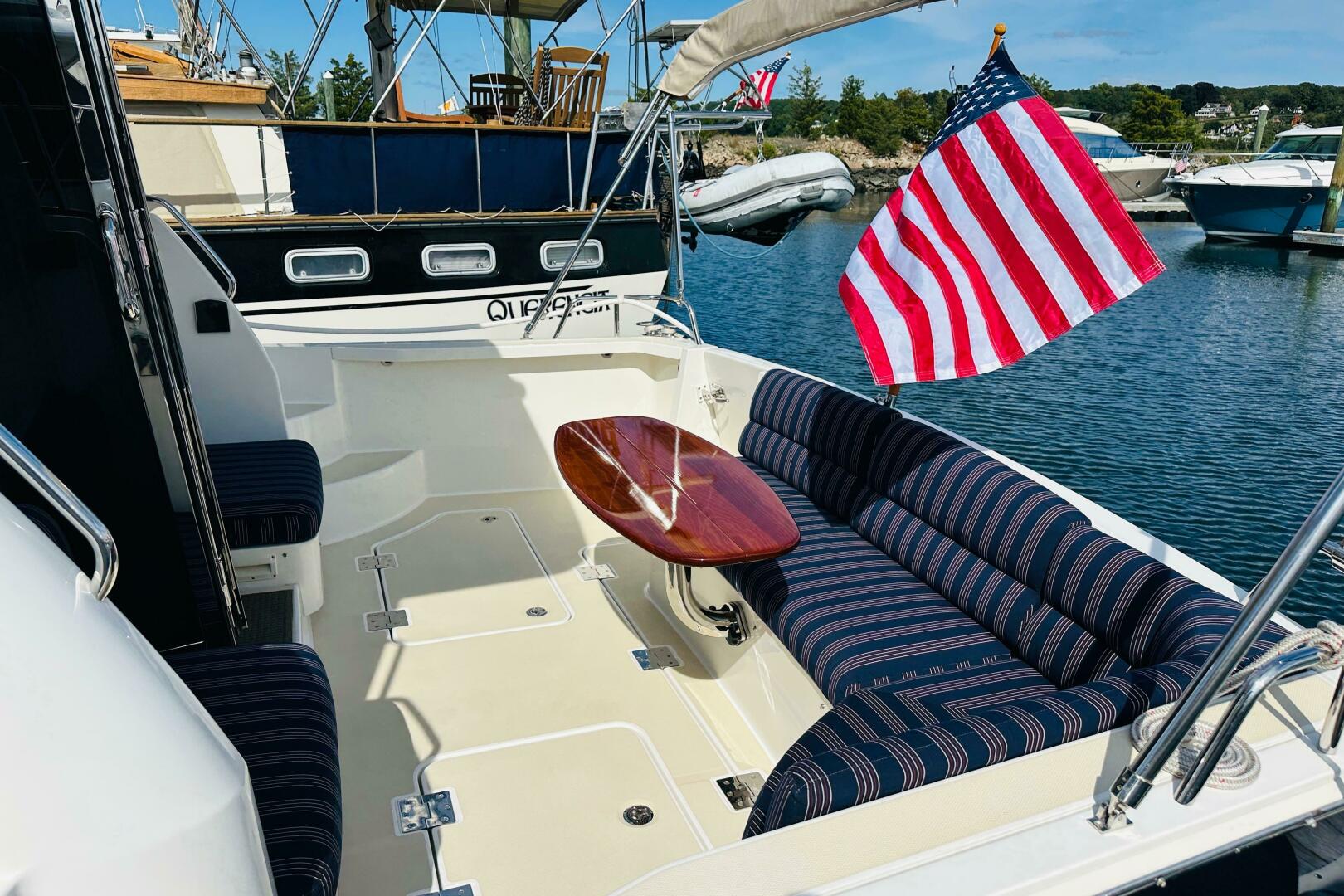

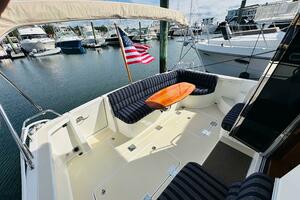

Deck / Cockpit

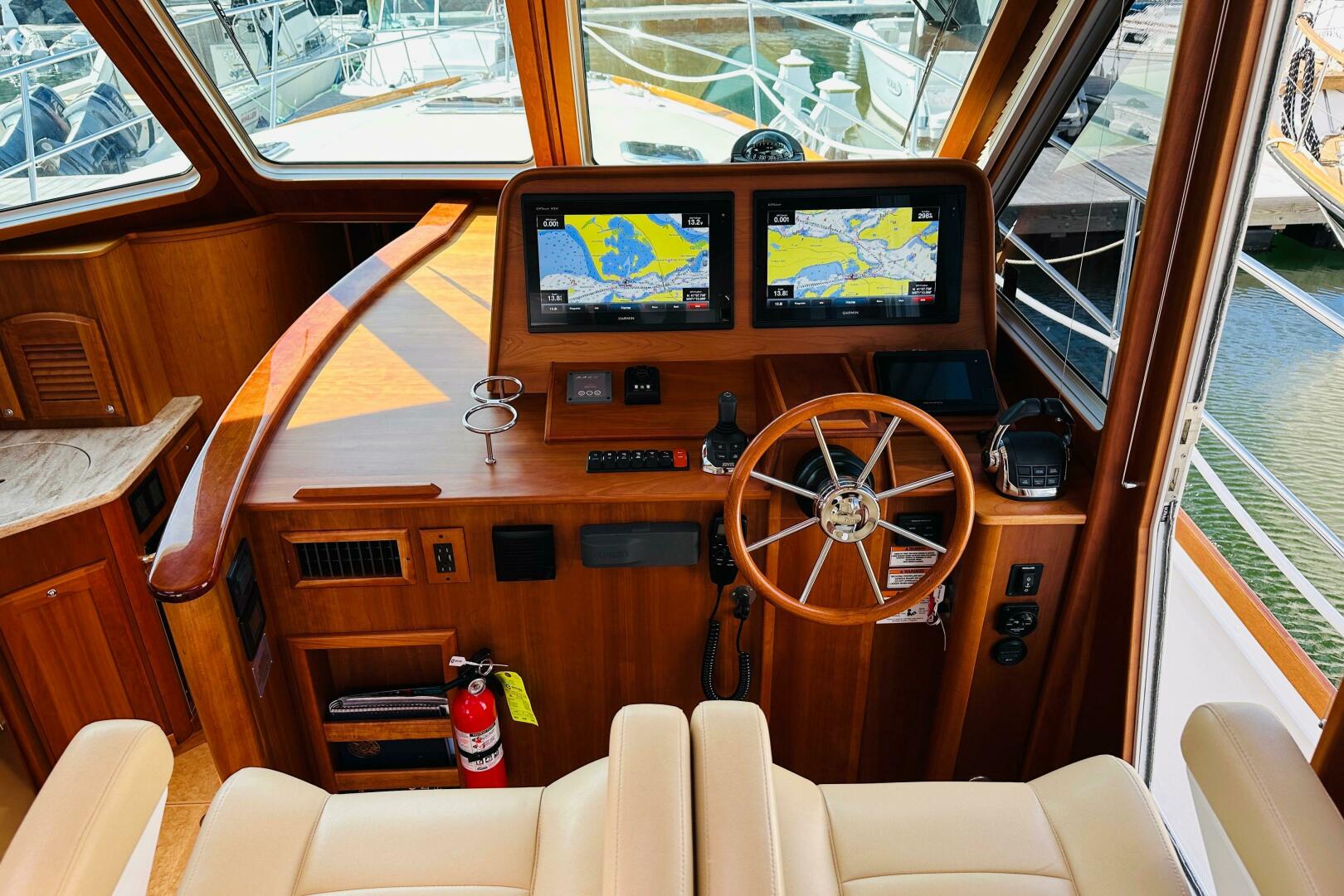

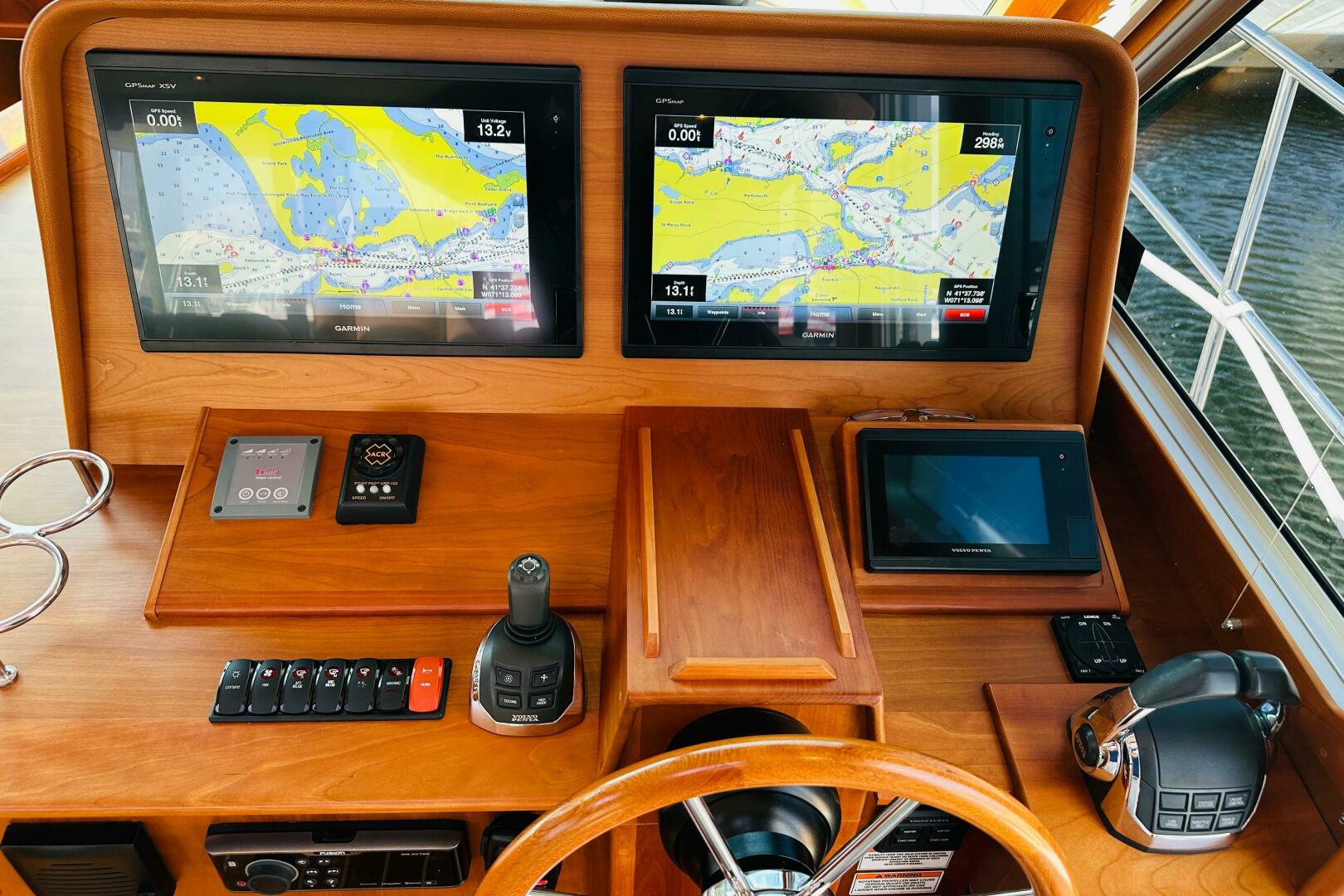

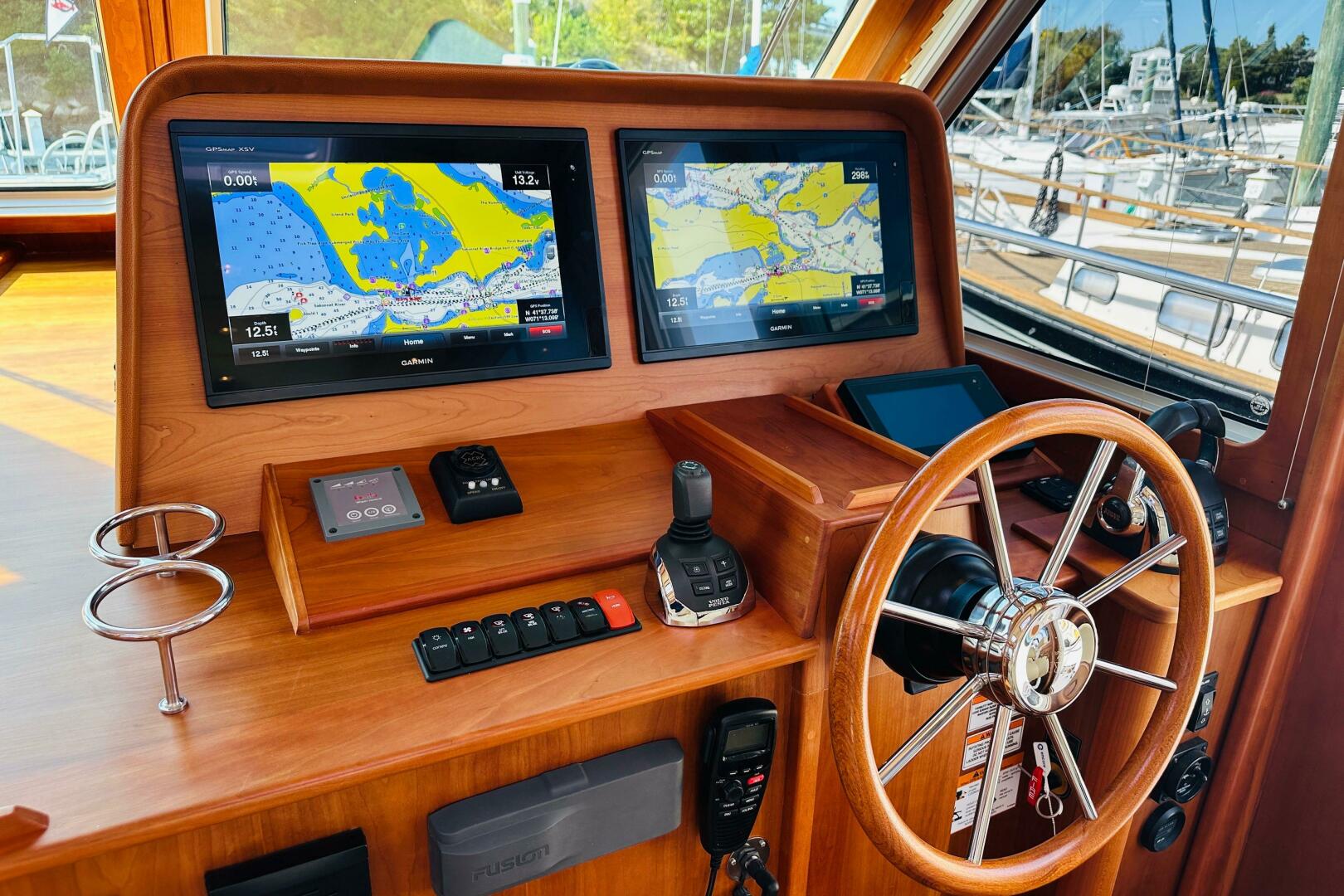

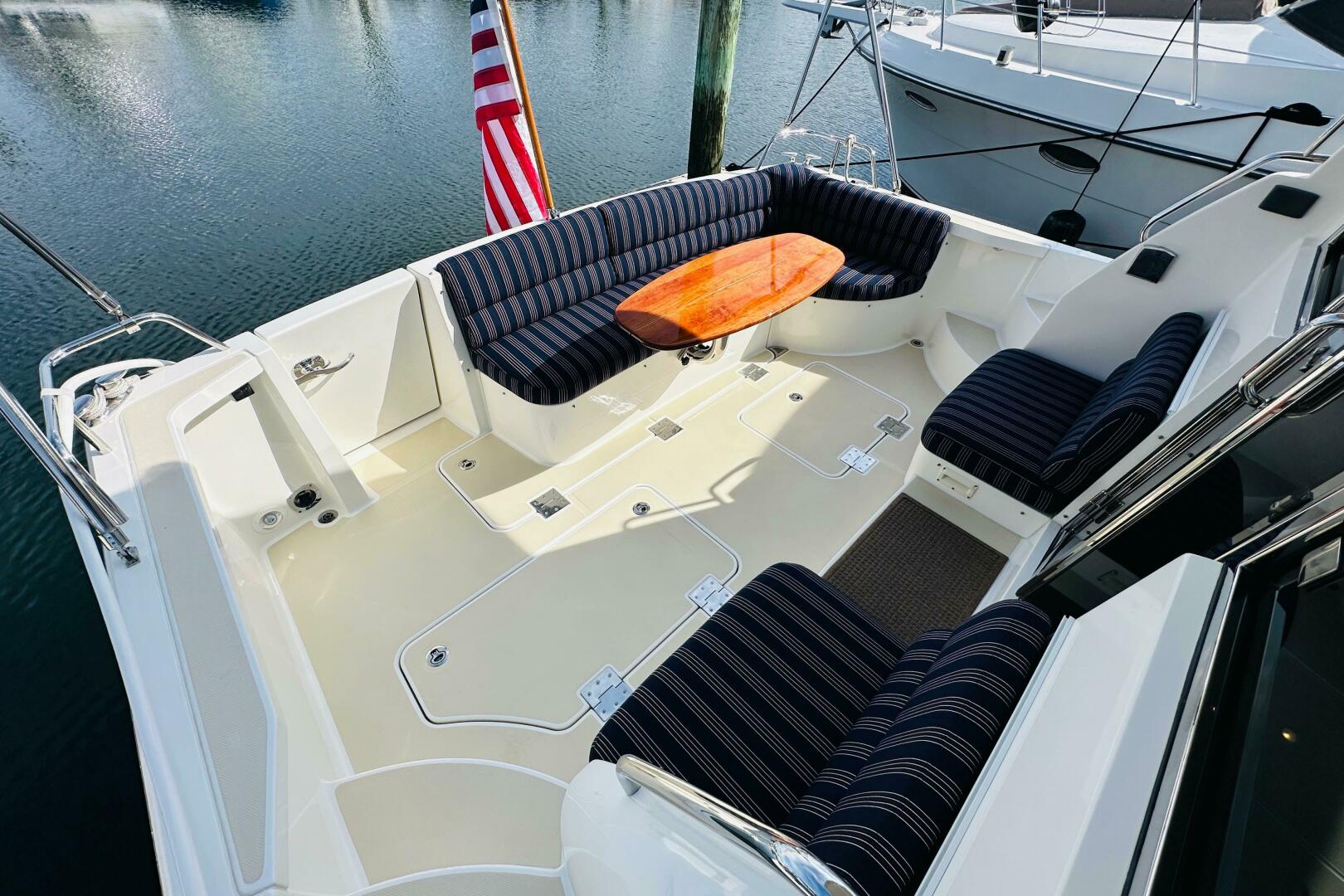

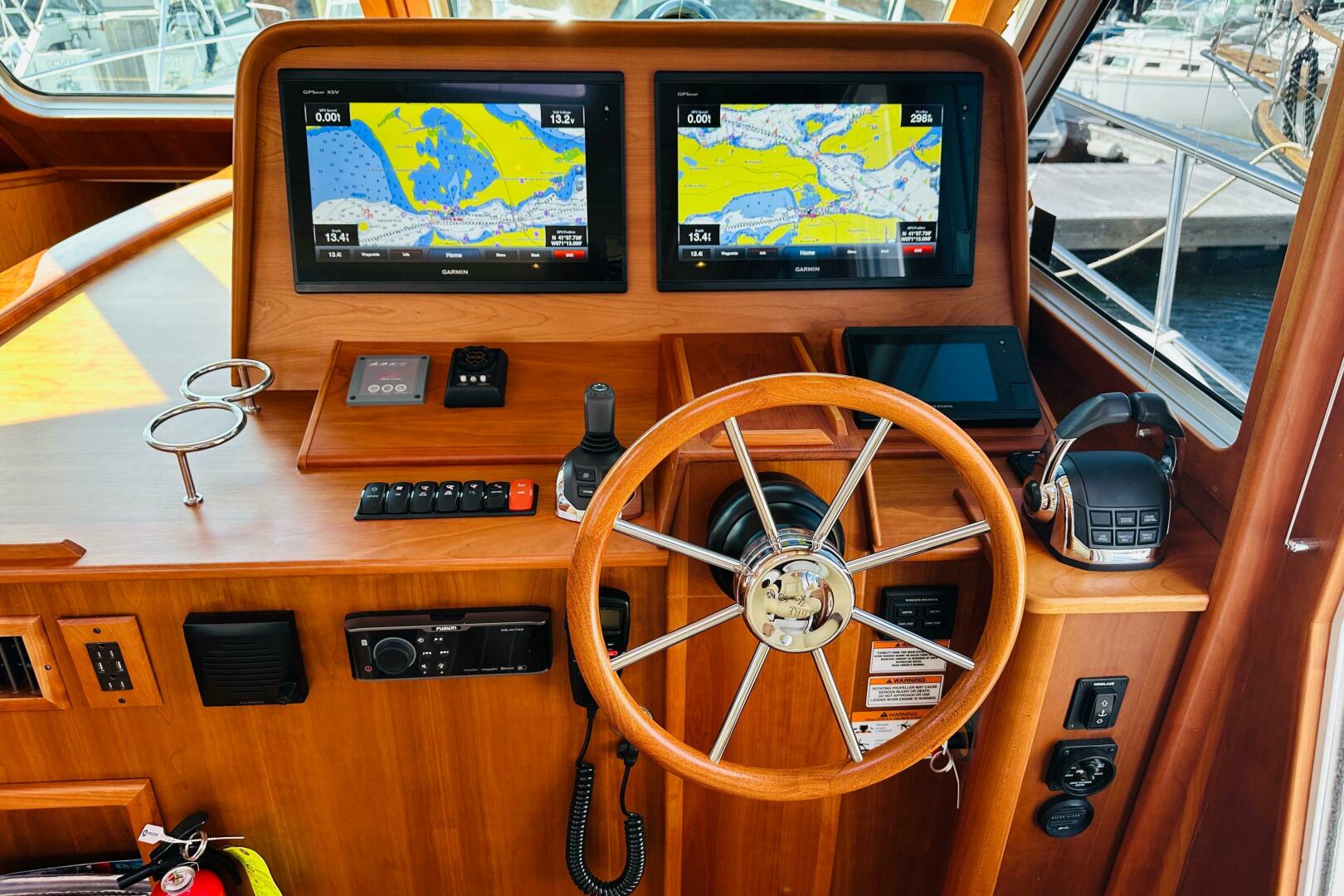

ENCORE’s cockpit is equipped with a Garmin 5208 touchscreen color chart plotter featuring radar overlay, custom-fitted in a pull-out stainless-steel housing, along with a Simrad autopilot and two recessed B&G multifunction displays. The GPS unit includes a digital fish finder, satellite weather, radio, iPod connectivity, and compatibility with 3D G2 chart cards. The drop-leaf table offers built-in storage compartments, holders for glasses and wine bottles, and an insulated compartment for chilled drinks. Additionally, the cockpit sole opens via a push-button hydraulic ram, providing access to the Northern Lights generator.
The hydraulic mainsheet system and headsail Furler of the Friendship 40 are controlled by two foot buttons at the helm. All sail handling is done using push buttons located within finger’s reach from the helm seat. Two secondary winches on the house top provide push button control of centerboard control, spinnaker halyard, back-up main halyard and preventer. All lines have flush, stainless steel lined bins for clutter-free storage. All four deck winches are stainless steel Lewmar two-speed electric.

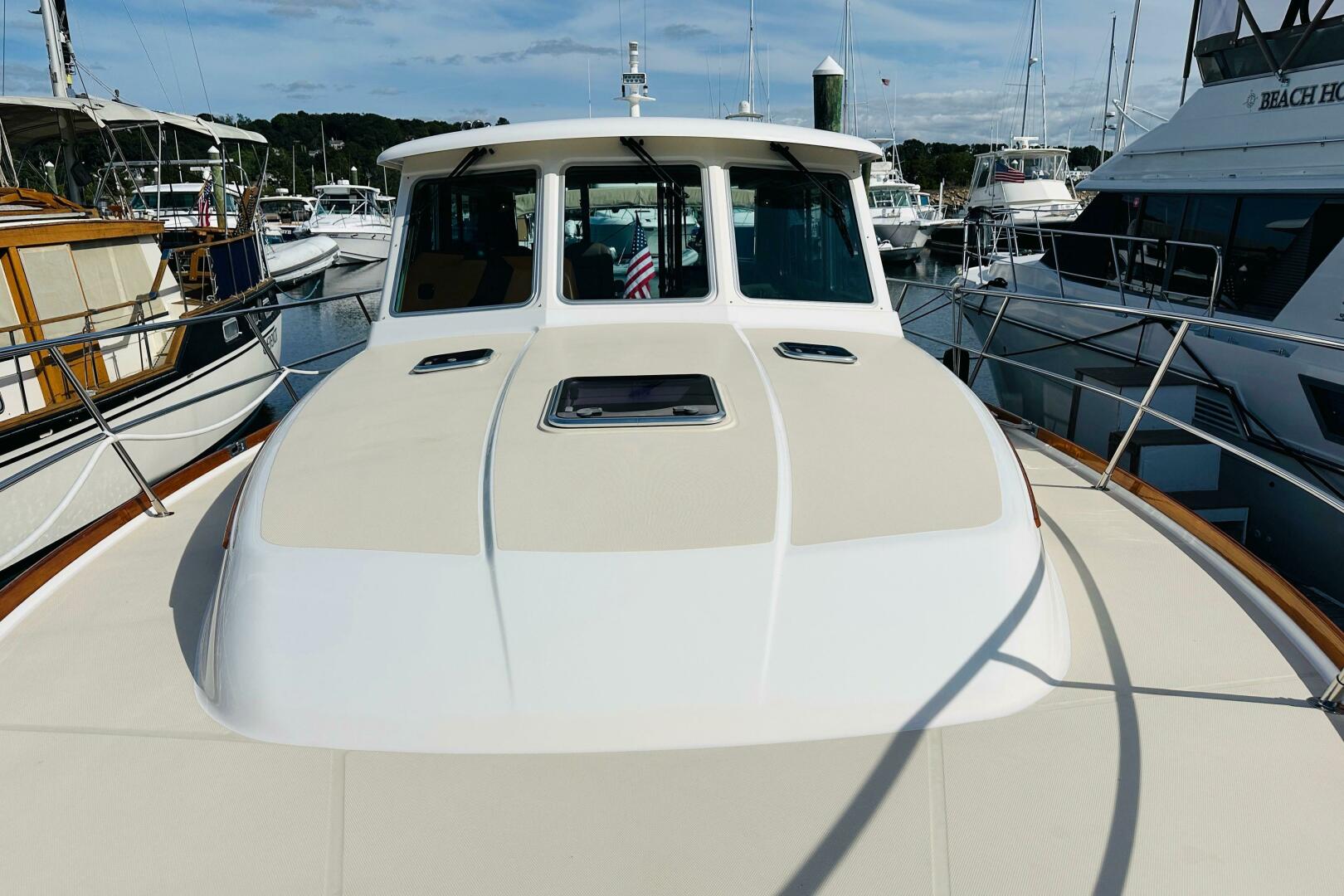

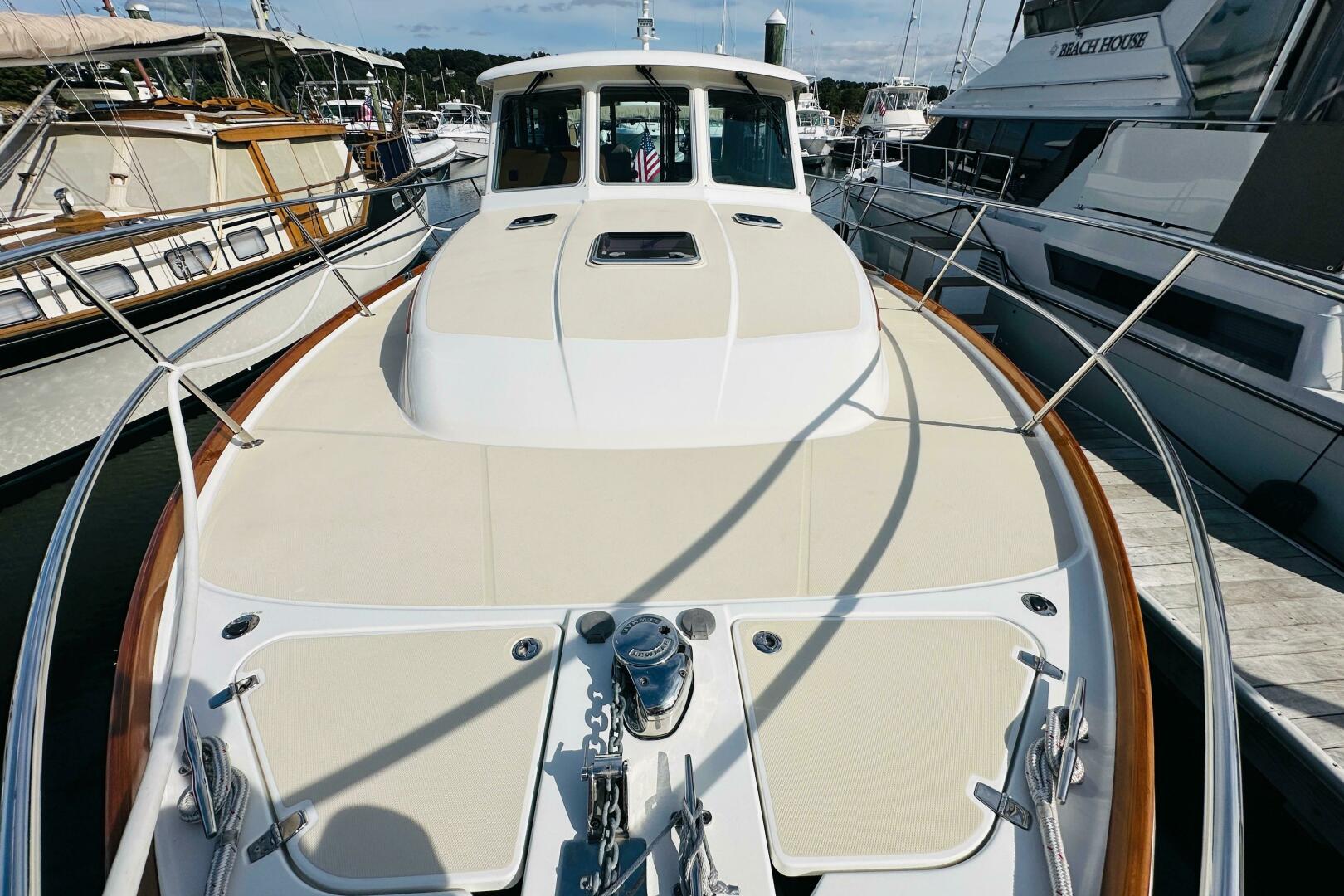

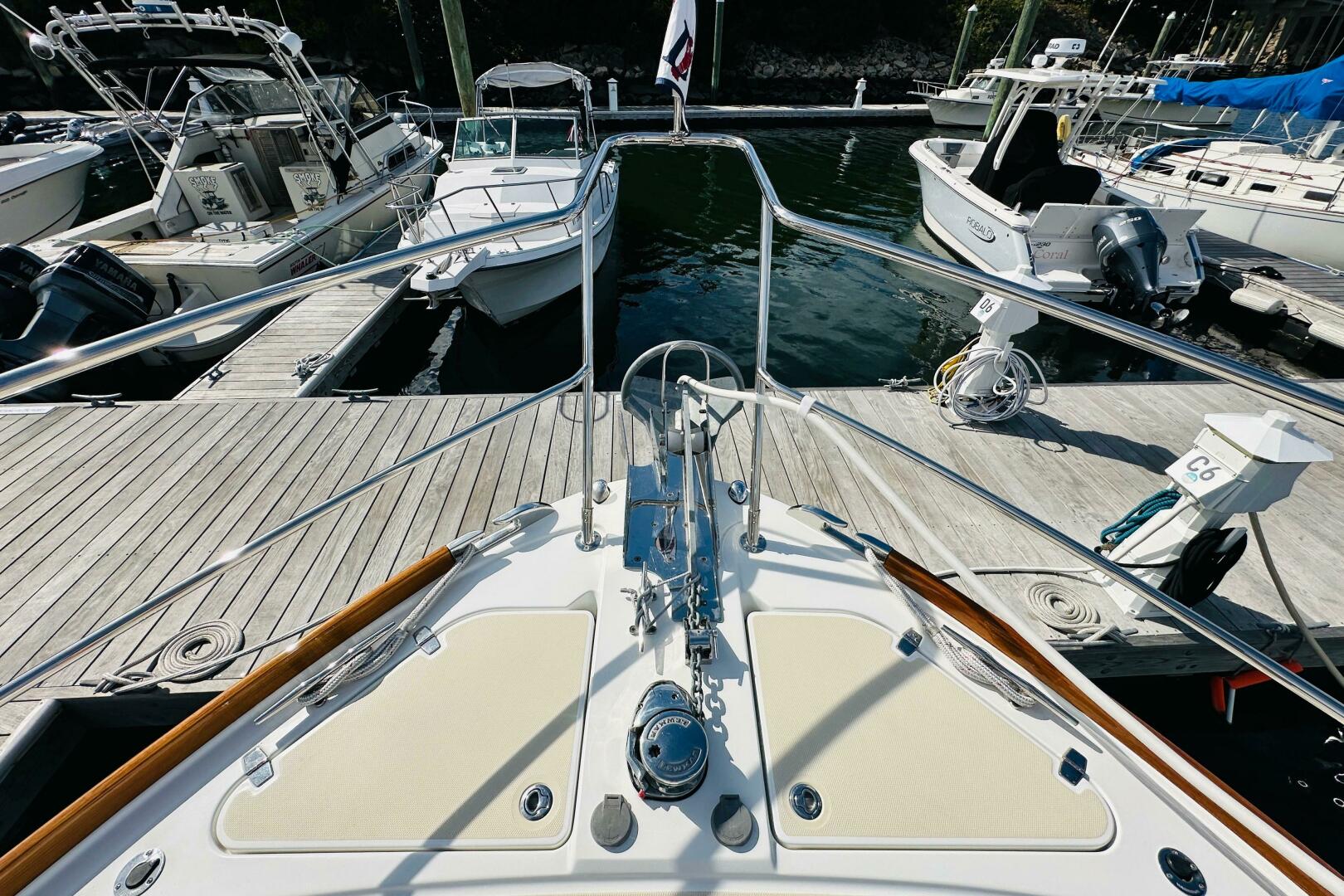

The foredeck houses two flush lockers – to port is the swing out anchor system with Lewmar electric windlass and saltwater wash down, to starboard is the chain locker with storage for swim ladder and dinghy outboard motor. The custom chocks in the cap rail are larger on the foredeck than those aft to accommodate large mooring lines, and the cleats are flush to the deck when not in use. On centerline is an additional, extra strength pop-up pad eye for hurricane tie down.
Stepping from the graceful cockpit into the Friendship 40's interior reveals an equally impressive, classically refined space. Designer Ted Fontaine has achieved a perfect balance of comfort and functionality, creating a surprisingly spacious layout. With varnished, raised-panel teak joinery, custom wide settees, abundant storage in teak lockers, a full head with shower, a functional galley, and a large centerline double berth, this yacht is the ultimate weekend escape.
Structural
Hull
• Constructed with a composite design featuring Airex foam in the topsides and a solid laminate hull bottom, using vinyl ester resin to reduce print-through
• Reinforcements consist of hand-laid, stitched, and knitted multiaxial E-glass fabrics with carbon fiber reinforcement in high-load areas
• Bulkheads are made from marine-grade plywood, laminated into the hull, and all cores are secured using vinyl ester adhesive
• 2 x Custom-molded consoles provide access to hydraulics, sail controls, and engine instruments, along with a recessed molded sheer strake
• Hull is finished with high-density foam in the areas around all fittings, reinforced with hand-laid, stitched, and knitted multiaxial E-glass fabrics, and coated with isophthalic polyester resin
Deck And Deck Hardware

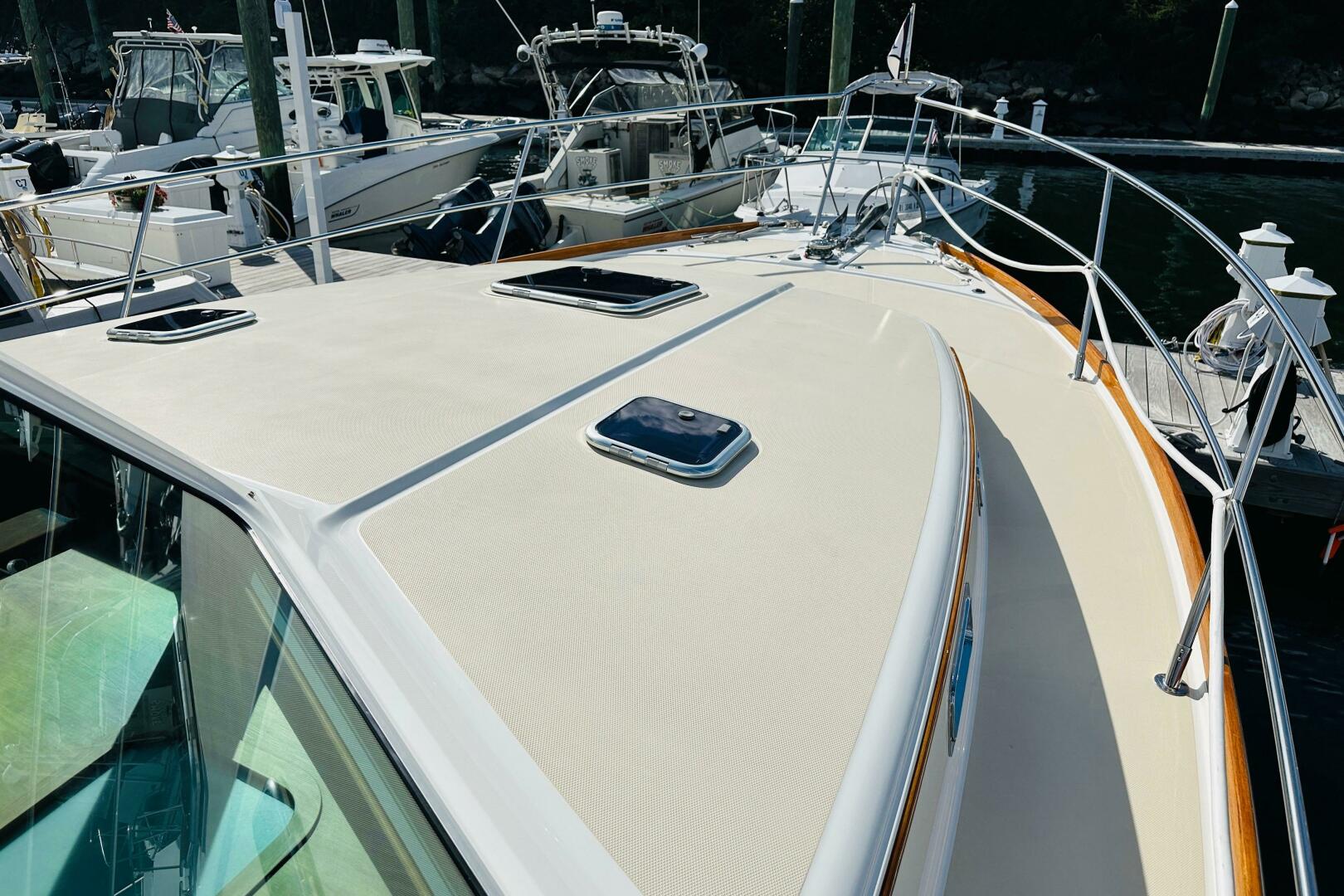

Deck
• Sheer Strake: Varnished teak

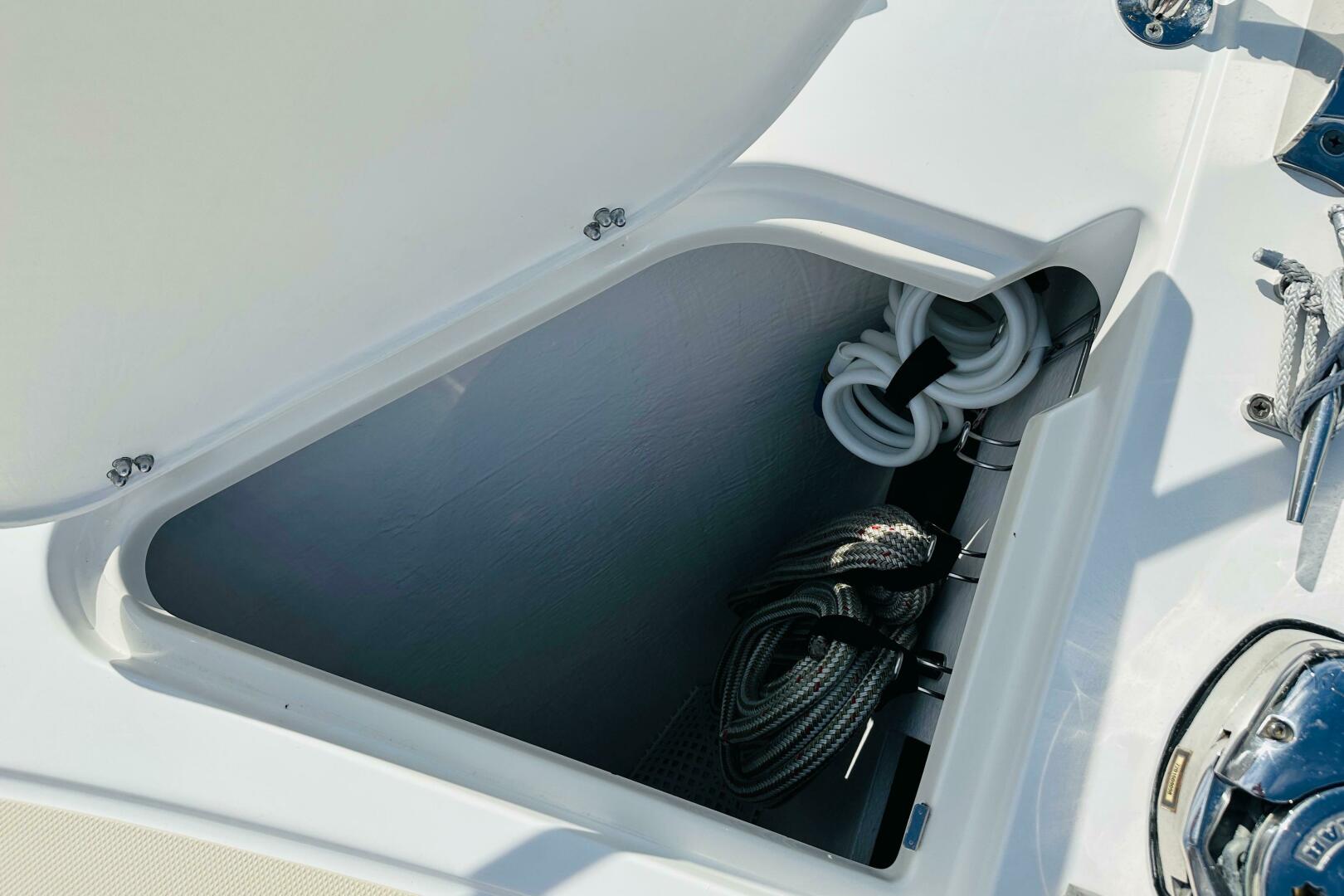

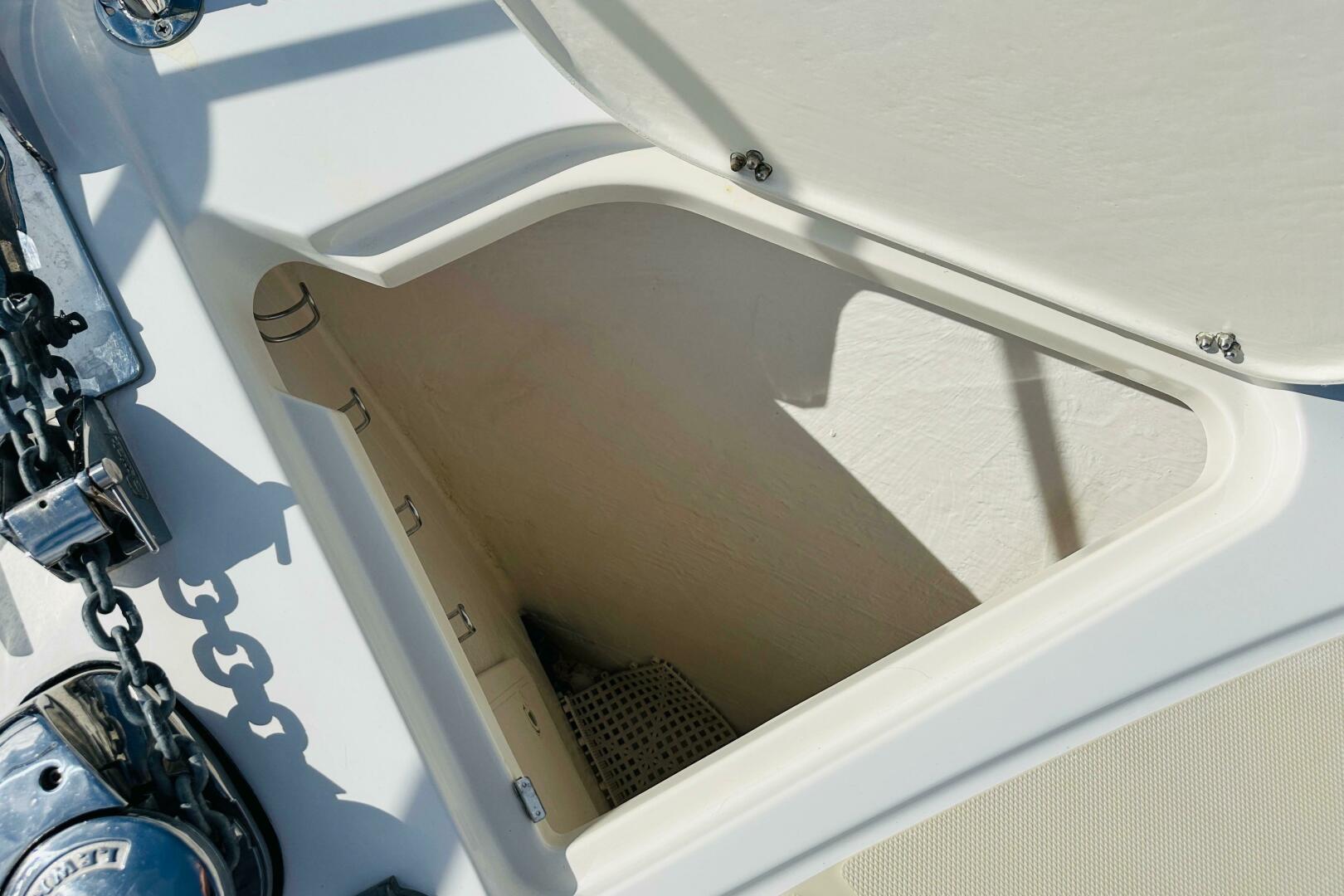

• Anchor locker
• Molded into the foredeck with a flush, hinged hatch top
• Self-launching anchor roller with a 35 lb. Delta anchor and 60m of 6mm chain, along with a saltwater anchor wash system
• Windlass: Equipped with a Lewmar V2 electric stainless steel anchor windlass, controlled by two-foot buttons and a remote
Chocks
• Custom cast stainless steel chocks
• 2 x Quarter chocks
• 2 x Midship chocks
• 2 x Bow chocks, designed to handle bulky mooring lines
• Cleats: 8 x Attwood flush-mounted retractable mooring cleats with 4-bolt bases
• Nosing: Varnished teak
• Ports: 6 x Custom, fixed, tinted elliptical glass ports in the cabin trunk
Winches
• 2 x Electric, 2-speed self-tailing Lewmar primary winches with gear ratios of 2.6:1 and 9:1, and a power ratio of 48.6:1
• 2 x Electric, 2-speed self-tailing Lewmar winches for halyard, centerboard, and mainsheet controls with gear ratios of 2.4:1 and 7.6:1, and a power ratio of 44.8:1
• All winch buttons are recessed stainless steel Antal hardware
• 2 x Lewmar lightweight 250mm lock-in handles with ball grips
Hardware
• Antal winch buttons
• Radiused genoa T-track
• Genoa cars and sliders
• Organizers
• Screw-in pad eyes
• Stoppers
• Silver anodized sheaves
Hatches
• 3 x Custom flush teak deck hatches for the lazarette, foredeck, and anchor locker
• Custom glass hatch above the forward berth sits flush with the foredeck
Companionway
• Varnished teak sliding hatch with removable varnished teak drop boards
• Lockable clasp
• Custom storage bins

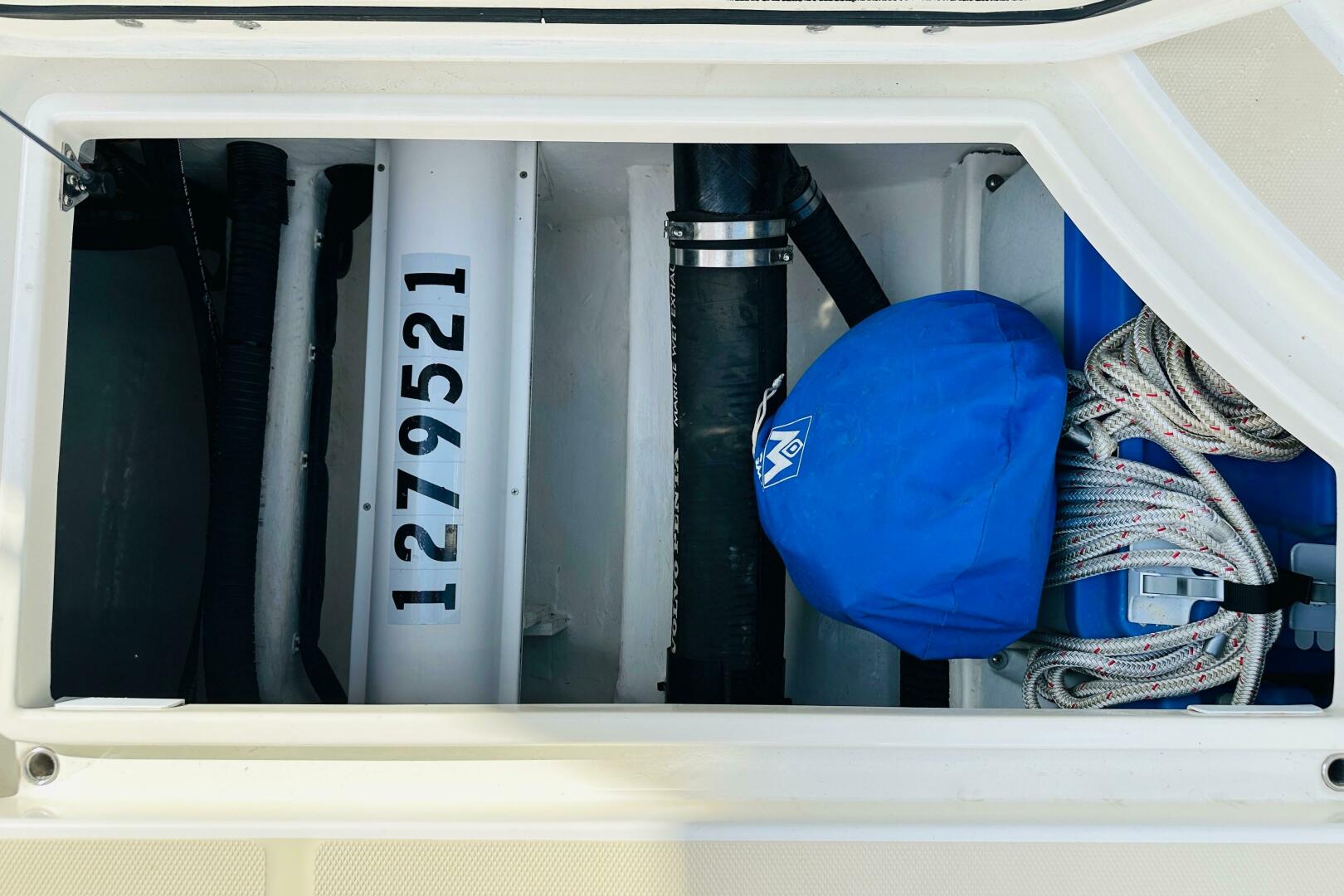

Cockpit Storage
• 4 x Hinged stainless steel Man Ship hatches under the cockpit settees, with two dedicated to storage and two providing access to the engine
• 4 x custom mounts all welds are polished
• Top is Sunbrella waterproof fabric with laced pocket and sailing windows
Ensign
• 5-foot varnished teak flagstaff with a 3’x5’ US yacht ensign commissioning flag
• Stainless steel, cap rail-mounted flag socket with capability for dinghy towing
Accessories
• 4 x Custom 12”x 24” line bins for halyard and sheet tails,
• 4 x Custom drink holders in the cockpit, all with polished stainless-steel trim and lining
• Cockpit Sole: Teak decking on the cockpit sole with a custom angled floor for the helmsman
• Sheet Stoppers: Located on starboard for mainsheet, centerboard, and topping lift, and on port for main halyard, main reefing line, and MPS halyard
• Antal sheet stoppers with lines passing through Antal triple deck block organizers
Exterior
Trim
• Varnished teak accents include a 6” wide cockpit coaming cap
• Cabin top nosing
• Cap rail
• 4 x Console tops with flush stainless-steel-lined drink holders
• Framed companionway sliding top with stainless rails
• Cockpit seat fiddles

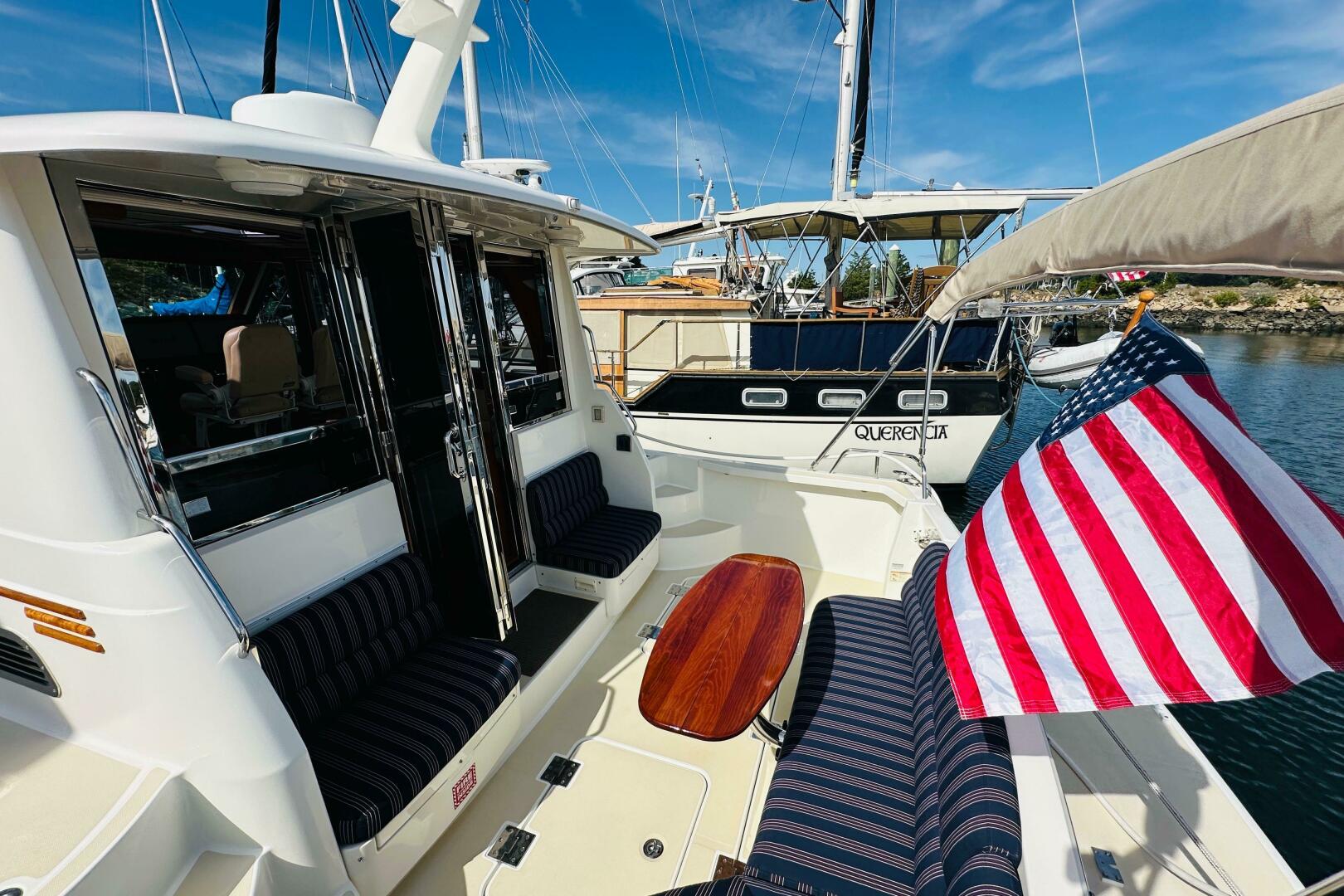

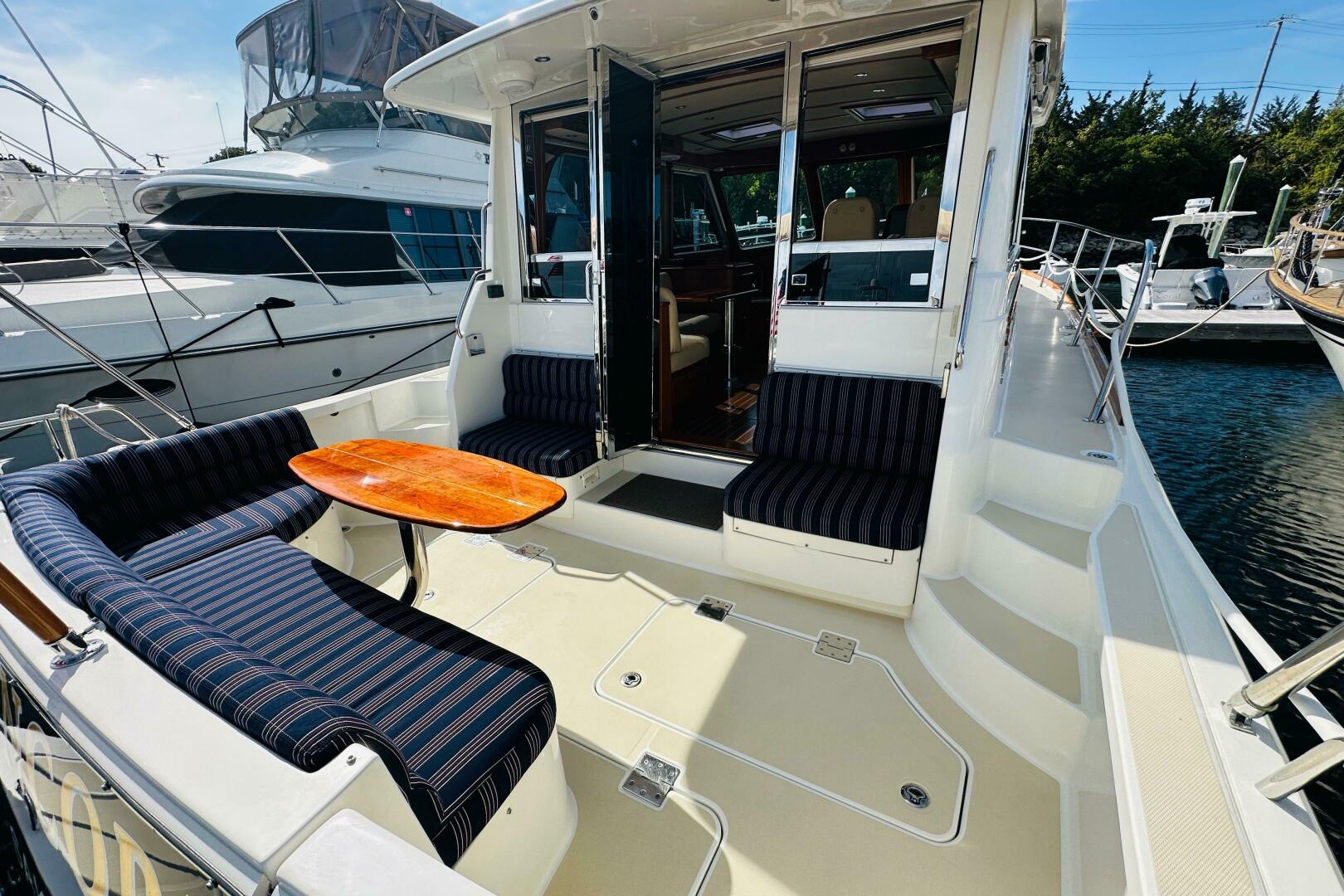

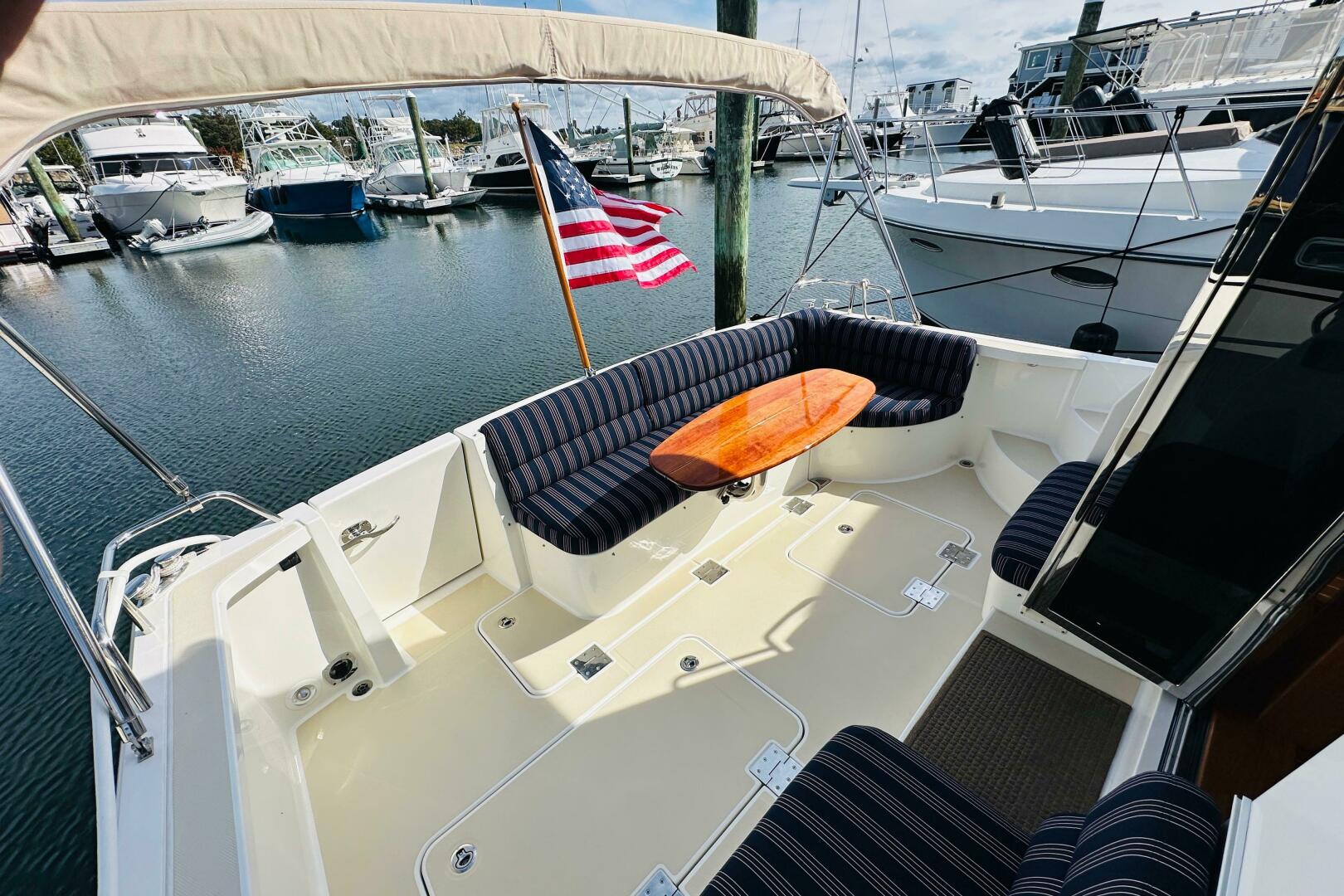

Seating

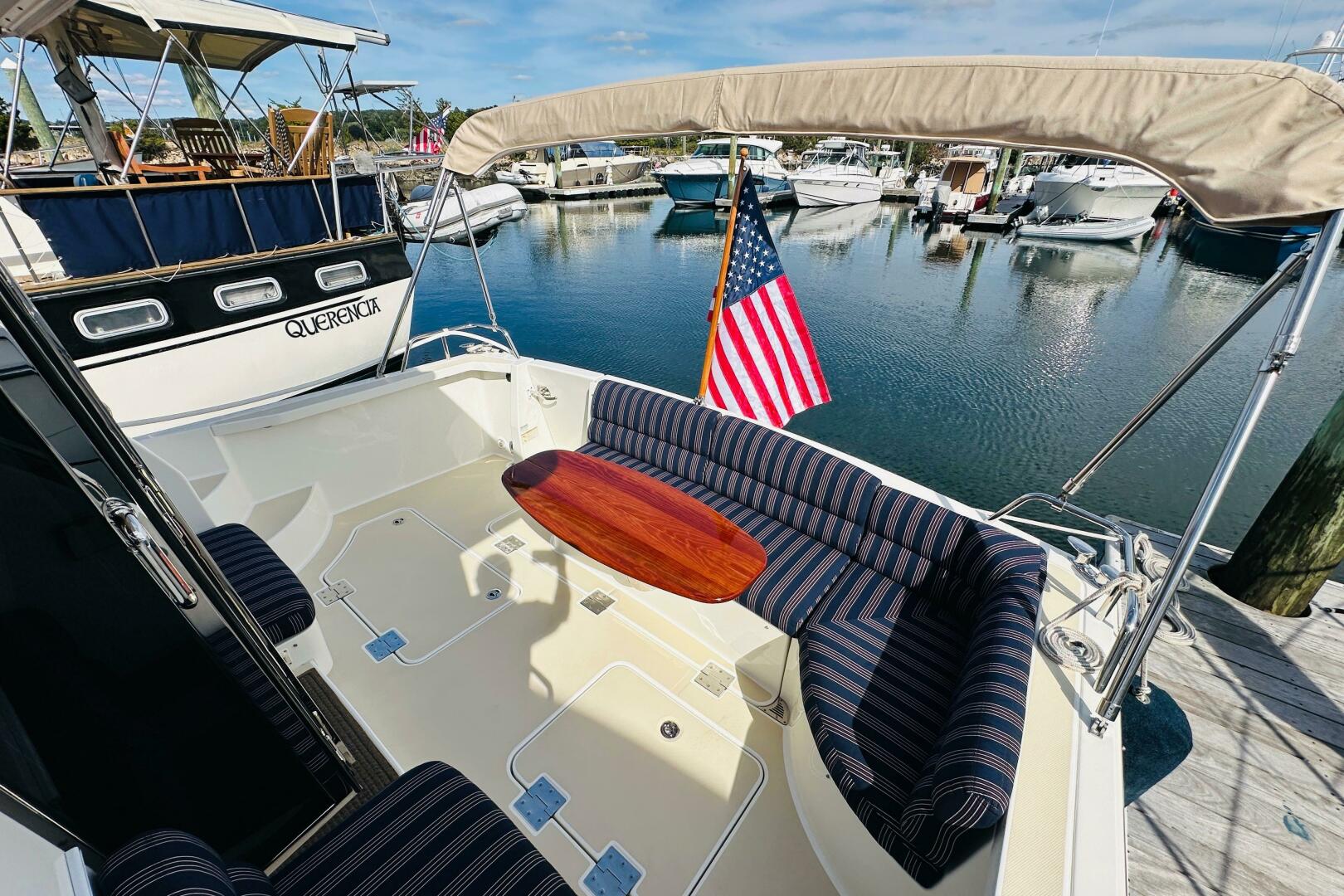

• Molded cockpit seats with custom 4” thick cushions upholstered in Perennials outdoor fabric (new 2021)
• Port and starboard-facing settees in the cockpit
• Forward-facing settee behind the steering wheel
• Ergonomic double-angle backrests

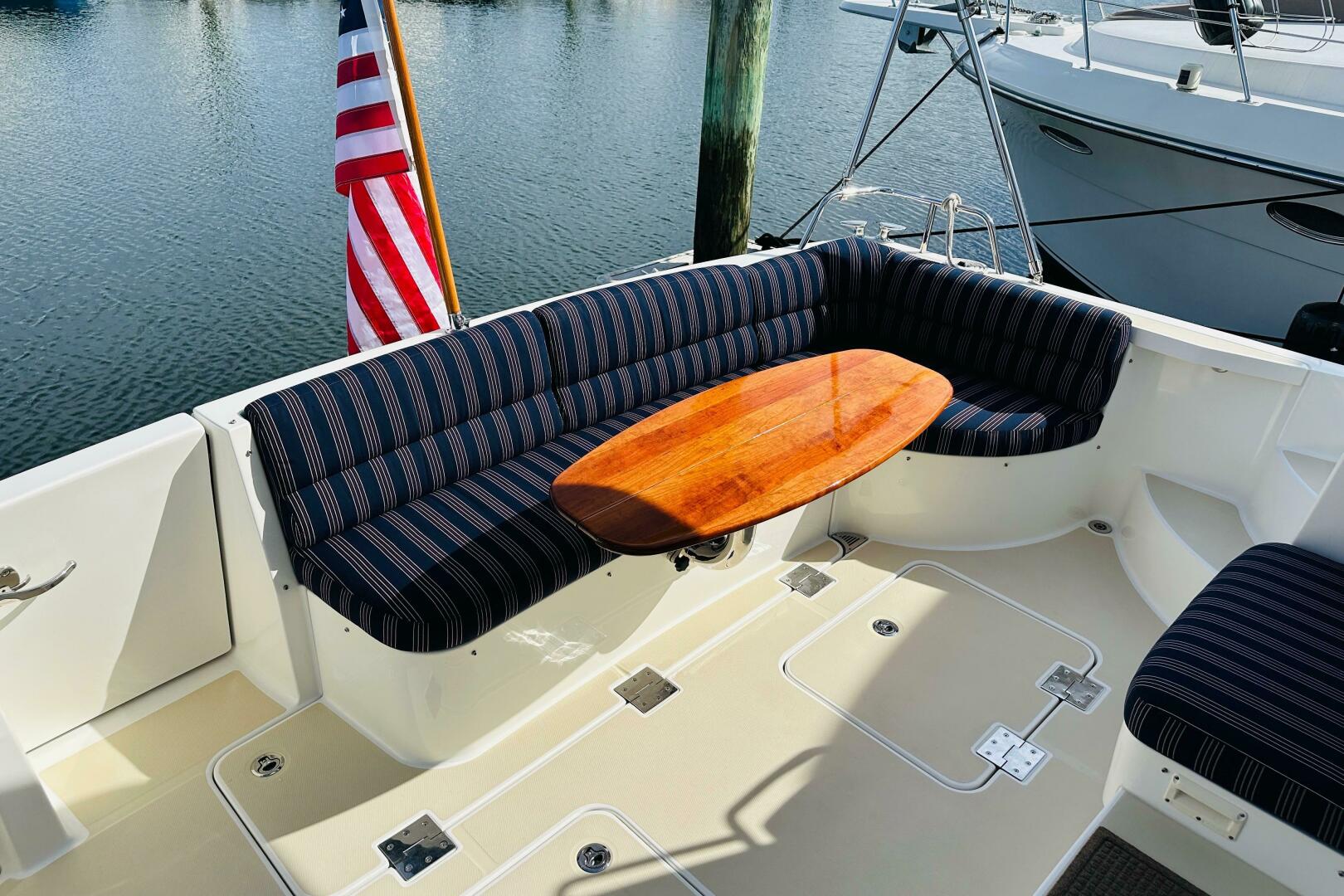

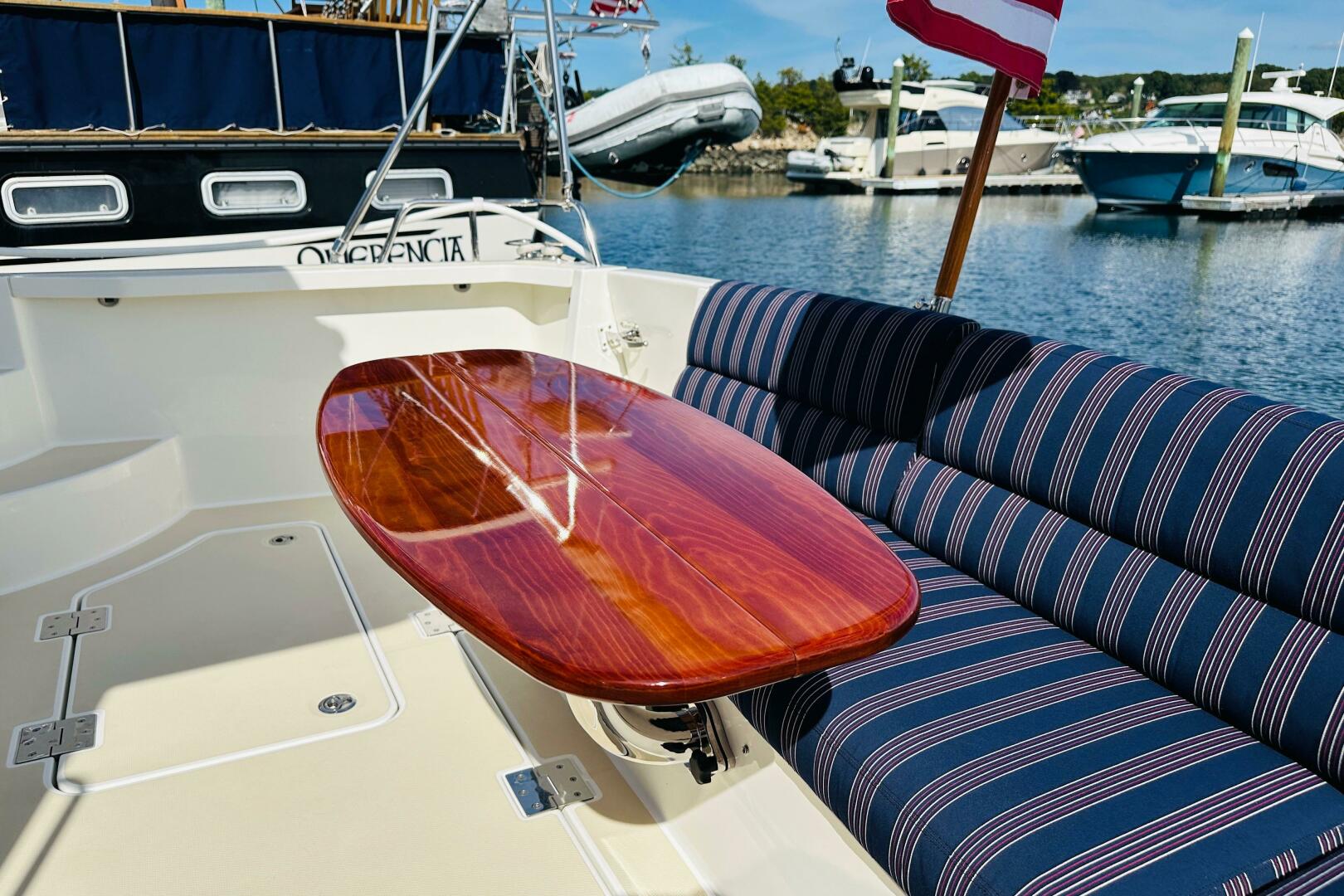

Cockpit Table

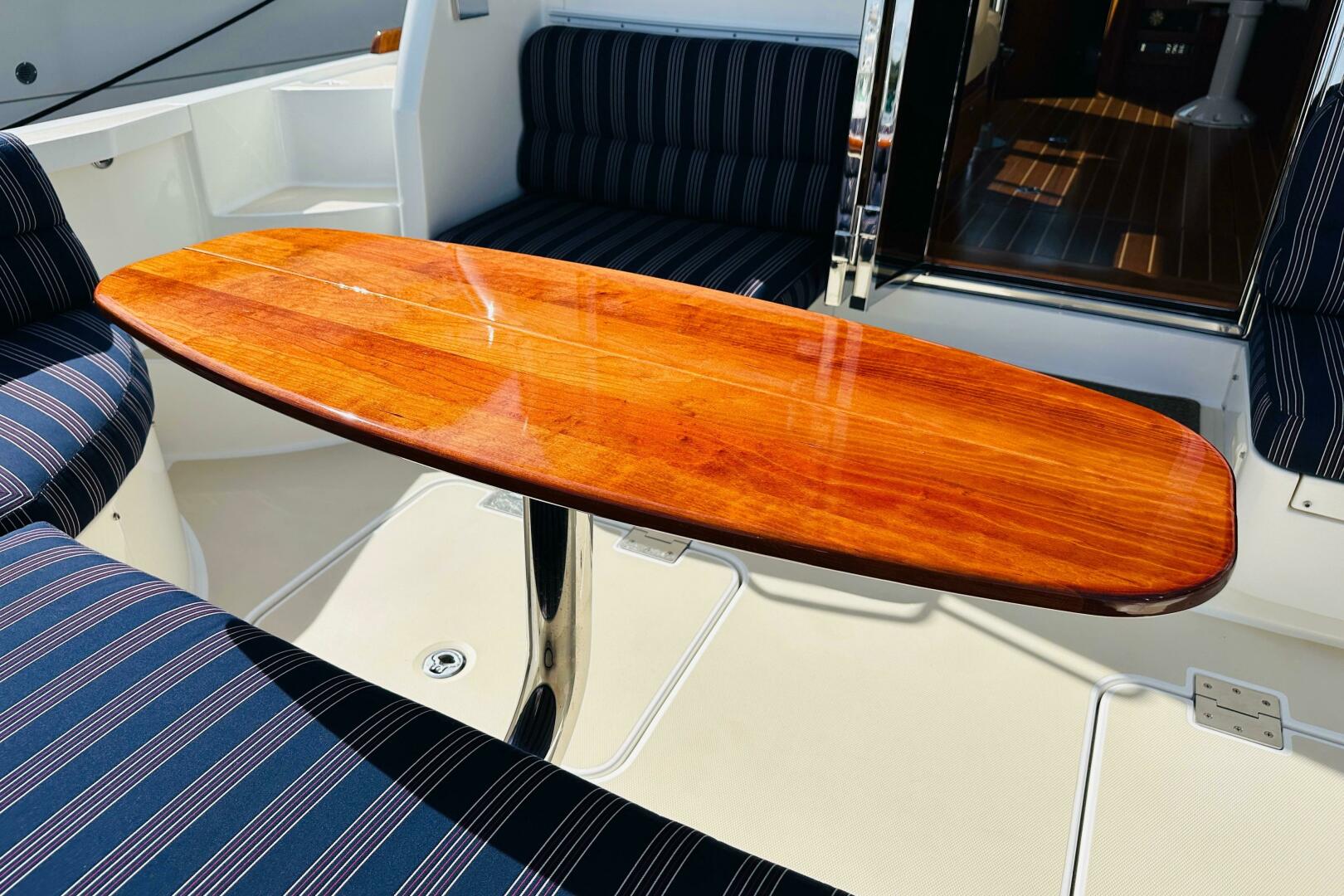

• Custom varnished teak drop-leaf table with built-in chart plotter
• 12V outlet
• Insulated, drained cold beverage box with varnished teak covers and stainless-steel legs
• Steering Wheel: 48” stainless steel wheel with stainless rim and elk hide cover
Pedestal
• Classic steering pedestal with through-shaft brake
• Custom stainless-steel housing for GPS plotter with guard/handrail
Stowage
• Storage compartments under port and starboard settees
• 2 x Stainless steel bins by the helm and two by the companionway for line storage at the base of each winch
• Scuppers: Custom stainless-steel scuppers, four in the cockpit and four on deck, with direct overboard drainage
• Stanchions: Removable stanchion fittings integrated into the teak cap rail
Exterior Luxury Package
• Custom dodger with zip-out side curtains
• Recessed stainless steel tracks
• Elk hide-covered grab rail
• Stainless steel braided hydraulic hoses for backstay and vang
• Flush stainless steel chafe plates in the cockpit coaming for jib sheets
• Boom lights with dimmer switches
• Varnished teak wine bottle and glass holders under the cockpit table lids
• Handheld freshwater shower on the aft deck with flush plate and hot/cold mixer tap
• Stainless steel folding swim ladder
• Stainless steel propane grill with custom mounting leg
• 2 x Stainless steel fishing pole holders on the aft deck
• Full-length custom composite rub rail with polished stainless steel striker plate
• Custom boom tent with stainless steel spreader bars

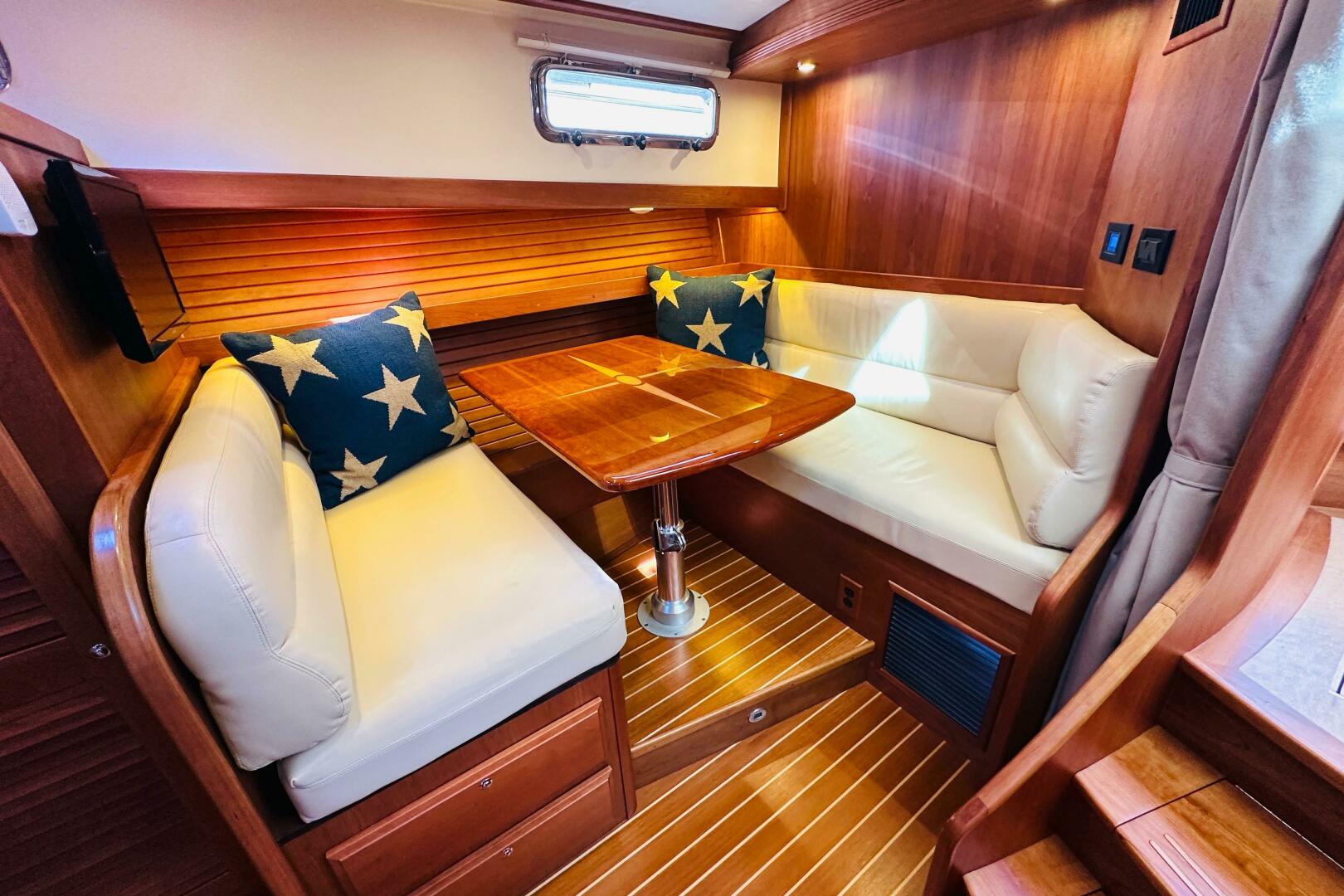

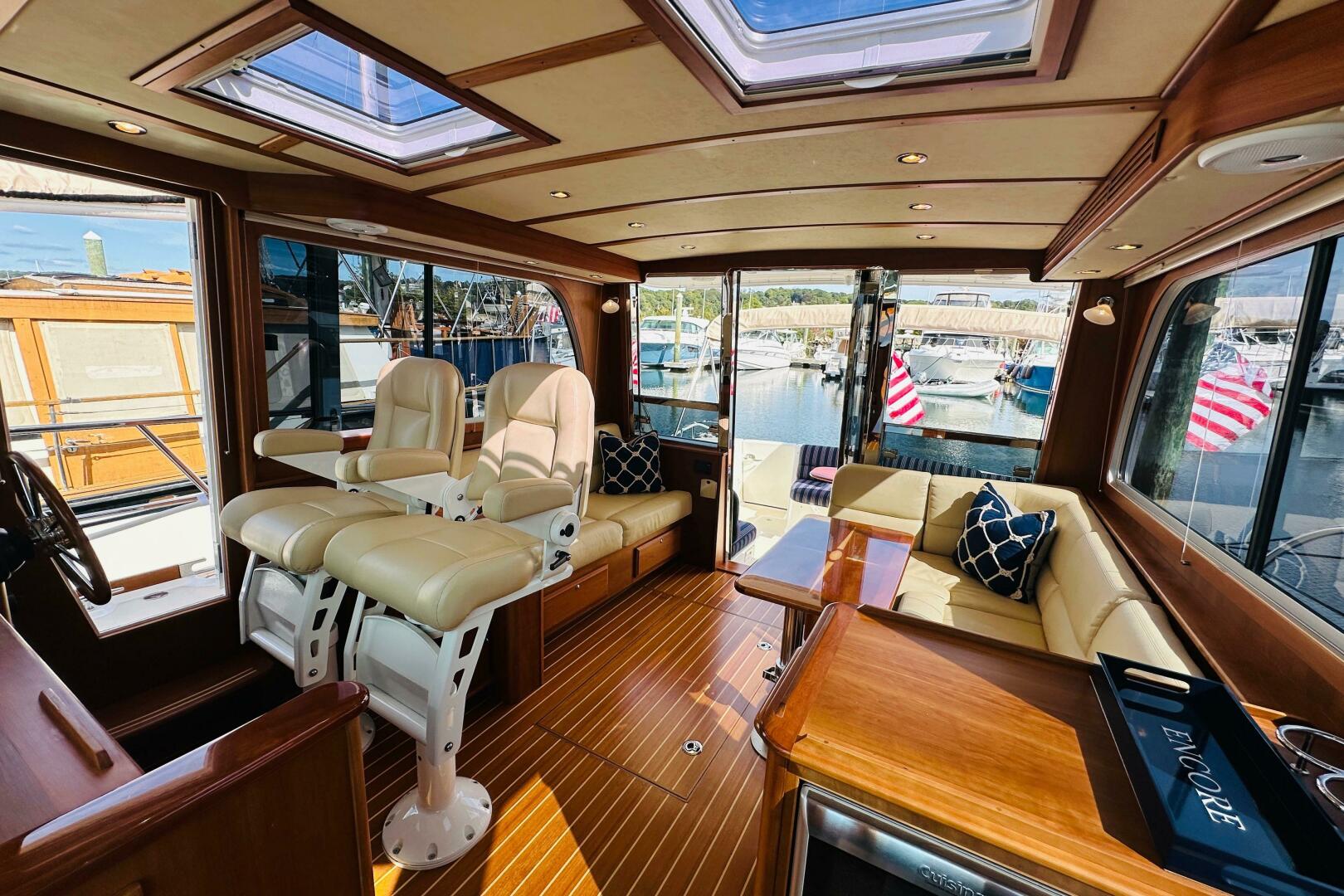

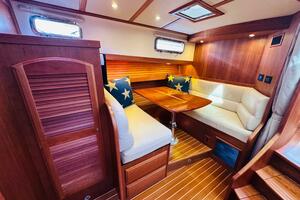

Interior
• Finish: Satin varnished teak veneer on fore and aft joinery
• Satin varnished V-groove hull ceilings and athwartship bulkheads
• Solid teak interior trim, locker door, drawer frames, and corner posts with satin finish
• Overhead: Painted white V-groove overhead
• Soles: Varnished teak with black resin inlay
• Locker Doors: Satin-finish, flat-panel teak with framed edges

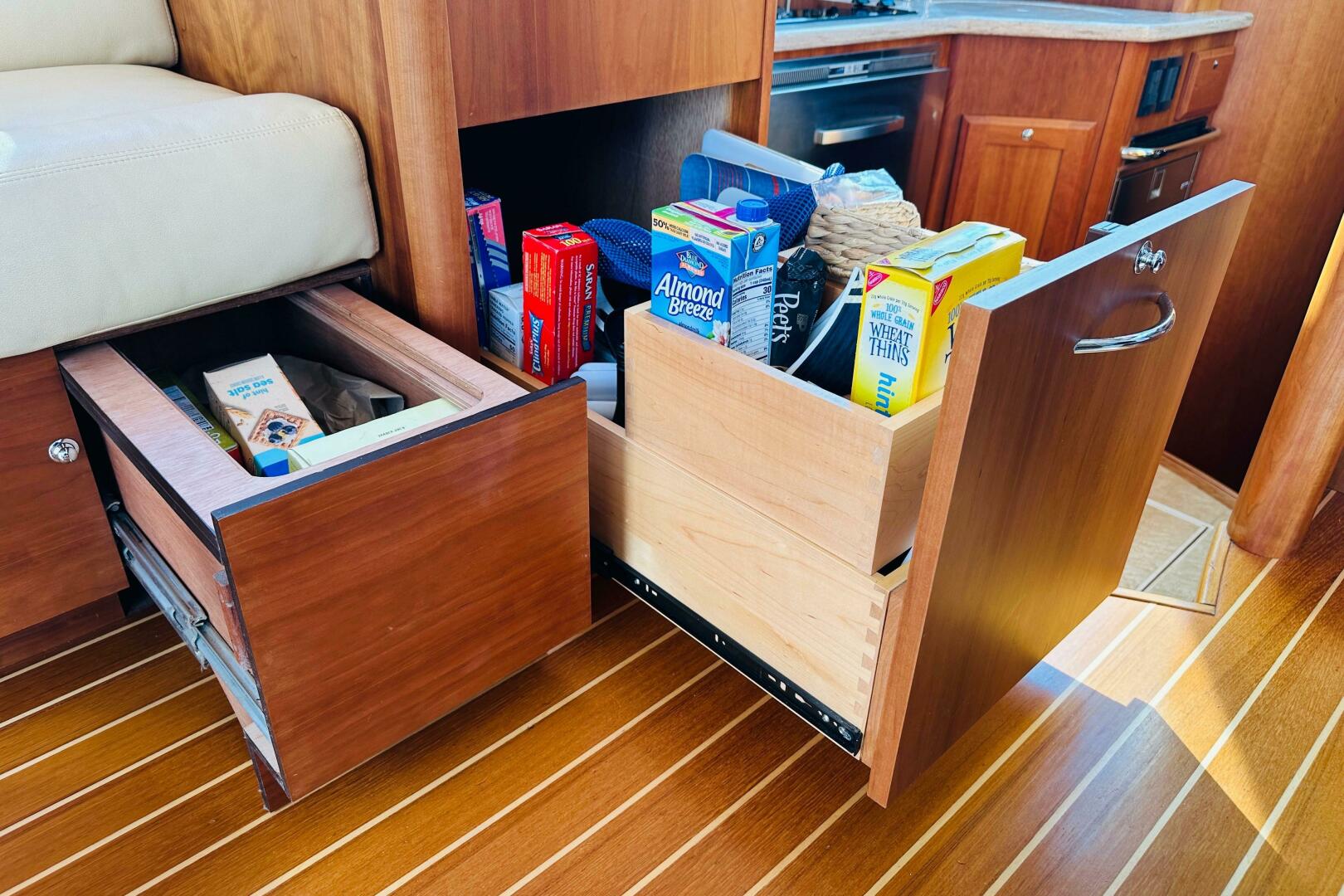

• Drawers: Beaded raised panel teak with custom bin pulls and lift/pull drawer slides

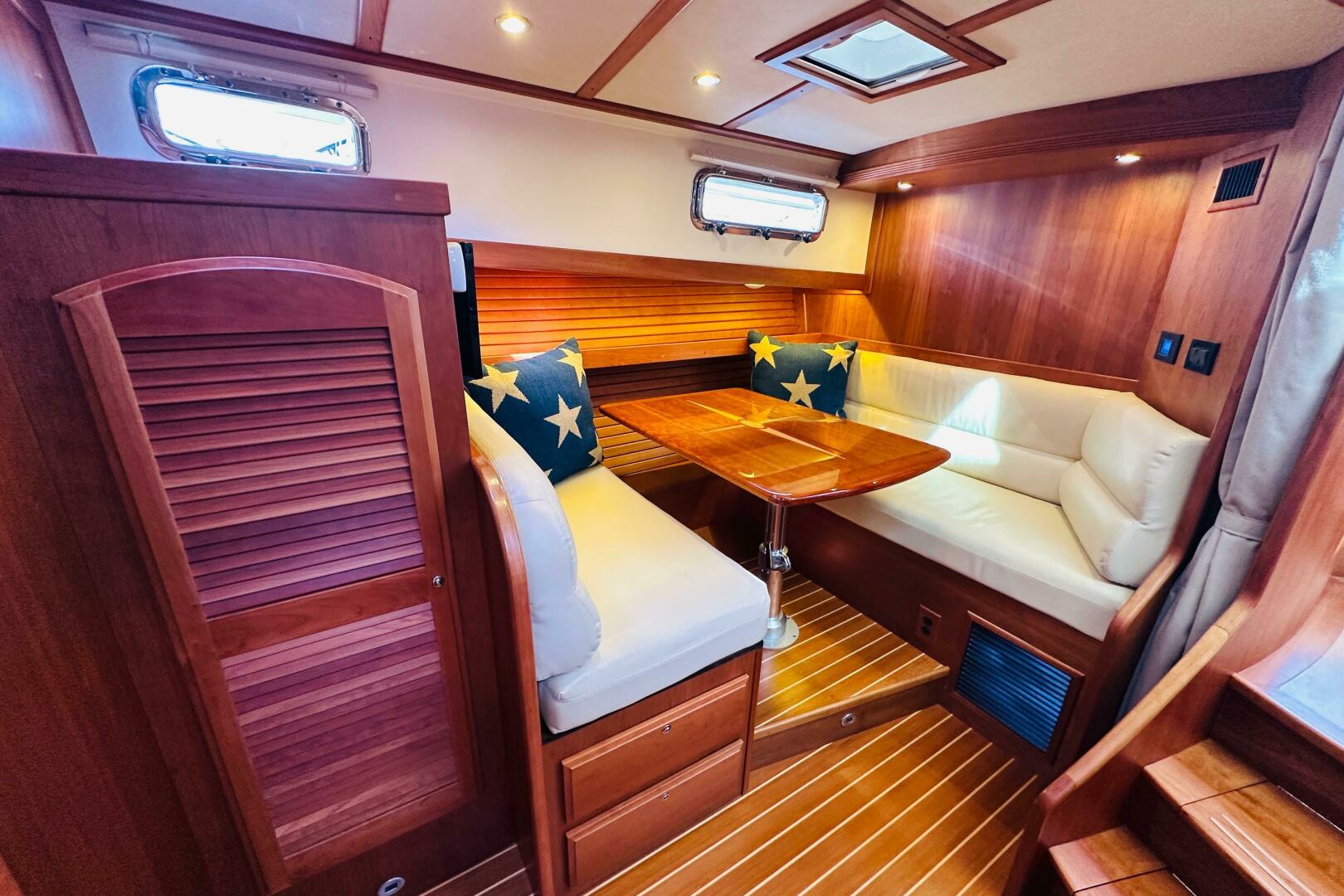

• Table: Solid teak drop-leaf table in the main salon
Berths

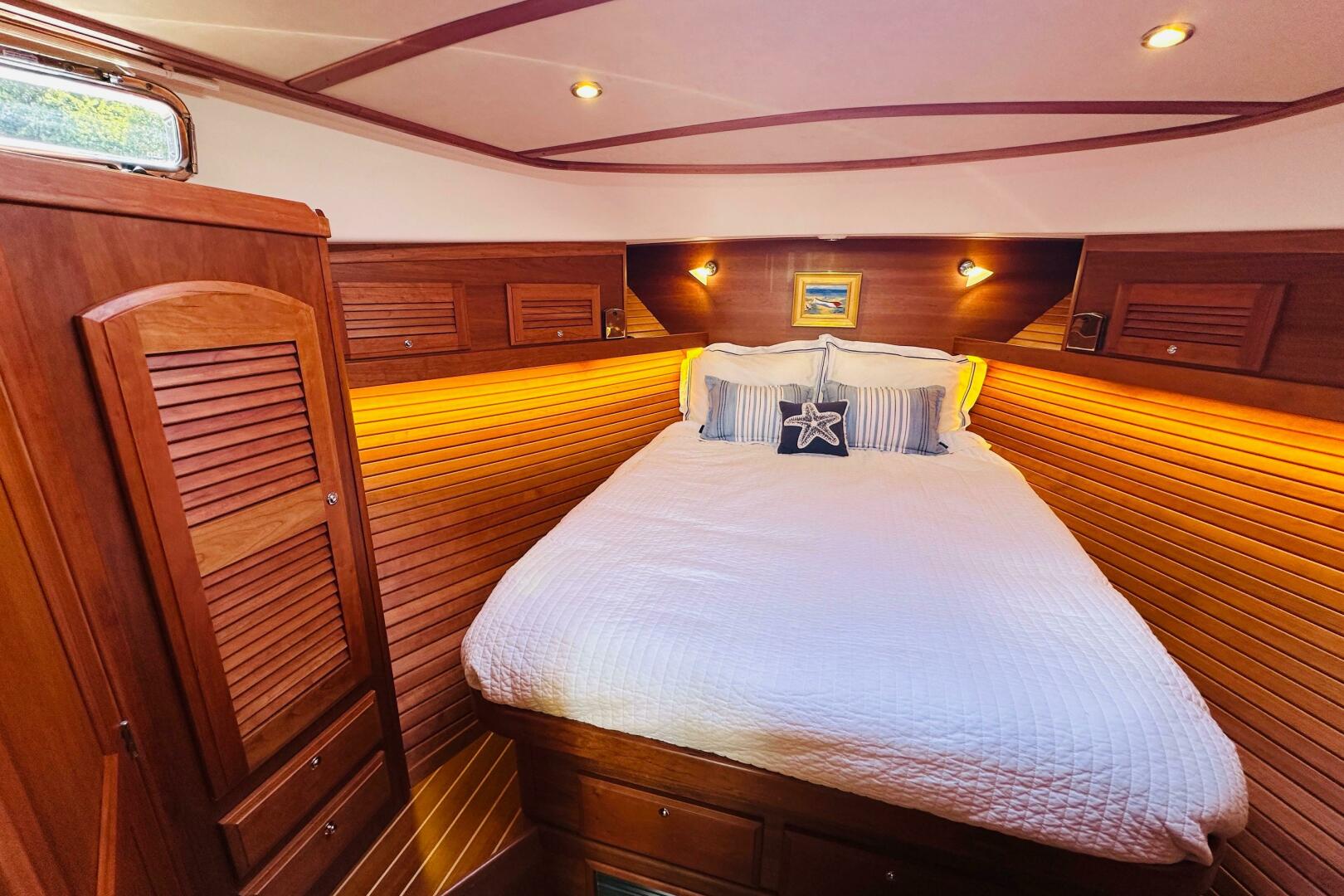

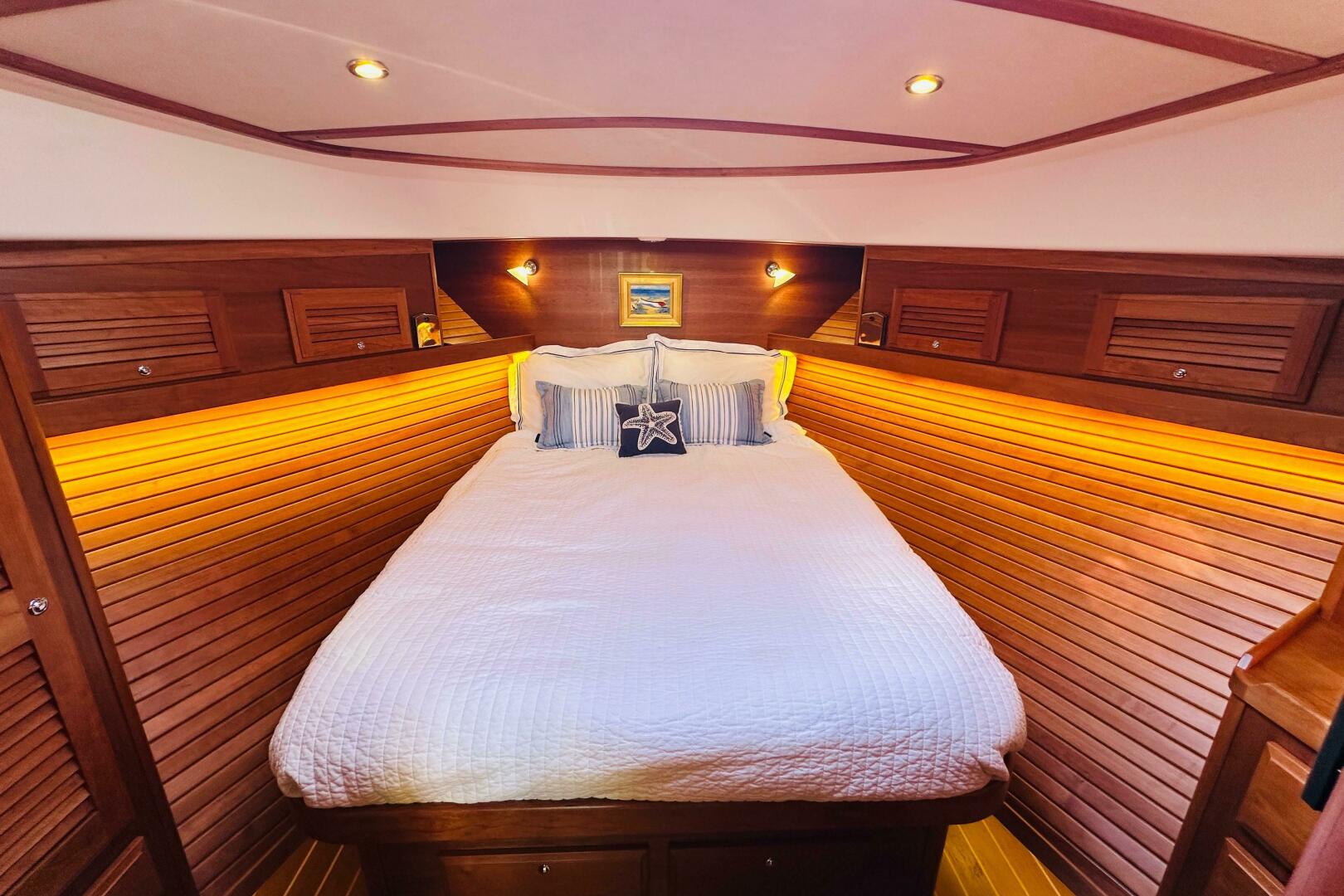

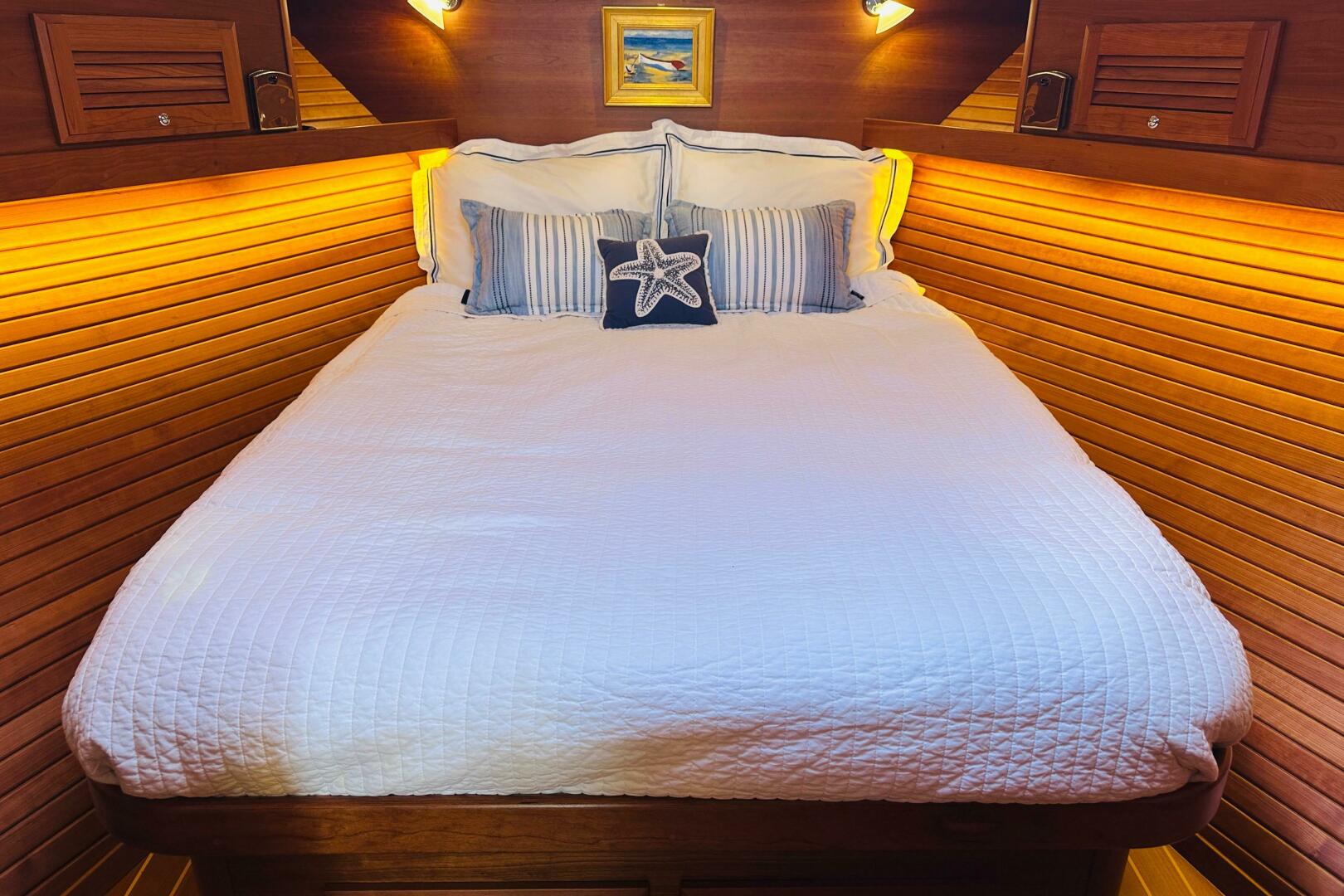

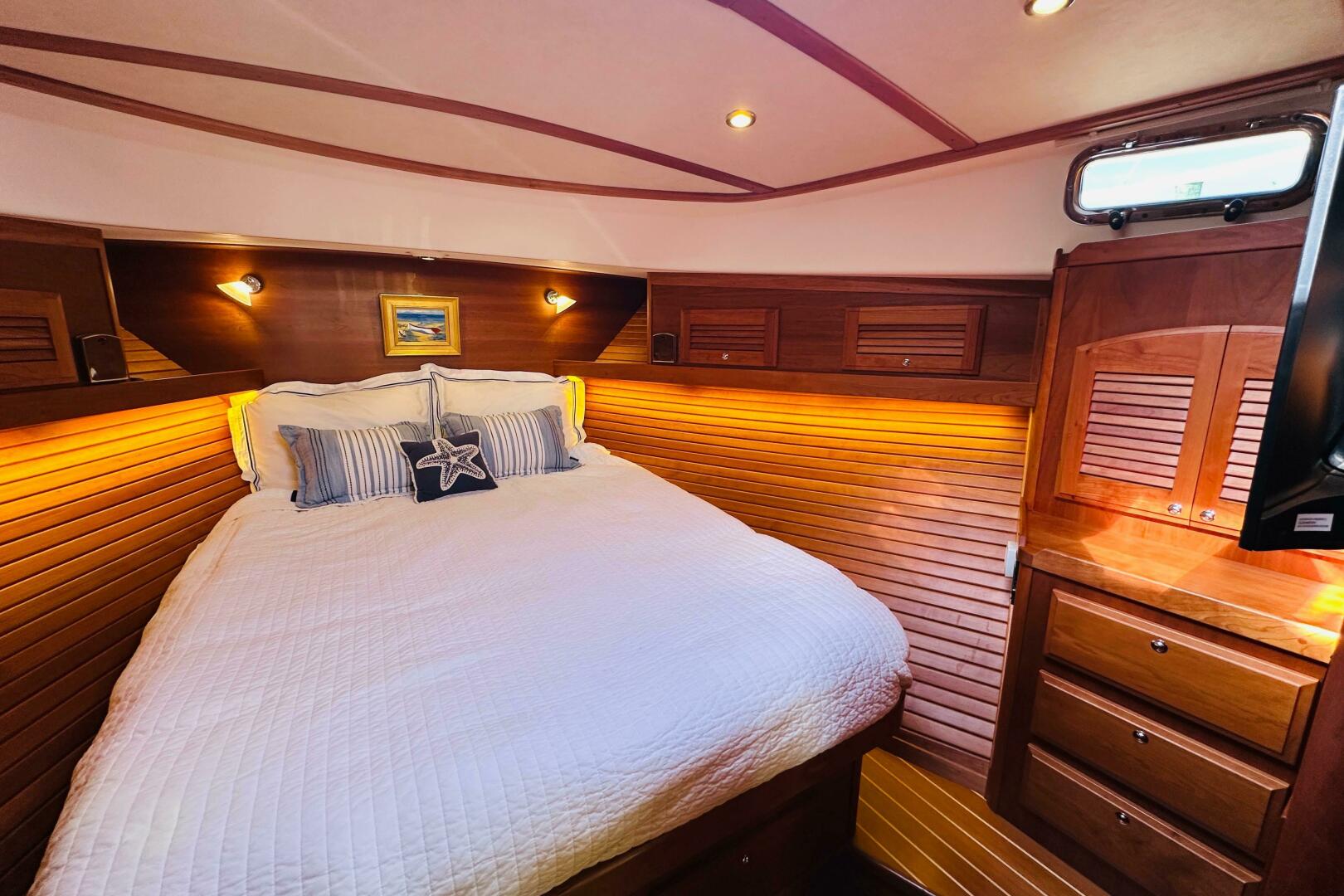

• Double berth forward with 5” thick cushion and Perennials fabric cover
• Settees convert to additional berths, with storage shelves and lockers above settees
• Fabric: All upholstery in Perennials outdoor fabric
• Cushions for cockpit settees, main salon, forward berth
• Ten throw pillows
Interior Luxury Package
• Satin varnished teak bulkheads
• Raised panel drawers and doors
• Salon table drawers with silverware dividers
• Pull-out shelves for coffee maker and custom dish storage
• Oversized stainless-steel trash bin
• Overhead locker doors for extra storage
• Teak locker interiors,
• Mirror in the head
• Custom canvas mast wrap
• Weems & Plath chrome clock and barometer

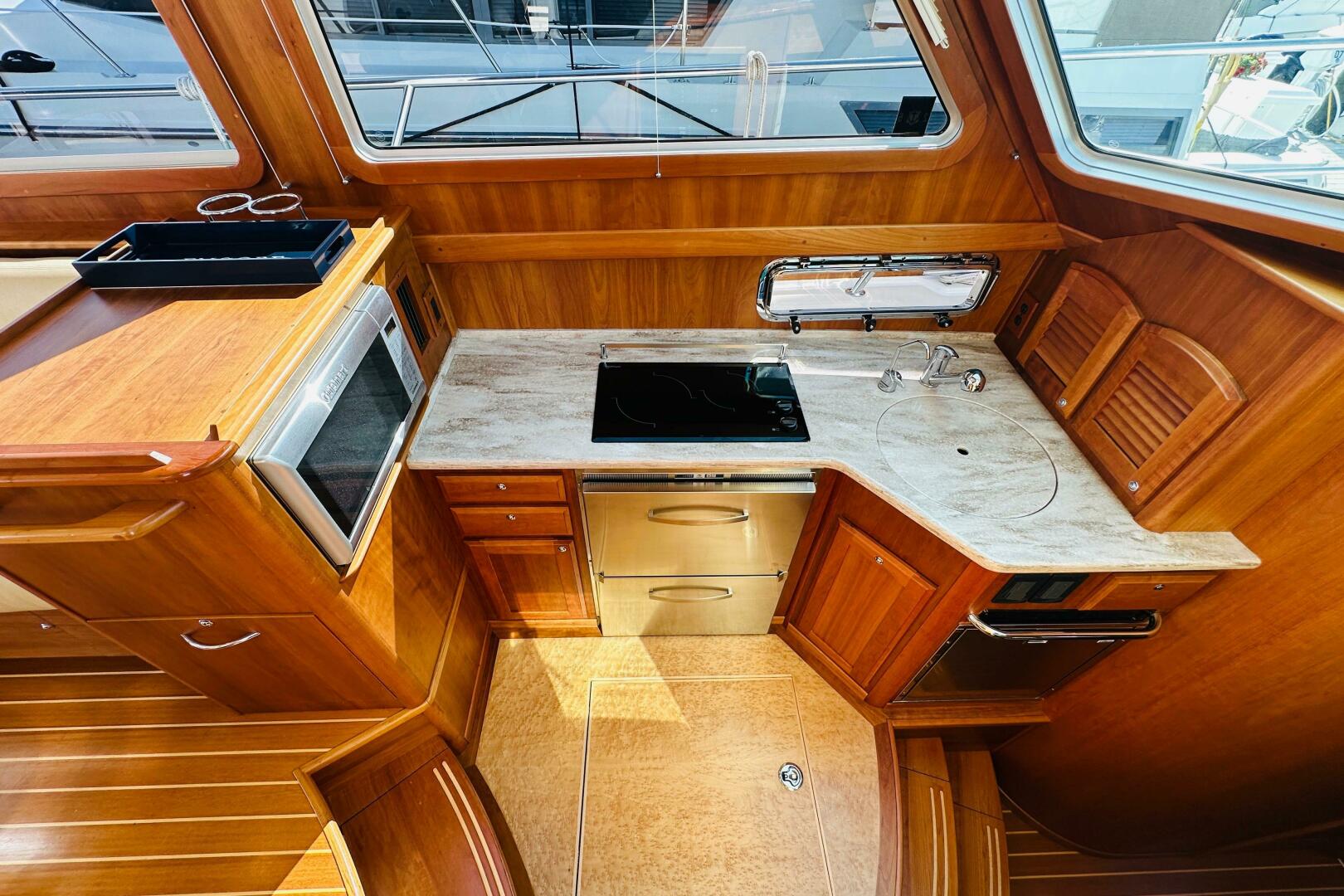

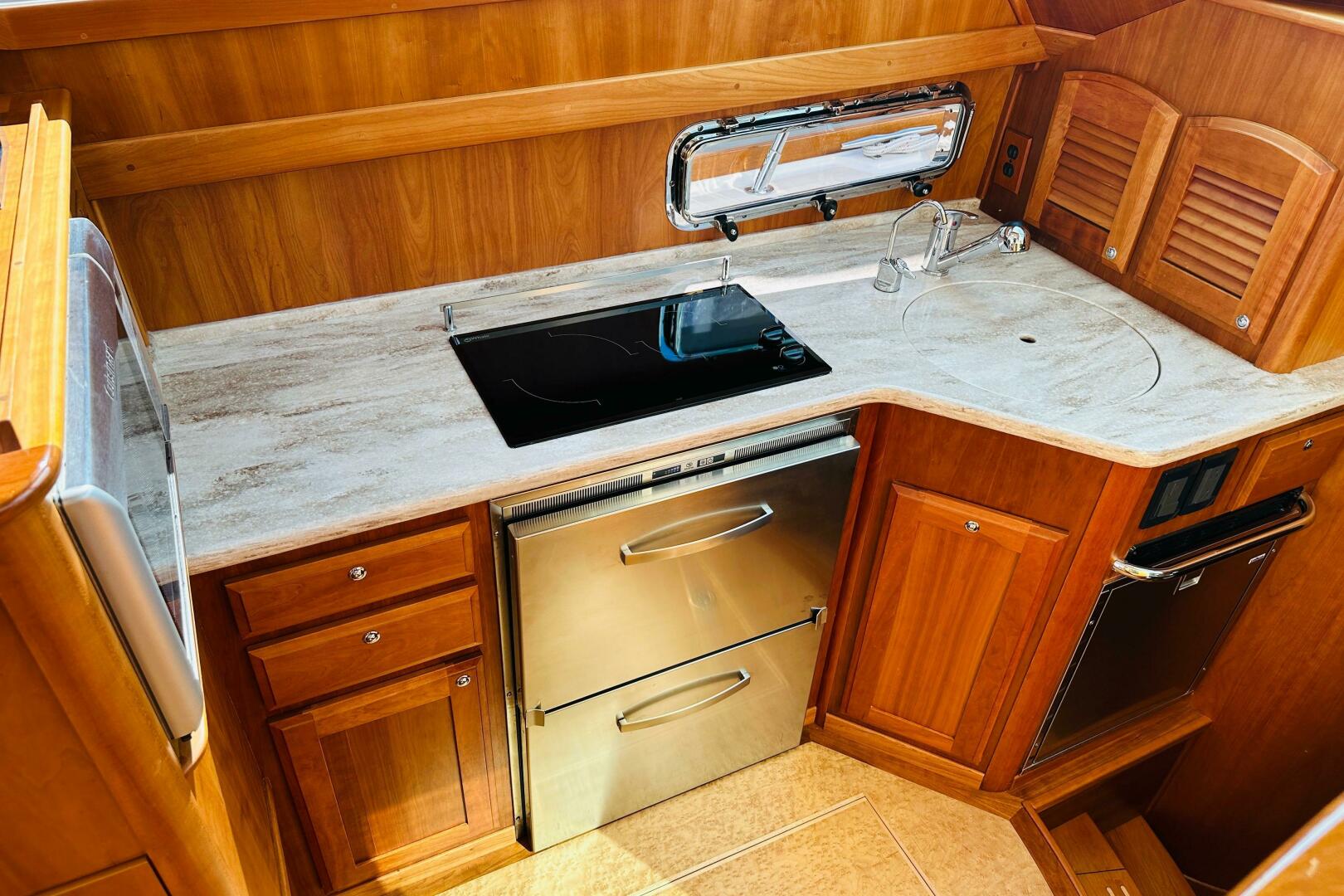

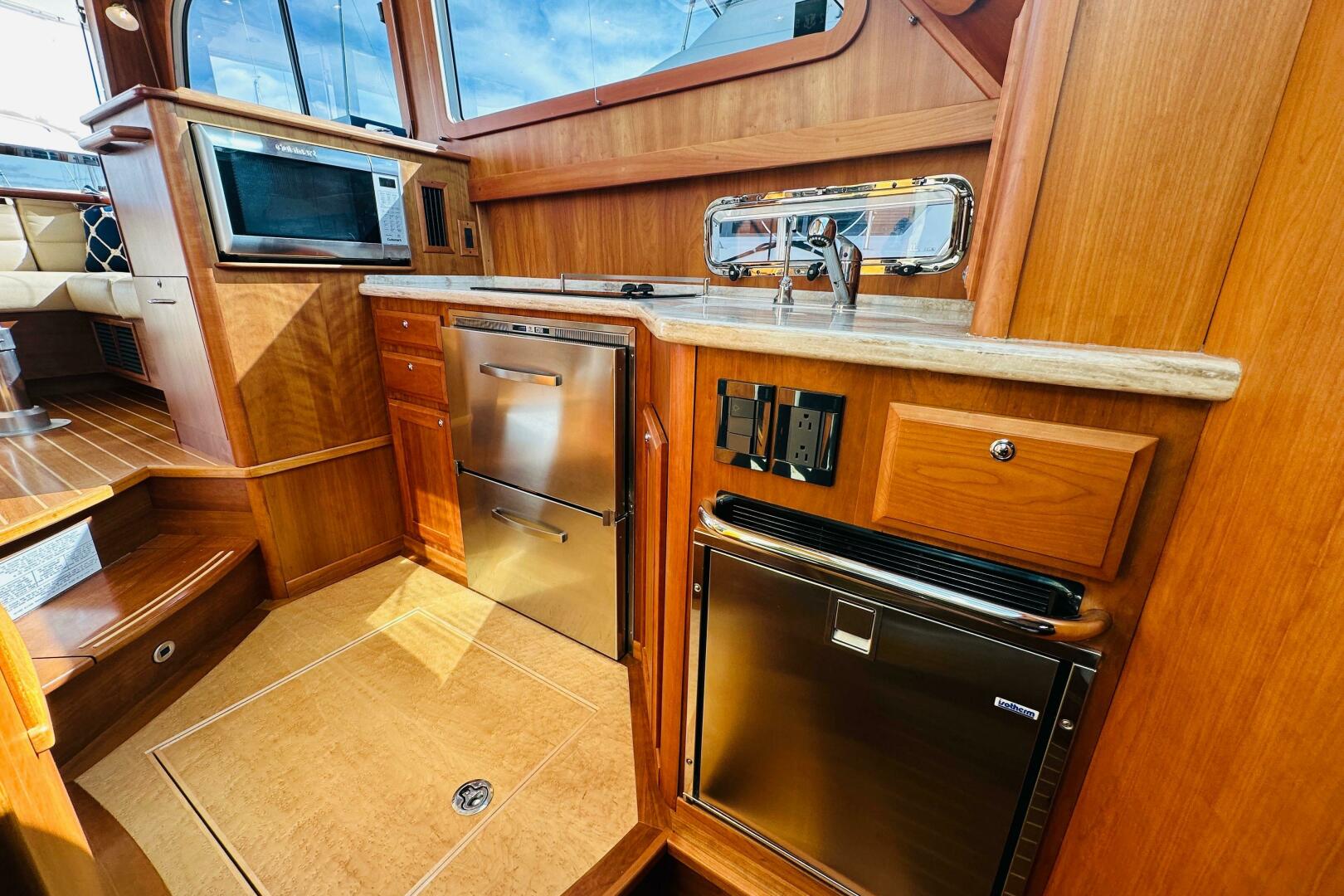

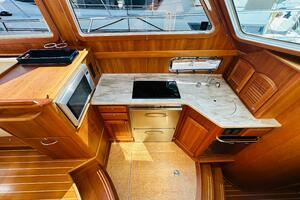

Galley
• Corian countertops with radiused edges and teak fiddles
• Stainless steel under-mounted sink
• Perrin & Rowe wall-mounted faucet
• Spice racks in satin varnished teak
• Stainless-steel-lined fridge box recessed in galley countertop with plexiglass shelving
• Sharp microwave/toaster
• Keurig coffee maker in galley locker

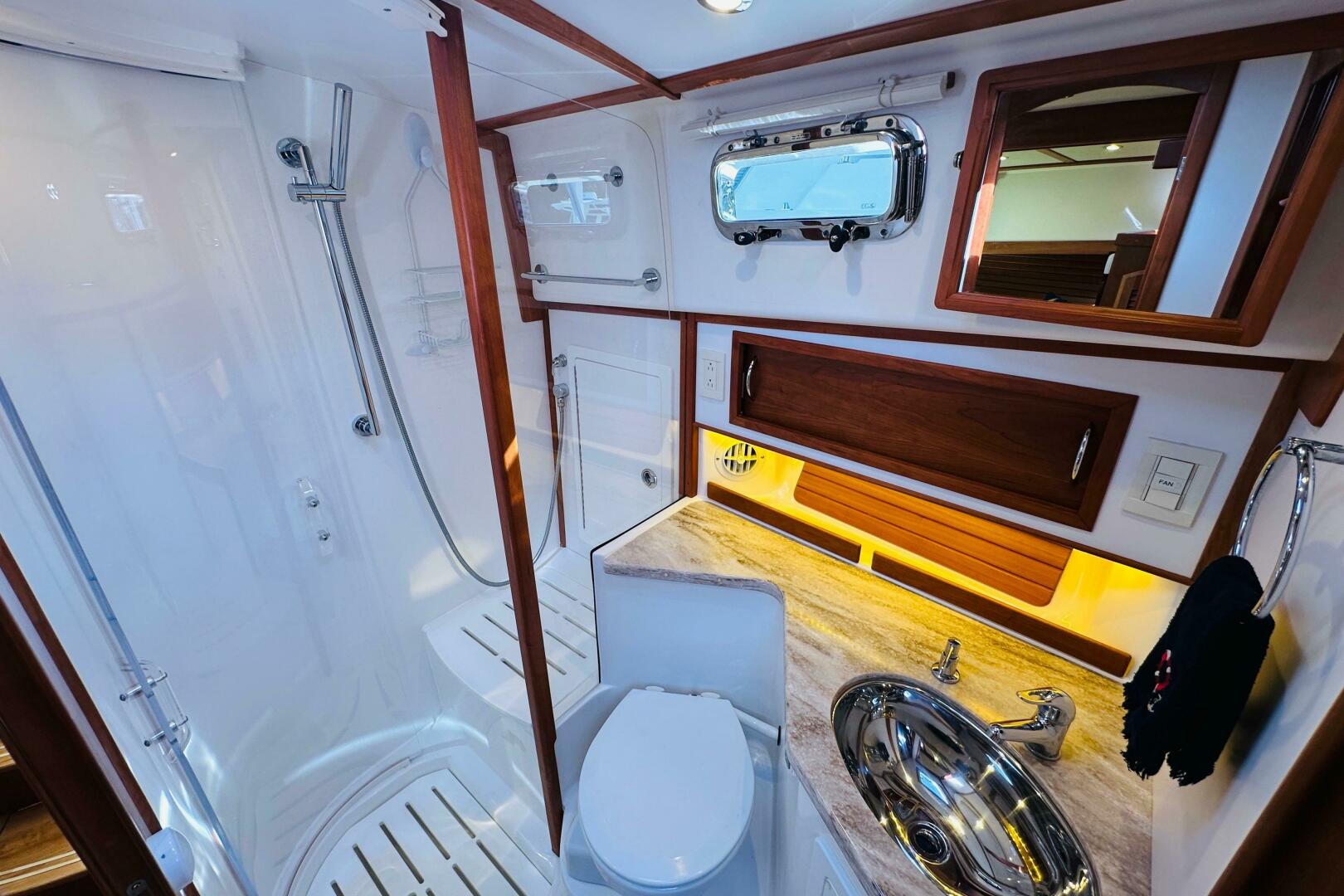

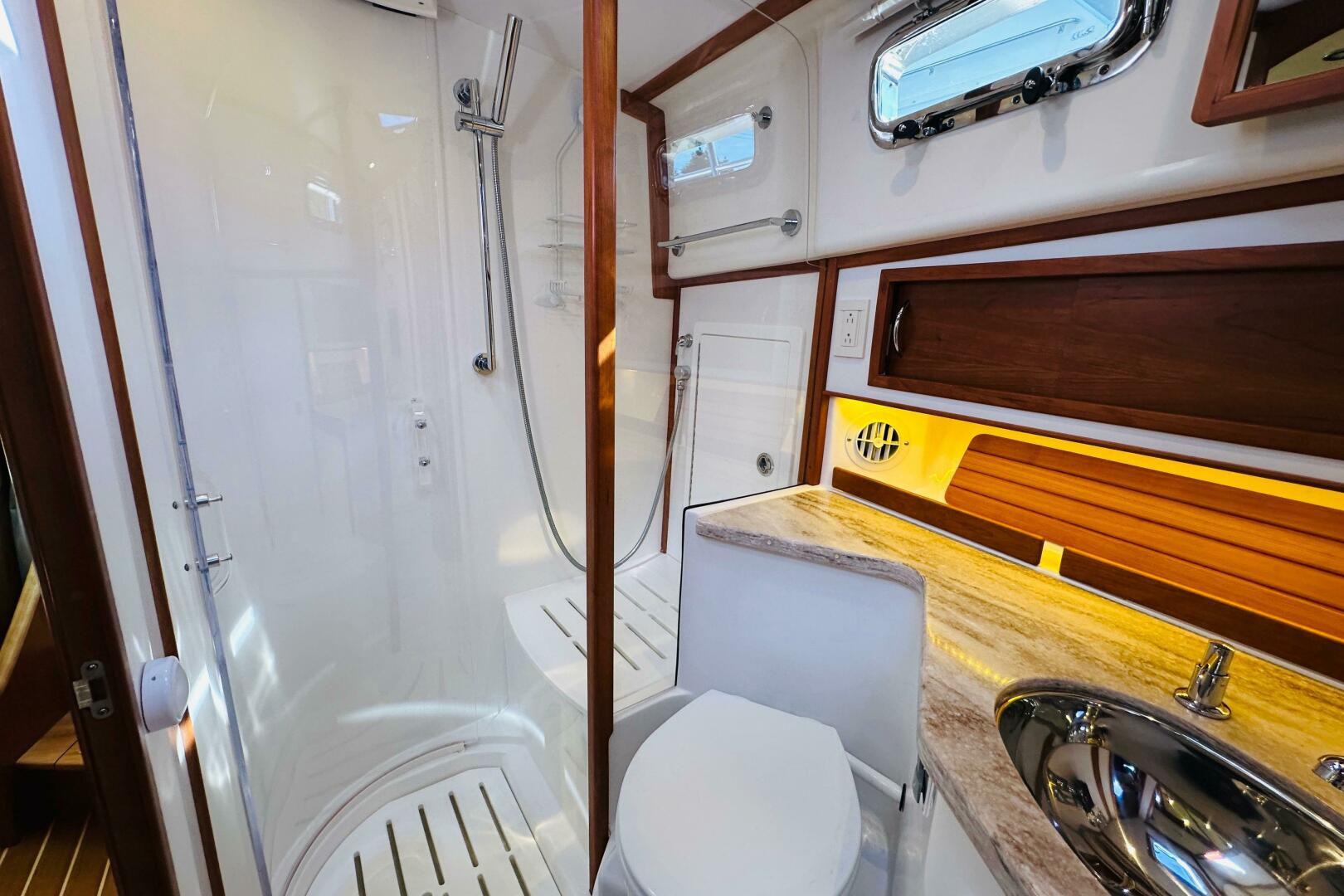

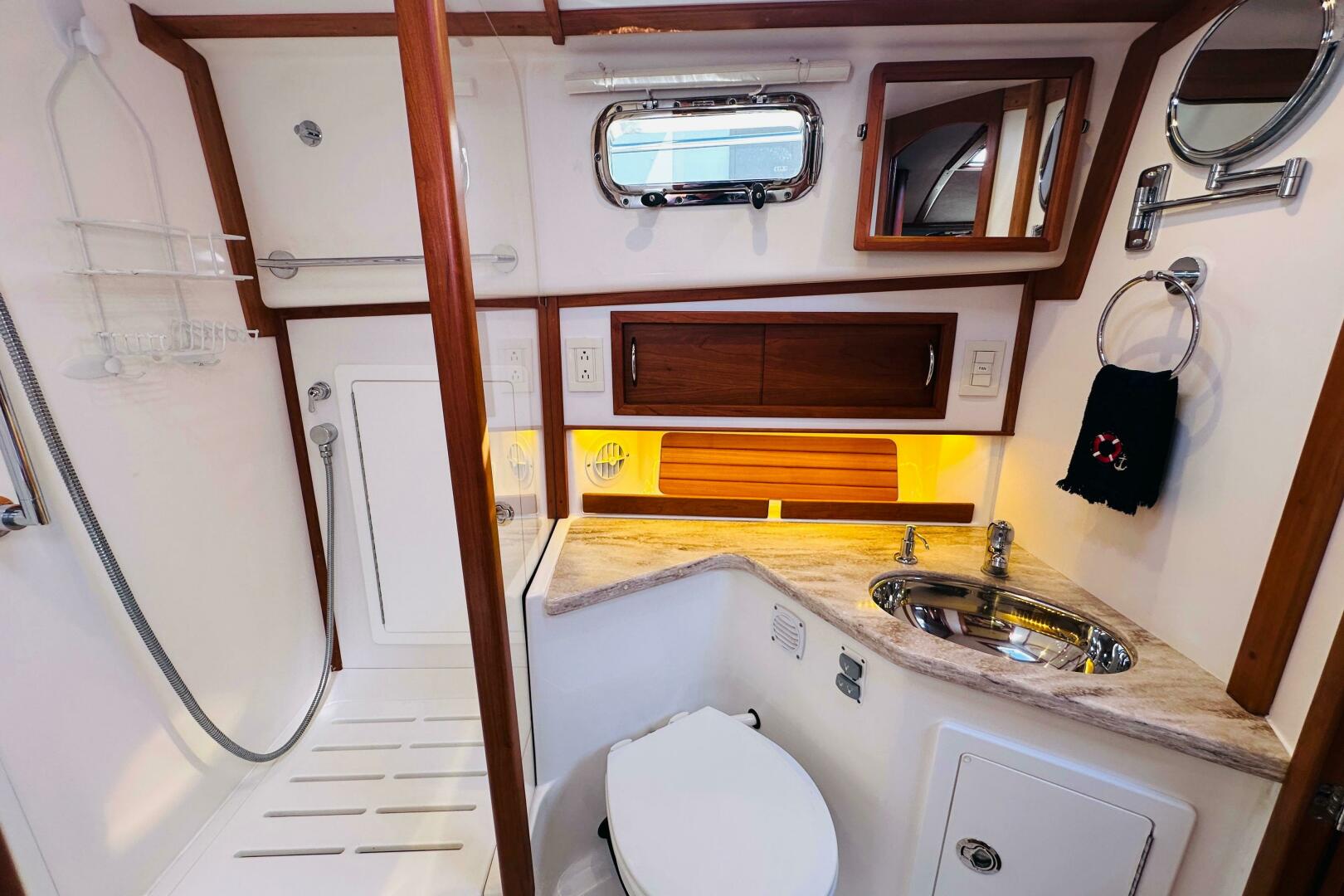

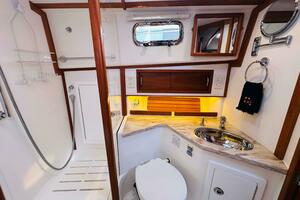

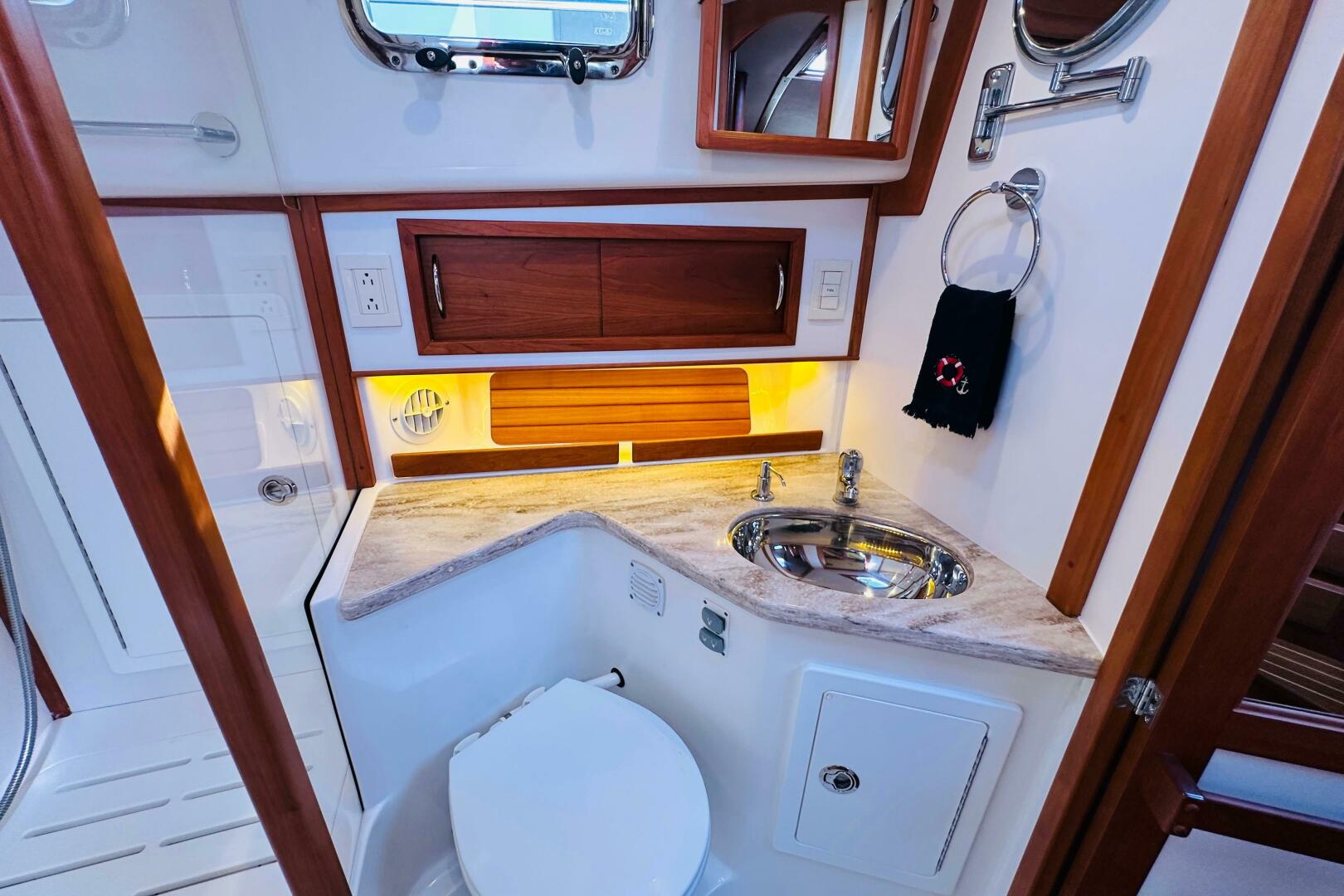

Head
• Glacier white Corian sink in head
• Grohe cross-handle mixer in head
• Grohe handheld unit mounted on the head bulkhead
• Varnished teak and black resin head sole with edge drain to sump and direct overboard discharge pump
Fixtures
• Towel bar
• Soap dish
• Toilet paper holder
• Toilet brush
• Tumbler holder

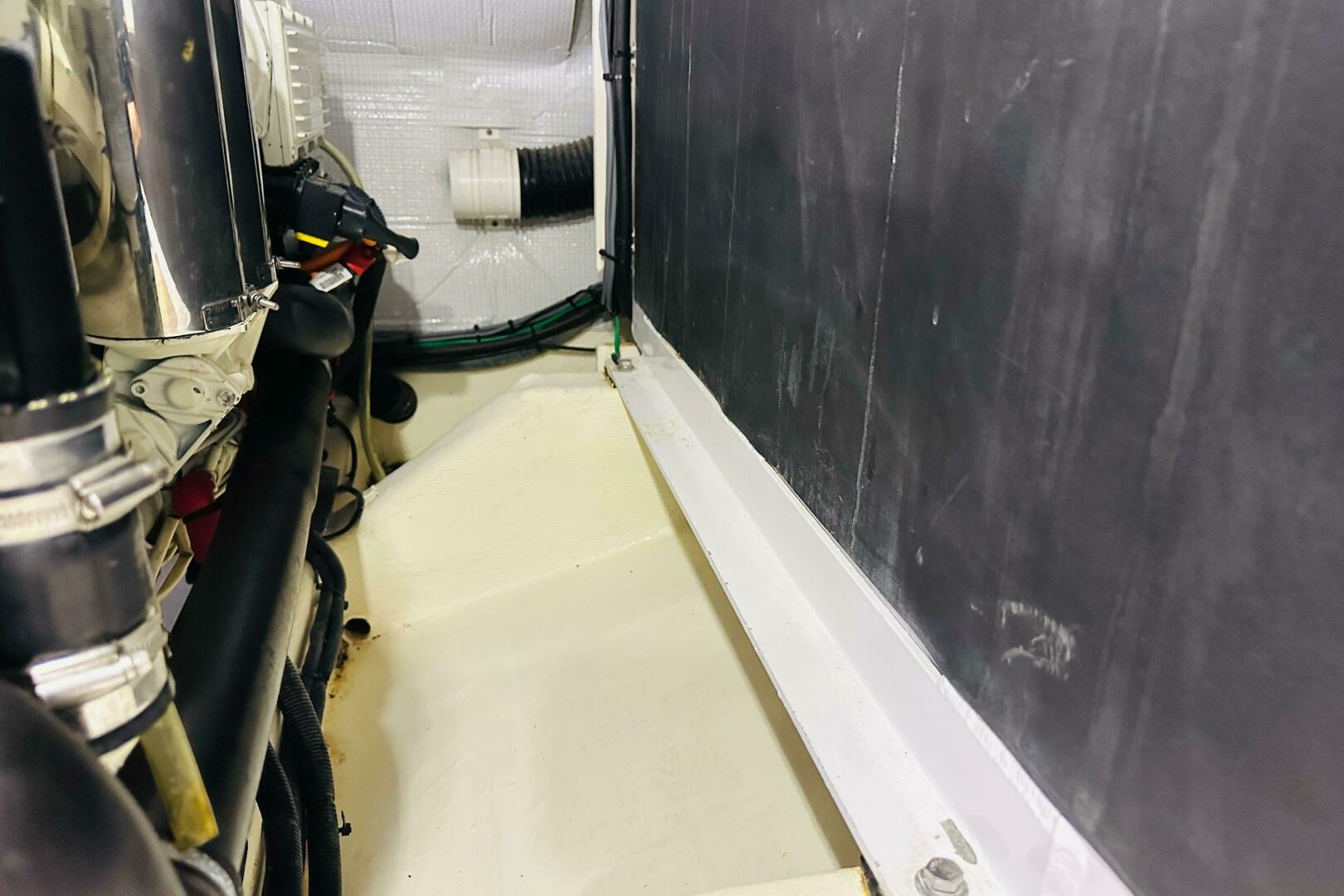

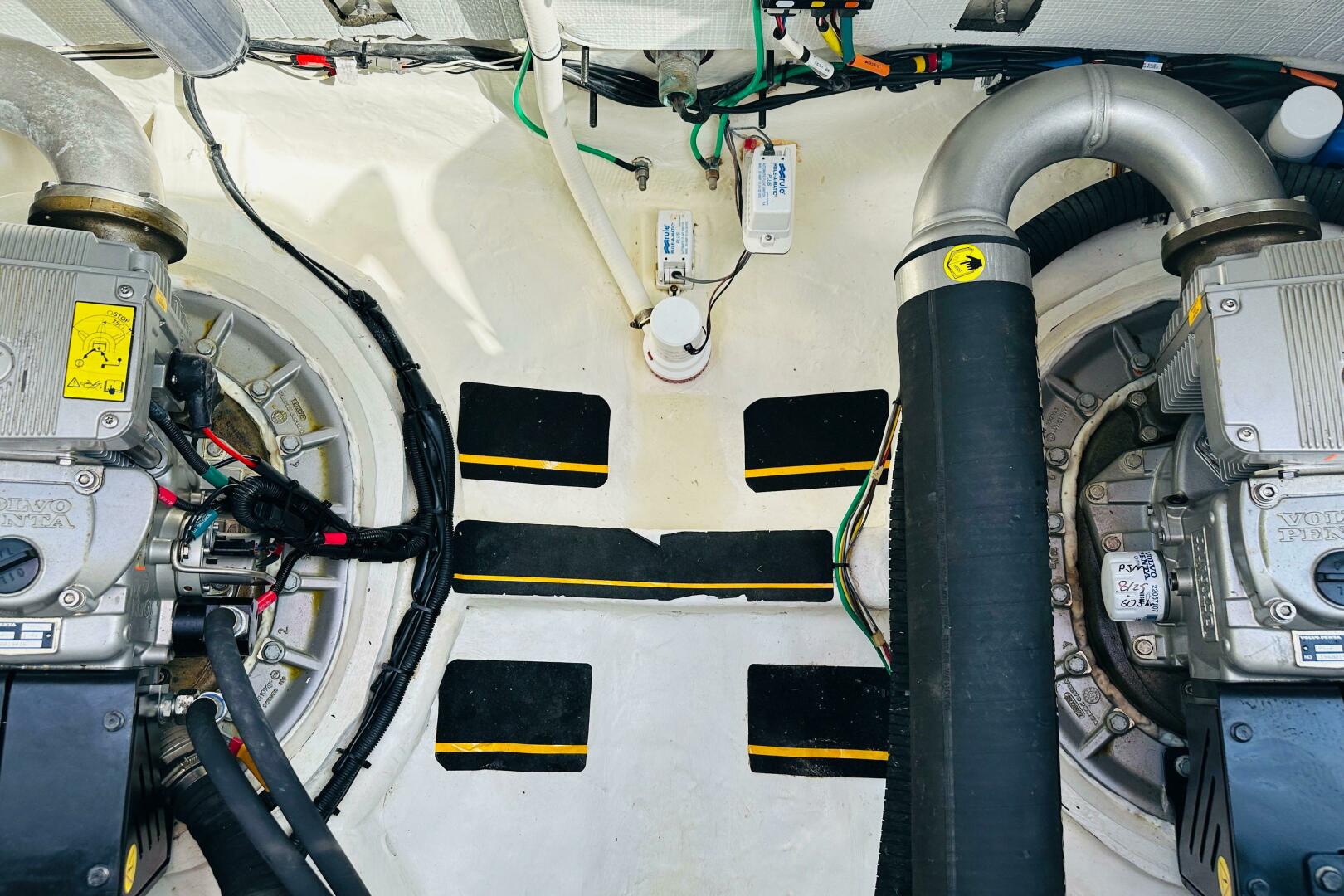

Mechanical

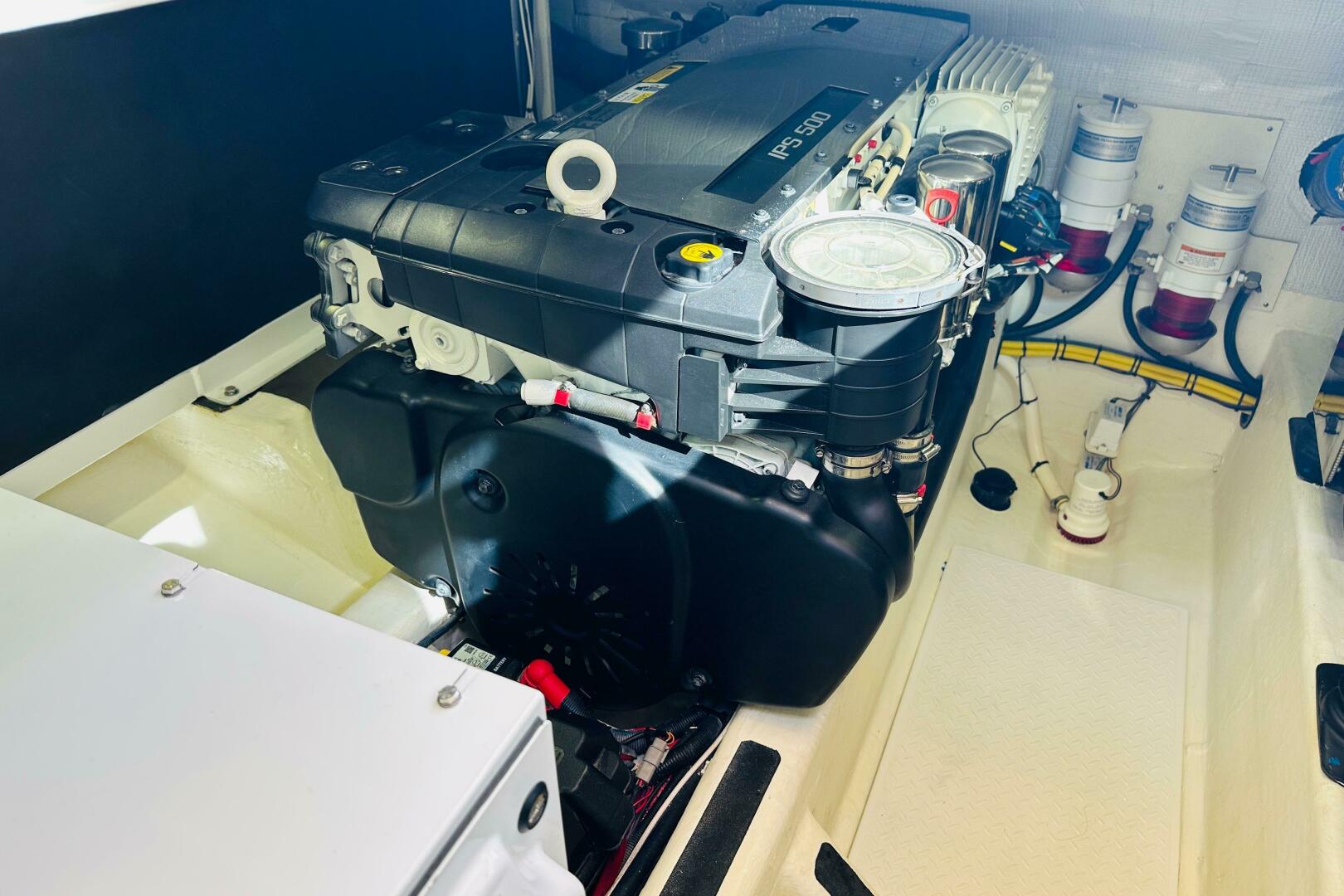

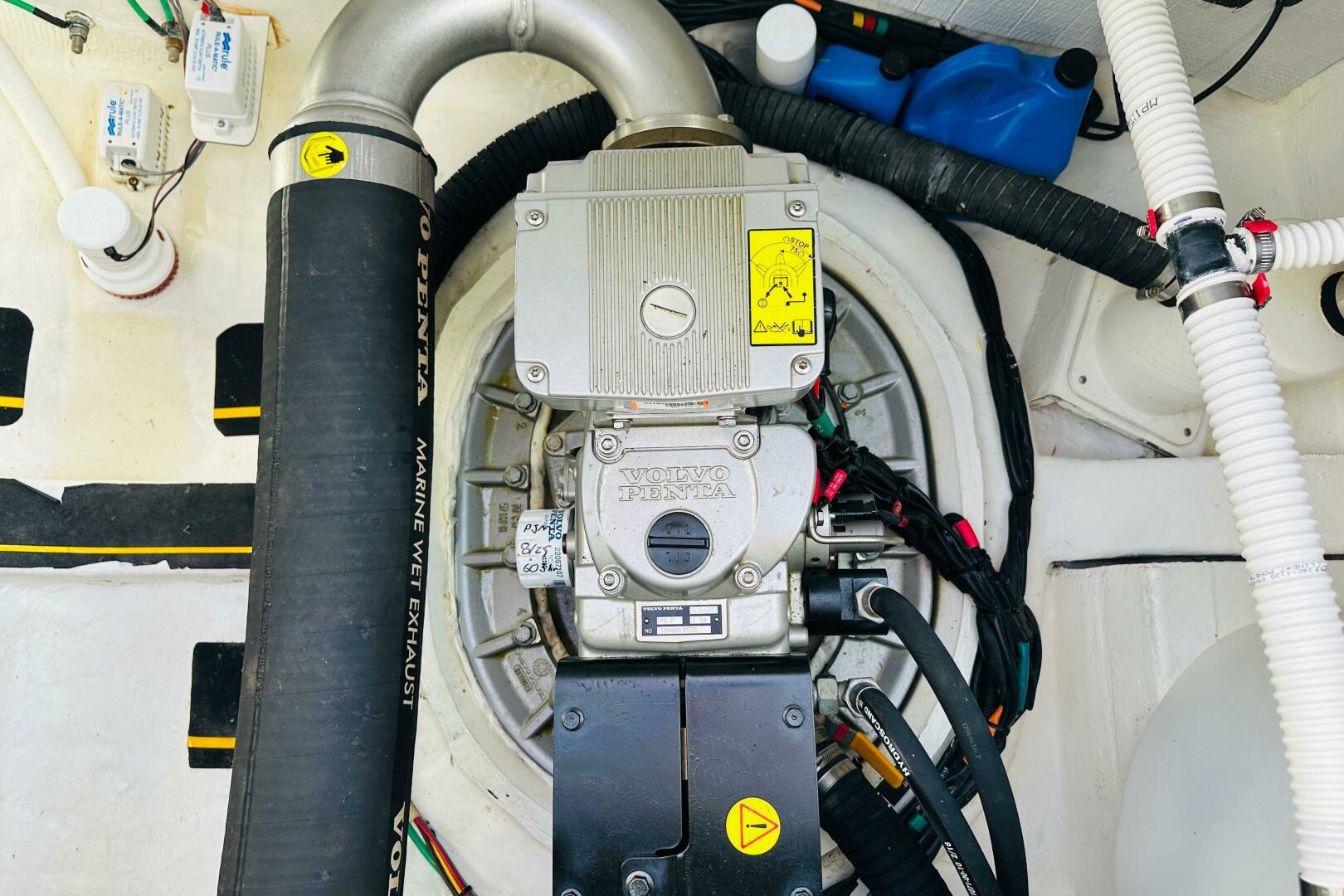

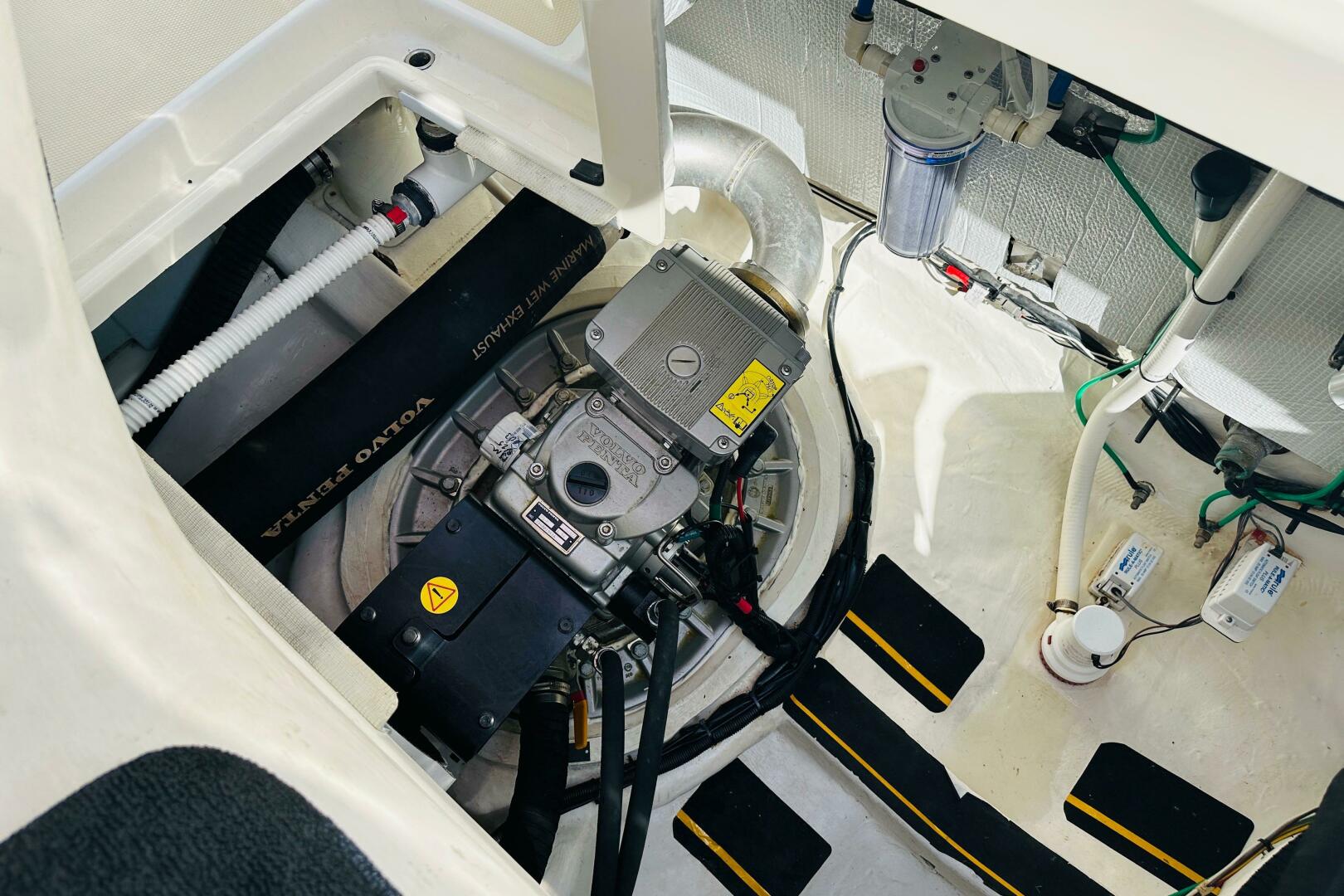

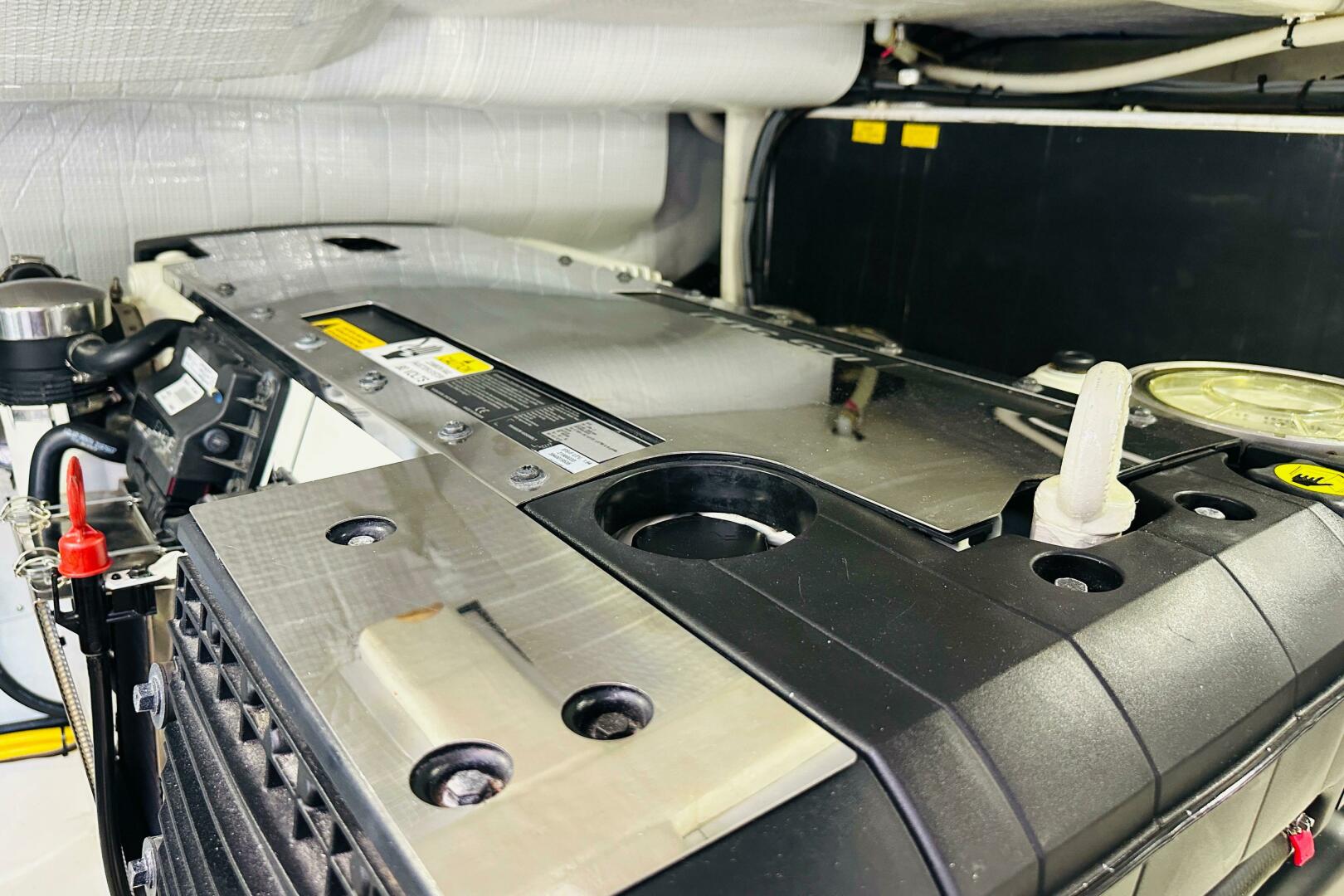

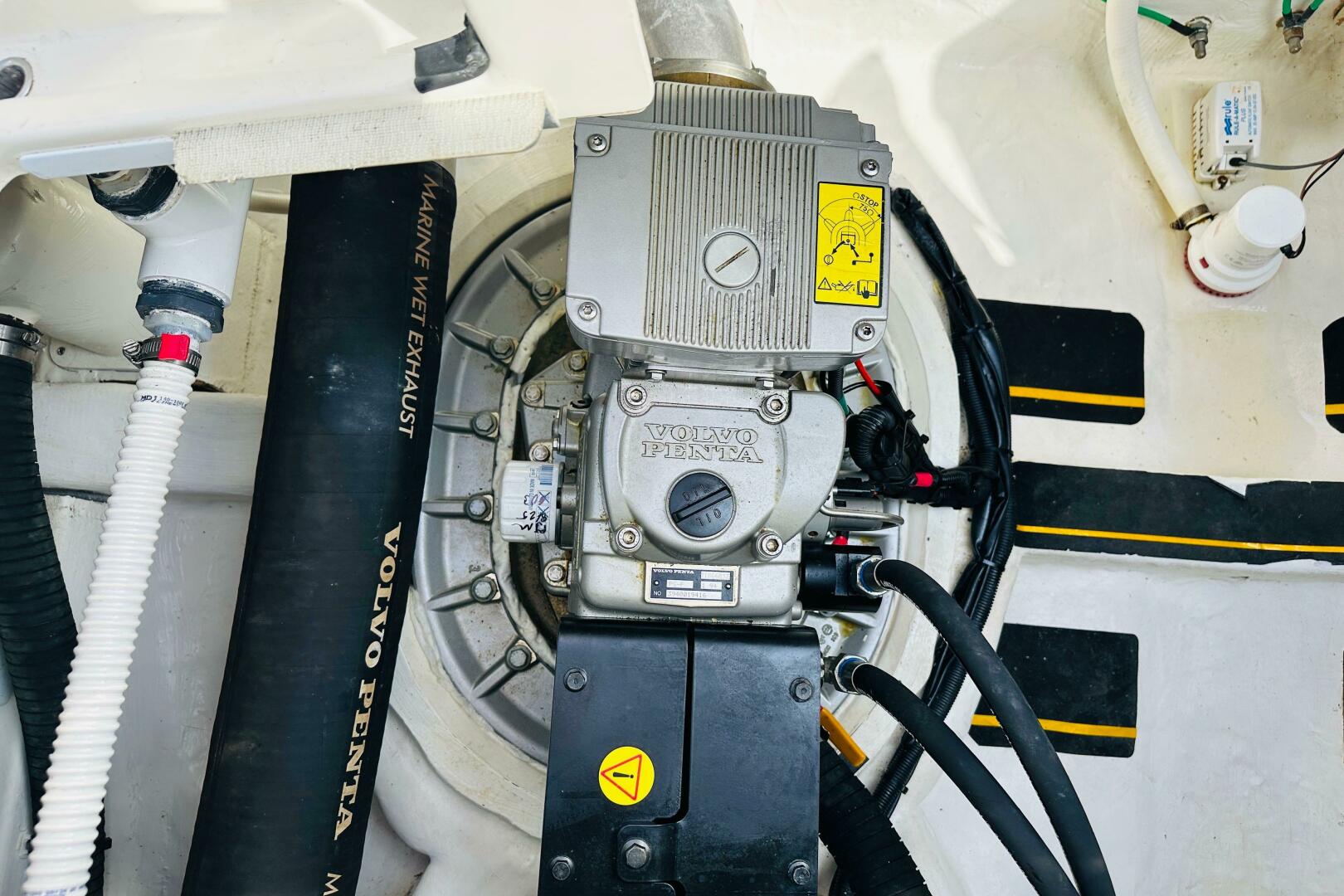

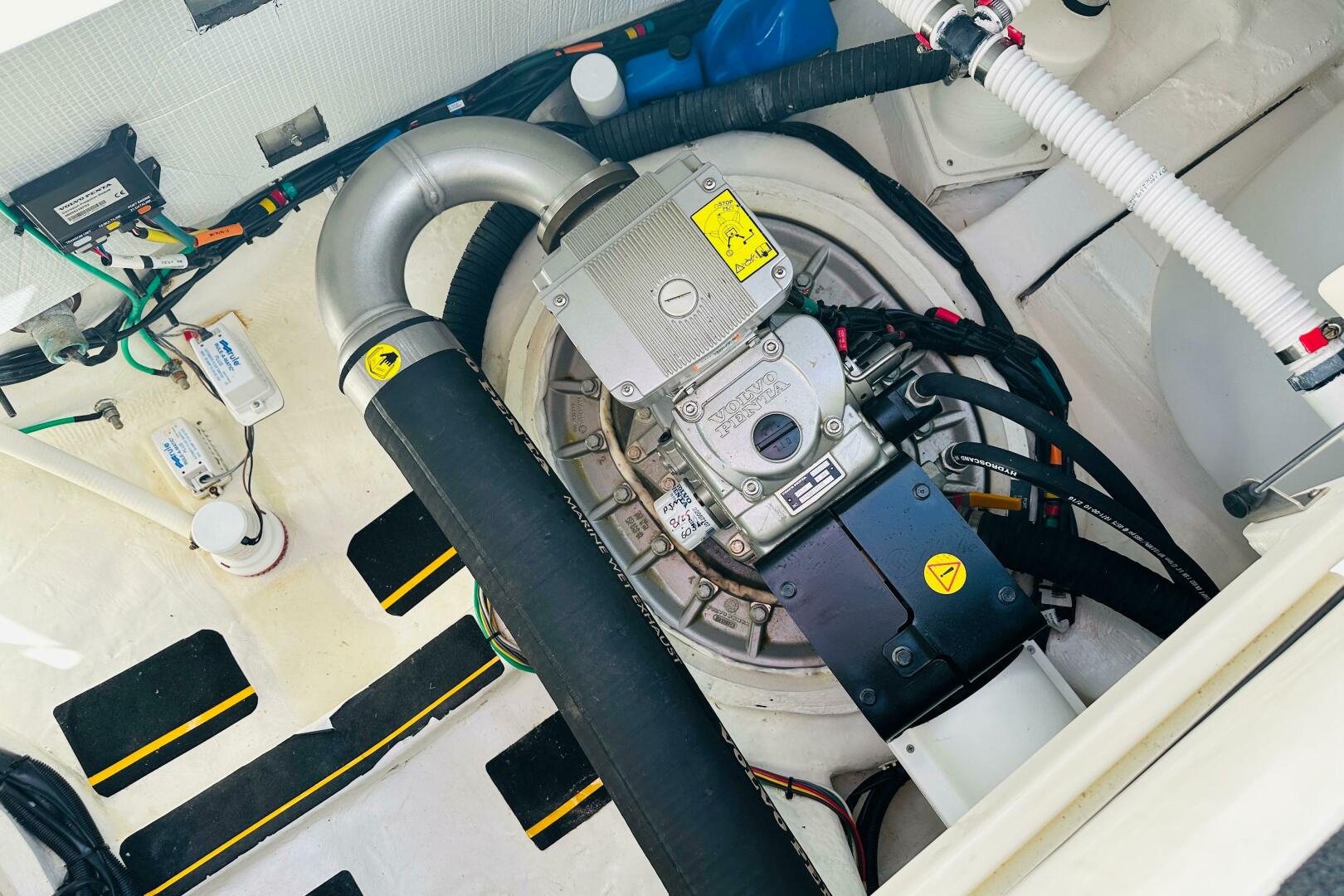

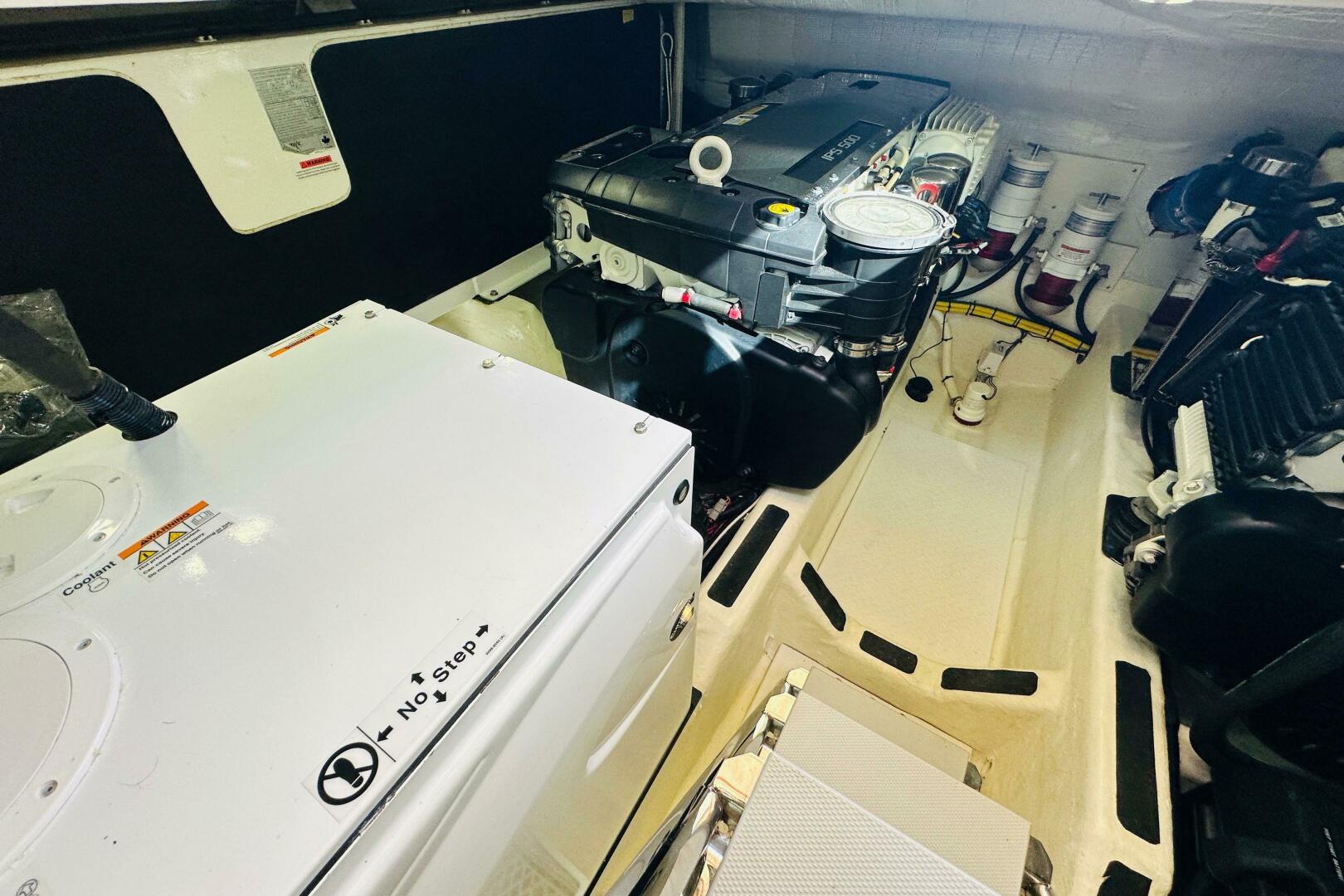

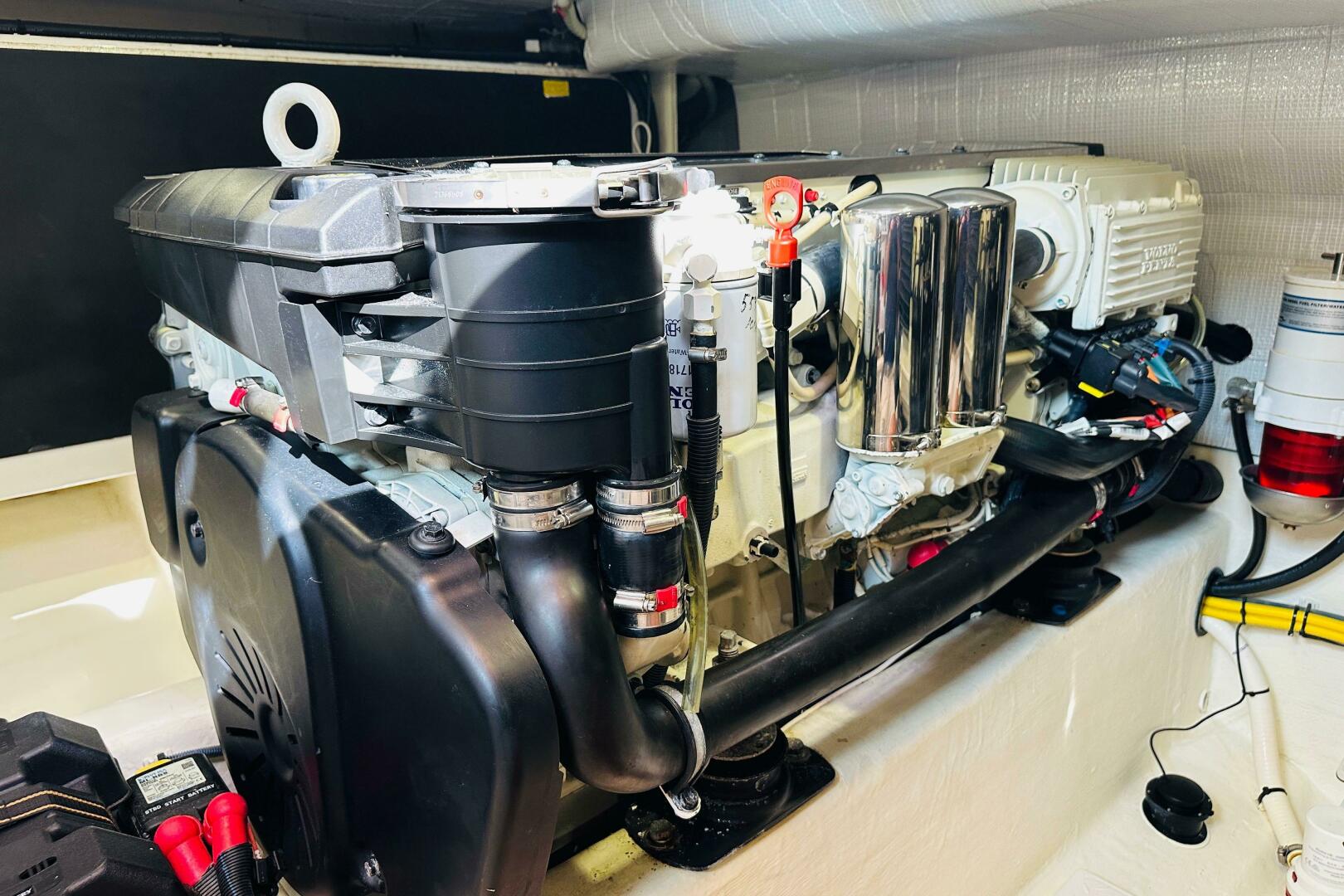

• Engine: Volvo 40 HP 4-stroke sail drive with freshwater cooling
• Racor filter
• 135-Amp alternator
• Oil change pump (1000 hours)

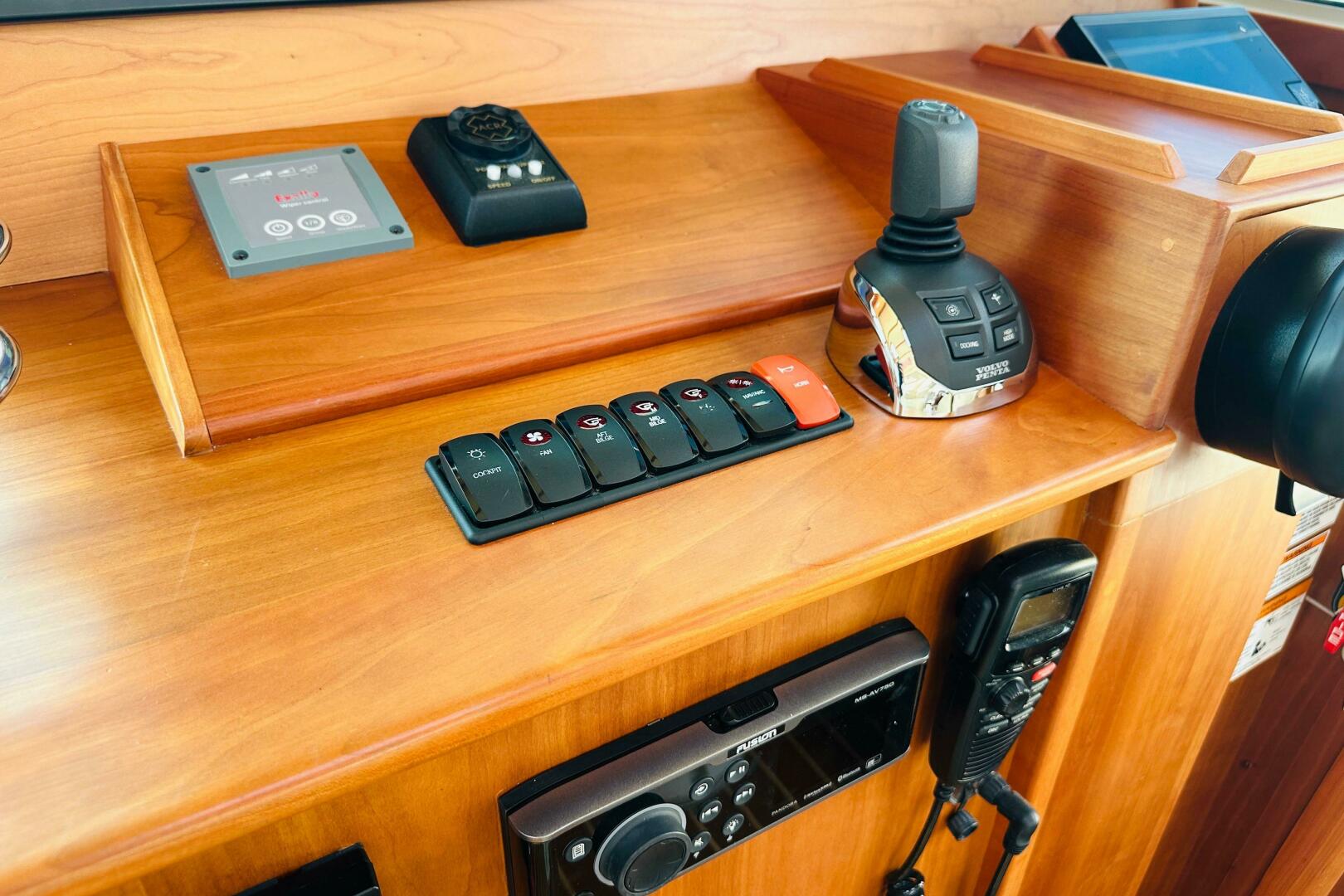

• Bow thruster: Lewmar 6kW tunnel thruster with control at the helm
• Gauges: Custom recessed panel with Volvo tachometer, oil pressure, fuel and freshwater levels
• Fuel tank: 33-gallon welded translucent polyethylene tank with inspection port

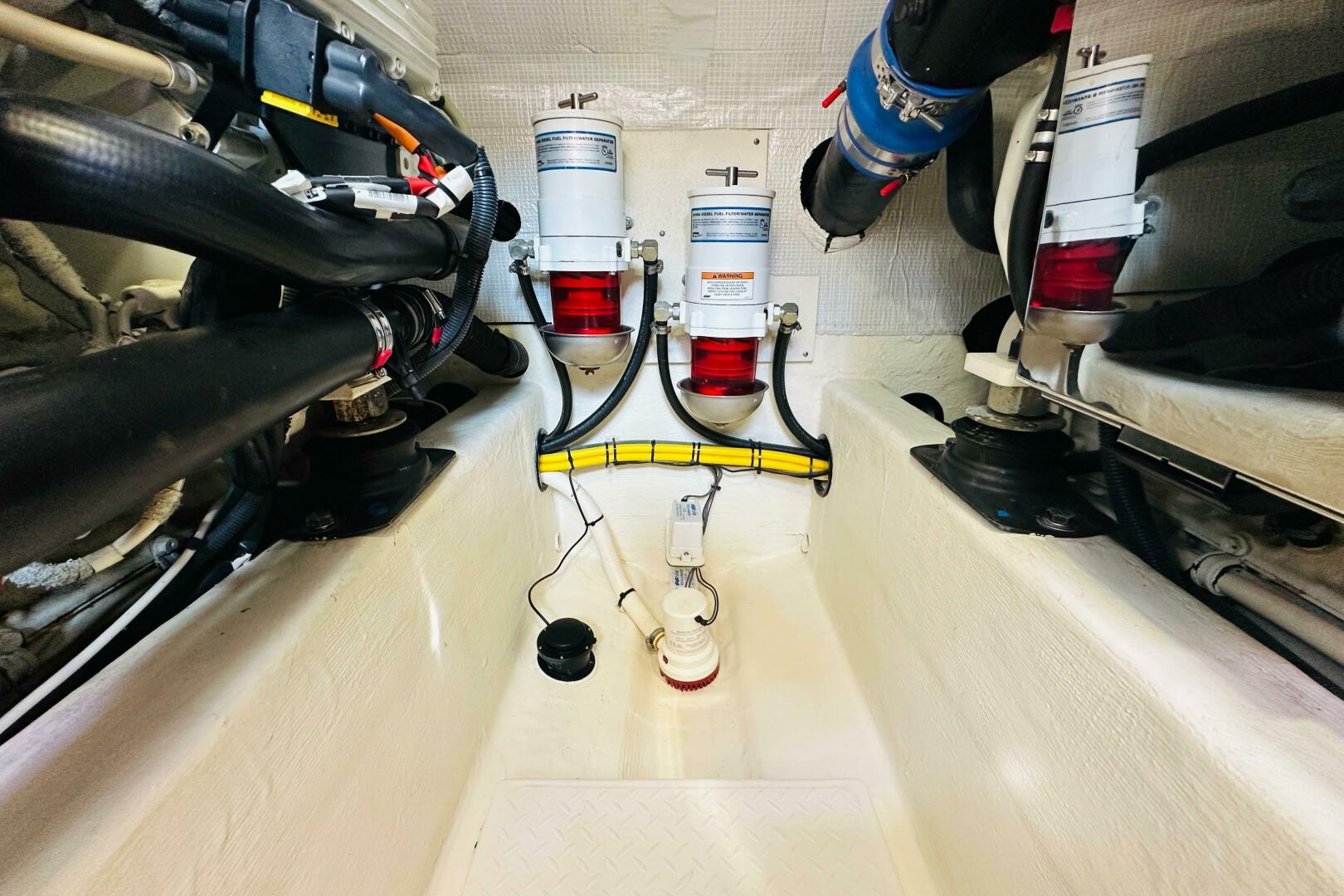

• Filter: Racor fuel filter, plus a spare for generator
• Steering: Whitlock drag link system
• Rudder: Balanced elliptical spade rudder with a 4” diameter carbon fiber shaft and roller bearings
• Bilge pumps
• 2 x Automatic 12V Jabsco pumps
• Manual Whale pump
• Air conditioning: 16,000 BTU Marine Air unit under forward berth (new 2024)
• Interior fans: Located at the forward double berth

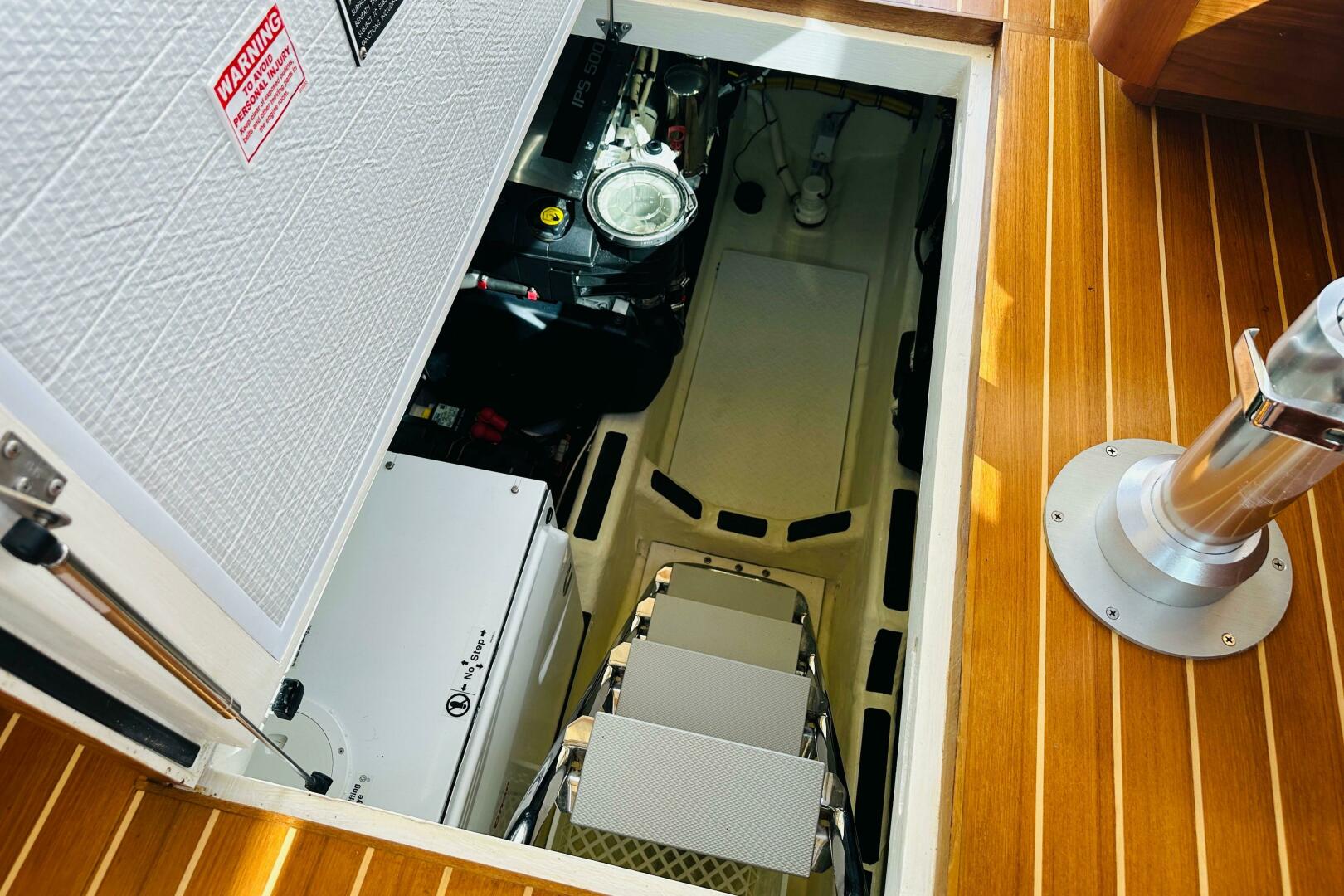

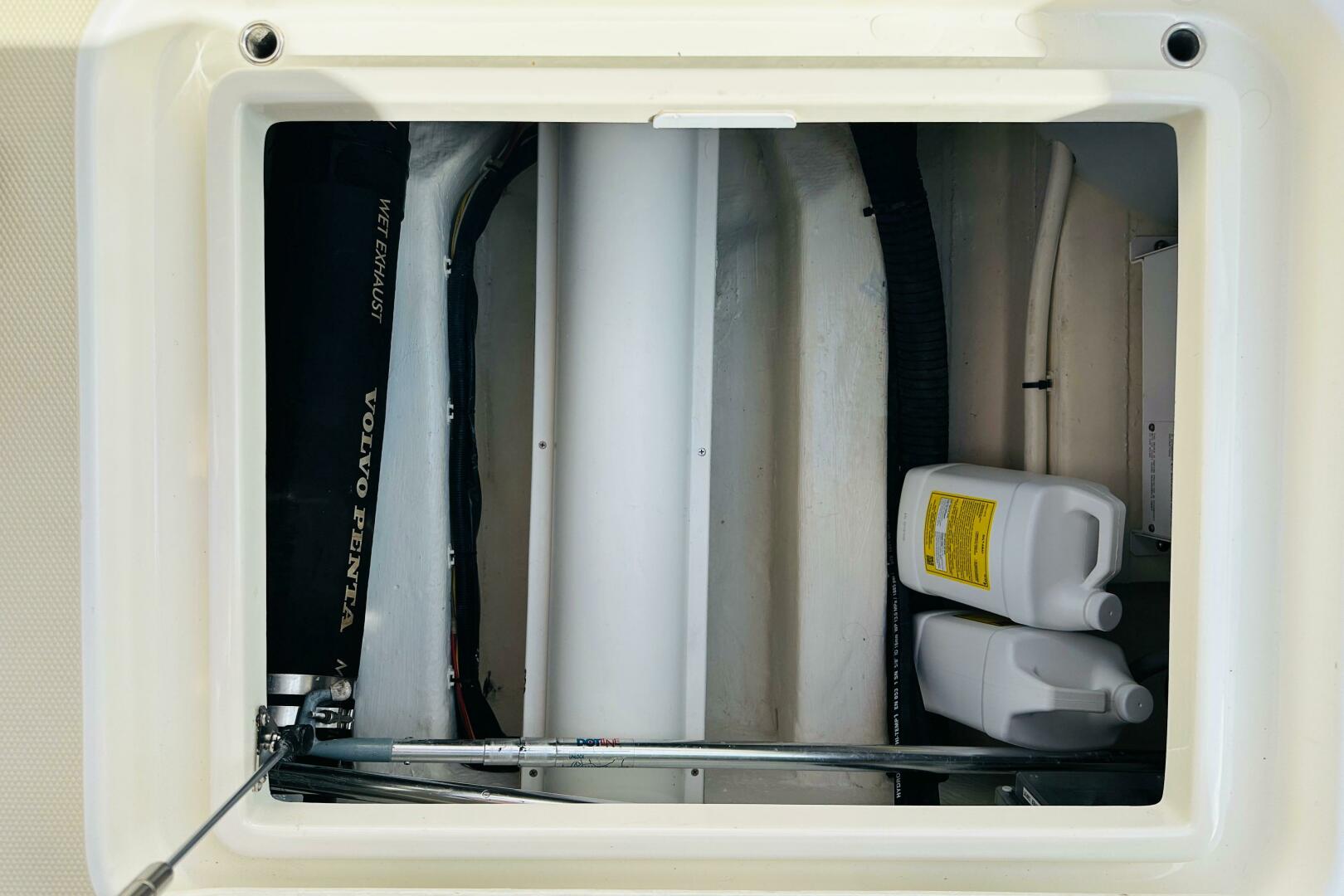

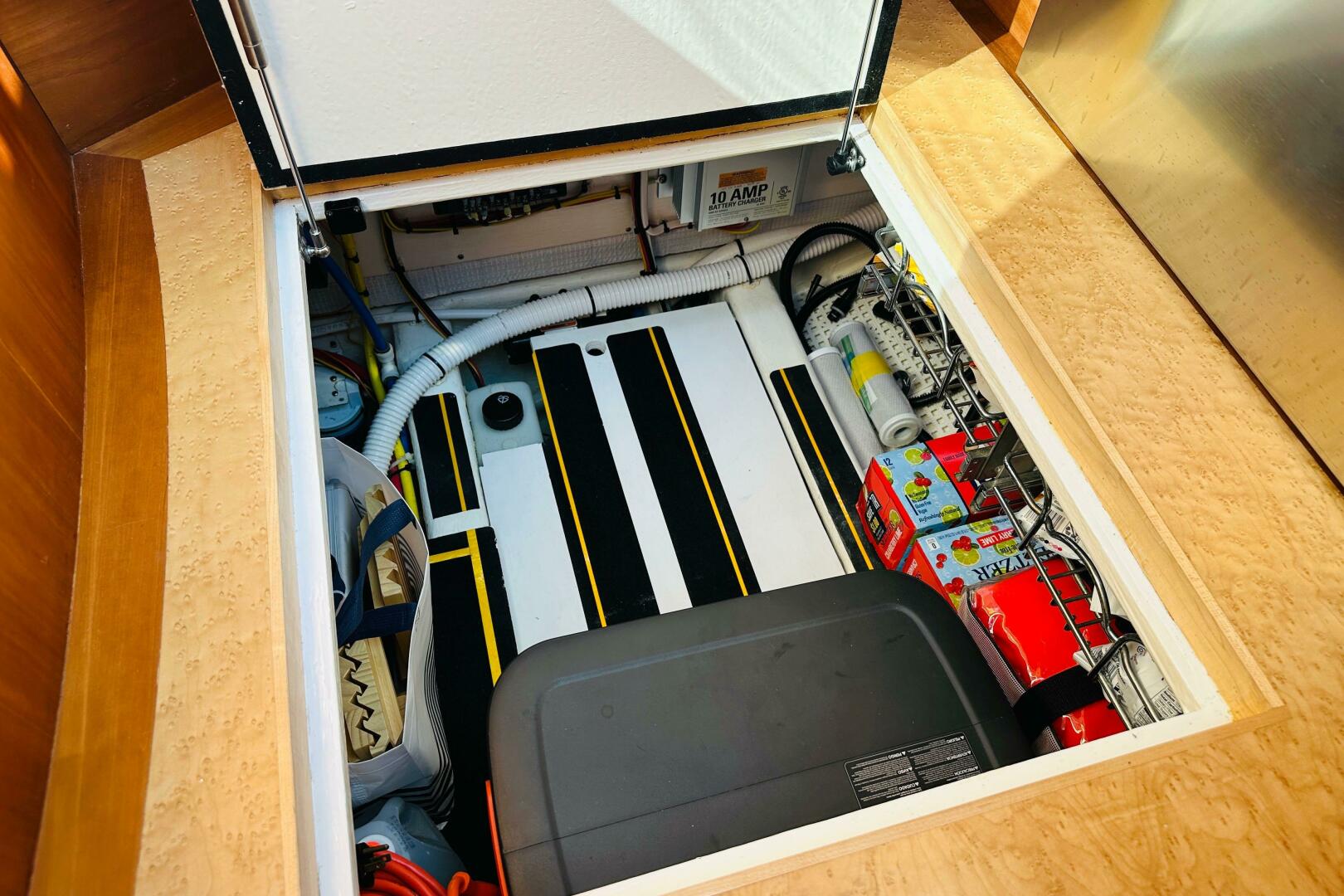

• Cockpit lift: Hydraulic lifting system for access to main engine/generator compartment
Electrical

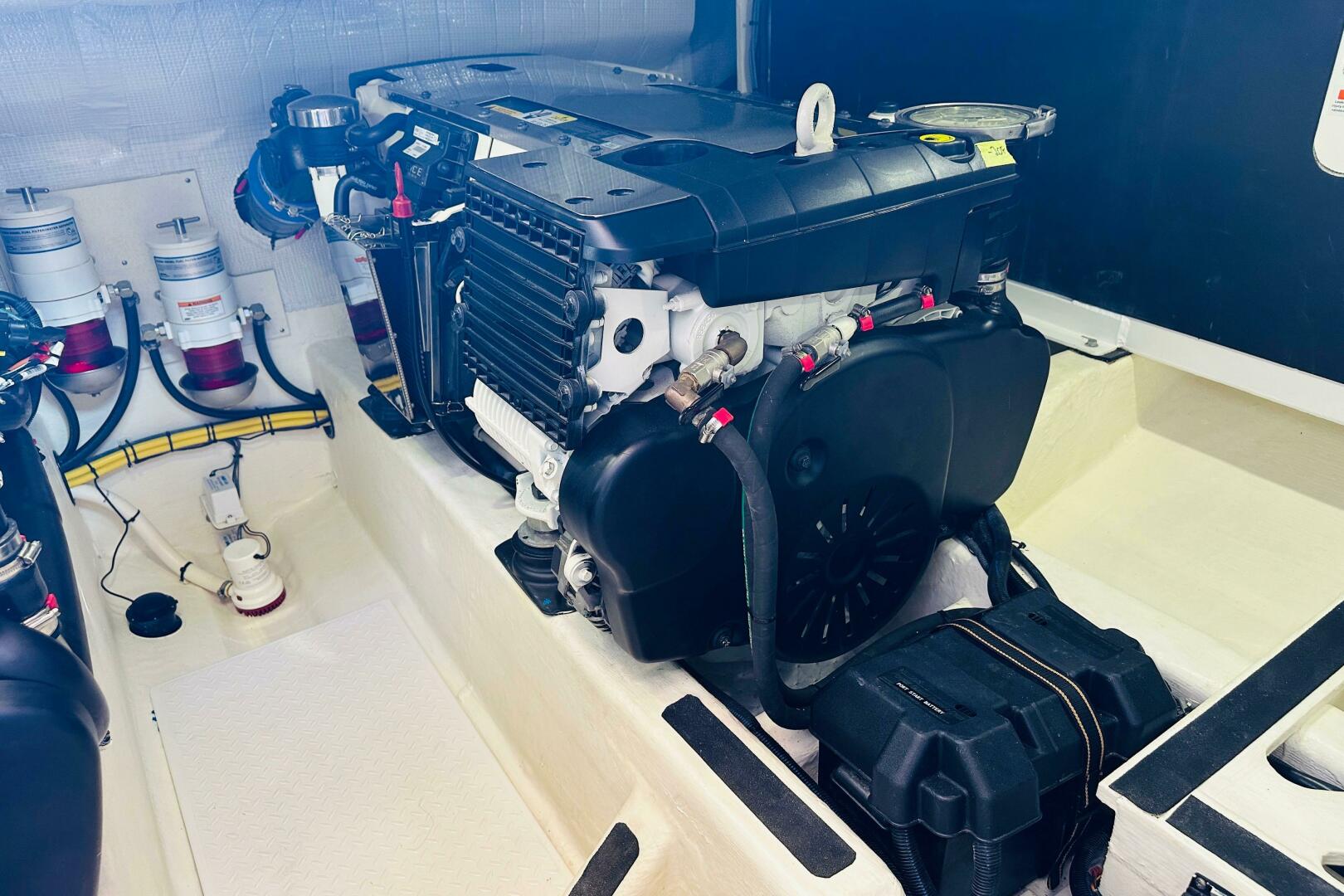

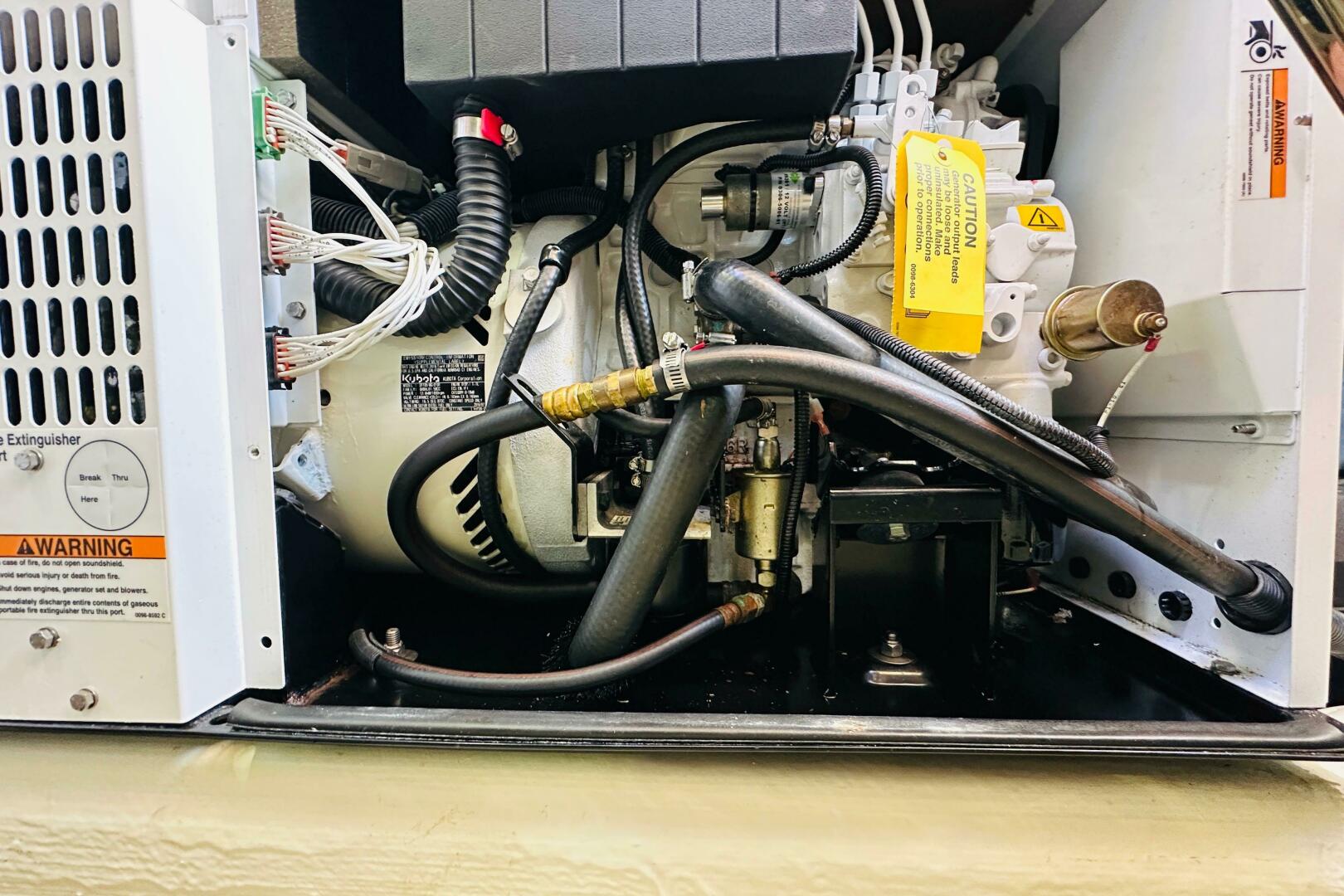

• Generator: Northern Lights 4.5 kW (77 hours)

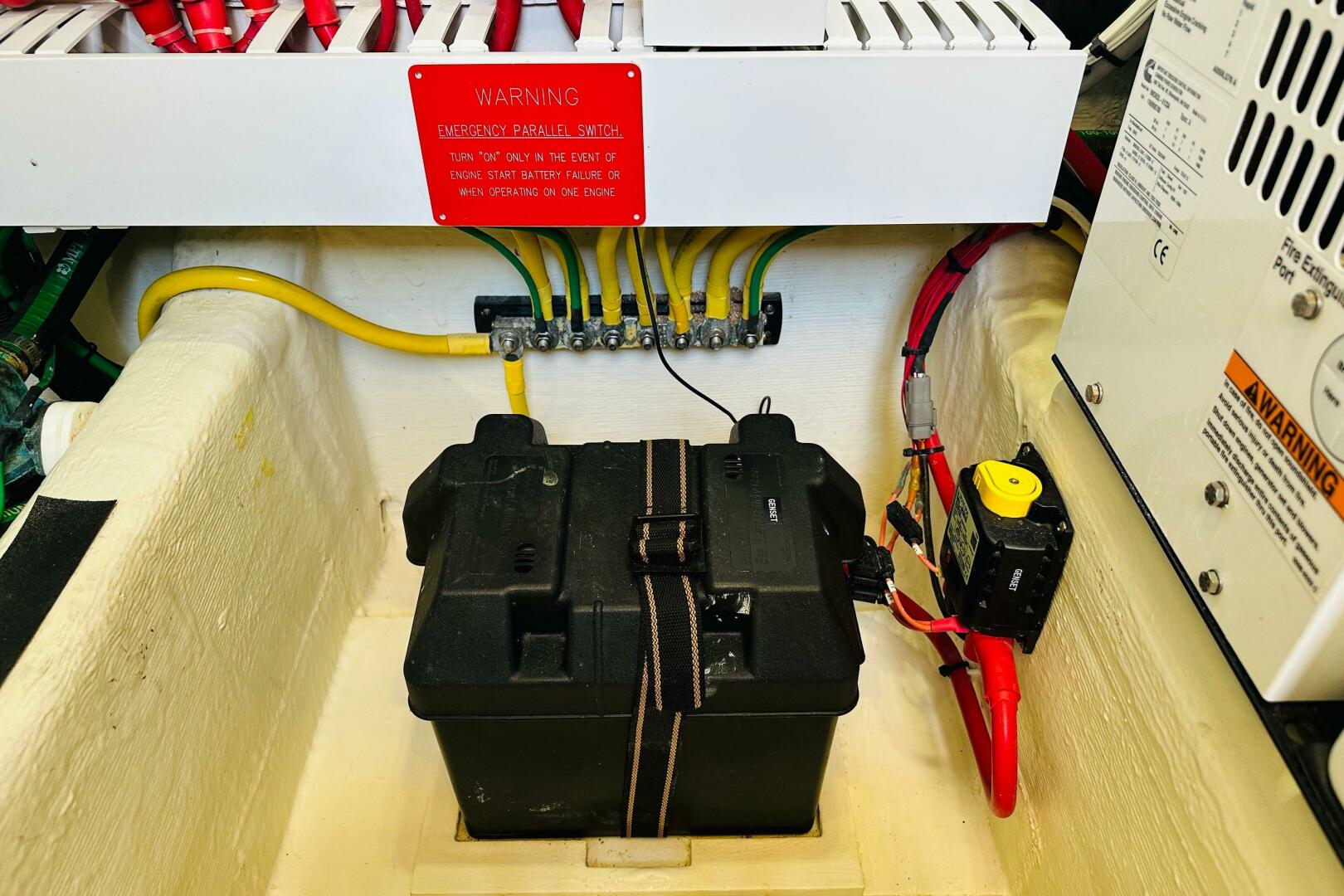

Batteries
• 4 x 12V House batteries totaling 840 Ah
• 12V 650 CCA starting battery

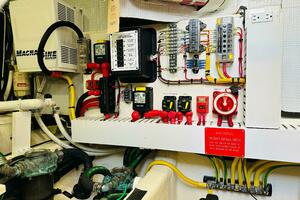

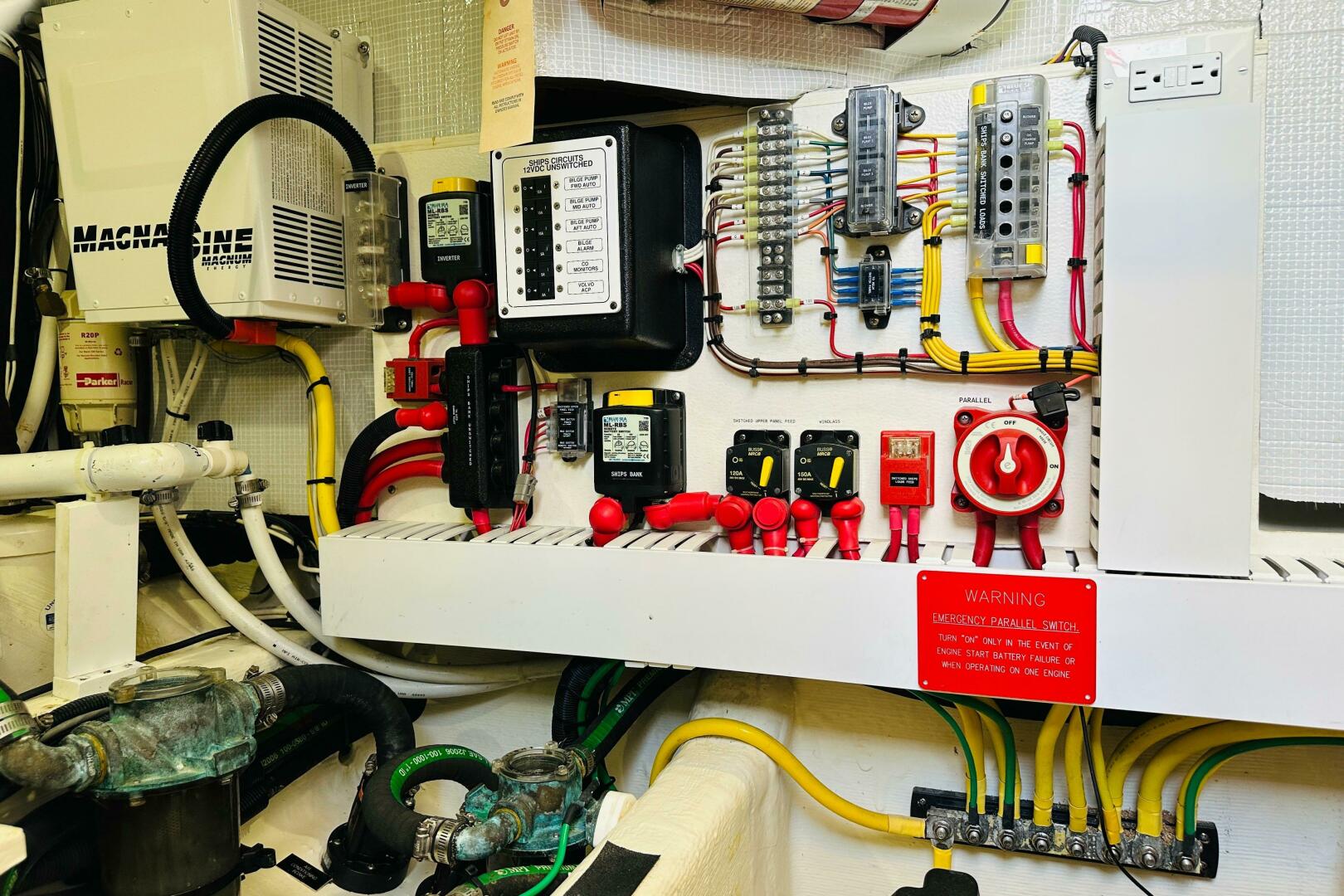

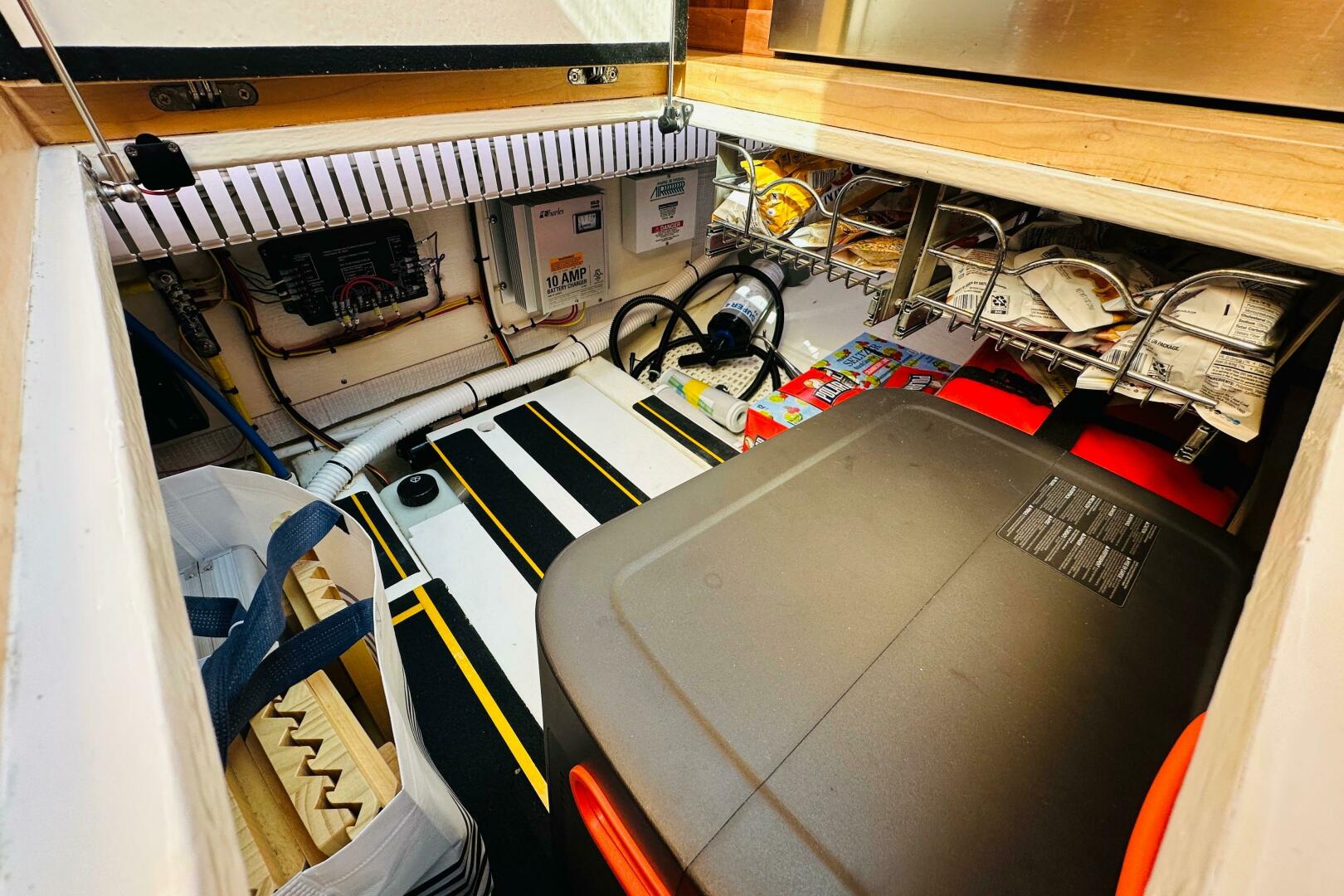

• Distribution: Custom DC panel with breakers and battery condition meter
Alternators
• Standard alternator for the starter
• 130A Leece-Neville for house bank
• Shore power: 125V/30A shore connection in cockpit with 50’ cord
• Inverter: 2000W Xantrex inverter for microwave and 110V outlets
Lighting
• Interior reading and dome lights
• Cockpit courtesy lights
• Engine room utility lights
• Masthead and deck lights with dimmer controls
Audio Package
• Clarion CMD5 radio/CD with iPod hookup
• Satellite radio
• Interior Polyplanar speakers
• Nautica cockpit speakers with remote control at helm
Plumbing
• Water system: Hot/cold pressure system in galley, head, and shower
• Water tank: 110 gallons across three tanks with independent valve selection
• Water heater: Force 10 six-gallon tank, powered by AC or engine

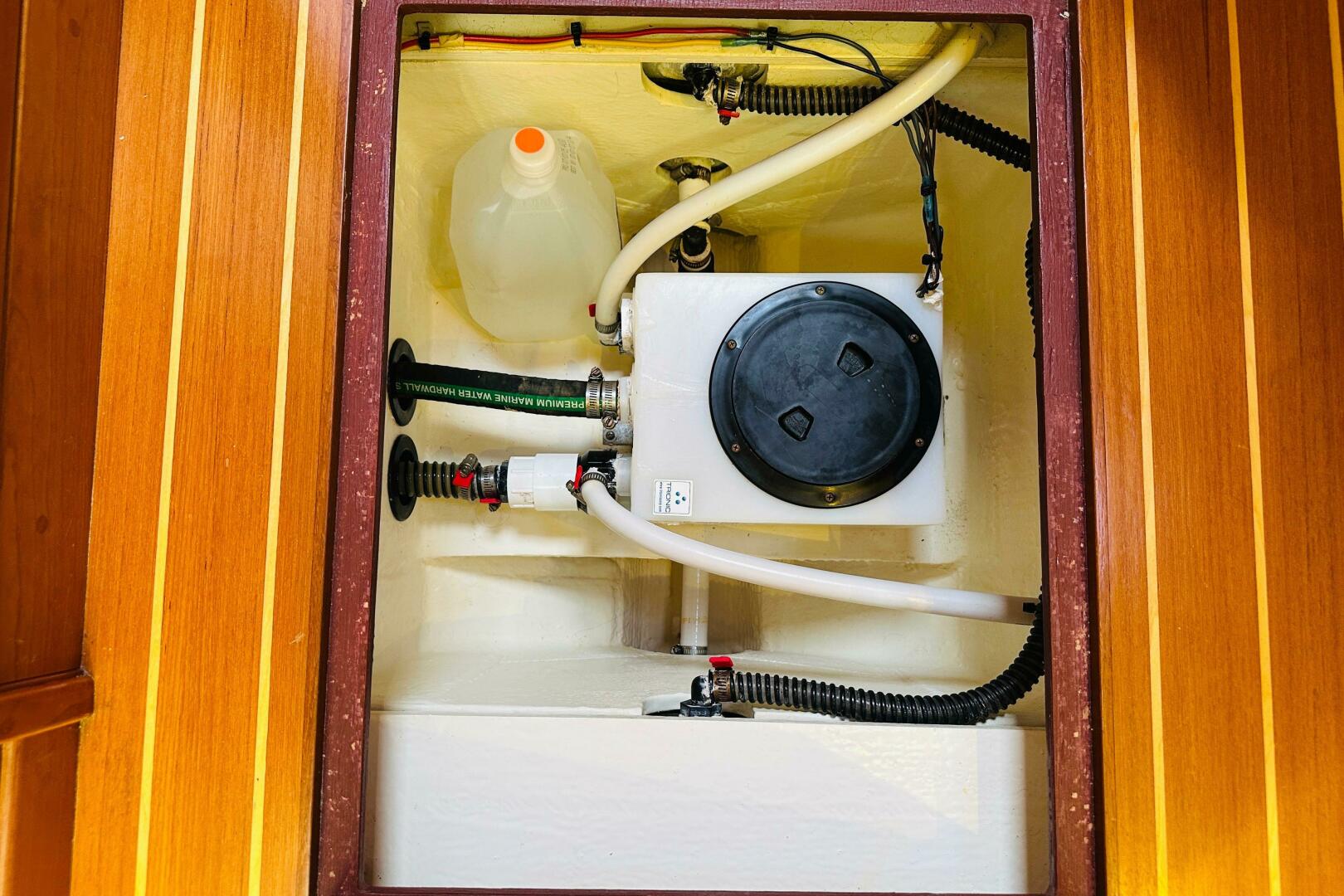

• Toilet: Tecma Silence Short electric toilet with freshwater flush and holding tank
Bilge pump
• Automatic 12V pump in engine room
• Manual Whale pump in cockpit
Spars, Rigging, And Sail Handling
Mast
• Awlgrip-finished aluminum mast with two airfoil spreaders
• Steaming light
• Fittings for halyard attachments
Boom
• Aluminum Leisure Furl boom with vang lug and mainsheet bale fittings
• LED lights with dimmer
• Standing rigging: Rod rigging with Navtec turnbuckles
Running rigging
• 12mm Braided main halyard
• 10mm Braided genoa halyard
• 12mm Genoa sheets
• Genoa tracks: 2 x 5’ Antal stainless T-tracks with lead blocks
• Jib Furler: Reckmann electric Furler with controls on both sides of the helm
Navigation
• Compass: Constellation binnacle compass with red LED
• Chart plotter: Garmin 942XS with flip-up mount in cockpit
• Sounder: Garmin GSD22 sounder with bronze transducer
• Sailing instruments: B&G wind and Hydra 2000 cruise packs
Paint And Finish
• Hull: Awlgrip Majestic blue
• Deck: Awlgrip Cream and Moondust nonskid
• Bottom: Epoxy primed with green antifouling
• Exterior Teak: Refreshed with two coats of gloss varnish (Sept 2024)
Outfitting
• 4 x Leather and lambskin fender holders custom fit for cap rail
• 4 x 40’ Double braid dock lines
• 4 x 8” x 20” Fenders with double braid lines and black fleece covers
• 2 x Custom made spruce fender boards
• Stainless steel bars in foredeck hatch and cockpit hatch for hanging spare lines
• False bottom in aft cockpit locker for easy storage
• Boat hook mounted in foredeck hatch
• 4 x Adult and two child lifejackets
• 4 x Fire extinguishers mounted throughout boat
• Hose, bucket, deck brushes and all cleaning supplies
• Strom anchor and rode
• Cutlery / crockery with custom storage drawers and racks
• 2 x Custom jack lines
• 2 x Suction cup lifters
• Teflon pots and pans
• Bosun’s chair
• Flares
• Safety lines and harnesses
• Air horn
• Custom toolbox bracket
• Misc navigational tools
• Shore power chord
Broker Comments
The Friendship 40 is impeccably designed, fast, stunningly beautiful, and built to an unparalleled standard of perfection. In the world of luxury, there are boats, and then there are yachts; the Friendship is crafted for those who appreciate the distinction.
