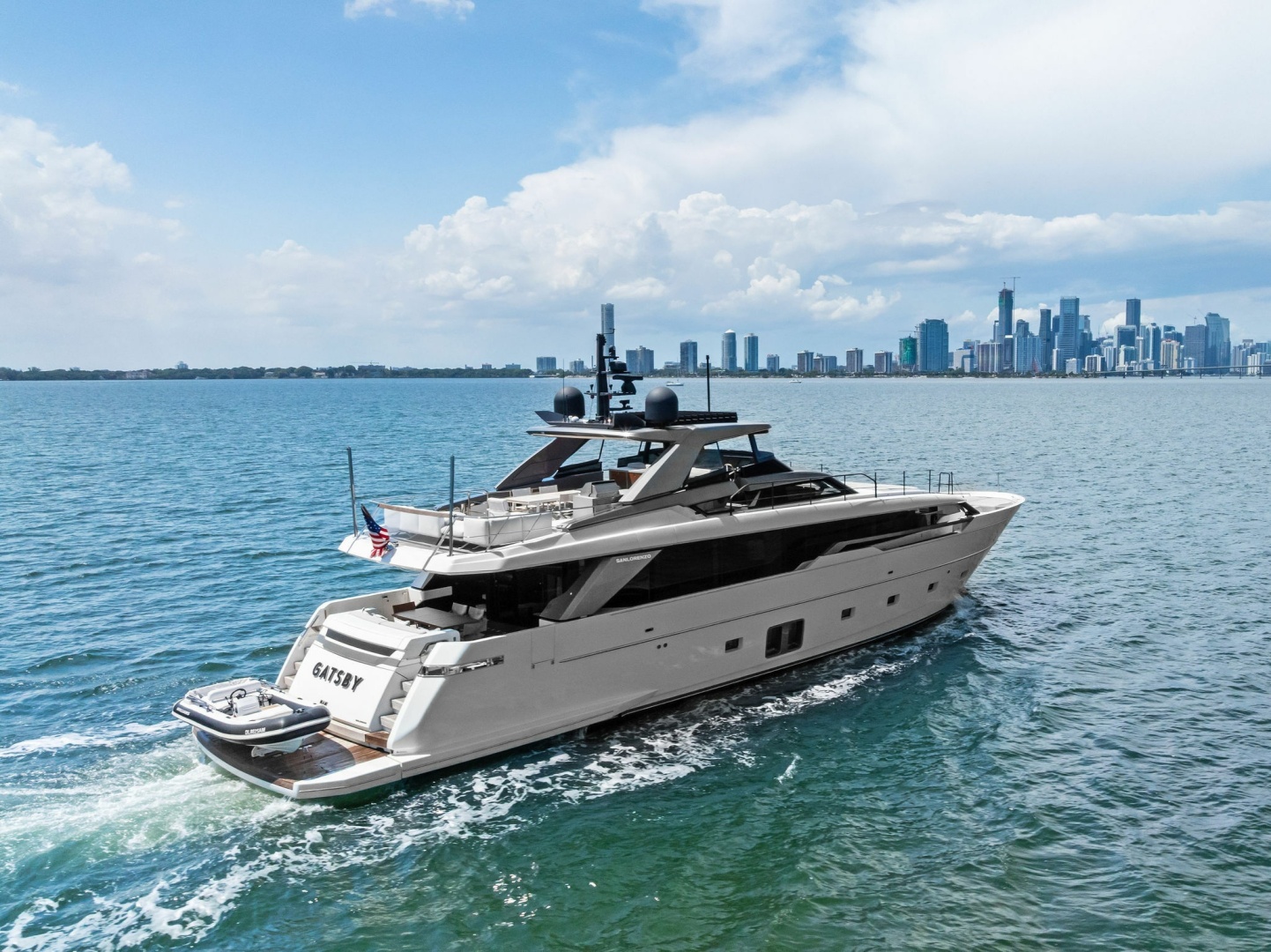

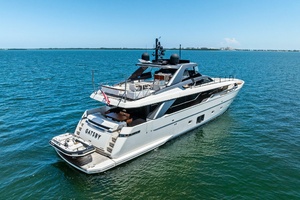

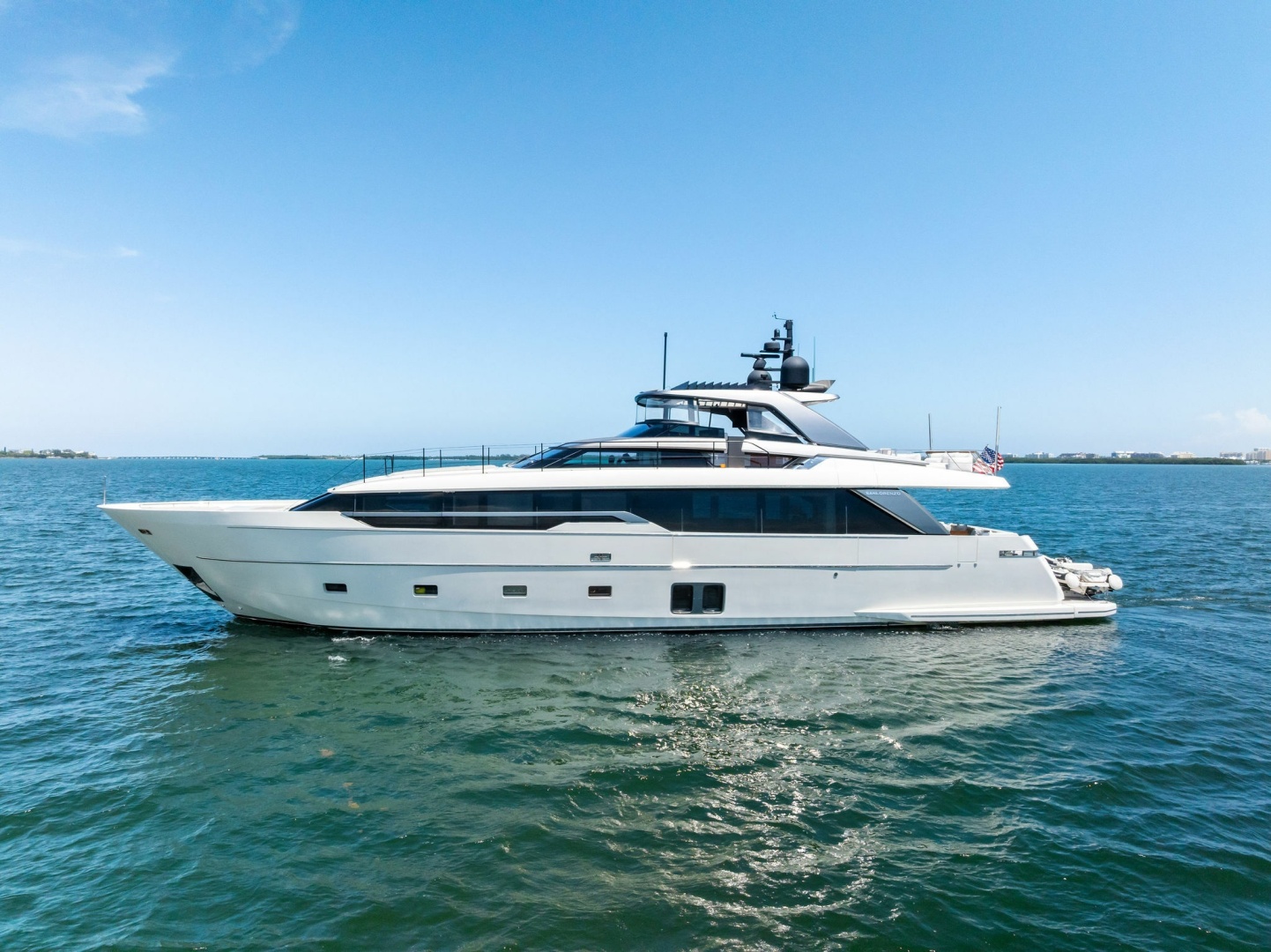

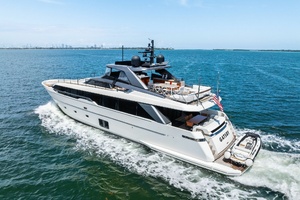

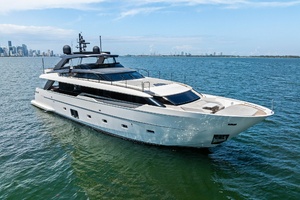

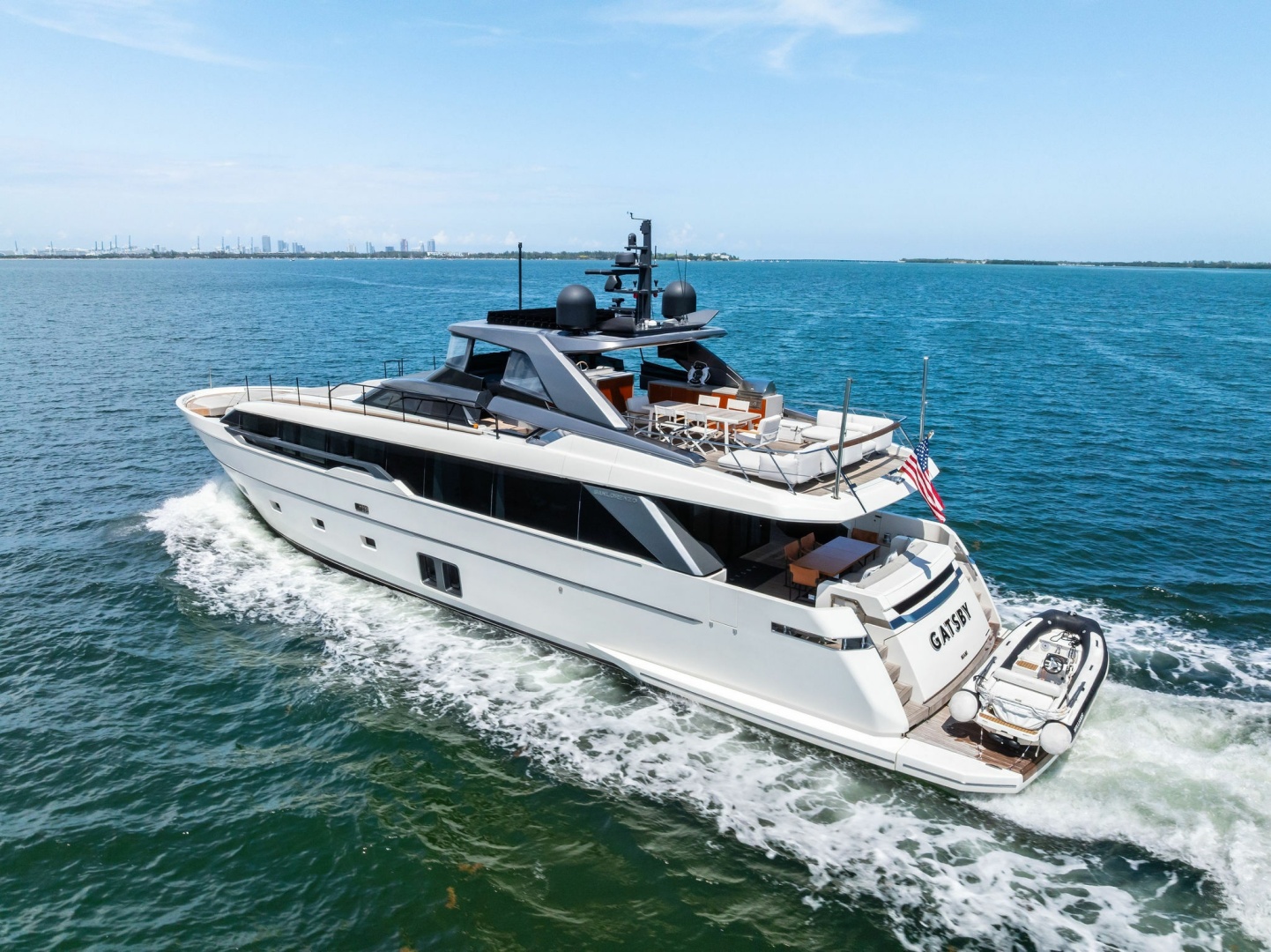

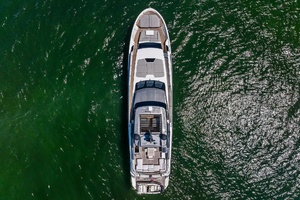

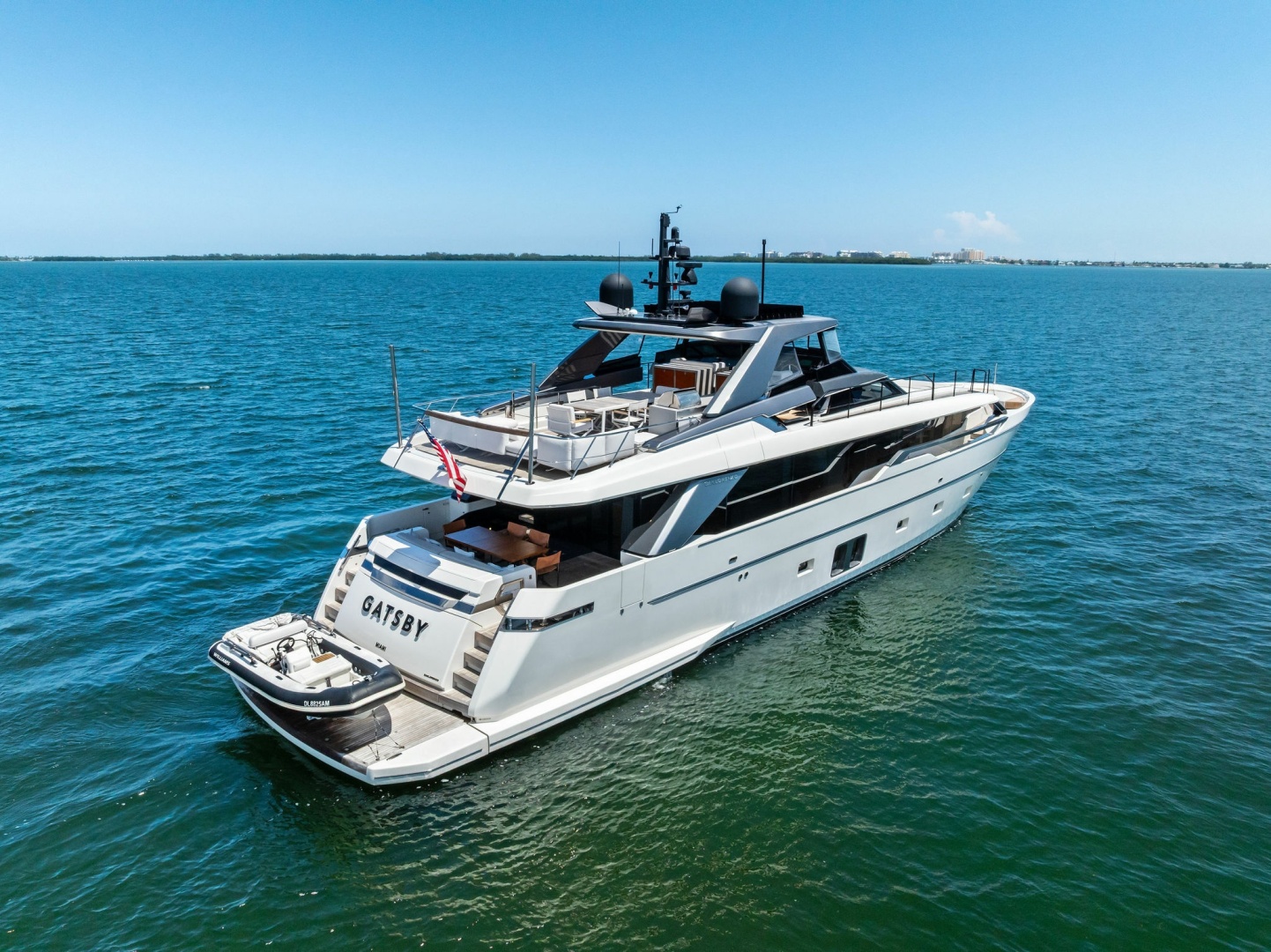

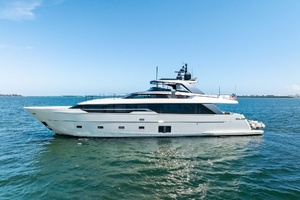

GATSBY
Yacht for Sale

ACCOMMODATION

FLAG & CLASS

• Flag State Cayman Islands (port of registry George Town
• Classification: RINA

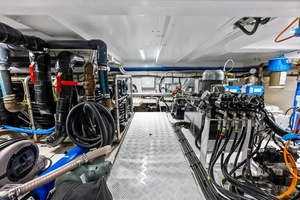

MACHINERY

Fuel System:

• Total Capacity: 27,300 litres (7,332 US gallons)
• Tanks: 4 storage tanks (6,125 litres each) + daily tank (2,800 litres)
• Equipment: 380 VAC fuel transfer pump, manual fuel transfer pump, Alfa Laval MIB303 fuel purifier/separator, tender fuel pump

Fresh Water System:

• Total Capacity: 7,200 liters (4,000 liters + 3,200 liters tanks)
• Equipment: 2x 380 VAC freshwater pumps, water maker Idromar MC5 (150-200 l/h), chlorine dosing system, 2x 100-litre immersion heaters

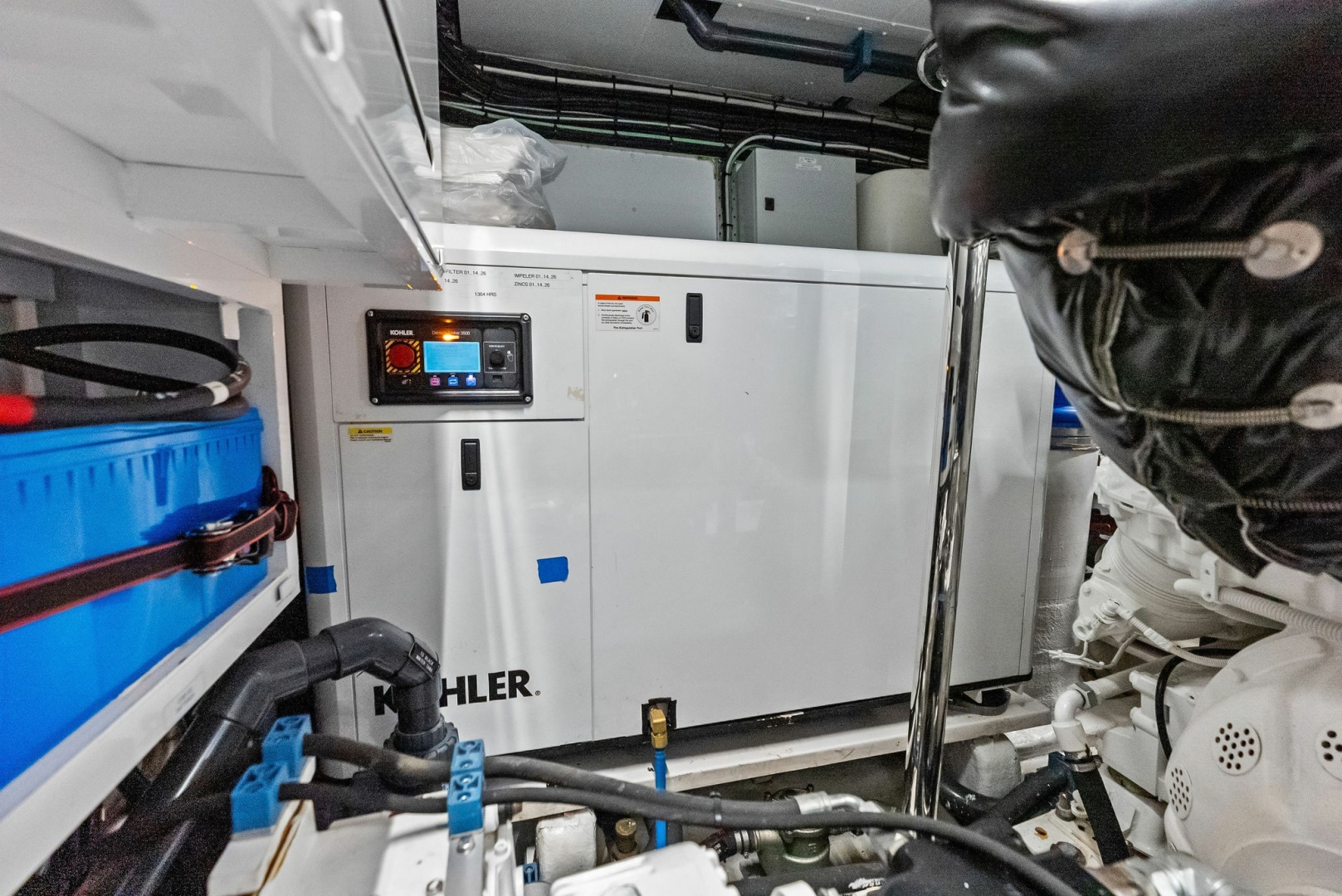

Generators:

• Type: 2 x 55 kW Kohler 55EFOZD
• Running Hours: 9,560 each

Engines:

• Type: 2 x 1,200 HP MTU 8V M93 2000
• Running Hours: 5,920 each

Propulsion:

• Type: Shaft line Steering gear

Speed:

• Maximum: 16.5 knots
• Cruising: 11.0 knots

Range:

• 3,200 Nautical Miles at cruising speed

Hull:

• Type: Displacement with bulb

Stabilisation System:

• Fins (with stabilisation at rest)
• Model: ABT TRAC 370
• Additional: 2x PTO on main engines + 15 kW 380 VAC pump for stabilisation at rest mode

FUEL & CONSUMPTION

• Classification and class notation RINA C
• Hull Mach Short Range
• Exterior design Filippetti Yacht
• Fuel Consumption in navigation (main engines + 1 gen on 50-60% load) @1100 rpm
• speed 8,5 – 9,0 kts – 40 l/h
• Fuel Consumption in navigation (main engines + 1 gen on 50-60% load) @1350 rpm,
• speed 10,0 – 11,0 kts – 80 l/h
• Generator fuel consumption Between 6 l/h – 18 l/h depending on load
• Anchoring gear 2x Maxwell 4500 windlasses (380V), 2x150 m 14 mm chains with stud link
• Bow thruster ABT 55 kW with tunnel 24”, counterrotating screws

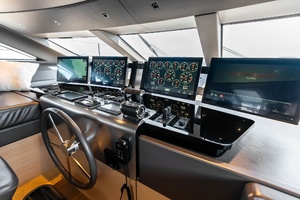

NAVIGATION & COMMUNICATION

• Electronic Navigation Main Radar Furuno FAR15
• Aux Radar Furuno Navnet2 + plotter, TIMEZERO ECS
• Autopilot Furuno, NAVTEX Furuno, SATCOM C Furuno Felcom, 2x VHF Furuno, BNWAS Furuno
• Monitoring system Furlanetto (monitoring tank levels, navigation/exterior lights, bilges, fire detectors, pumps functions, power management shore/generator, steering system)

MARINE SANITATION AND SAFETY SYSTEMS

Galley Grey Water Management:

• Capacity: 1200 liters
• Dedicated galley grey water pump + common manifold
• Priming valve from freshwater system
• Vacuum metering instrument

Sewage Treatment System:

• Model: Ecomar 8AC
• Holding Tank Capacity: 1 cubic meter

Bilge Water System:

• Primary Pump: Gianneschi ACM, 380V AC (interchangeable with fire pump)
• Emergency Pump: Gianneschi Diesel fire/bilge pump with common manifold and priming valve
• Additional: 24V electric pump in each bilge well, high level alarms for ECR and wheelhouse
• Portable Diesel Fire/Bilge Pump
• Dedicated Bilge Tank: 1 cubic meter

General Grey Water Tank:

• Capacity: 1500 liters
• Dedicated grey water pump + common manifold
• Priming valve from freshwater system
• Vacuum metering instrument

Black Water Tank:

• Capacity: 2200 liters
• Dedicated black water pump + common manifold
• Priming valve from freshwater system
• Vacuum metering instrument

SOUND SYSTEM & ENTERTAINMENT

Main Sound System:

• Brand: SEALUX
• Features: Connectable to loudspeakers in all areas
• Coverage: Includes main saloon, with separate zones for upper deck, sun deck, bow deck, and aft deck

Digital Entertainment:

• Apple TV available for streaming and multimedia playback

SAFETY & SECURITY

Firefighting System:

• Control Panel: CATEF fire control panel with detectors in all spaces and call points
• Fixed Systems: FM200 fixed firefighting system in Main Engine Room and a dedicated FM200 fixed tank in ECR (Electronic Control Room)
• Pump: Gianneschi ACM 380V AC fire pump (interchangeable with bilge pump)
• Fire Hoses: 4 total (2 on main deck, 1 on upper deck, 1 interior)
• Portable Equipment: Portable fire/bilge pump with connection to fire main
• Fire Extinguishers: Available in all zones

TENDERS & TOYS

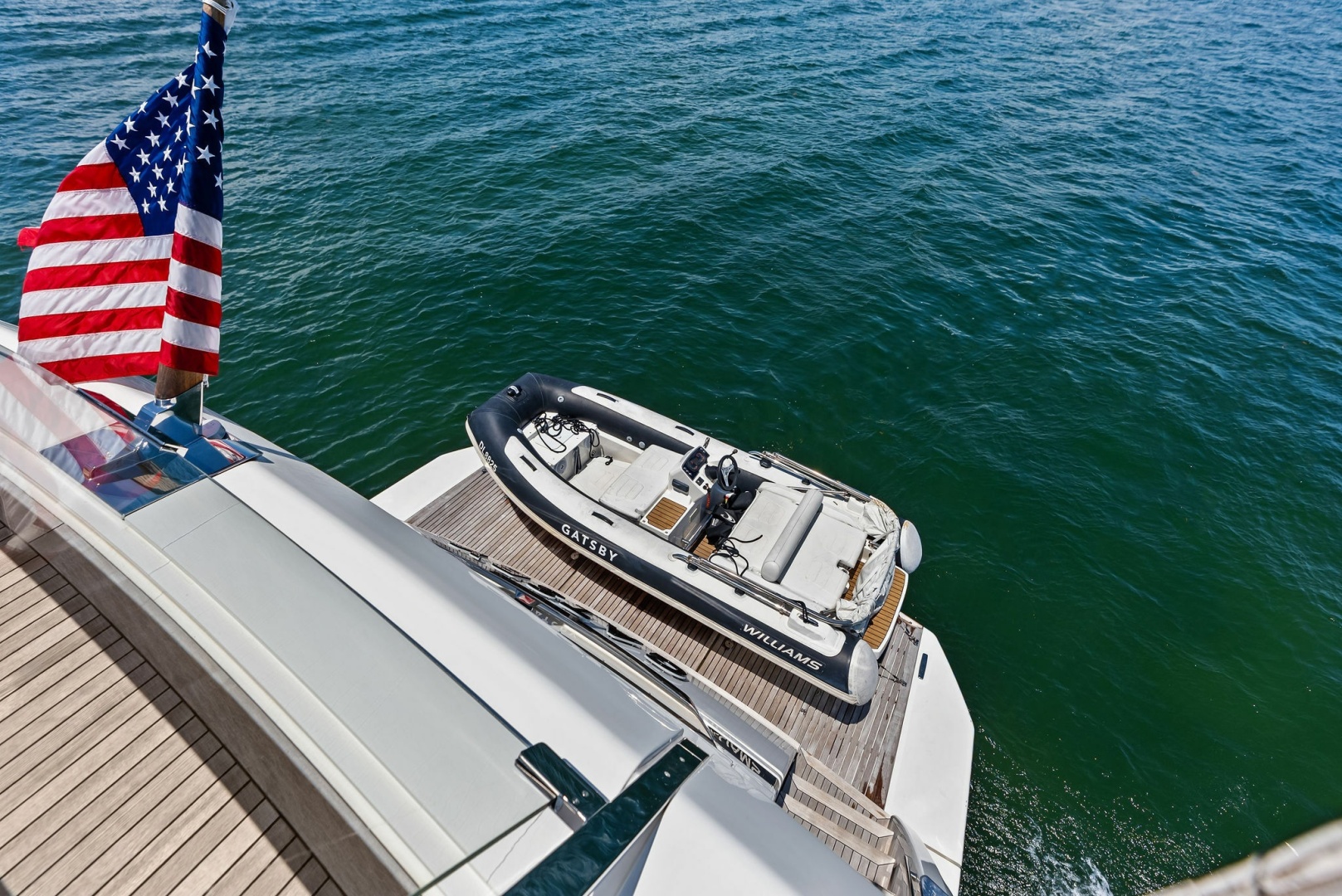

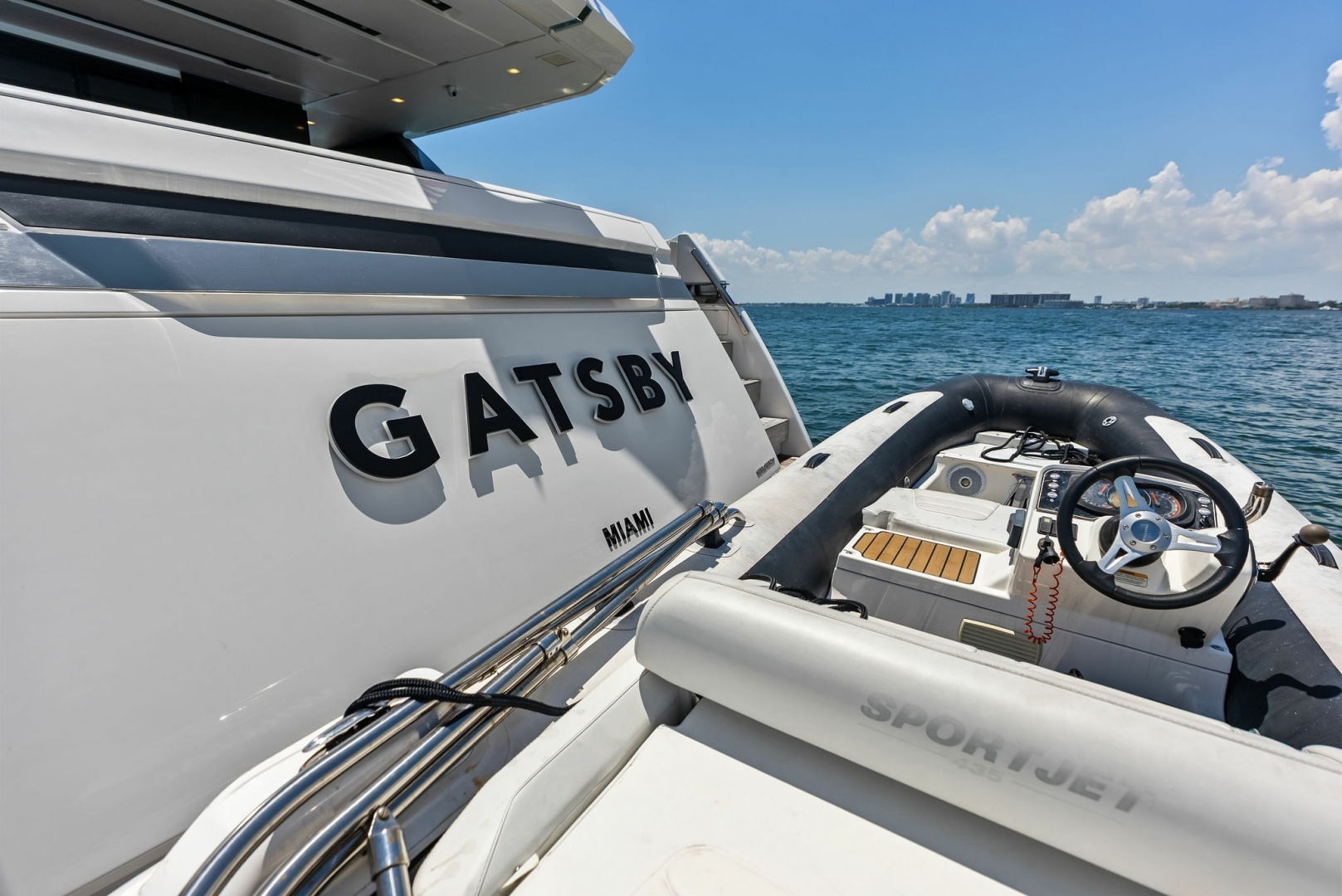

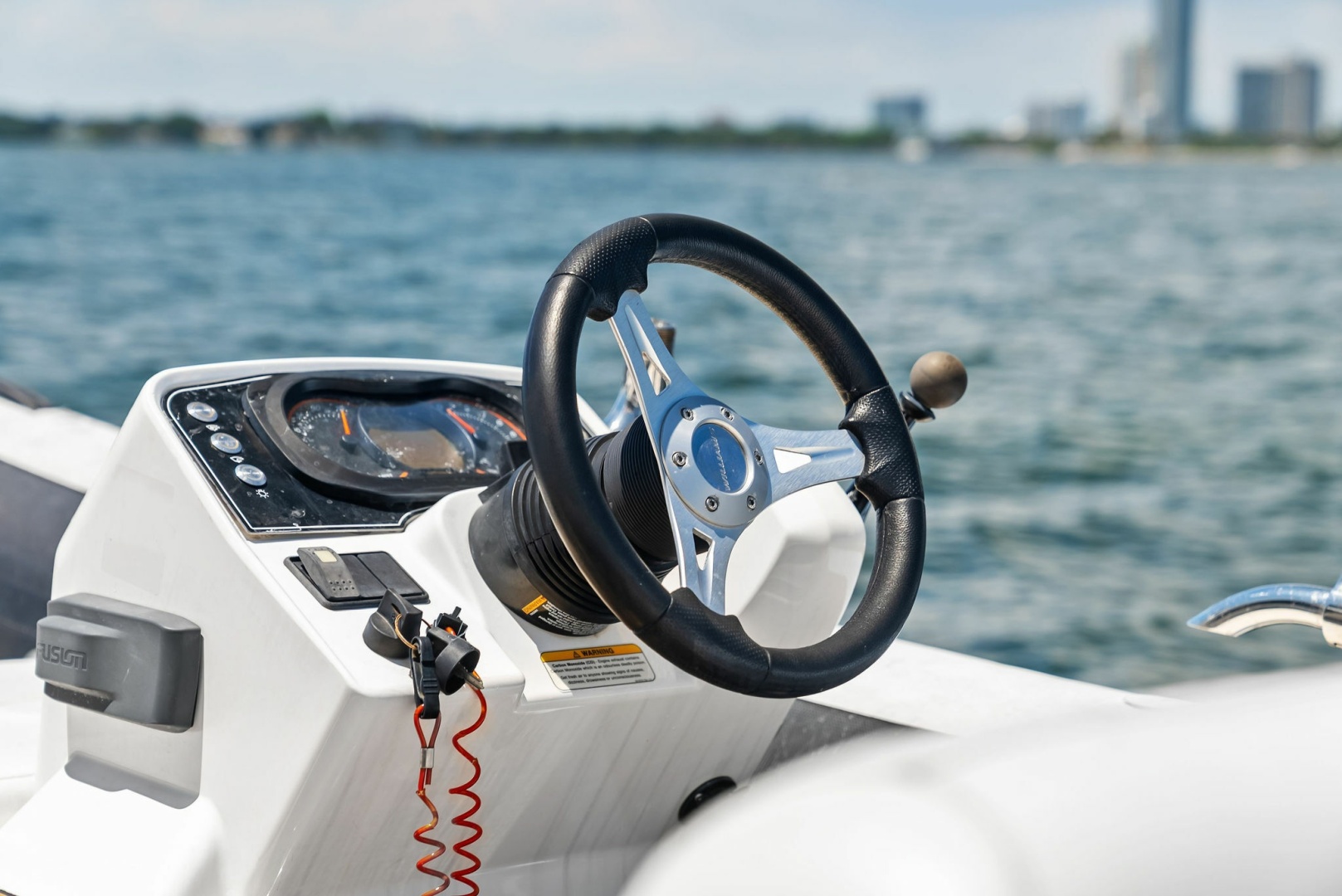

Tender:

• Type: BCT 380 VAC
• Features: Servo-assisted hydraulic steering with emergency pump and switchover valves
• Model: Williams 505 Diesel
• Engine: Yanmar 4JH-4HTBE, 81 kW
• Running Hours: 500
• Drive: Jet drive
• Year: 2014

Jet Ski:

• Model: Seadoo Spark Trixx
• Power: 66 kW
• Year: 2021

Seabob:

• Model: Cayago Seabob
• Year: 2015

Water Sports Equipment:

• 2x Water skis
• 1x Wakeboard
• Assorted fins and snorkels
