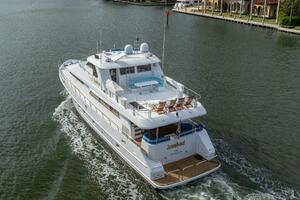

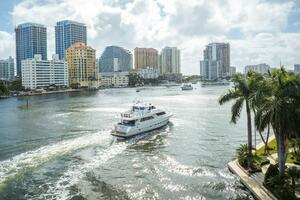

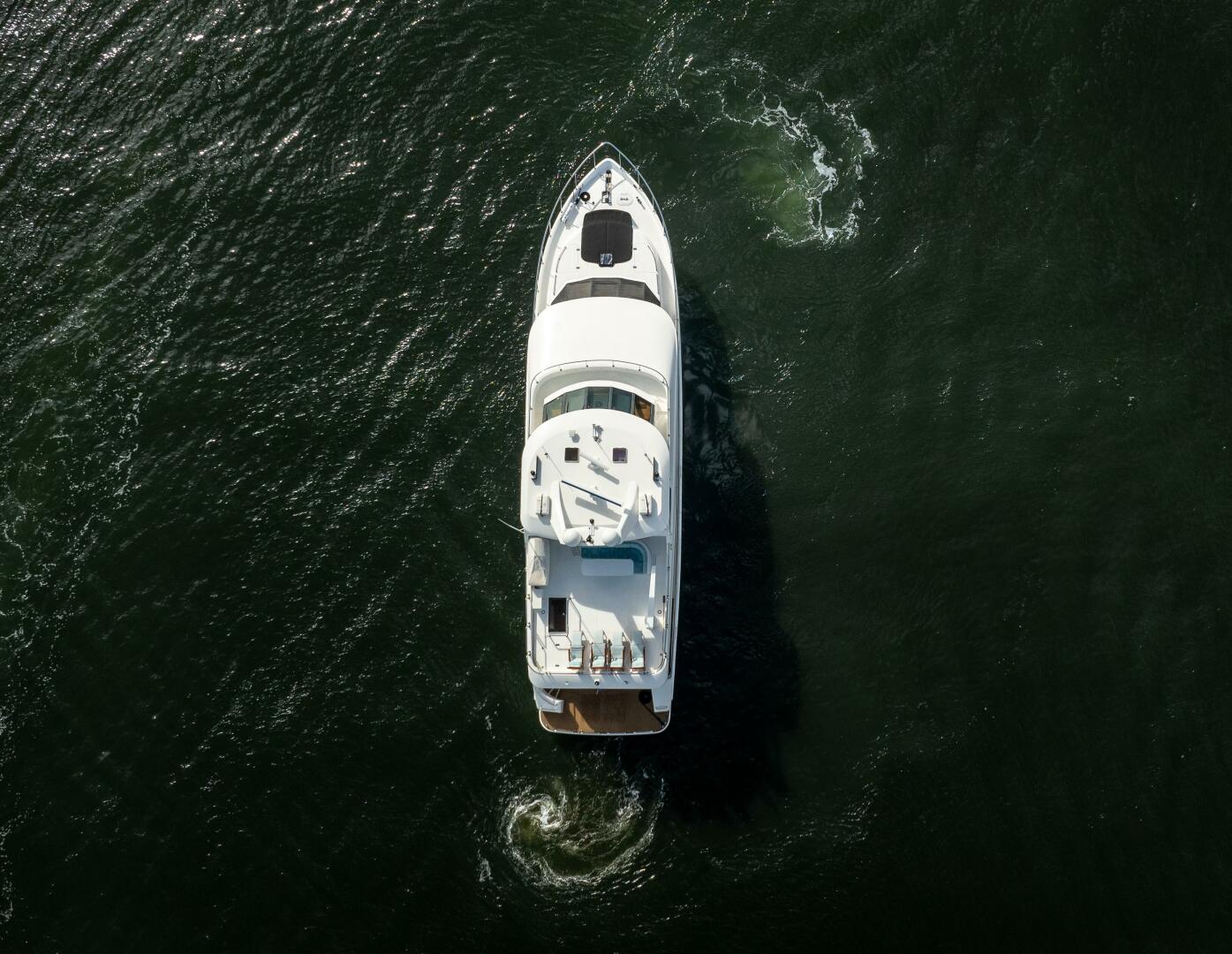

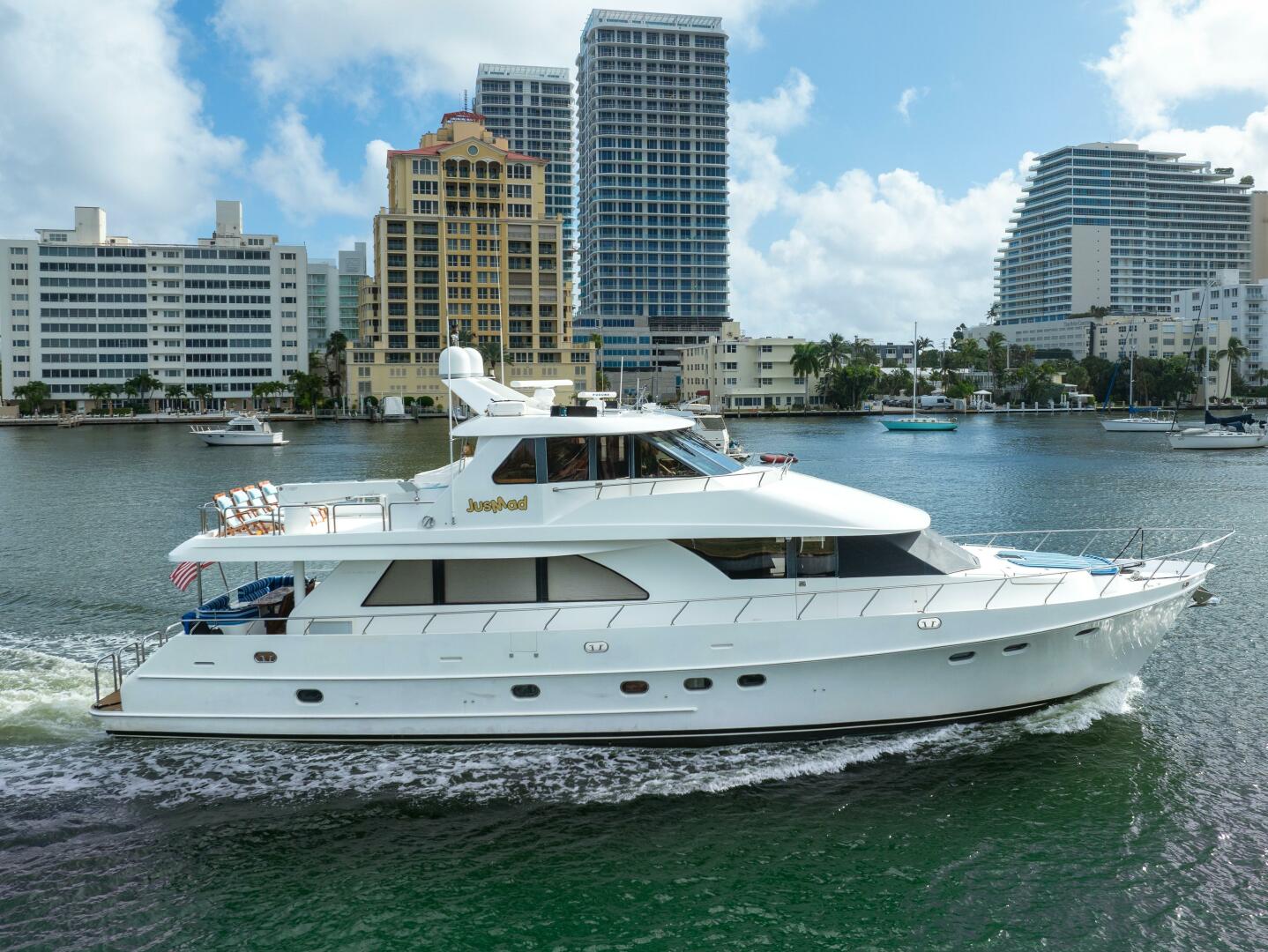

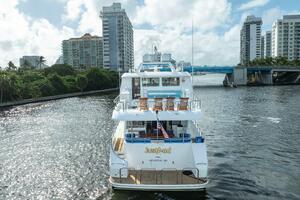

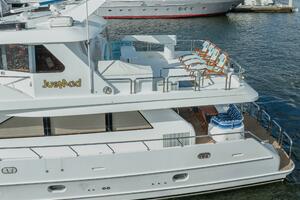

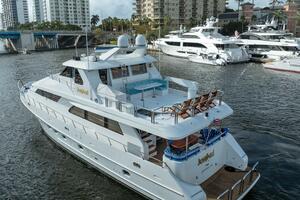

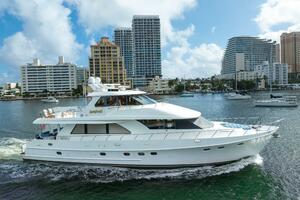

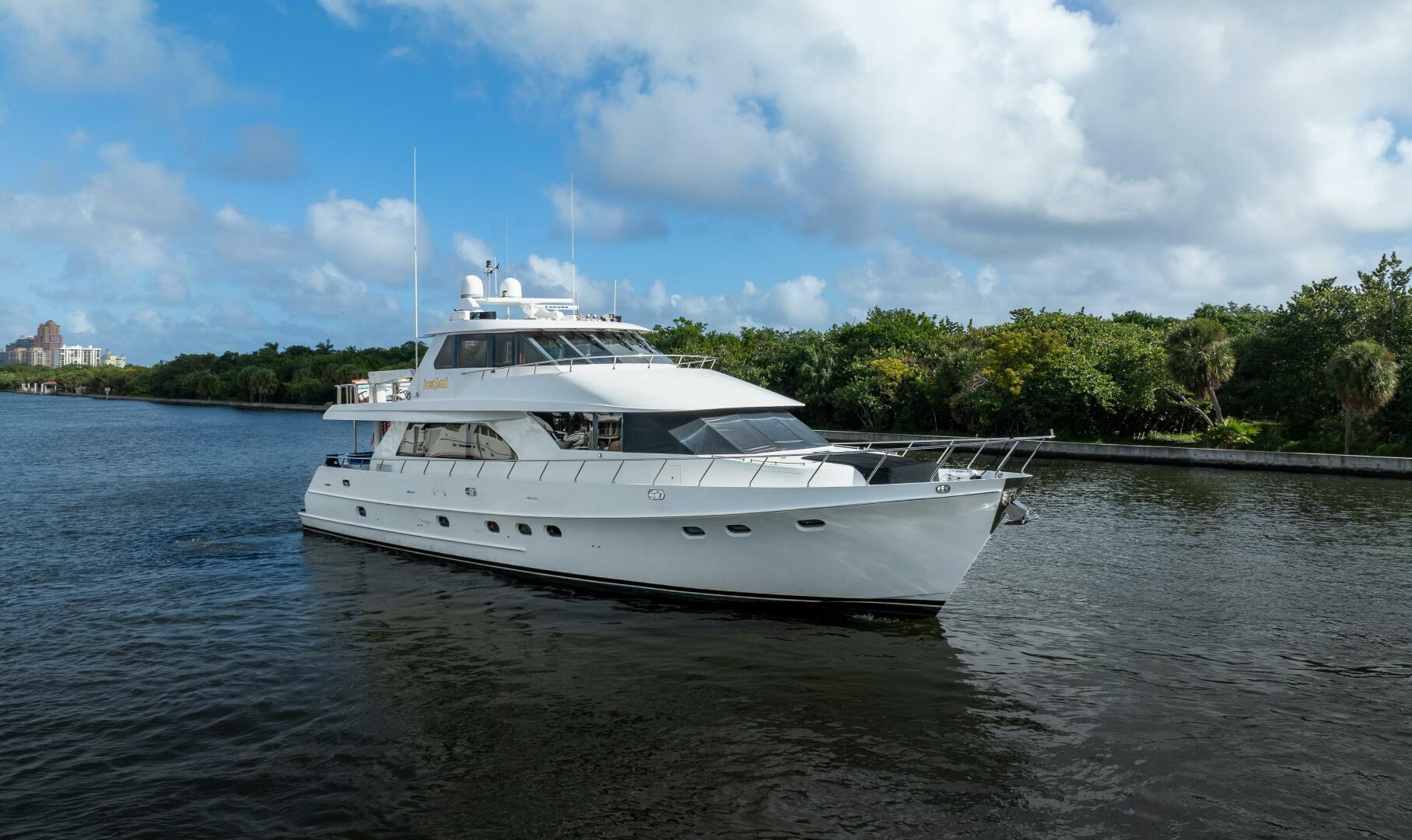

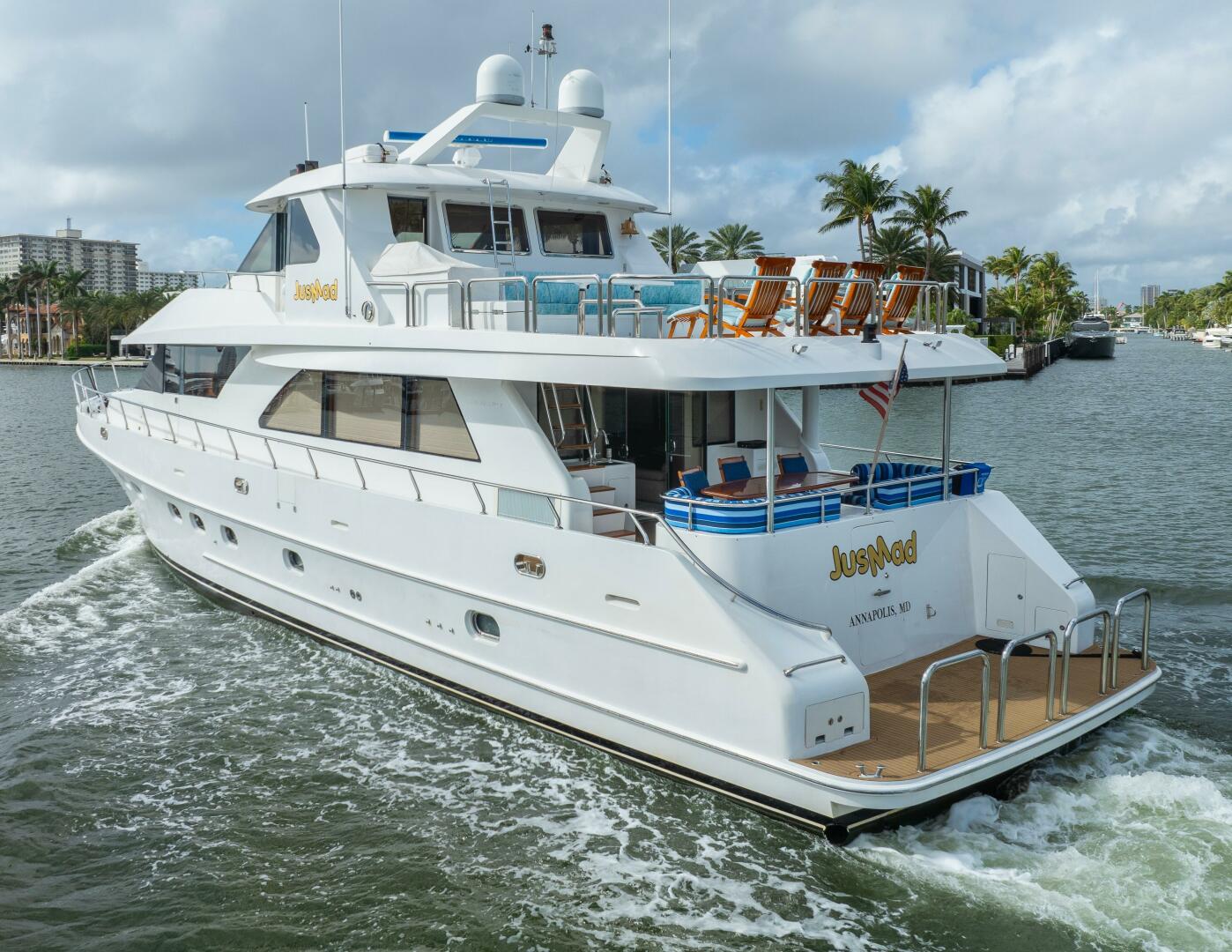

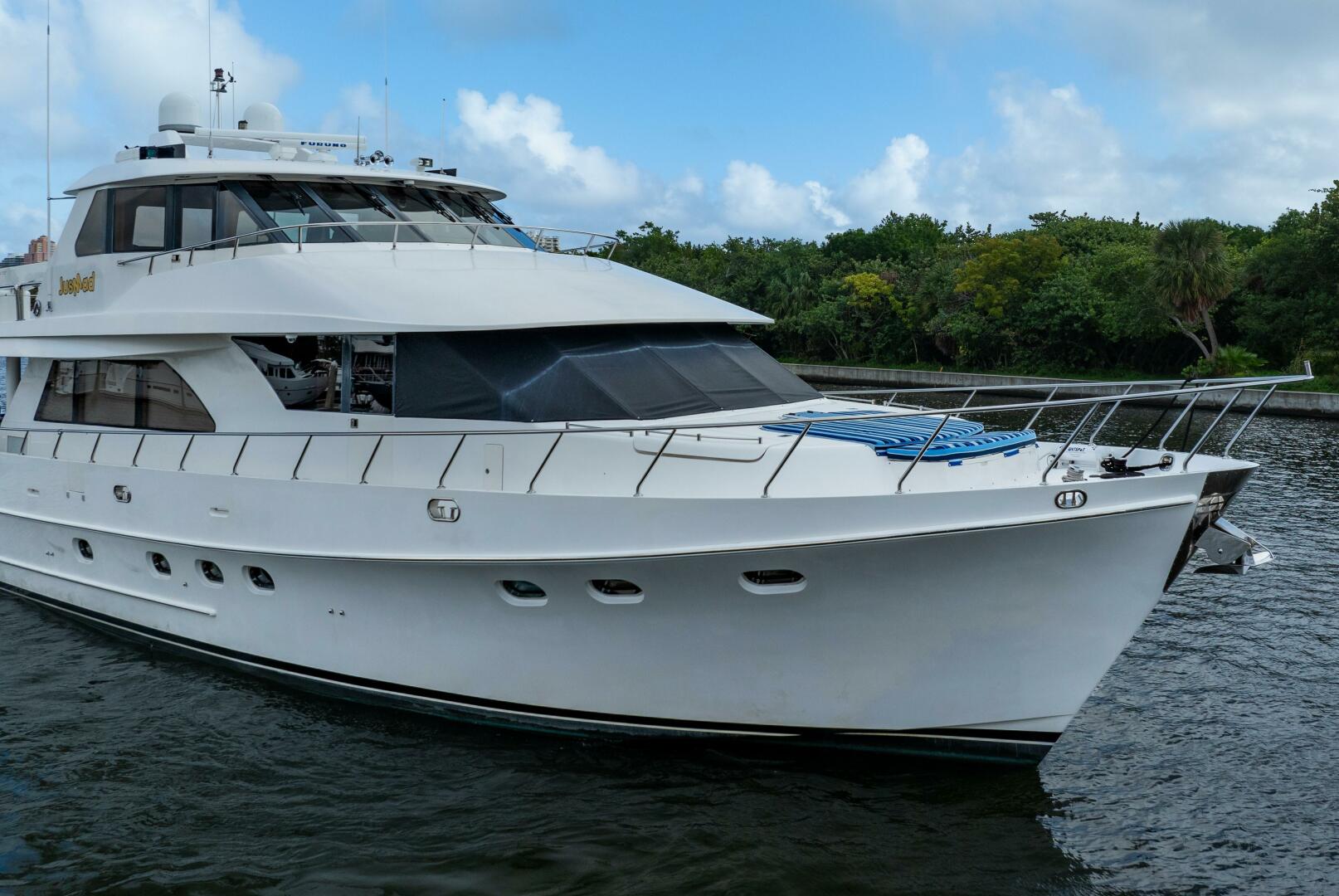

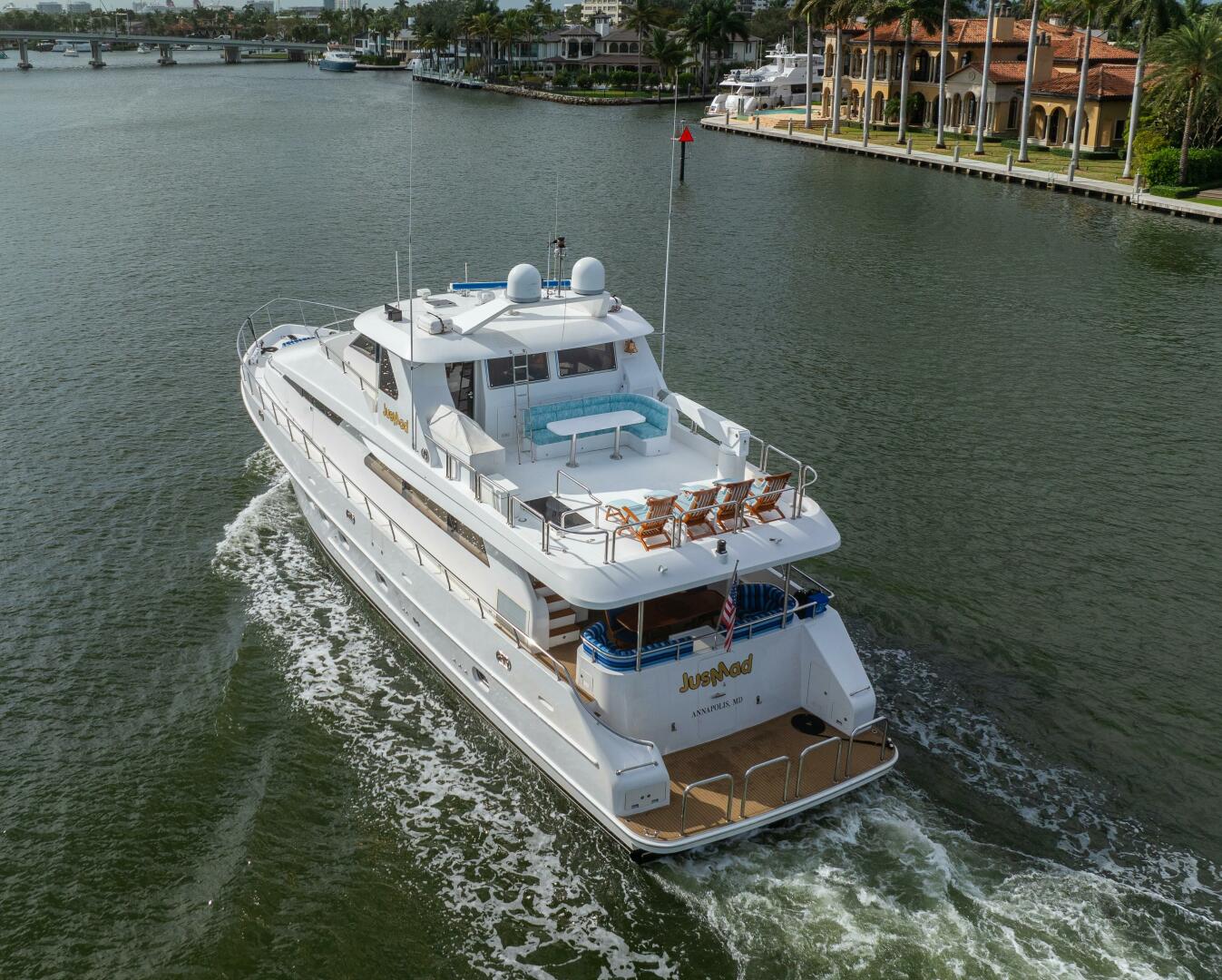

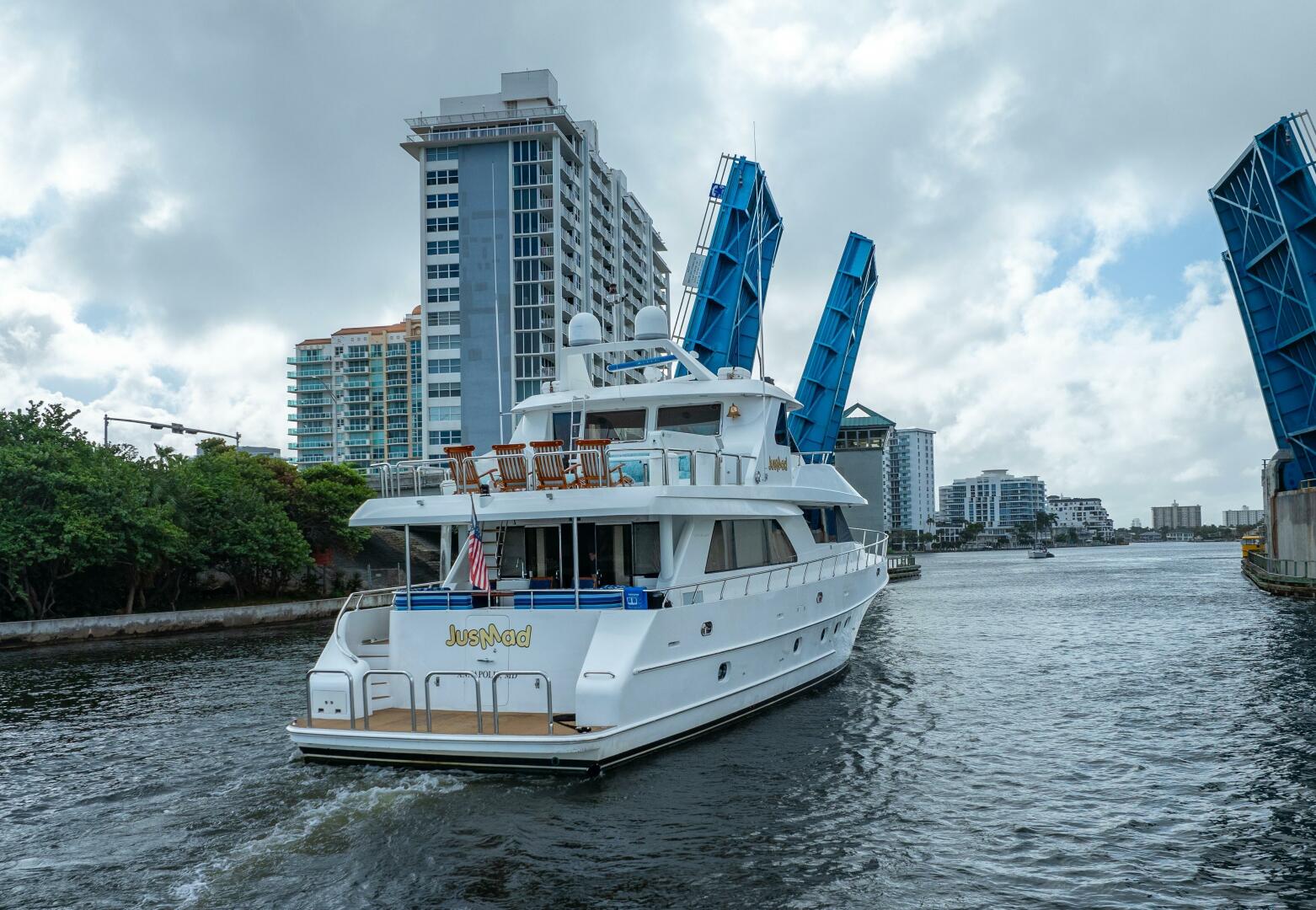

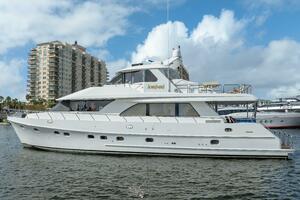

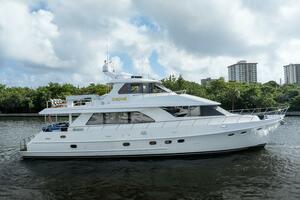

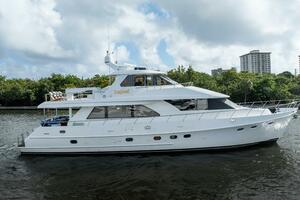

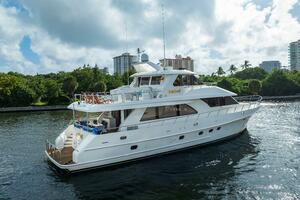

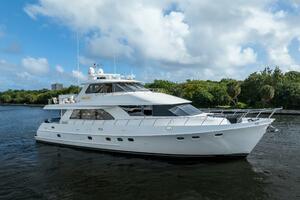

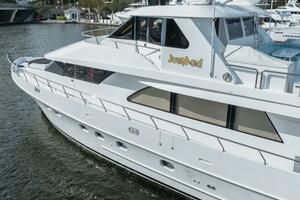

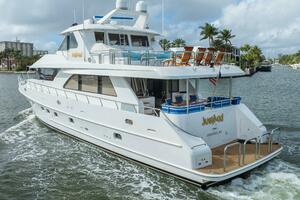

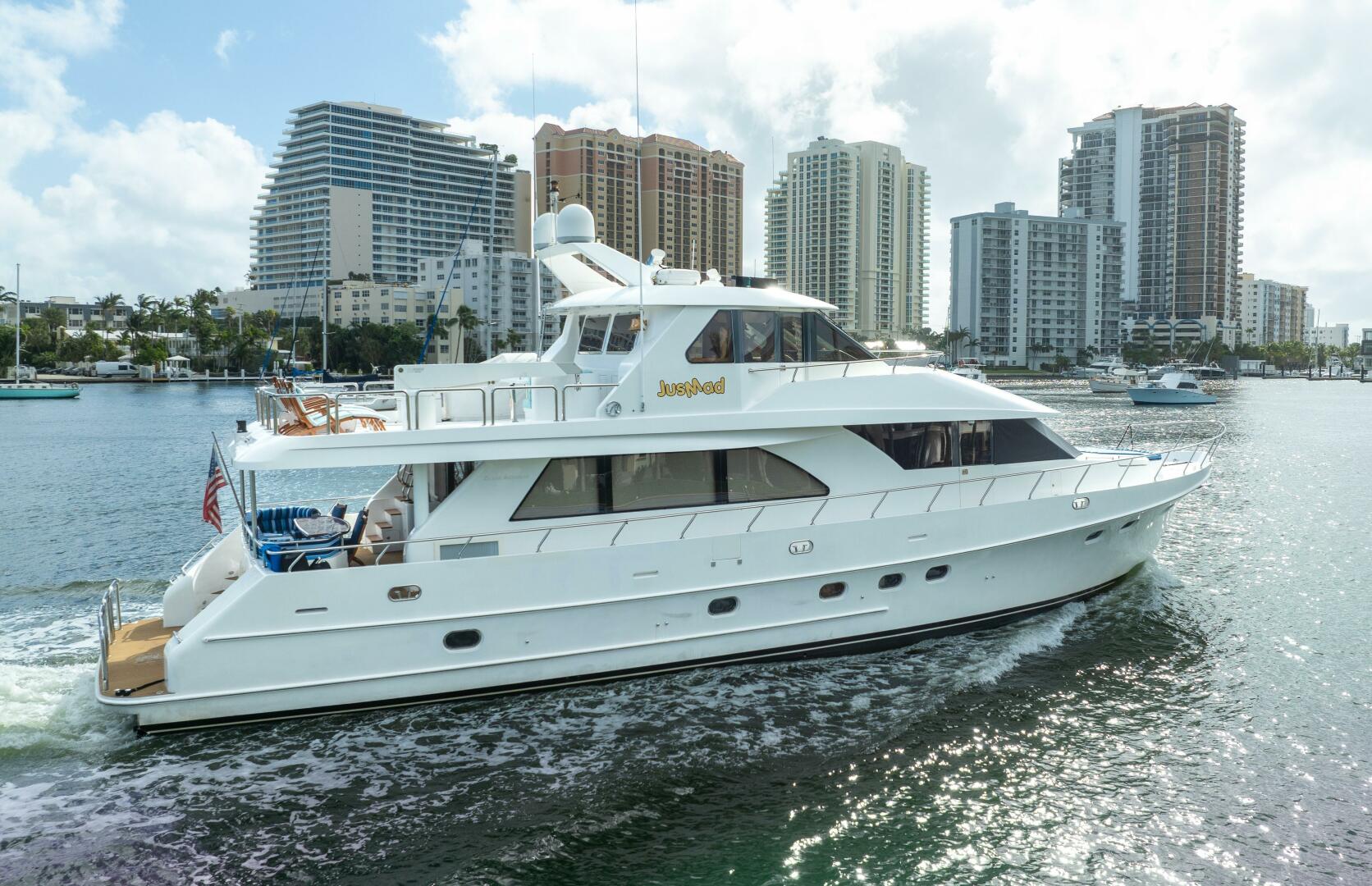

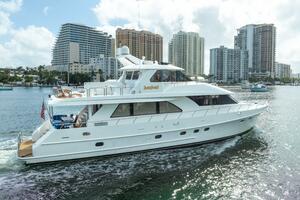

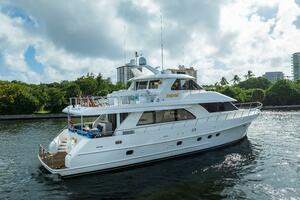

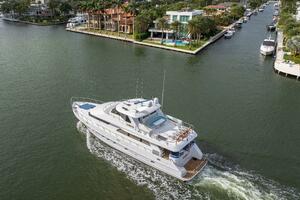

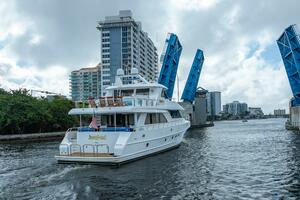

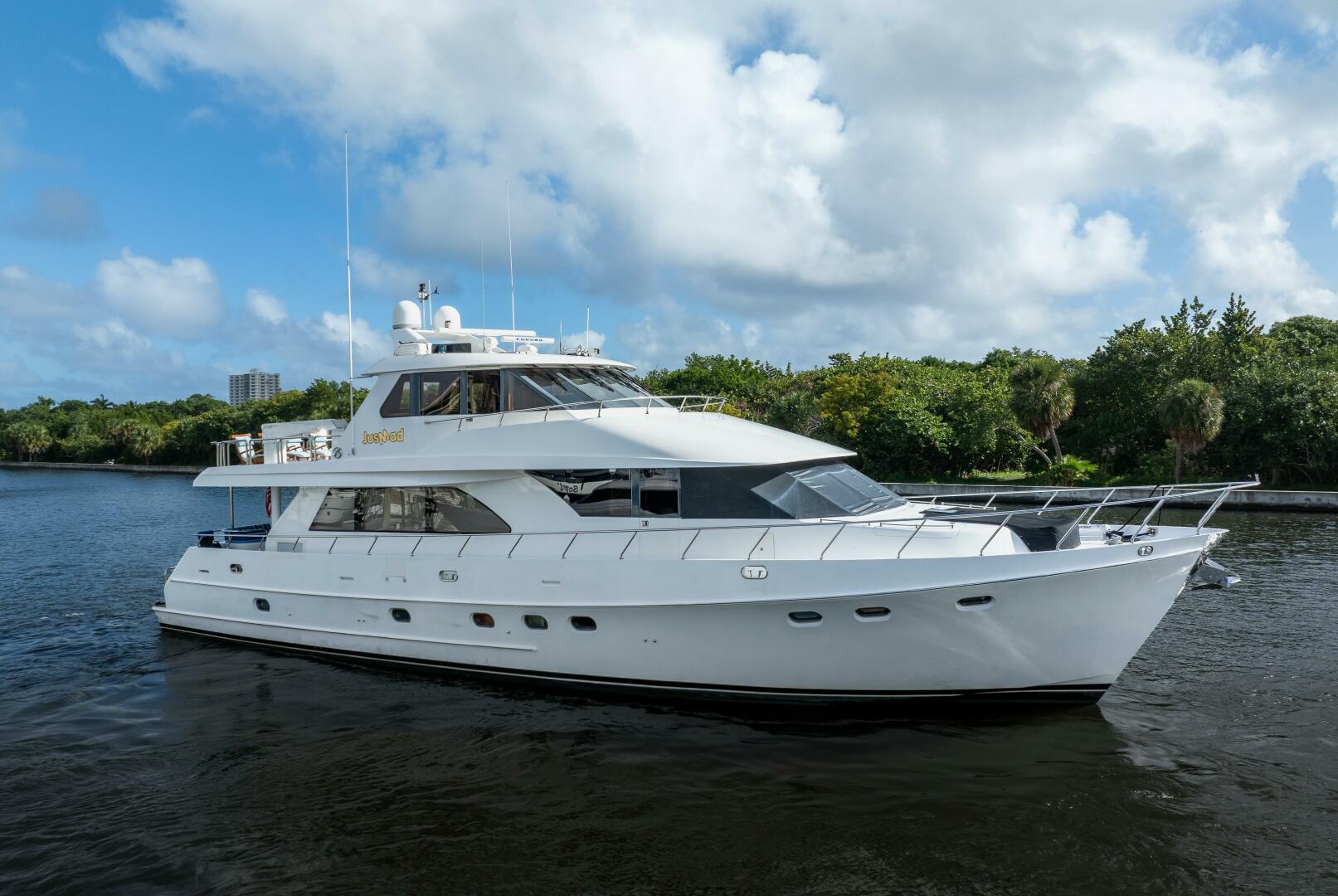

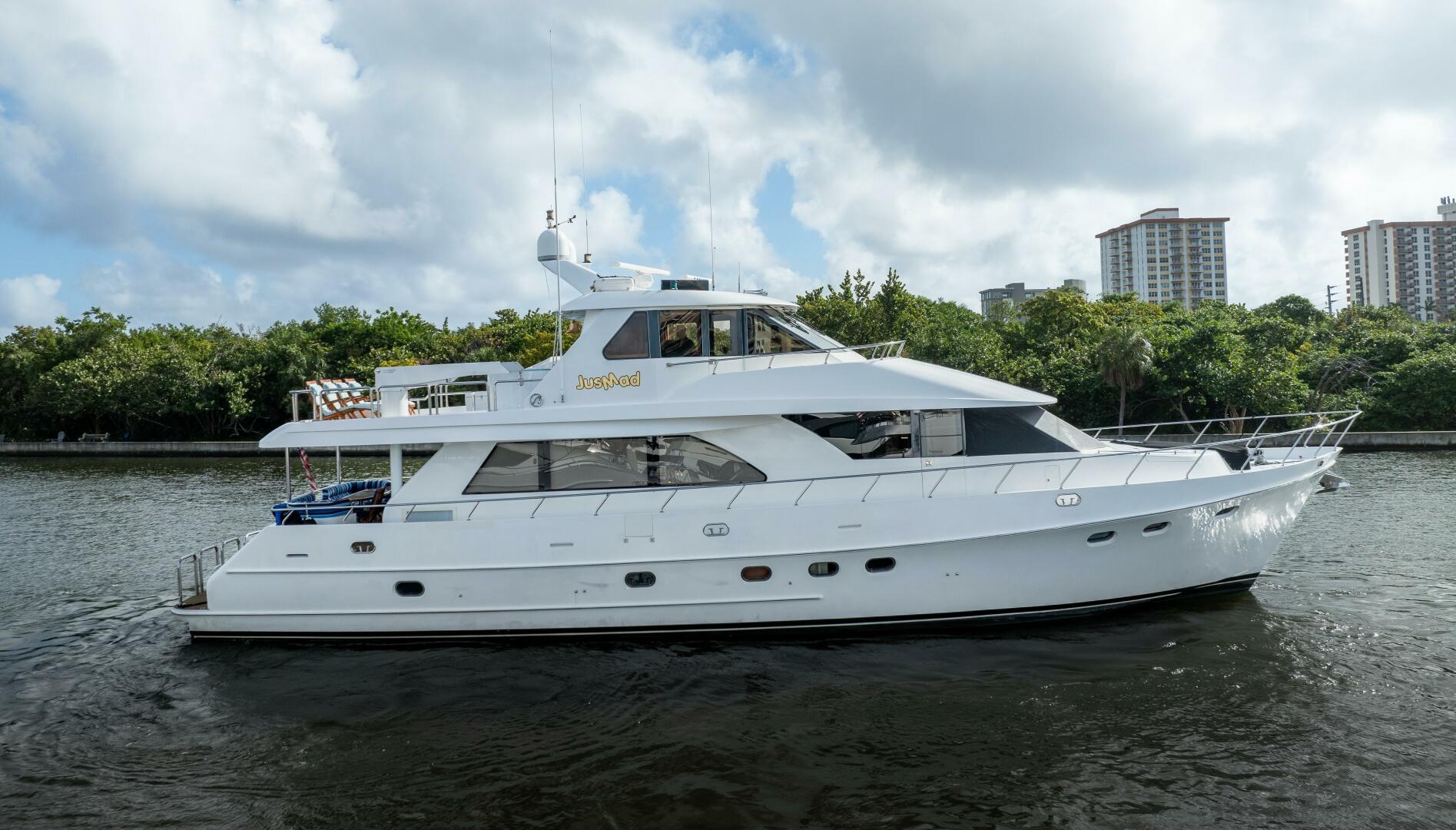

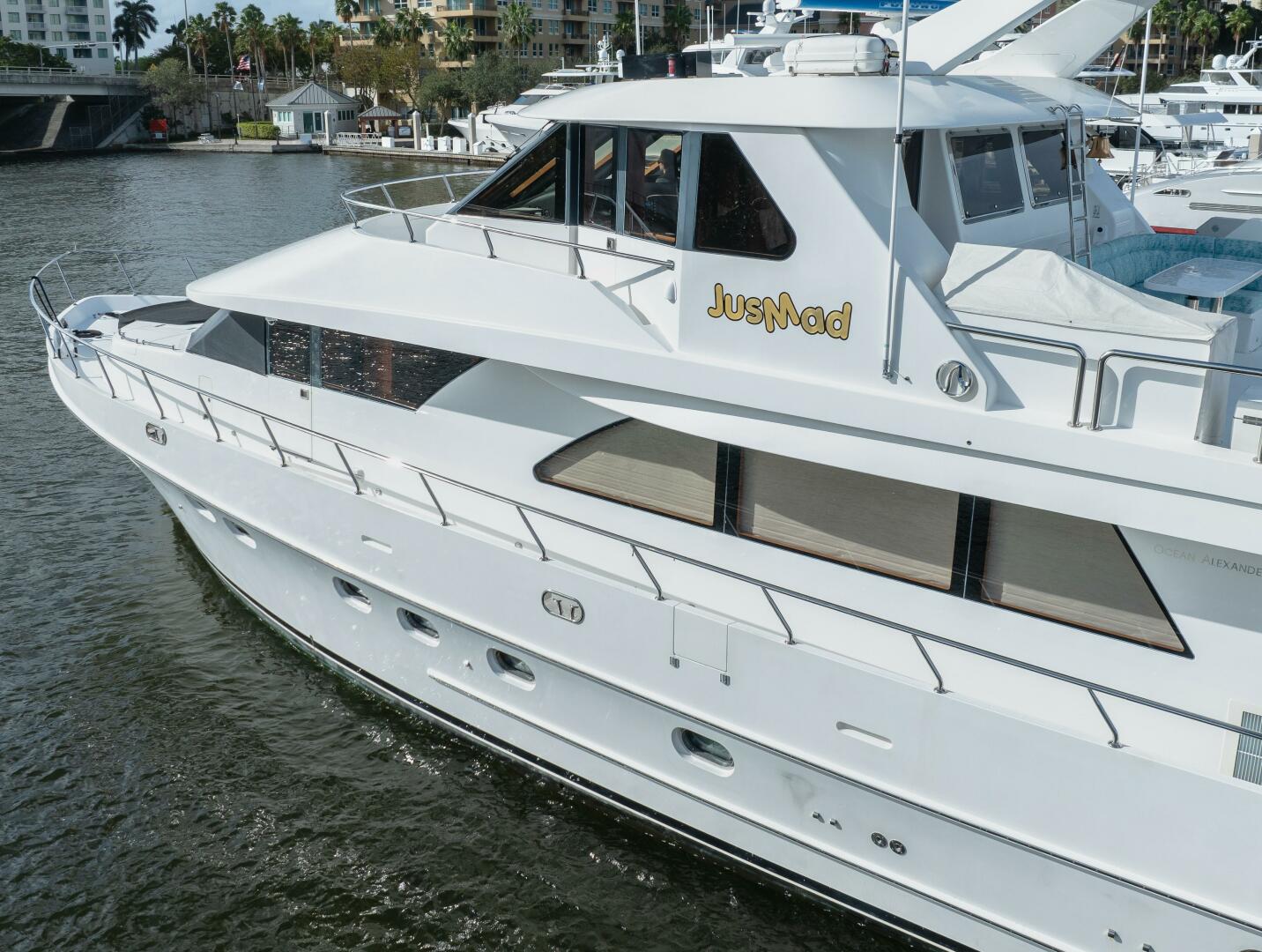

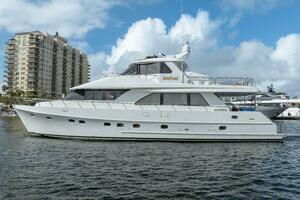

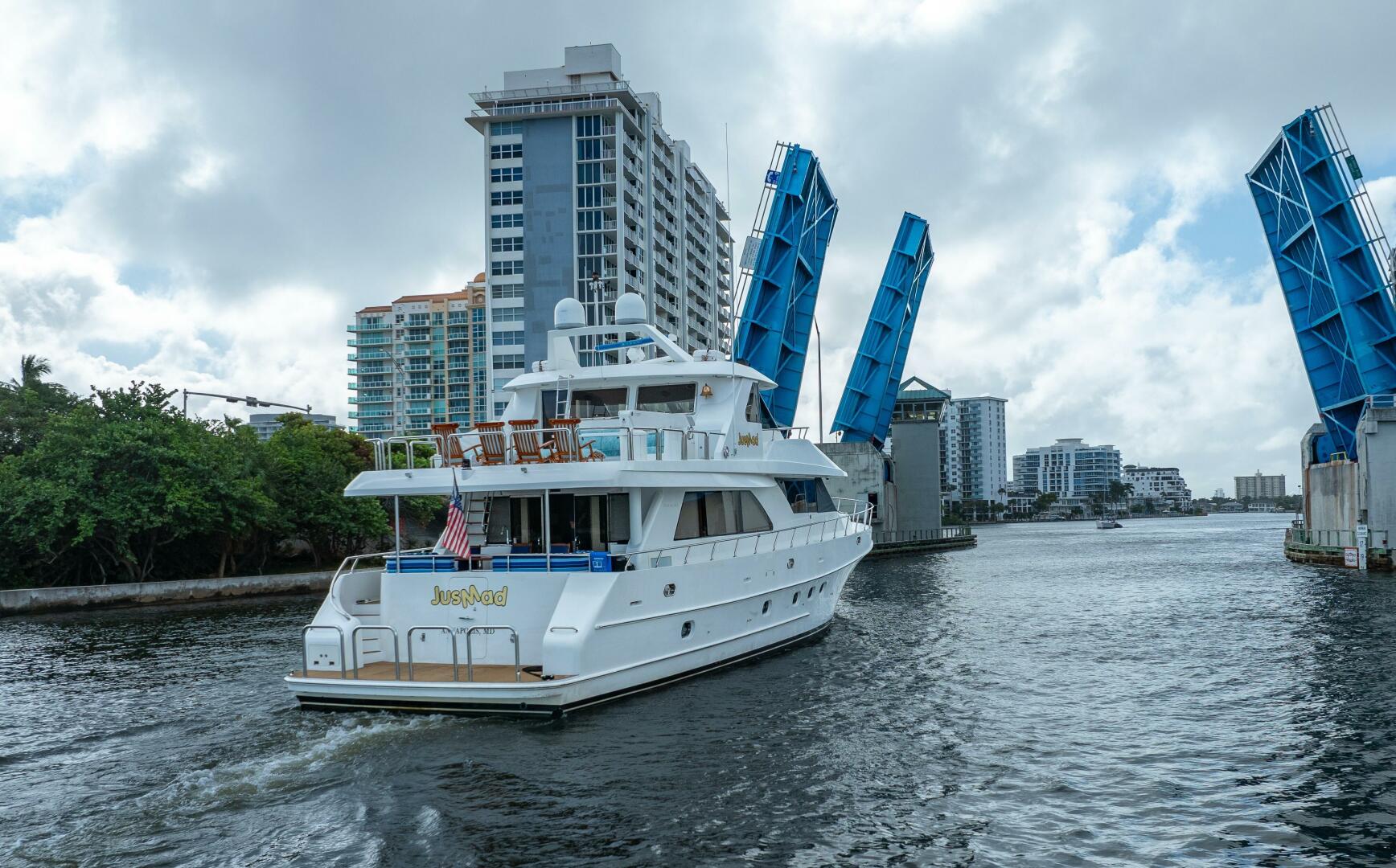

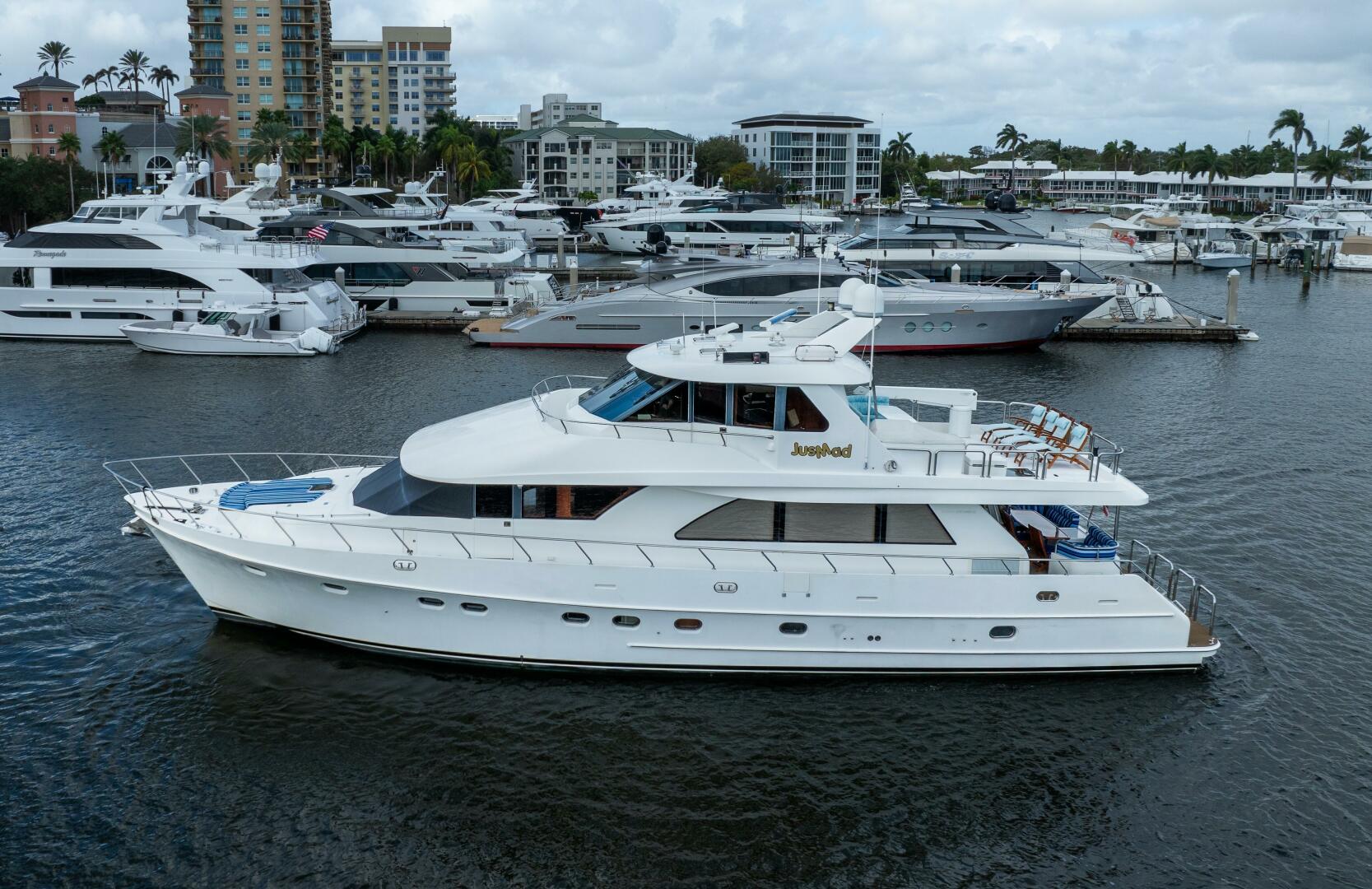

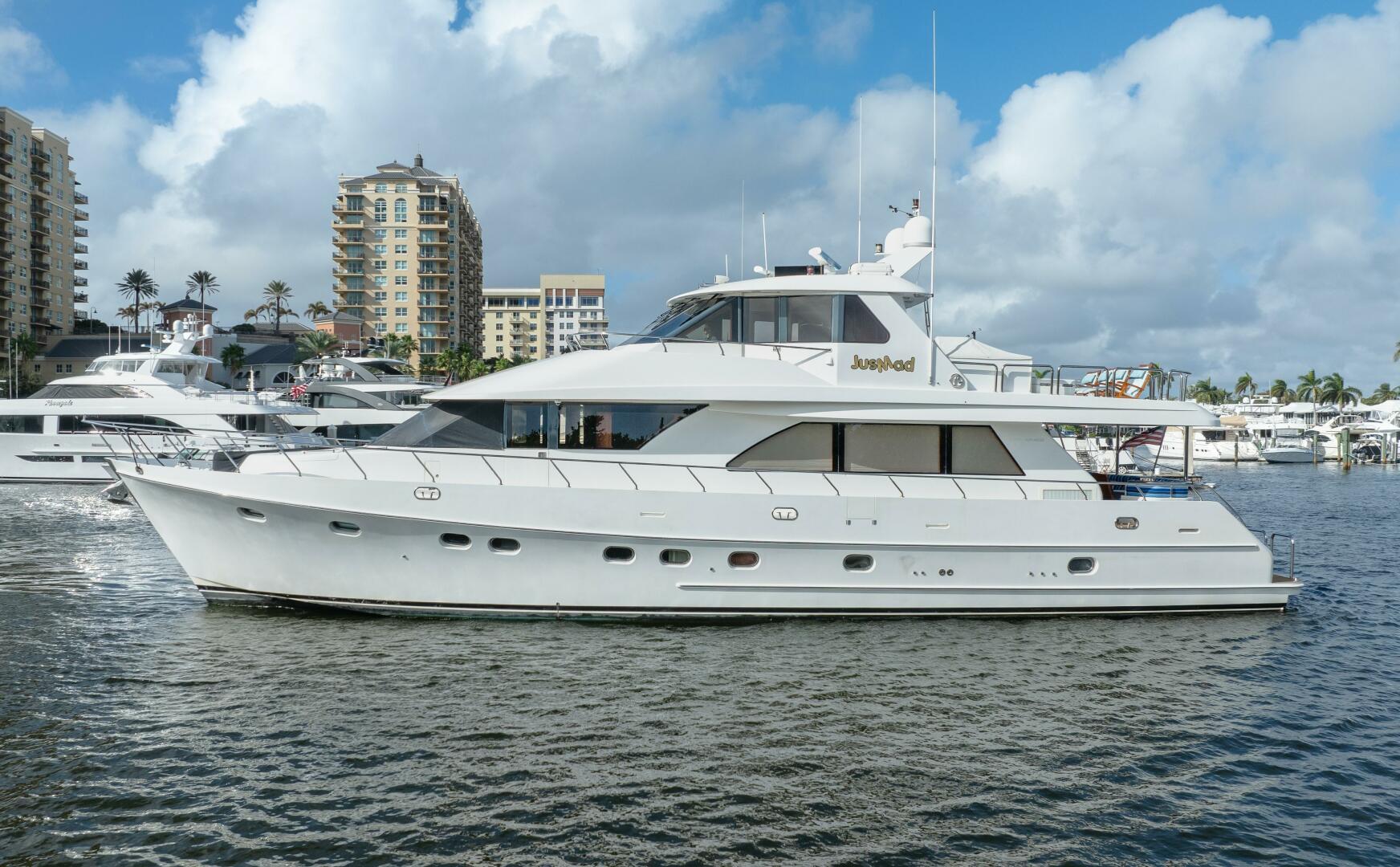

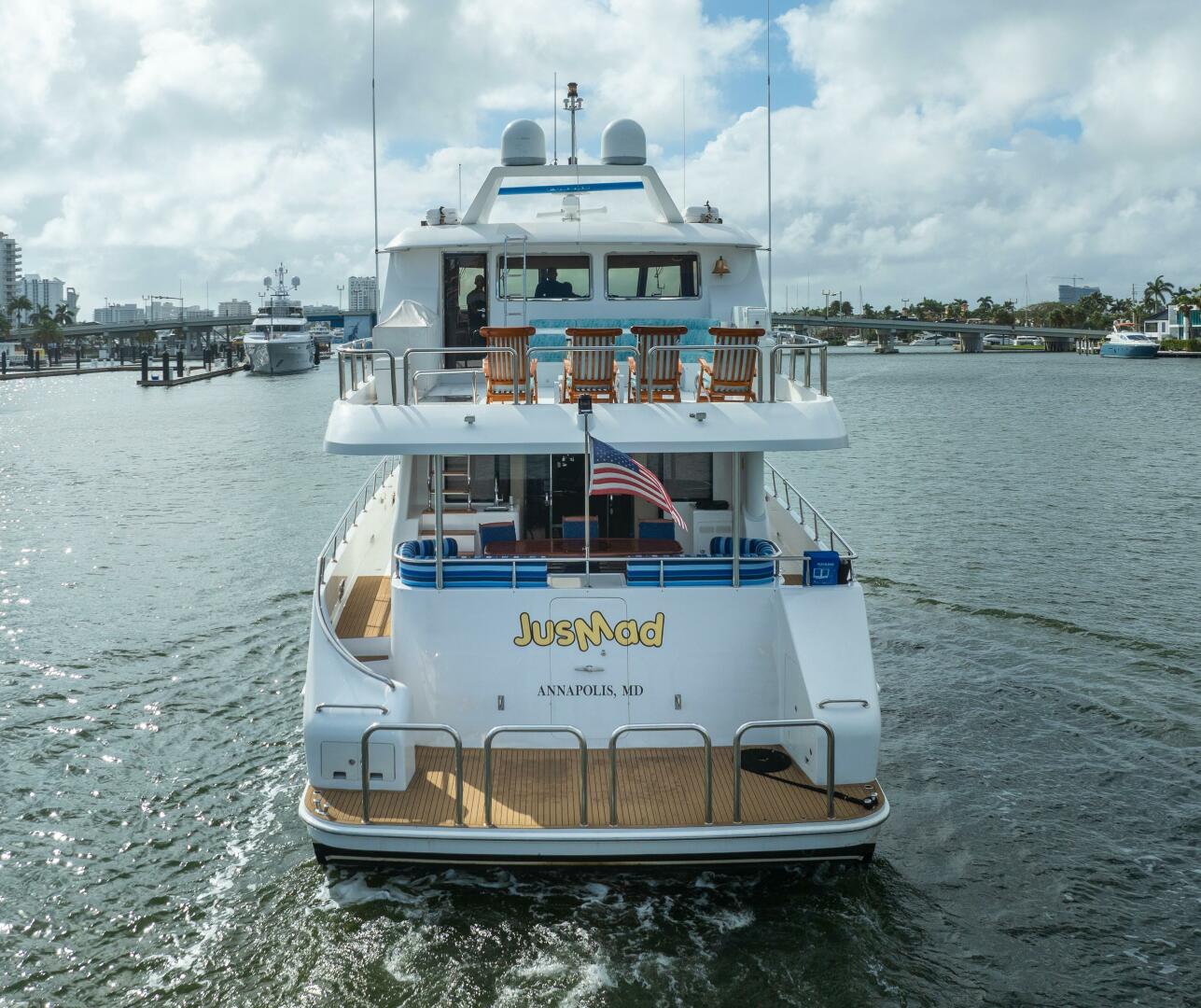

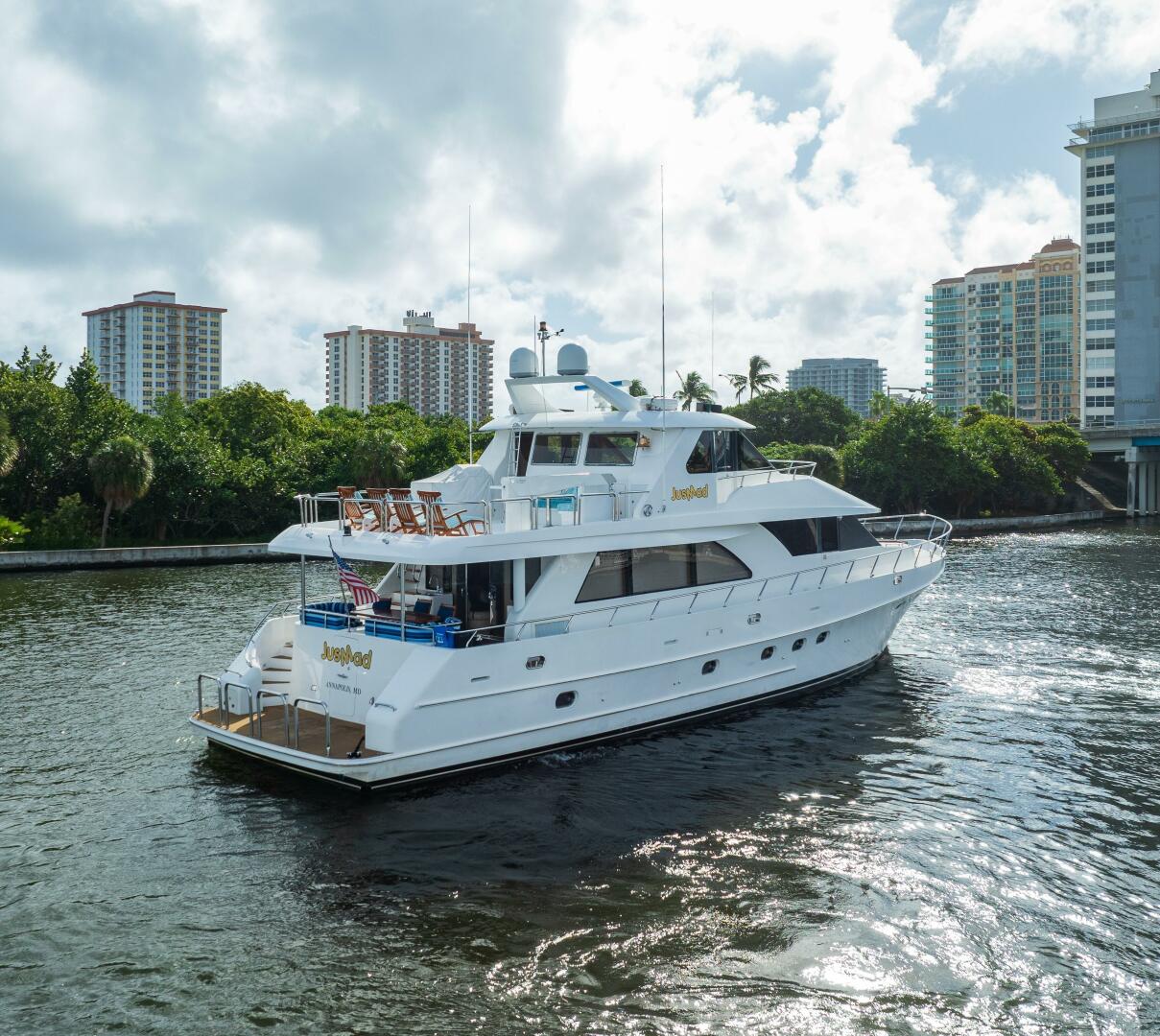

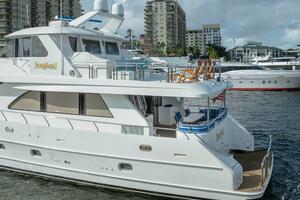

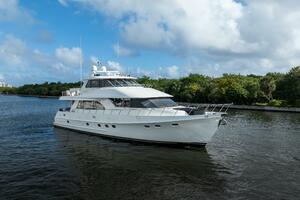

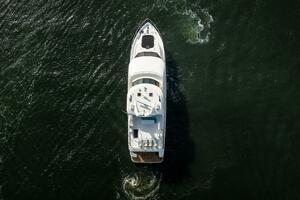

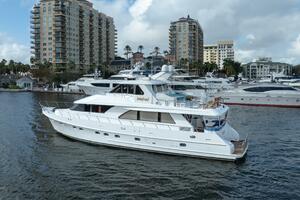

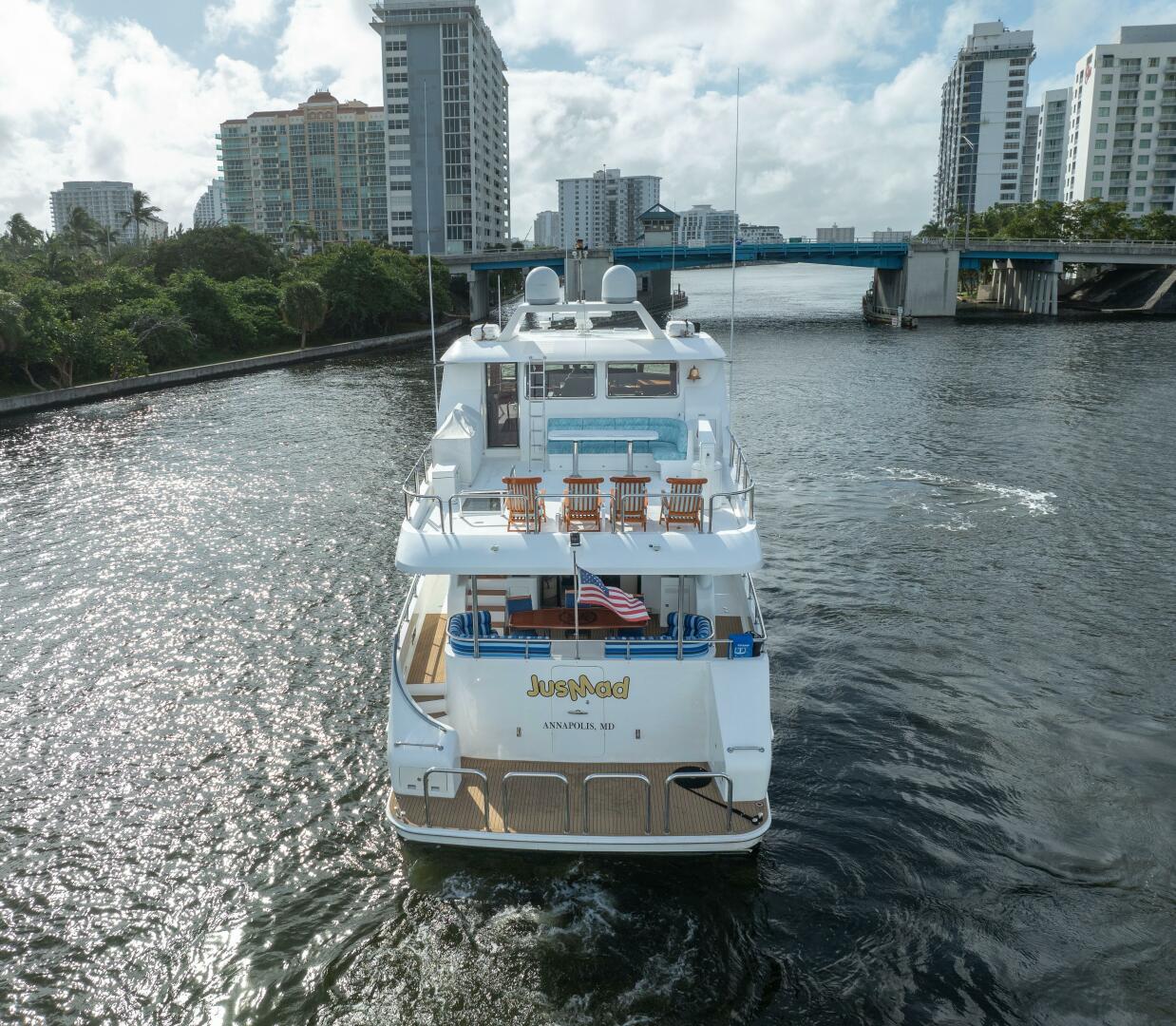

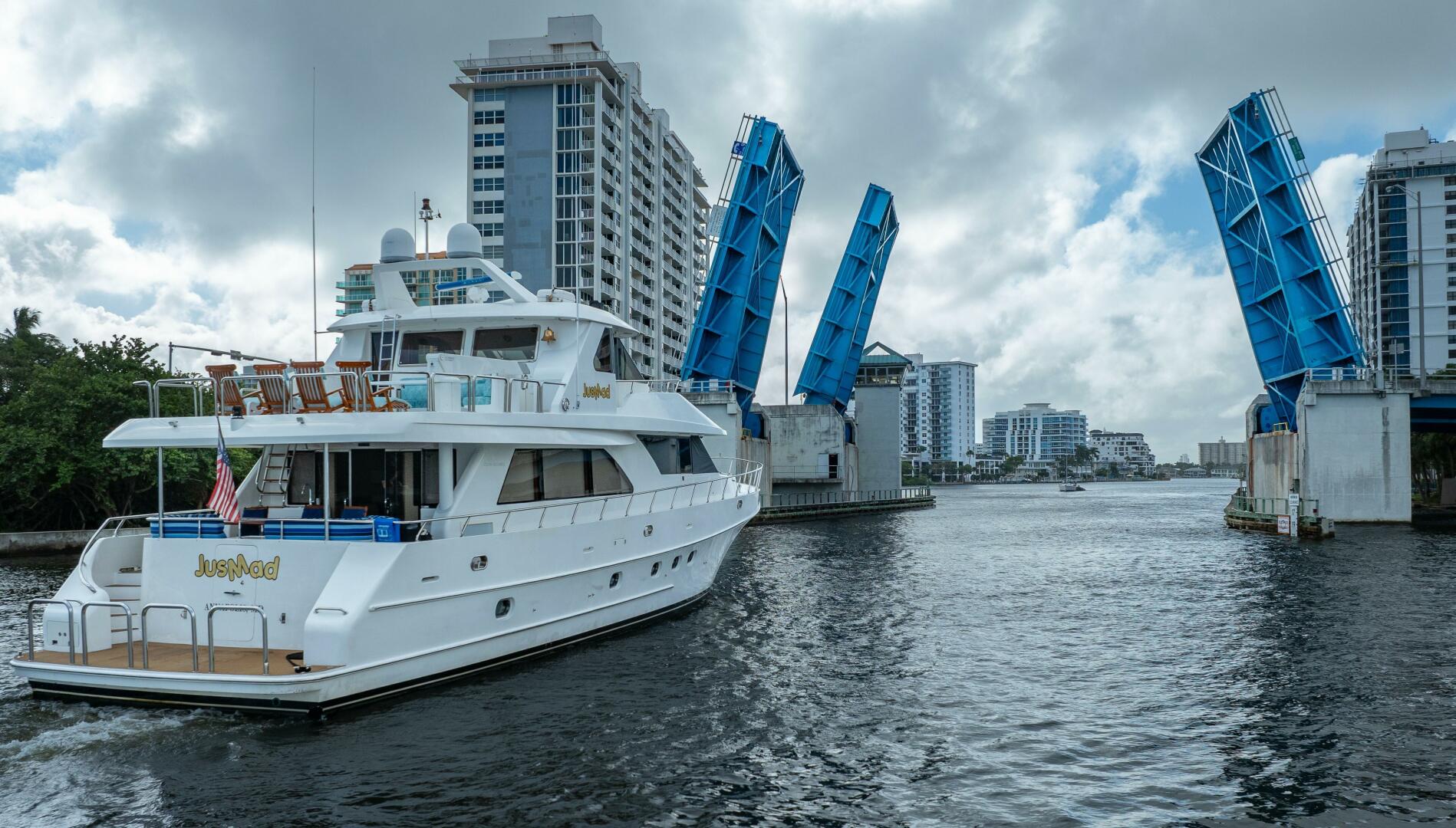

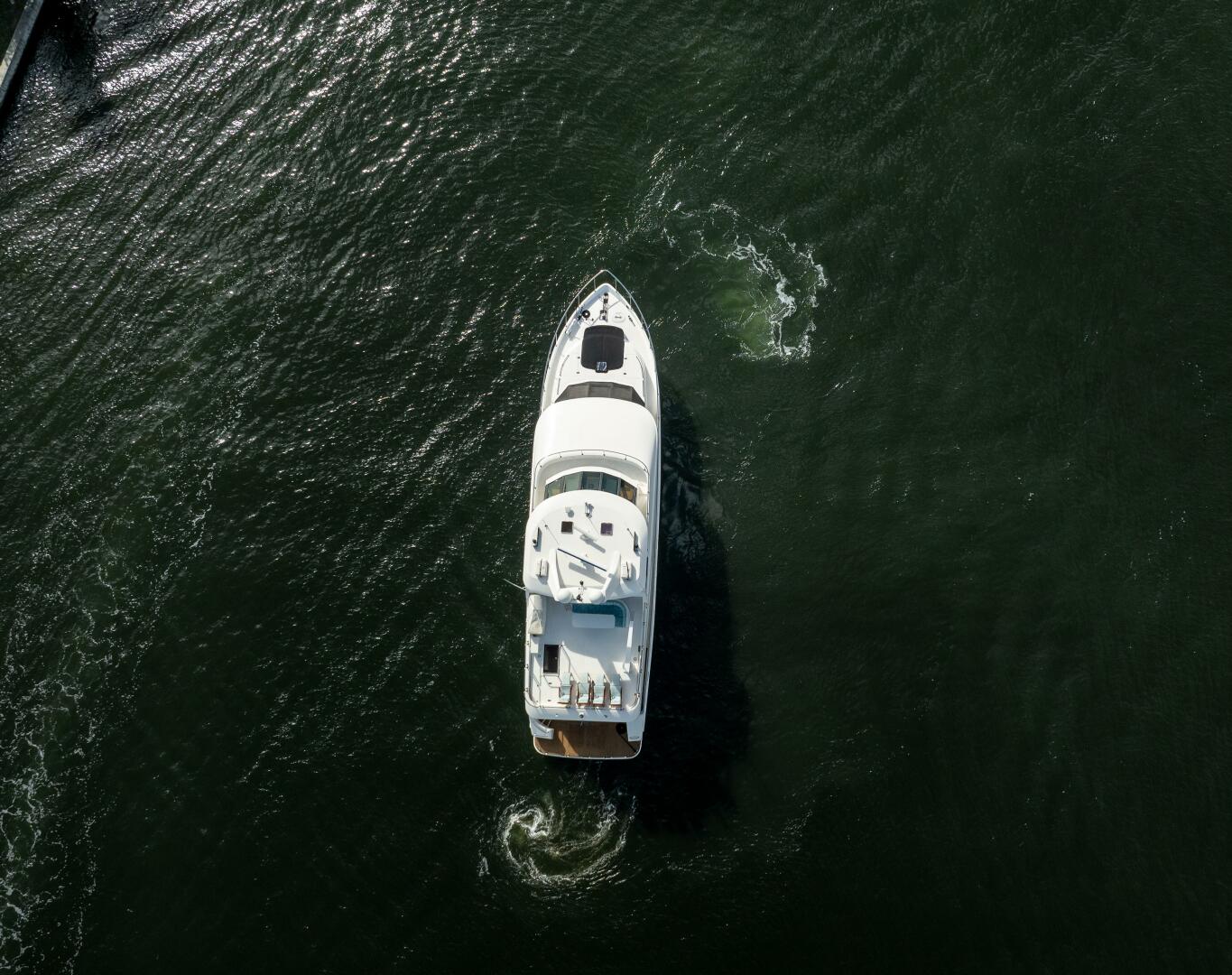

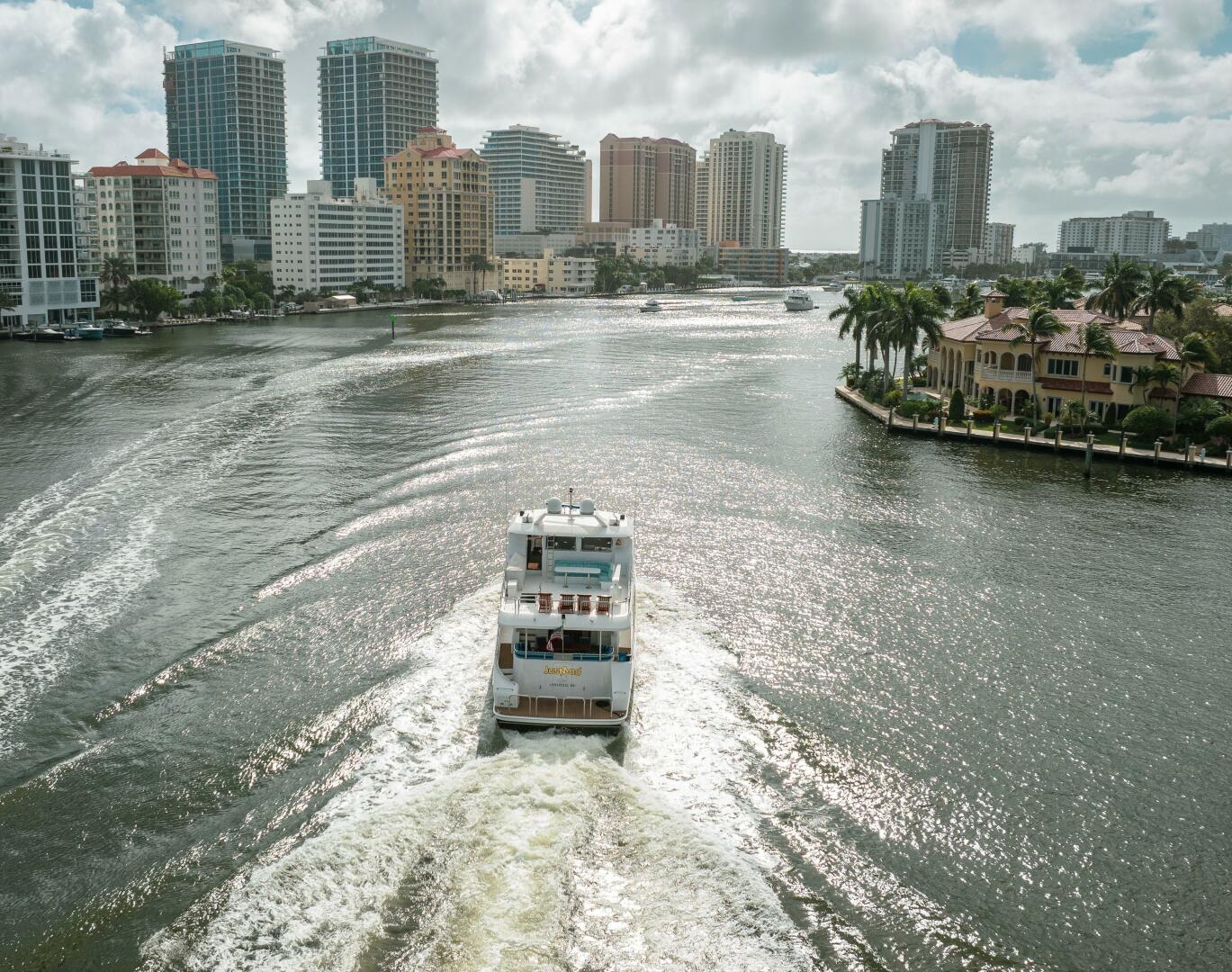

JUSMAD
Yacht for Sale

MAIN SPECIFICATIONS
Length Overall: 80’
Beam: 21’
Draft: 5’6”
Year Completed: 2005
Model Year: 2005
Refit: 2022
Type: Motor yacht
HIN: OAX78004E505
Official Number: 1172546
Tonnage: 115 GT
Displacement: 165,300 lbs.
Hull Config: Planing
Flag: USA
Guests: 6 guests in 3 cabins
Crew: 2 crew in 1 cabin

CONSTRUCTION

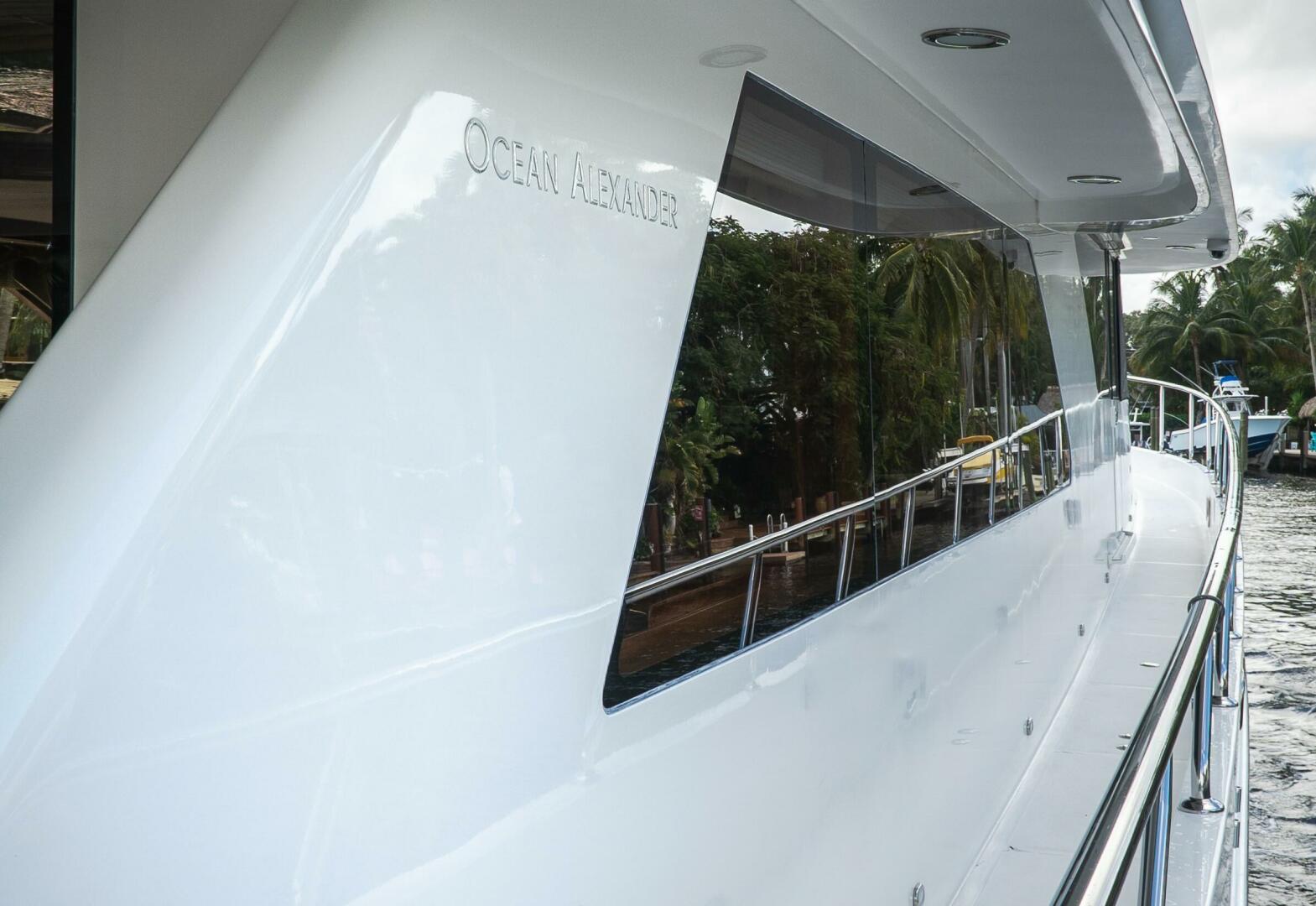

Builder: Ocean Alexander
Naval Architect: Ed Monk Yacht Design
Exterior & Interior Design/Stylist: Destin Darr
Hull Material: Fiberglass
Deck Material: Seadeck Teck Decking

SPEED
Maximum: 22 knots
Cruising: 18-19 knots
Economical: 12
Range: 825 nm

CAPACITIES
Fuel: 2250 gal
Water: 421 gal
Black Water: 218 gal

MACHINERY

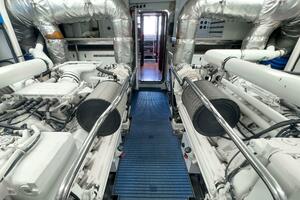

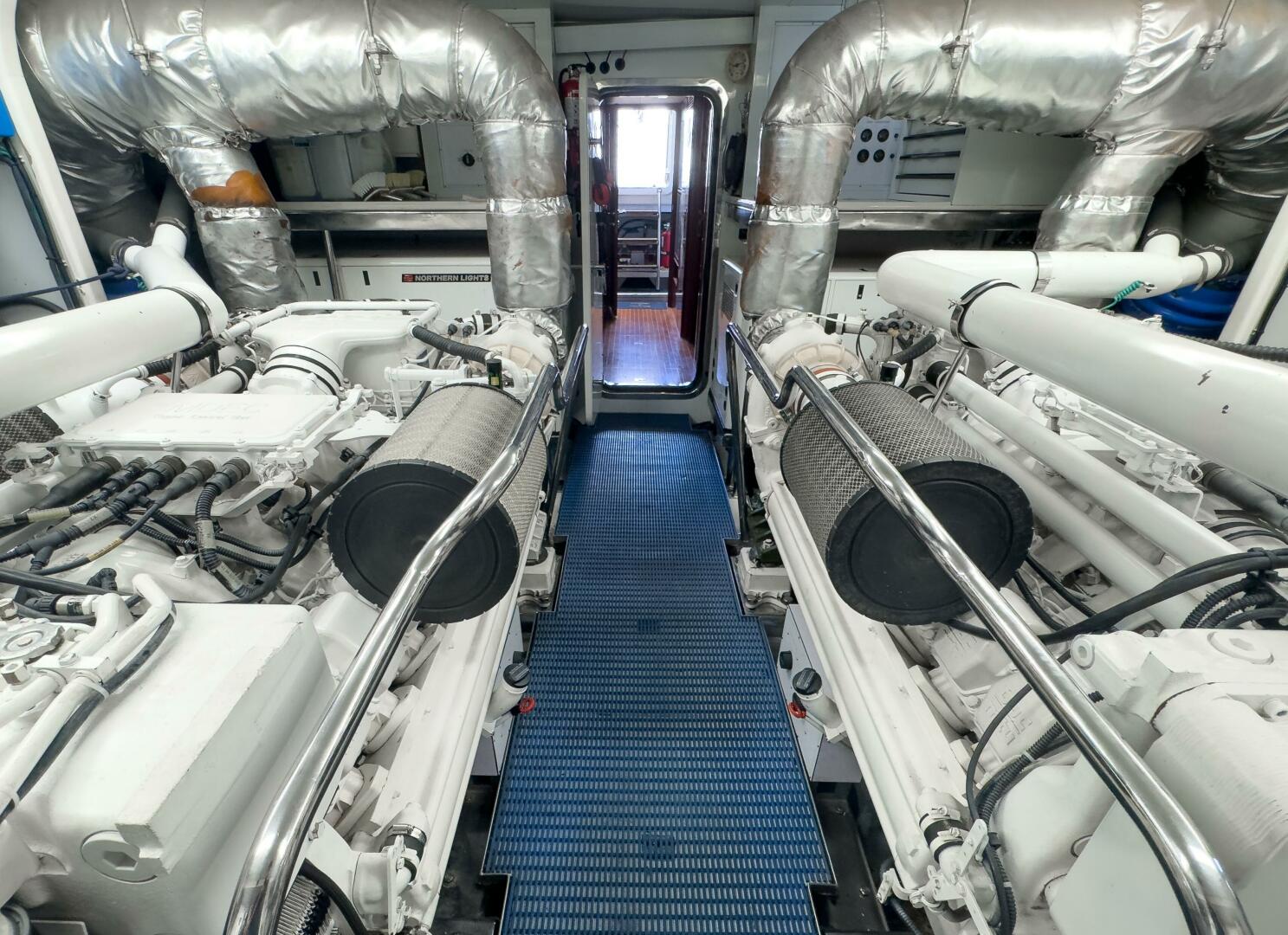

MAIN ENGINES

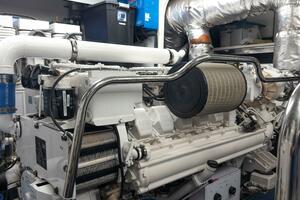

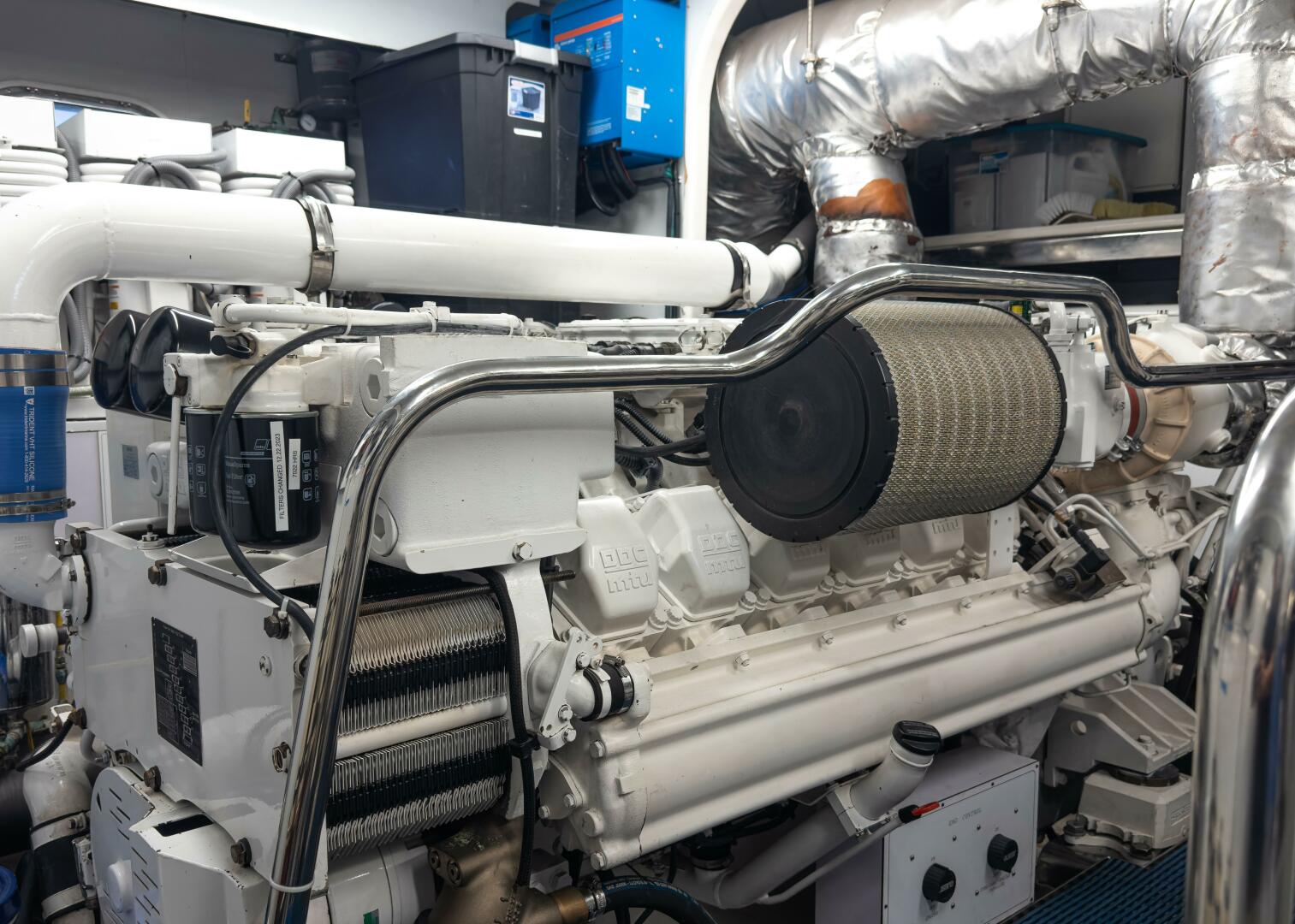

Engine Type: 2x MTU 12V2000M91 1,500hp
Horsepower: 1500 Each
Engine Serial Numbers:535104291; 535104290
Main Engine Hours (Port): 7334
Main Engine Hours (Stbd): 7349

GENERATORS & ELECTRICITY
Output Port: 20-kW
Output Starboard: 33 -kW
Generators: Northern Lights M844LW2.3
Port Generator Hours: 3991
Starboard Generator Hours: 6457
Shore power: 2 x 50 AMP
Generator Starting: Local & Remote

BATTERIES
Batteries: 80 x 2 each engine
Emergency: Built in parallel switch to engine and House

PROPULSION & STEERING
Drive: Traditional Straight Shaft
Gearboxes for Main Engines: ZF
Stabilizer: Keypower Fun Active Stablizers
Stabilizer Underway: Yes
Stabilizer at Anchor: No
Steering System: Hydraulic Power

OTHER MACHINERY
Water Makers: Village Marine
Bow Thruster: Keypower Hydraulic
Fuel Separator and Filtration: Oval Racor, Gulf Coast Fuel Polisher
Air Compressor: 3x Dometic 48,000 Btu air conditioning compressors
Air Conditioning: Chilled Water System


COMMUNICATION AND NAVIGATIONAL EQUIPMENT

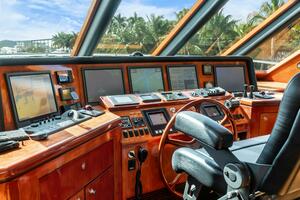

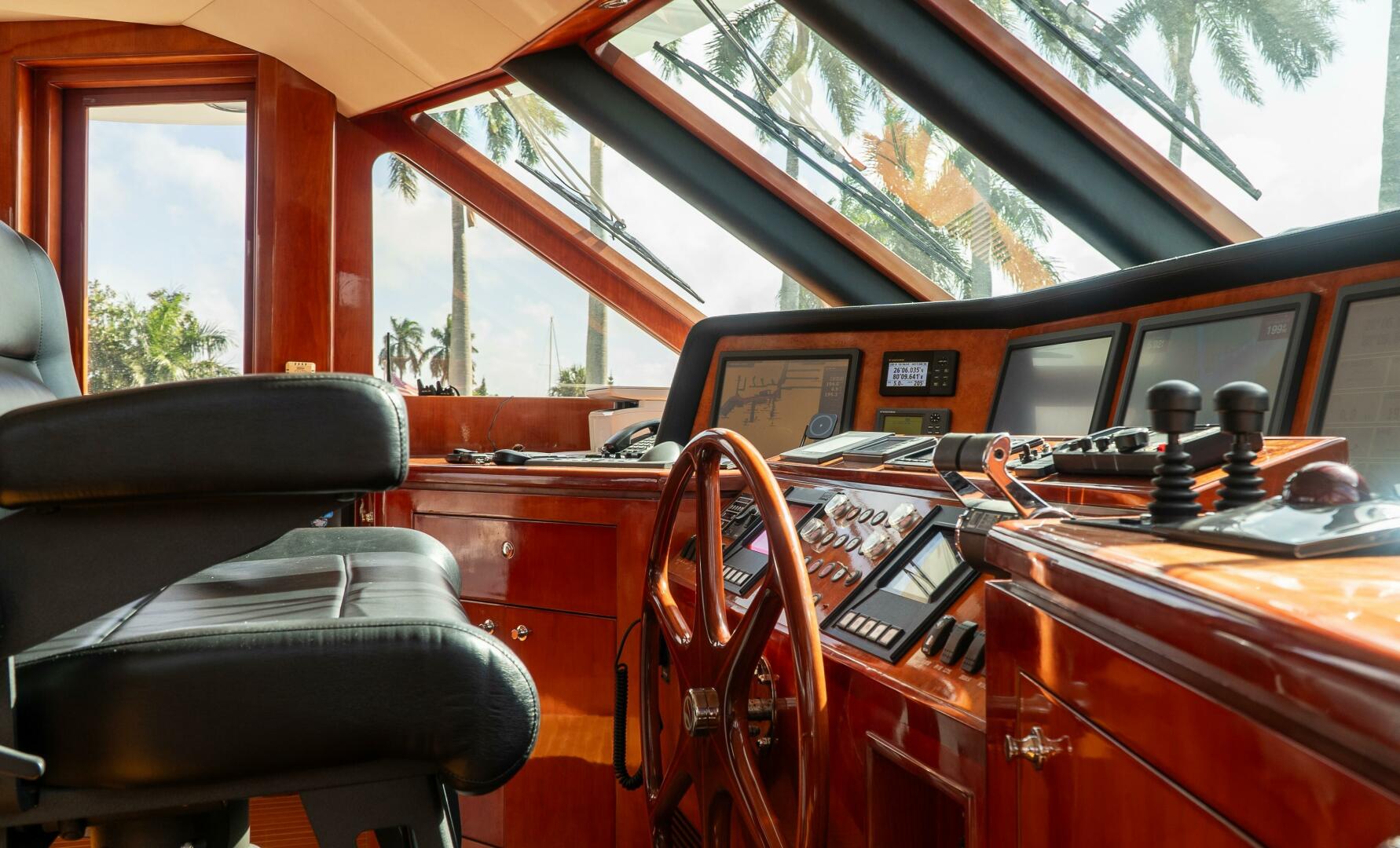

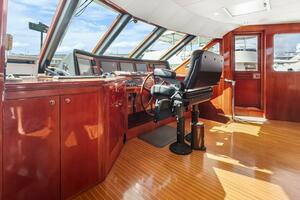

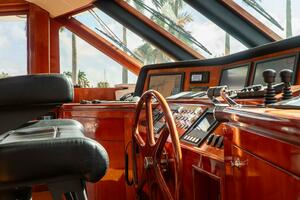

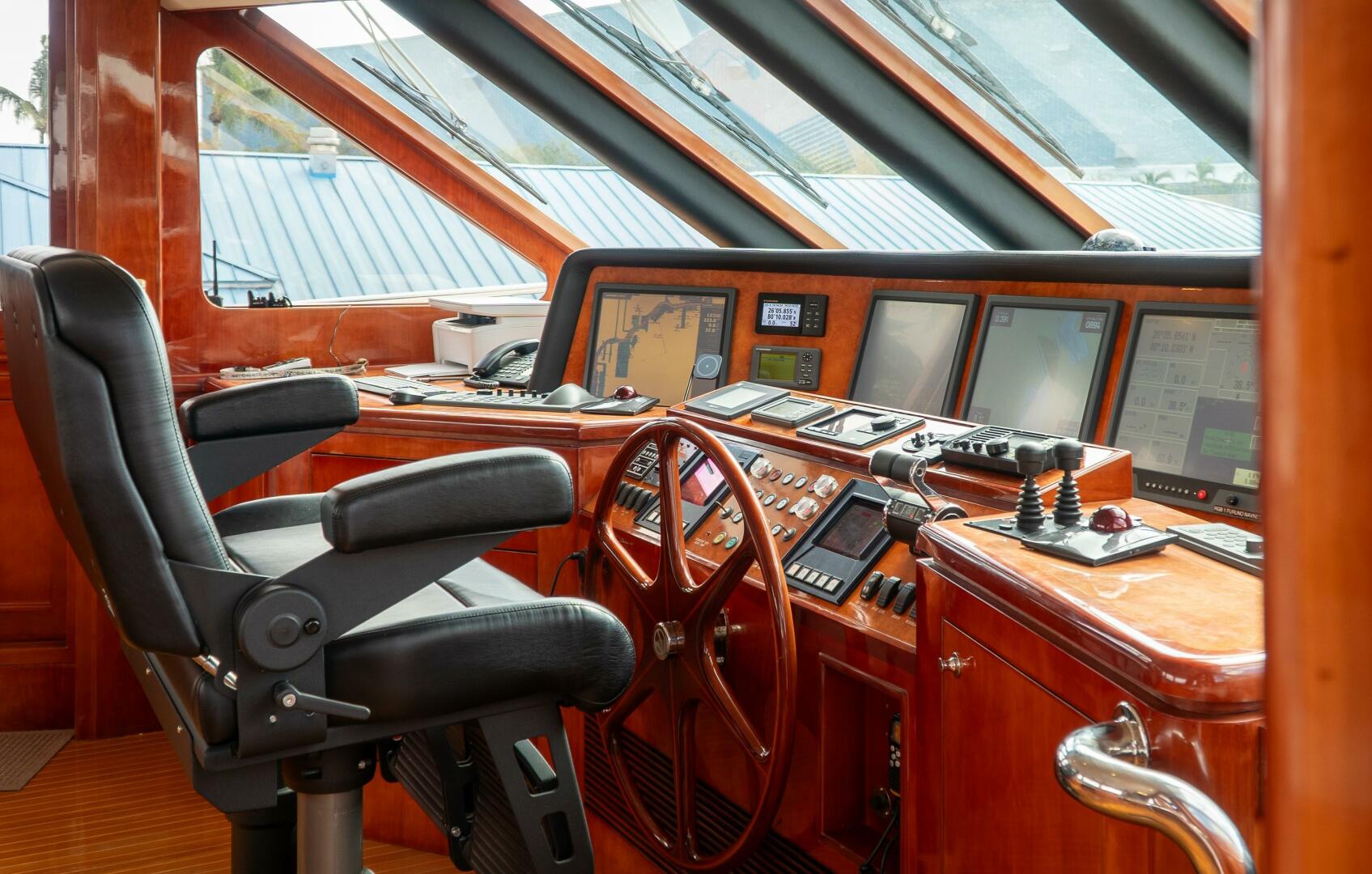

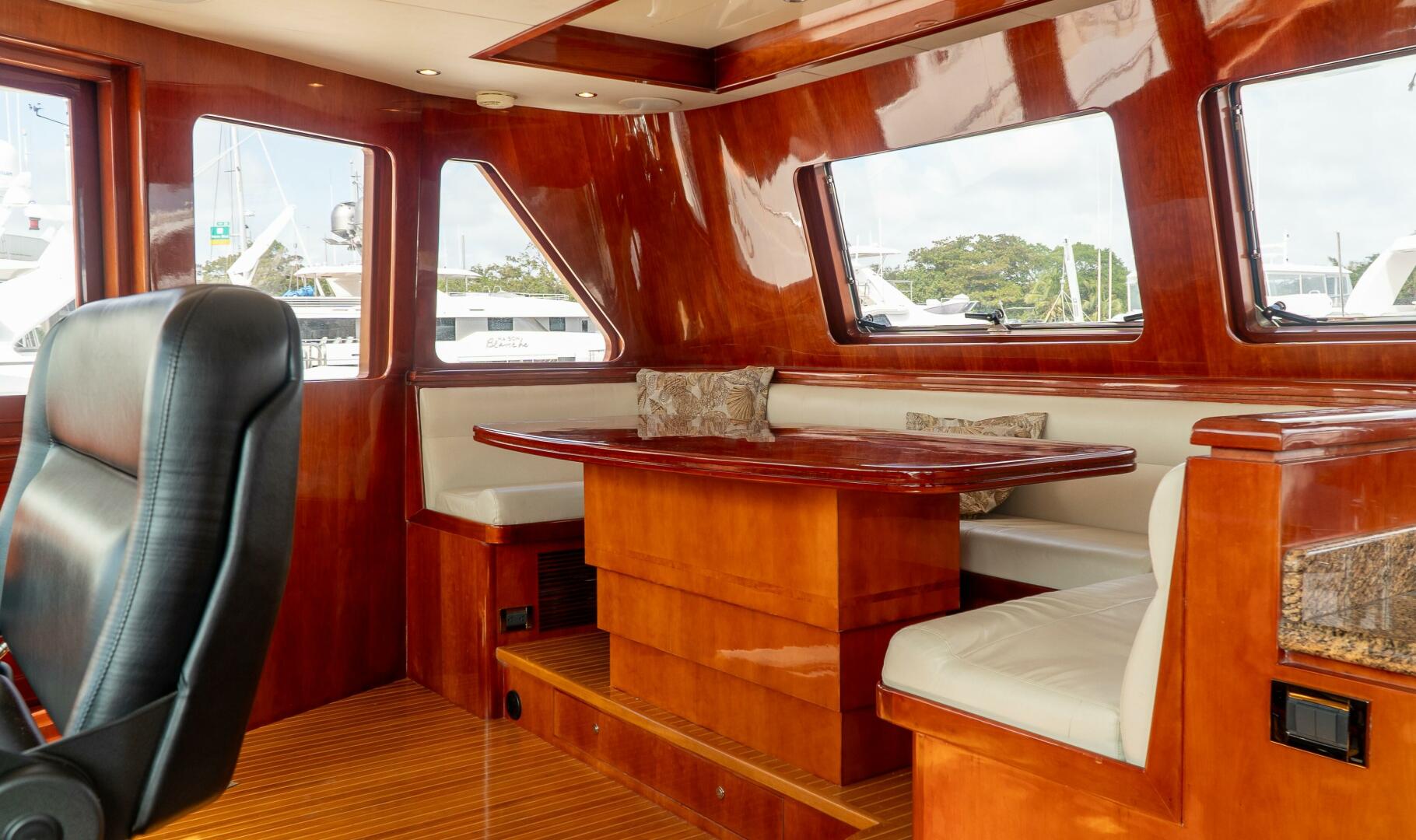

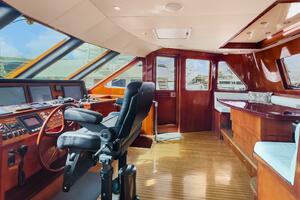

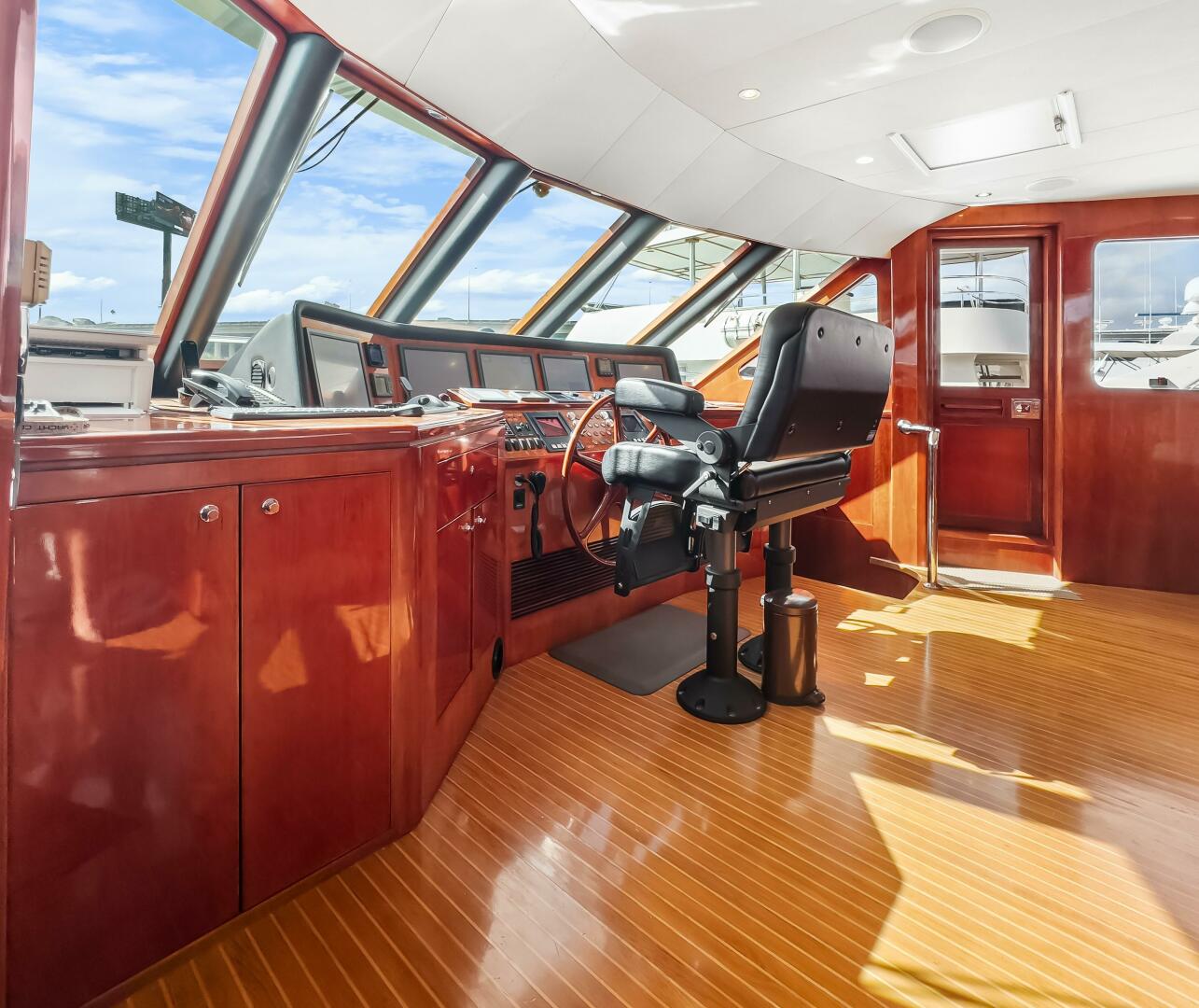

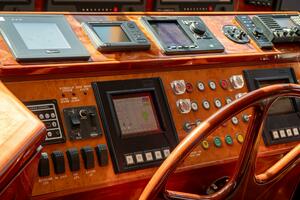

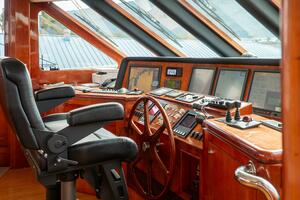

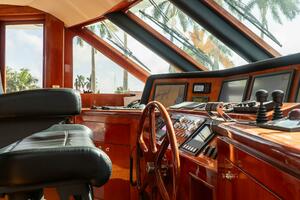

PILOTHOUSE
Telephone System: Panasonic Intercom
VHF: Icom IC-M602 & Icom IC-M604
Navtex: Furuno NX-300 display

NAVIGATION SYSTEMS
Radar: Furuno radar control
Magnetic Compass: Yes
Auto Pilot: Simrad AP-70
Depth Sounder: Wesmar
GPS: Garmin
Ships Computer: Nobeltec Time Zero
Electronic Charts: Garmin
Wind/Speed Log: Furuno Fi-50
Sonar: Wesmar telescoping sonar control

ENTERTAINMENT SYSTEMS
VSAT1: DirectTV

GALLEY & LAUNDRY EQUIPMENT

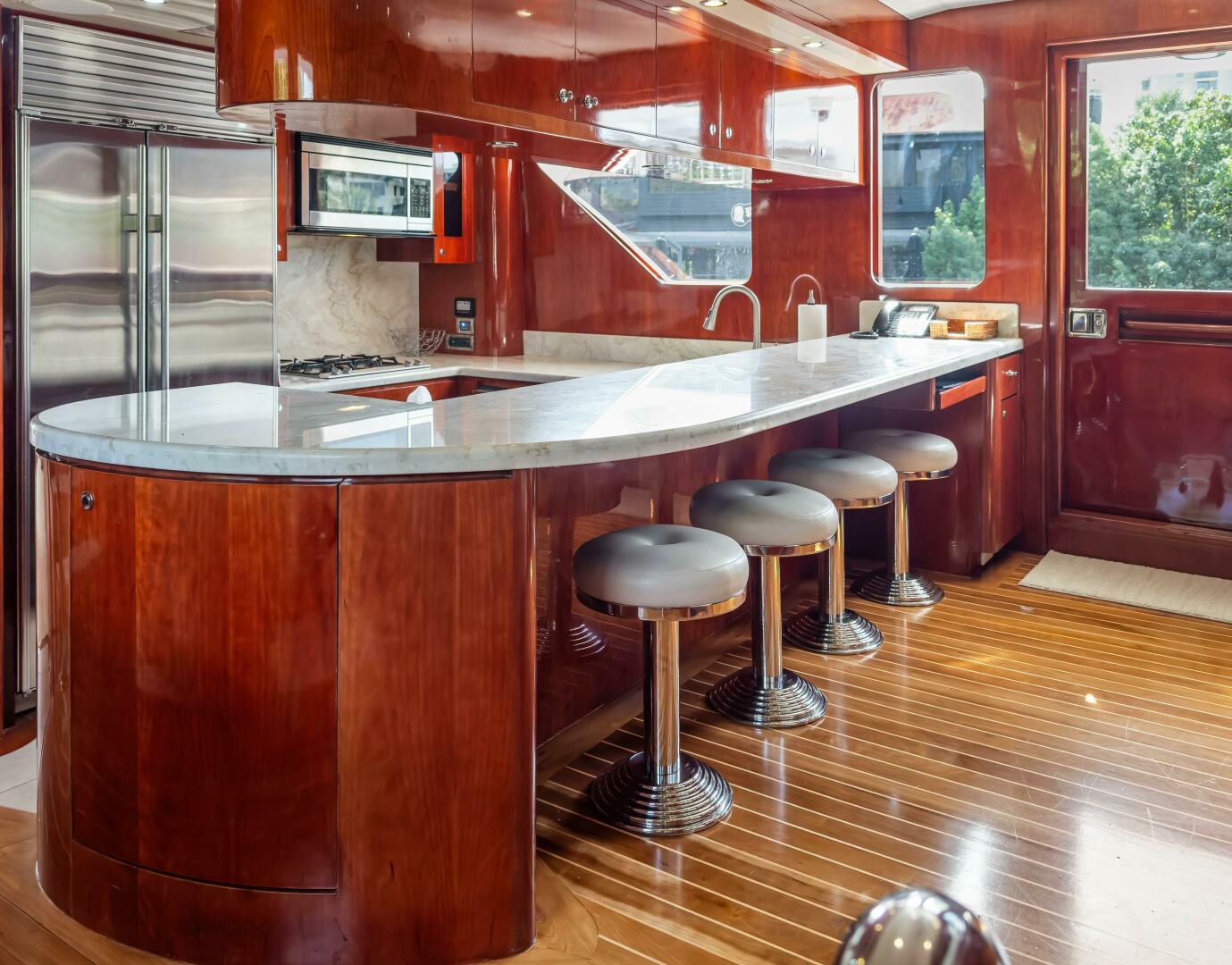

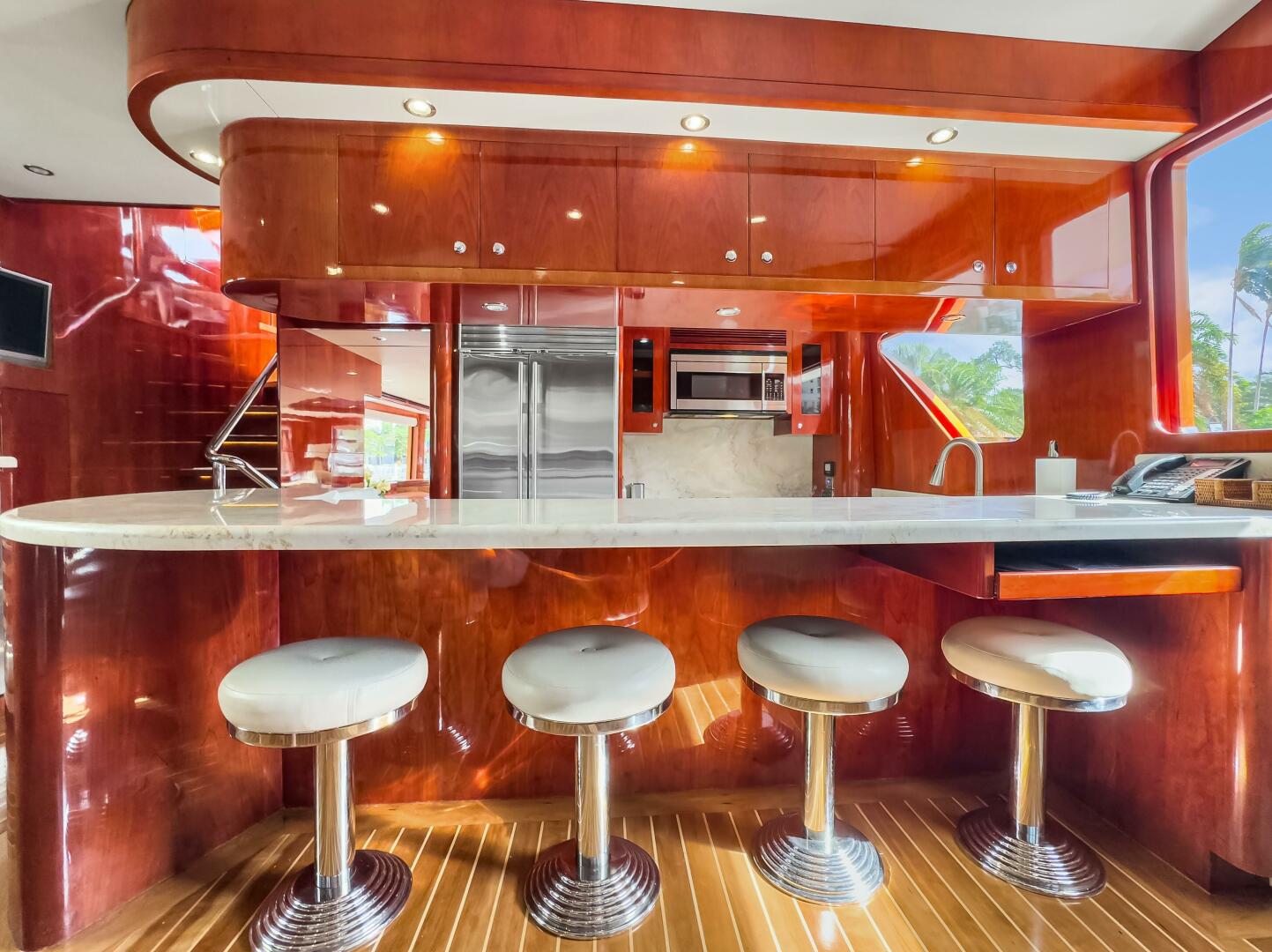

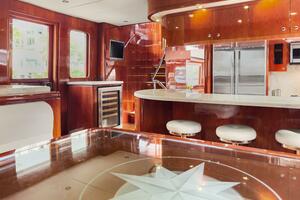

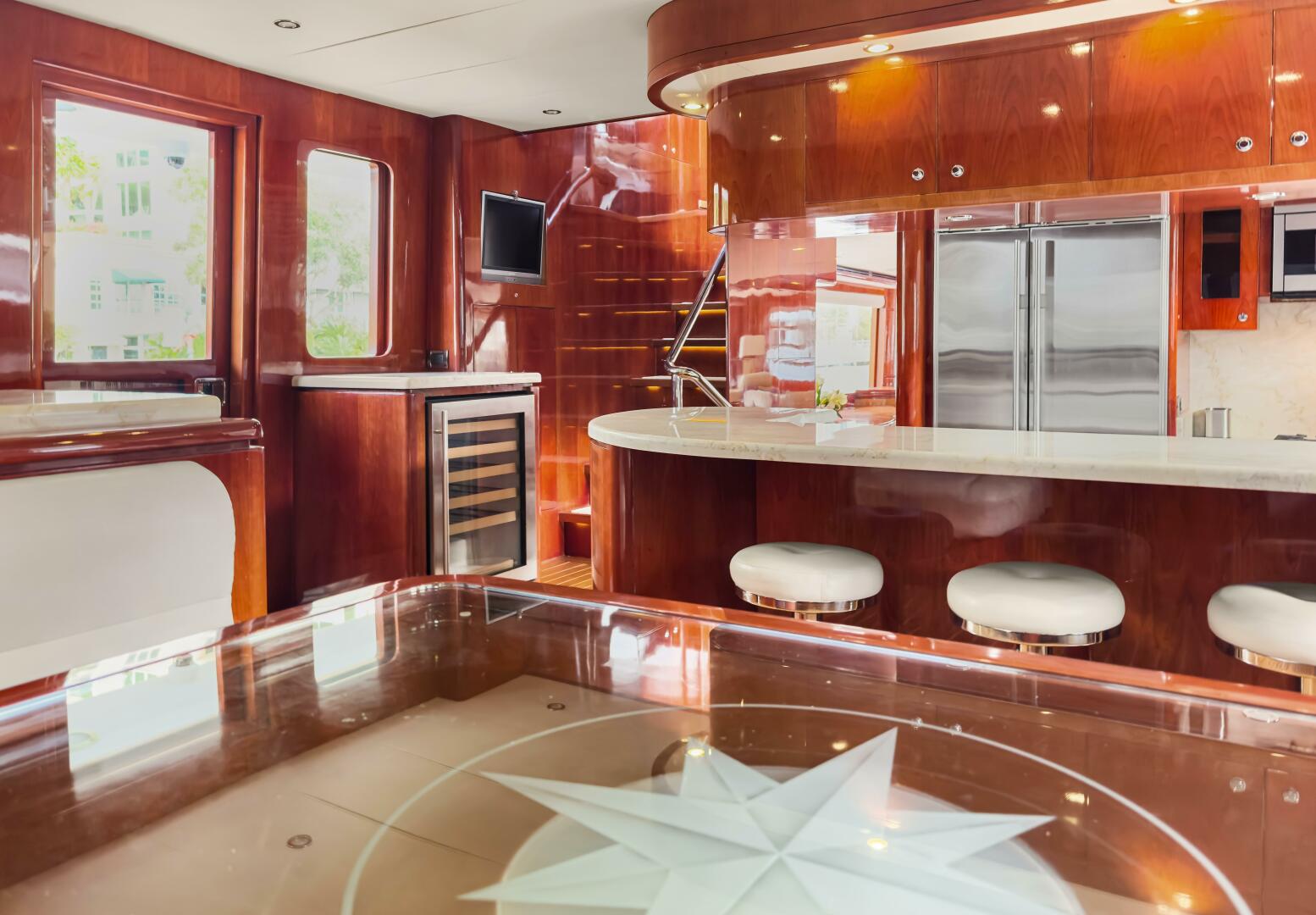

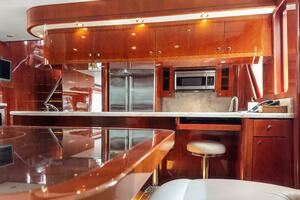

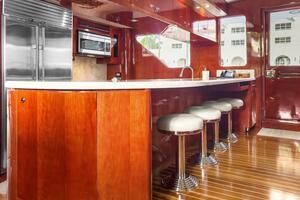

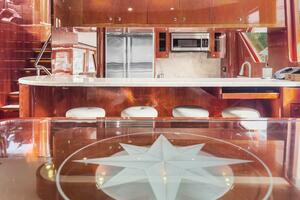

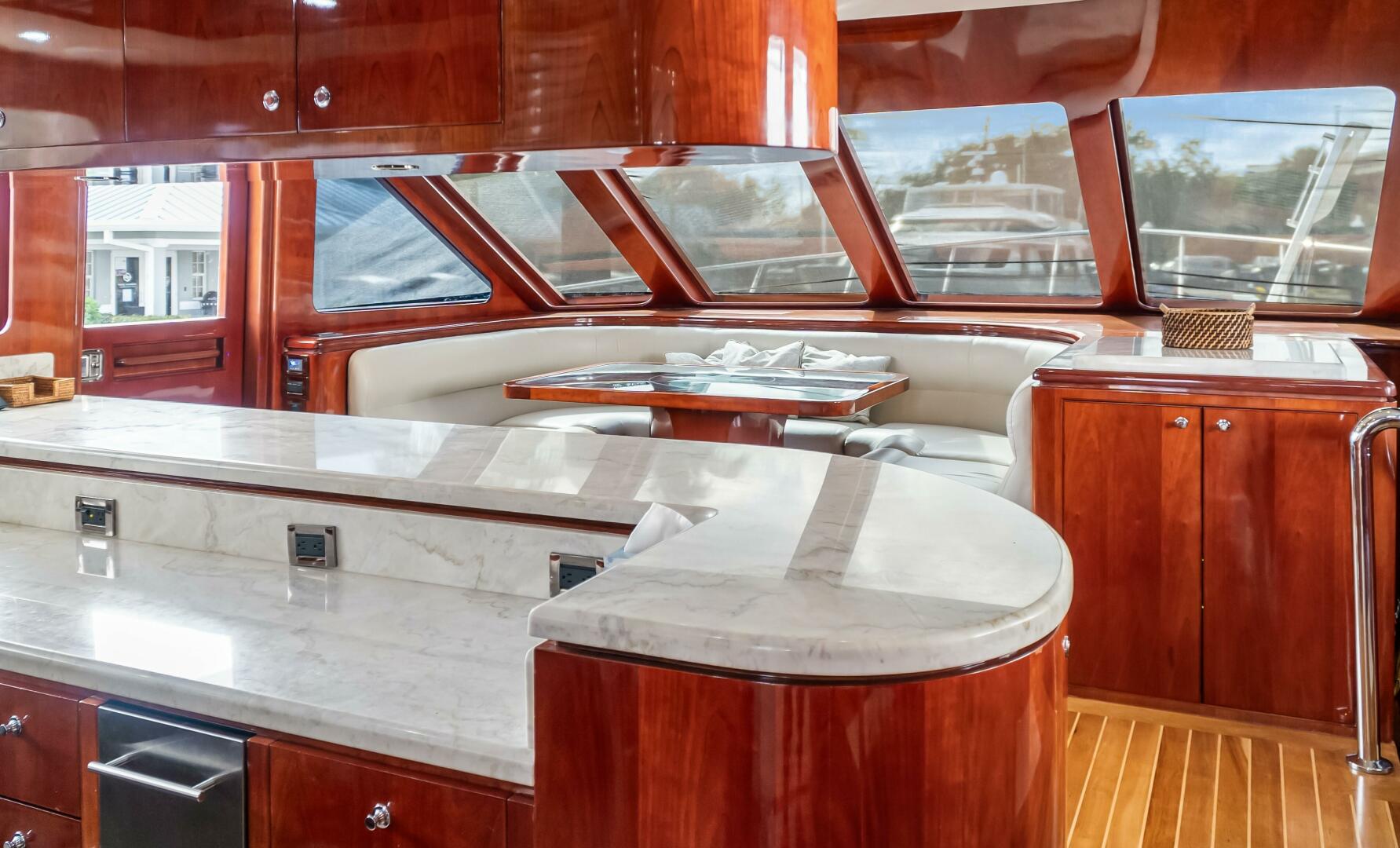

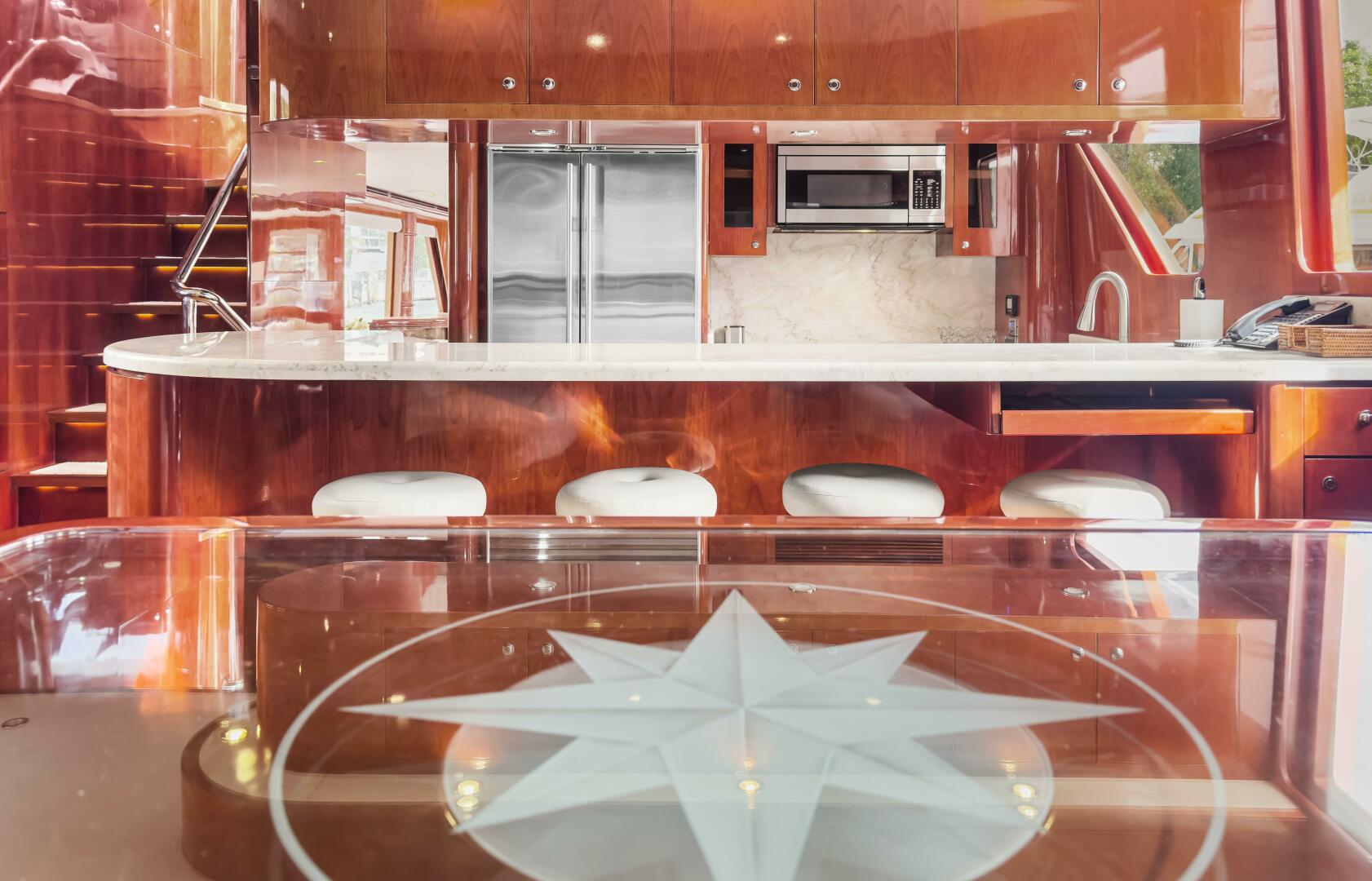

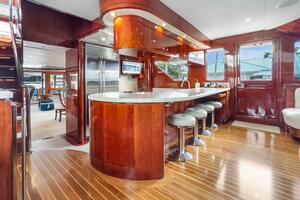

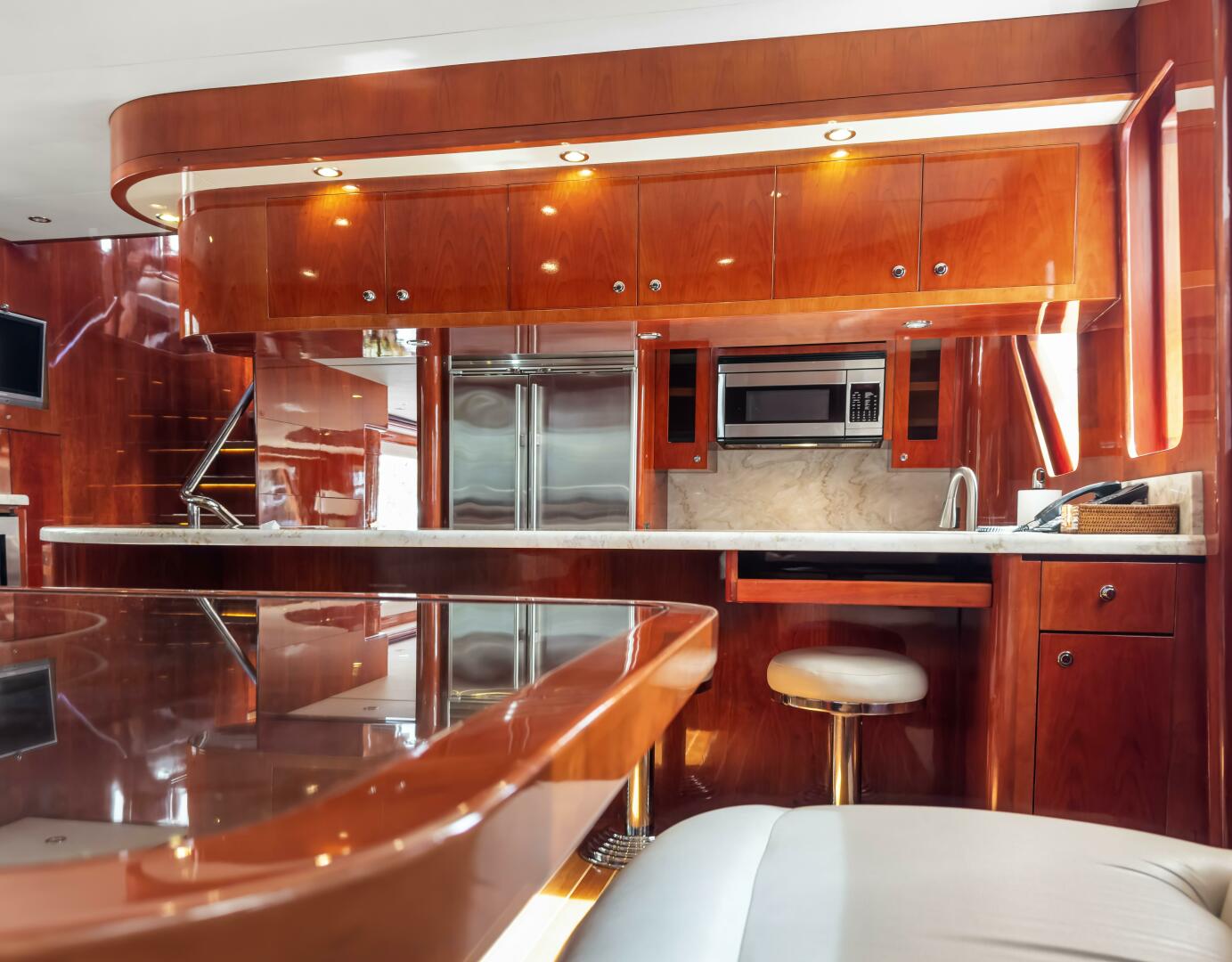

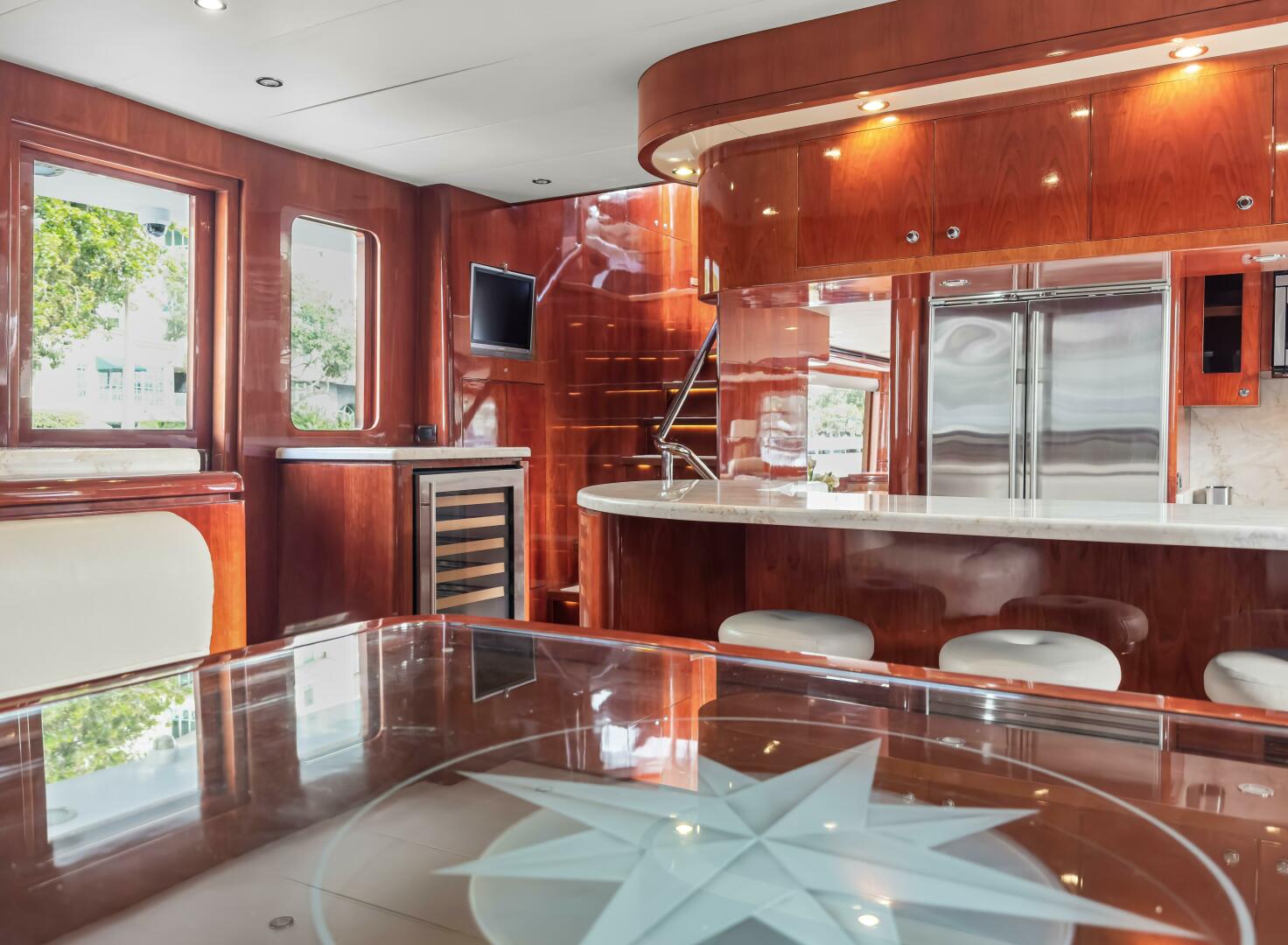

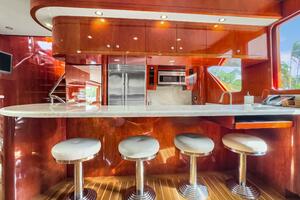

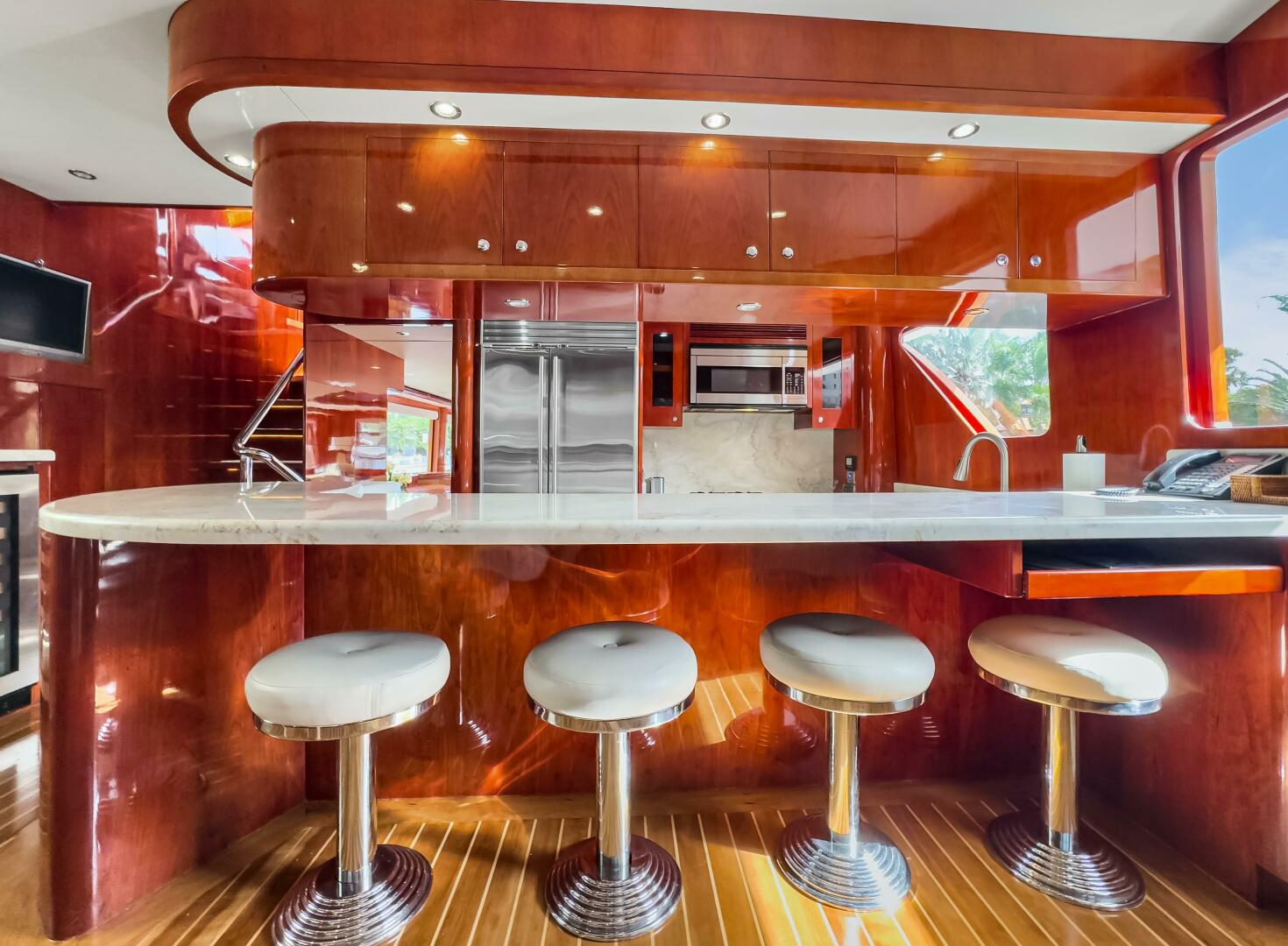

MAIN GALLEY EQUIPMENT
Oven: Fisher Paykel
Microwave: Fisher Paykel
Refrigerator/ Freezer: Sub Zero stand up SS refrigerator/freezer
Refrigerator: Vevor Dual Fridge/Freezer Drawer Unit
Dishwasher: Fisher Paykel
Wine Fridge: U-Line

LAUNDRY
Washing Machines: 2 GE
Dryers: 2 GE

DECK EQUIPMENT
Anchor Windlass: Single Maxwell Hydraulic w/ capstan
Anchors: Single w/ emergency ground tackle in Lazarette
Boat Crane and Davits: Steelhead Davit 3000R

SECURITY, FIRE FIGHTING AND SAFETY EQUIPMENT

SECURITY
CCTV System: Yes
Cameras: 7
Monitors: 1

FIRE FIGHTING EQUIPMENT
Fire Control System: FM200
Fire Extinguishers: In every cabin

SAFETY EQUIPMENT
• (1) Fire blankets
• Small first aid kit
• Flare kit with (4) red handheld flares, (3) smoke flares, and flare gun with (4) cartridges
• Ship’s horn
• Required set of navigation lights
• Good navigation electronics
• Magnetic compass
• Good ground tackle
• EPIRB on hydrostatic release
• Approximately (20) adult USCG approved PFDs
• CCTV cameras
• High level bilge alarms
• Rule 3700 bilge pumps throughout
• Life sling
• 10 Handheld fire extinguishers
• Remote operated searchlight
• Seafire fire suppression system for engine room
• Engine room ventilation dampers
• (2) 8 man canistered Viking life rafts on hydrostatic release
• Escape hatch from vip

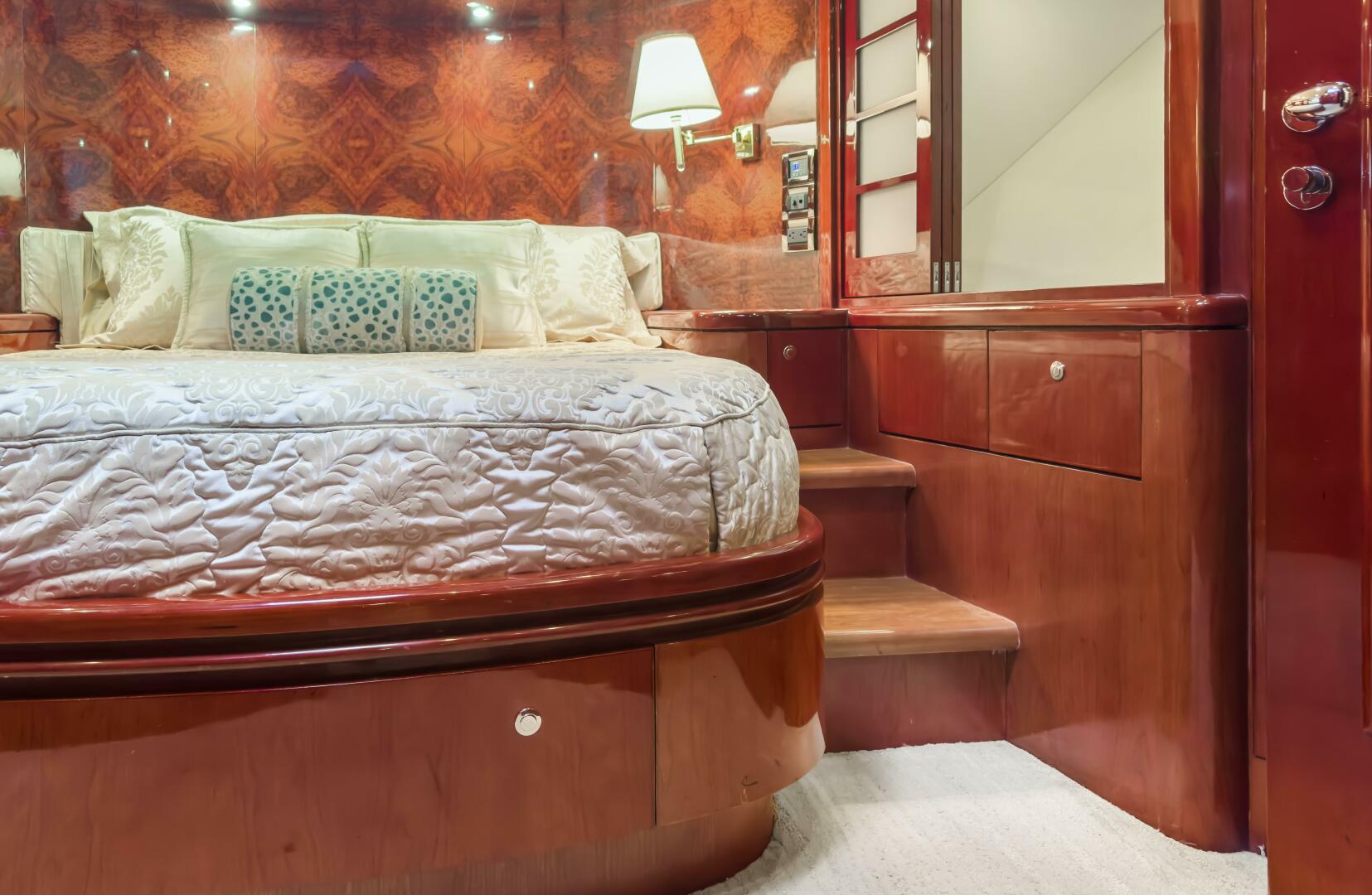

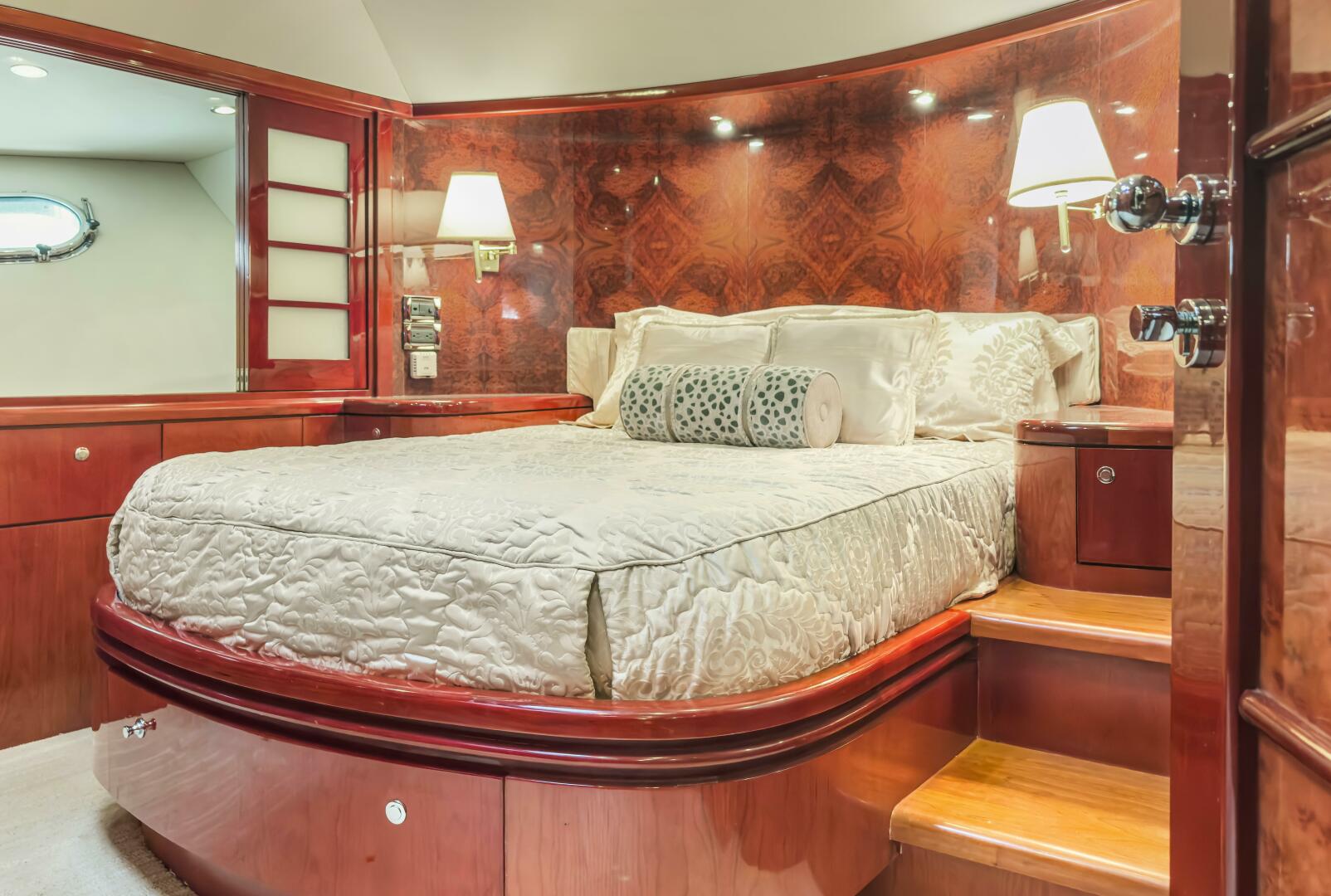

ACCOMMODATION AND LAYOUT

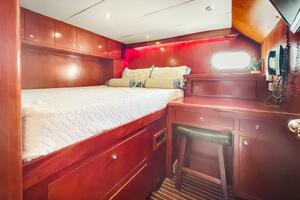

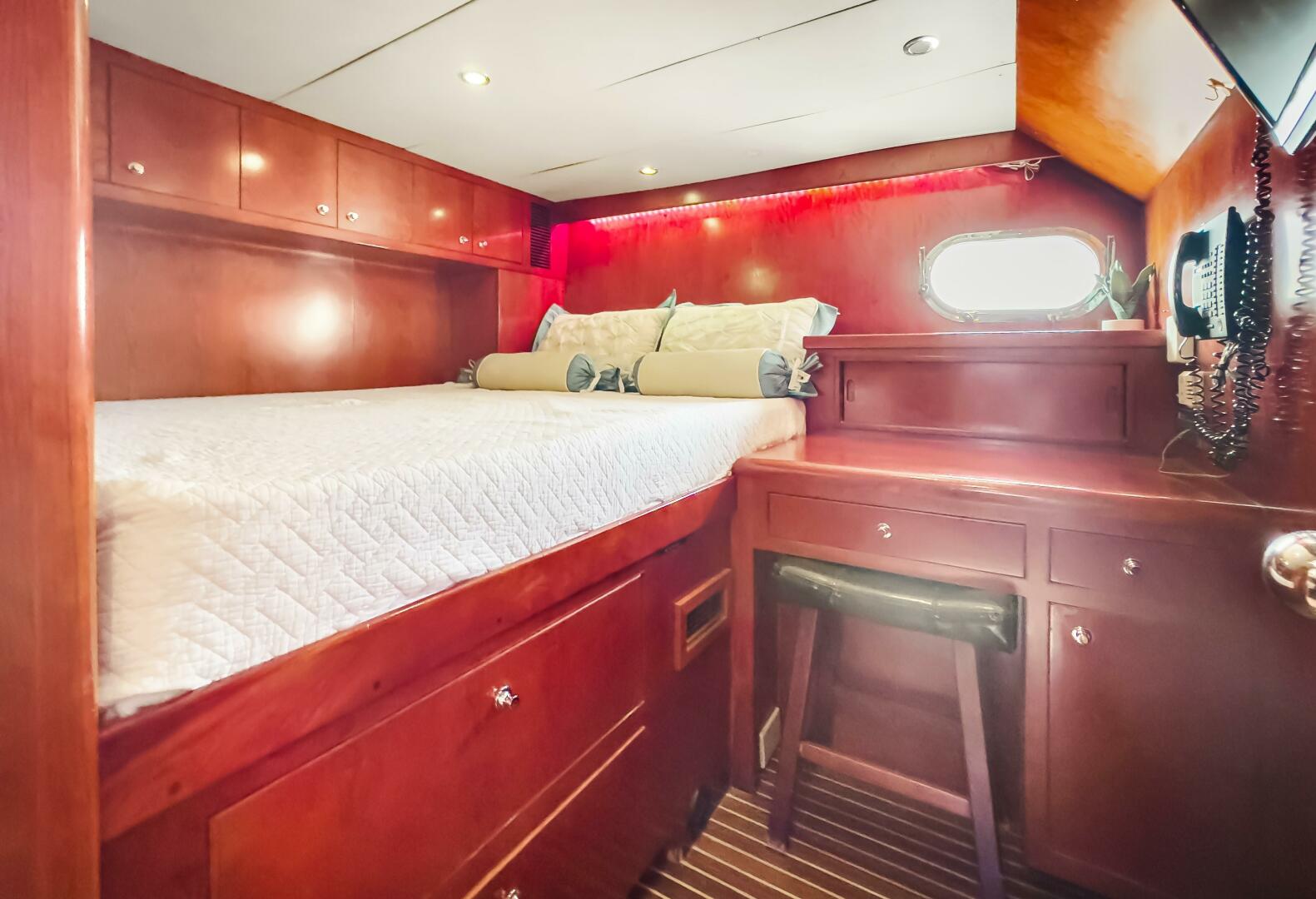

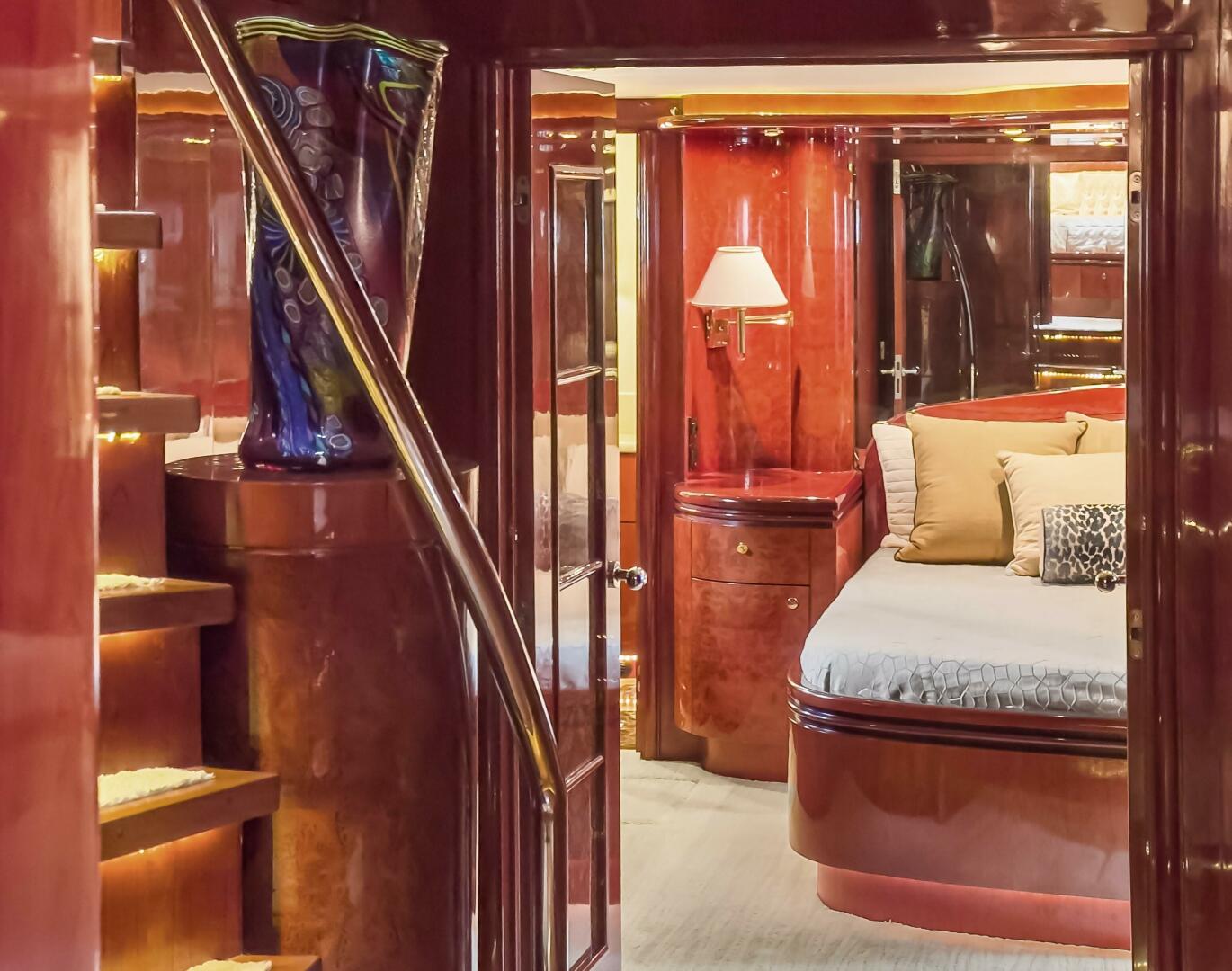

VIP – Queen

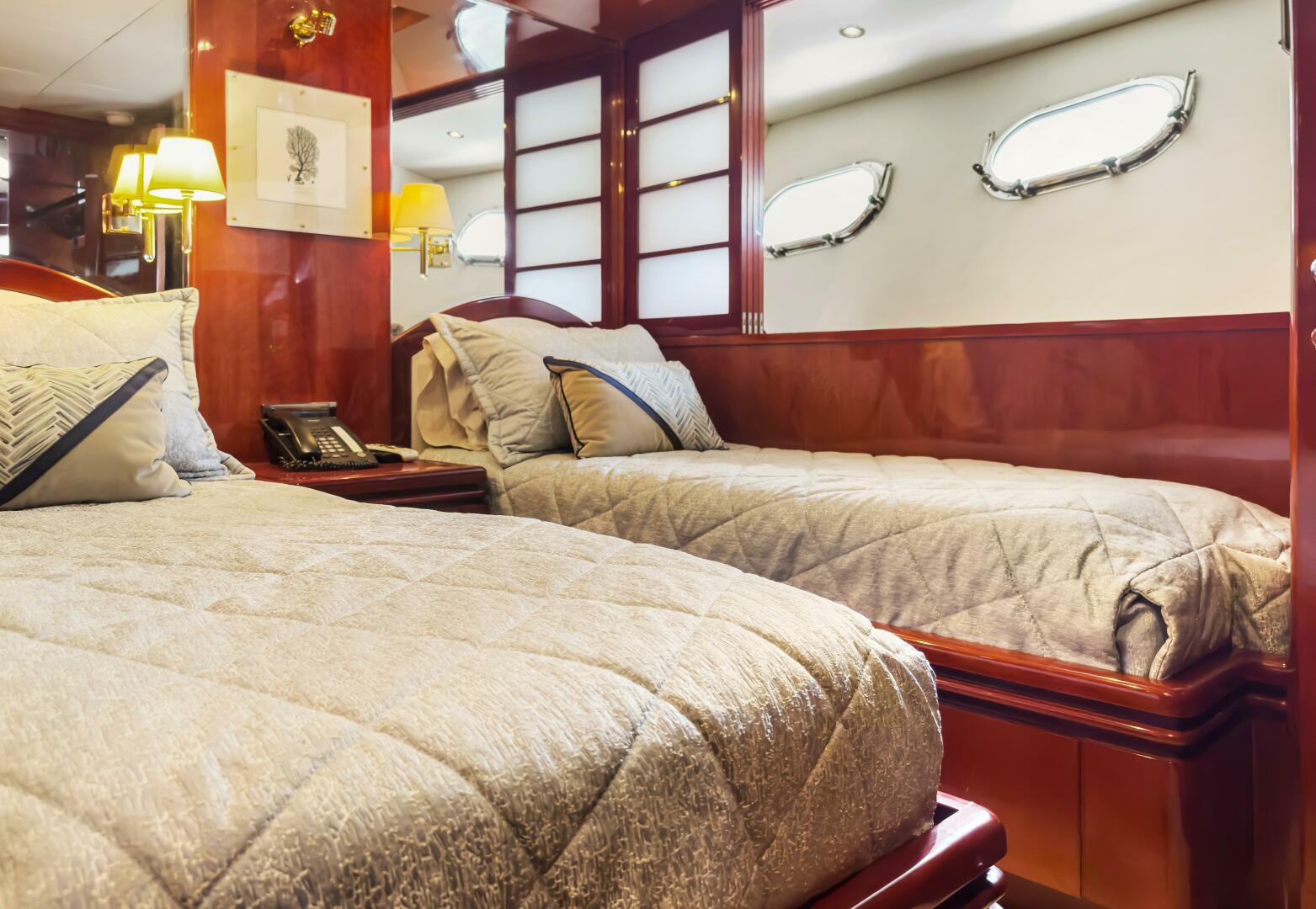

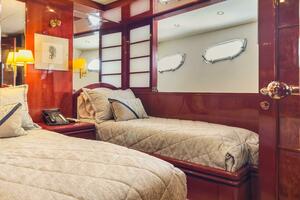

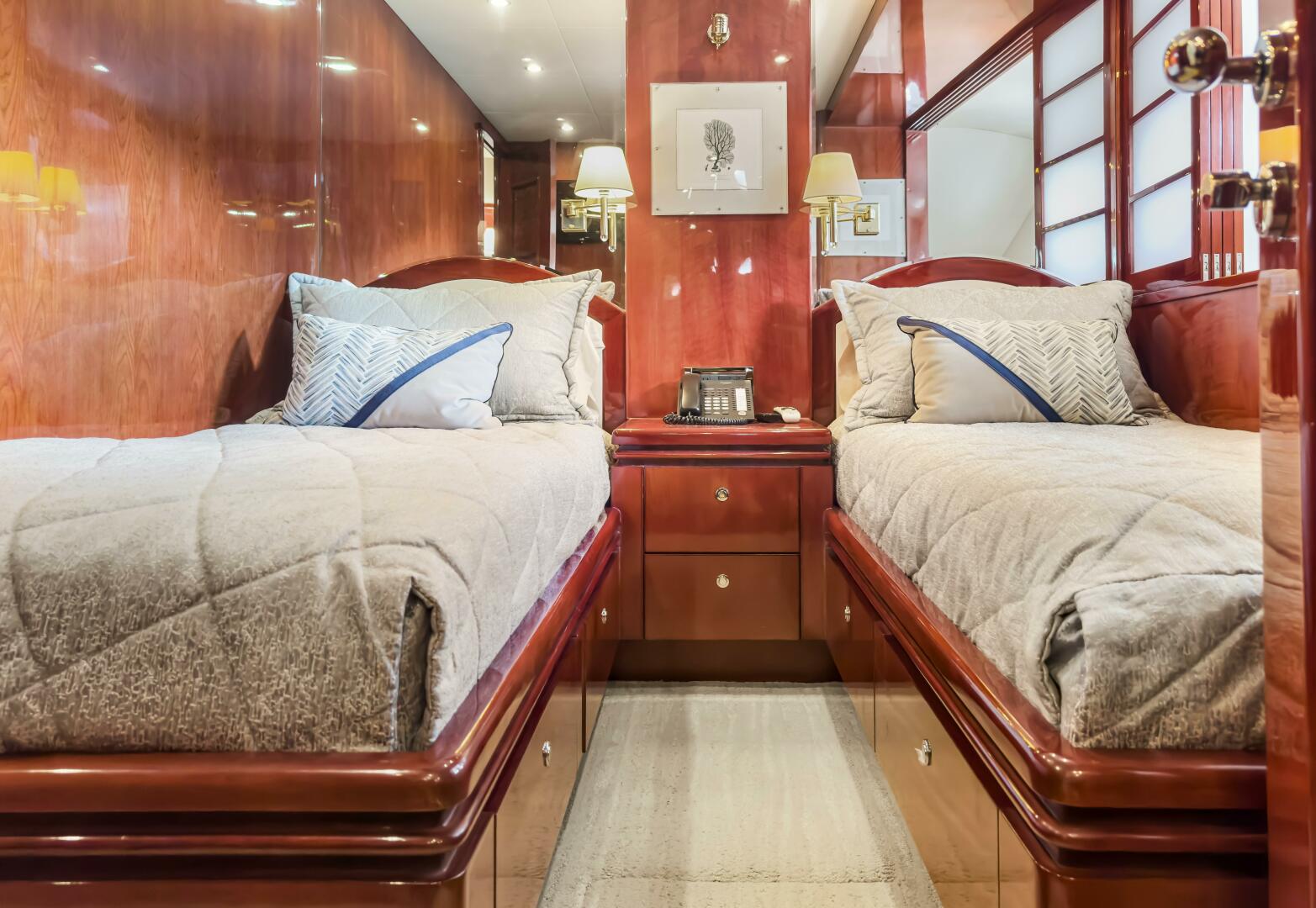

Port guest – 2 twins

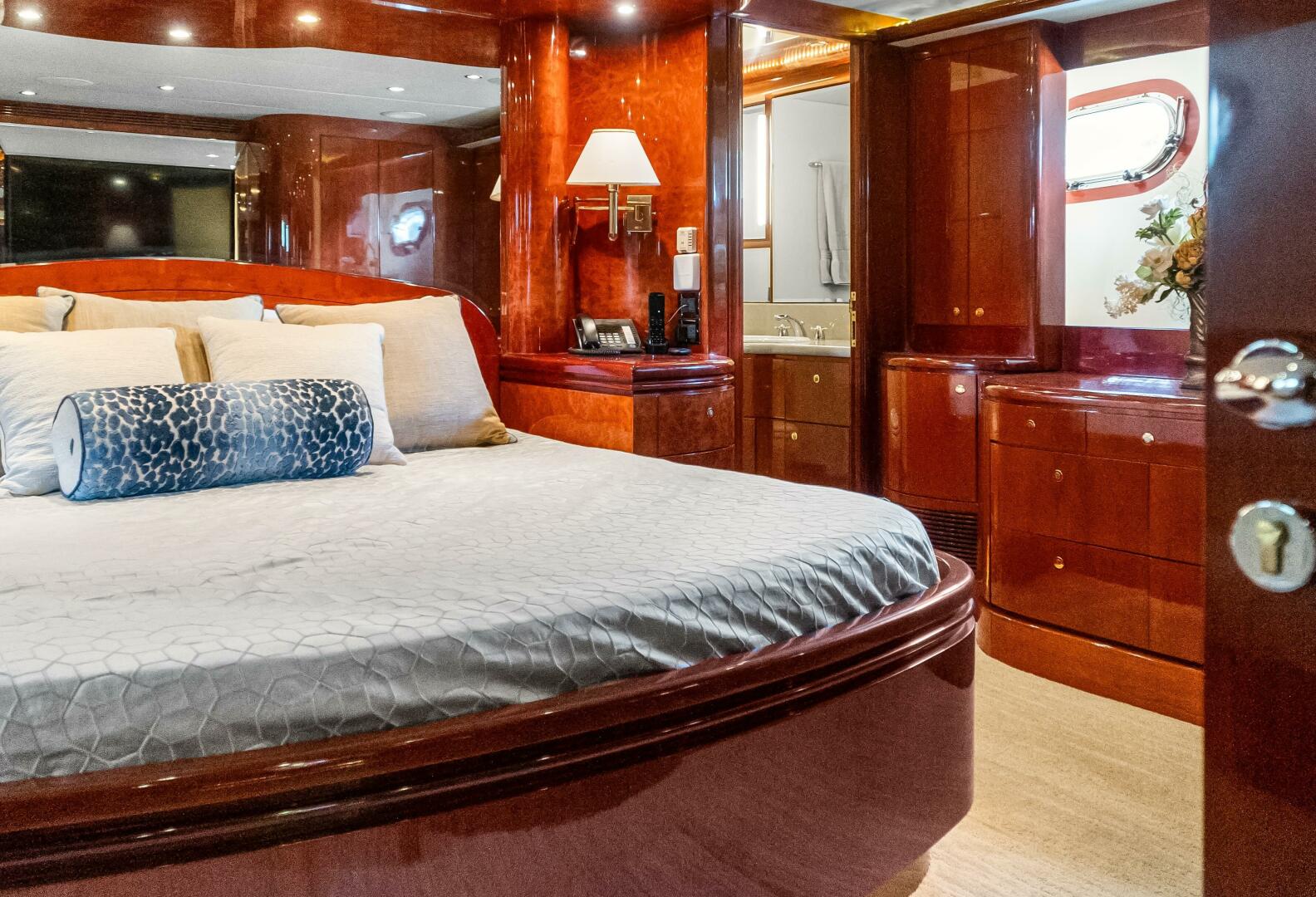

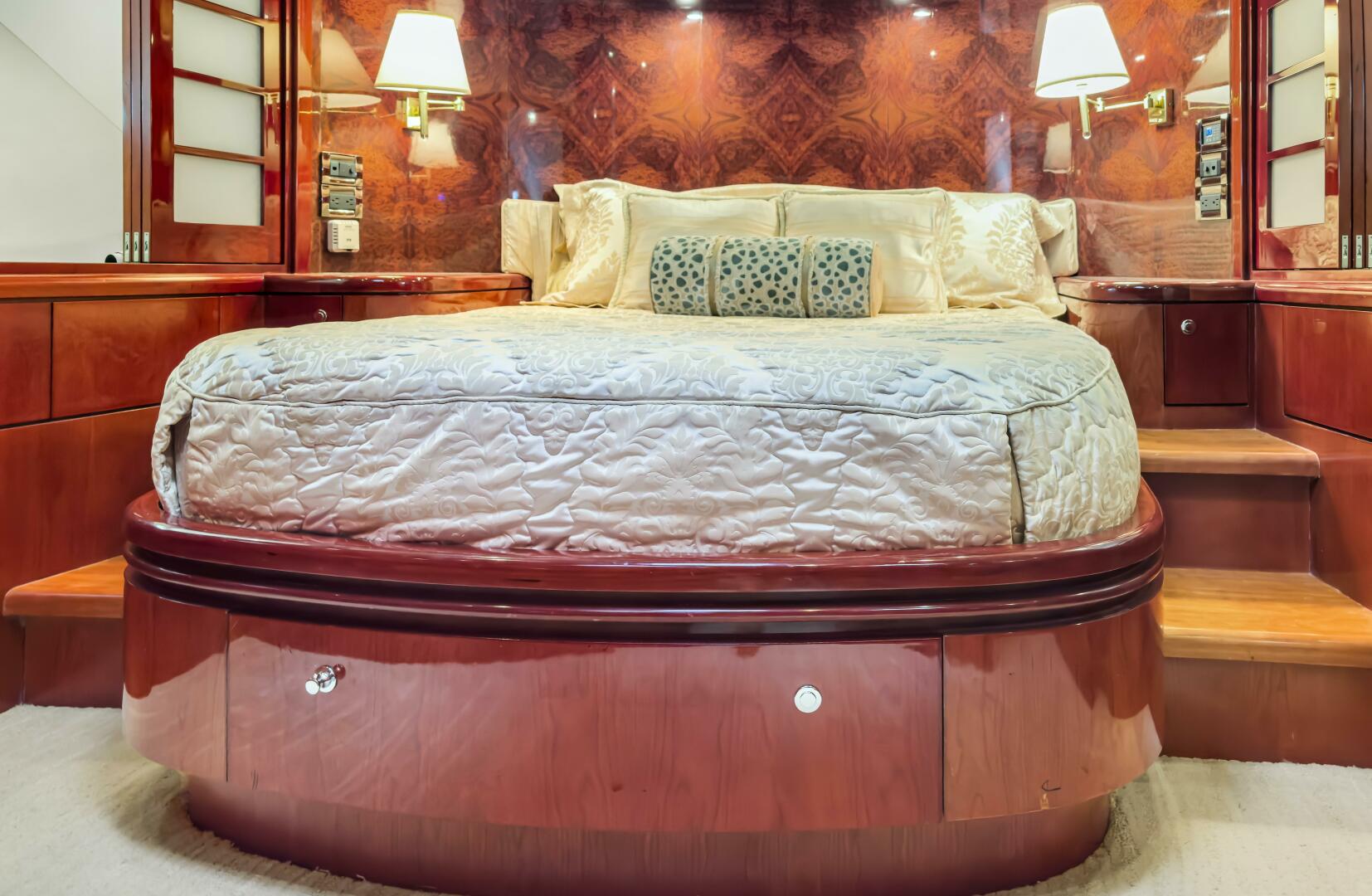

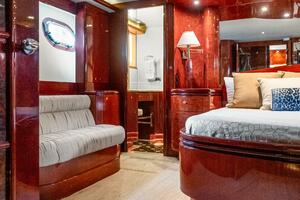

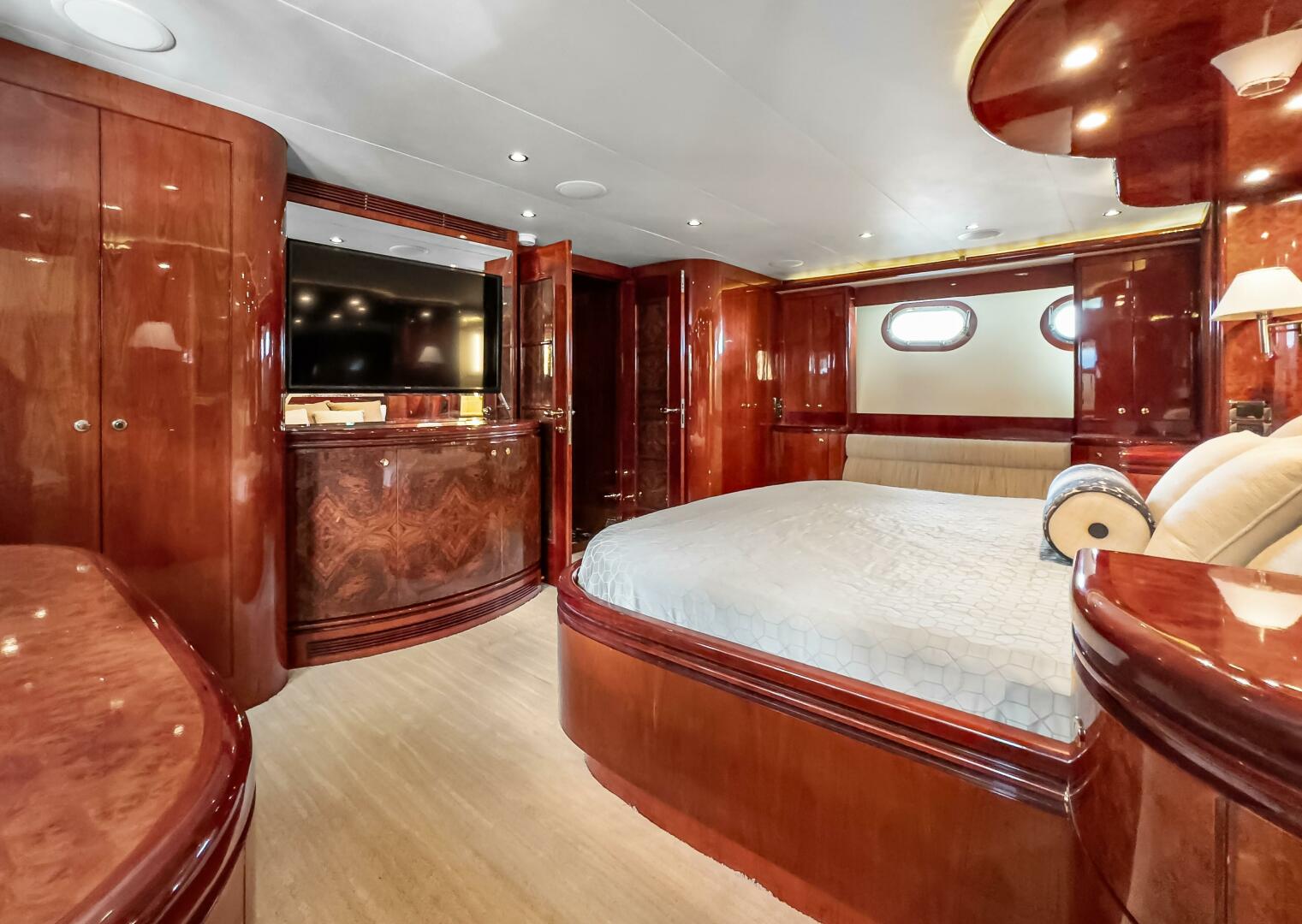

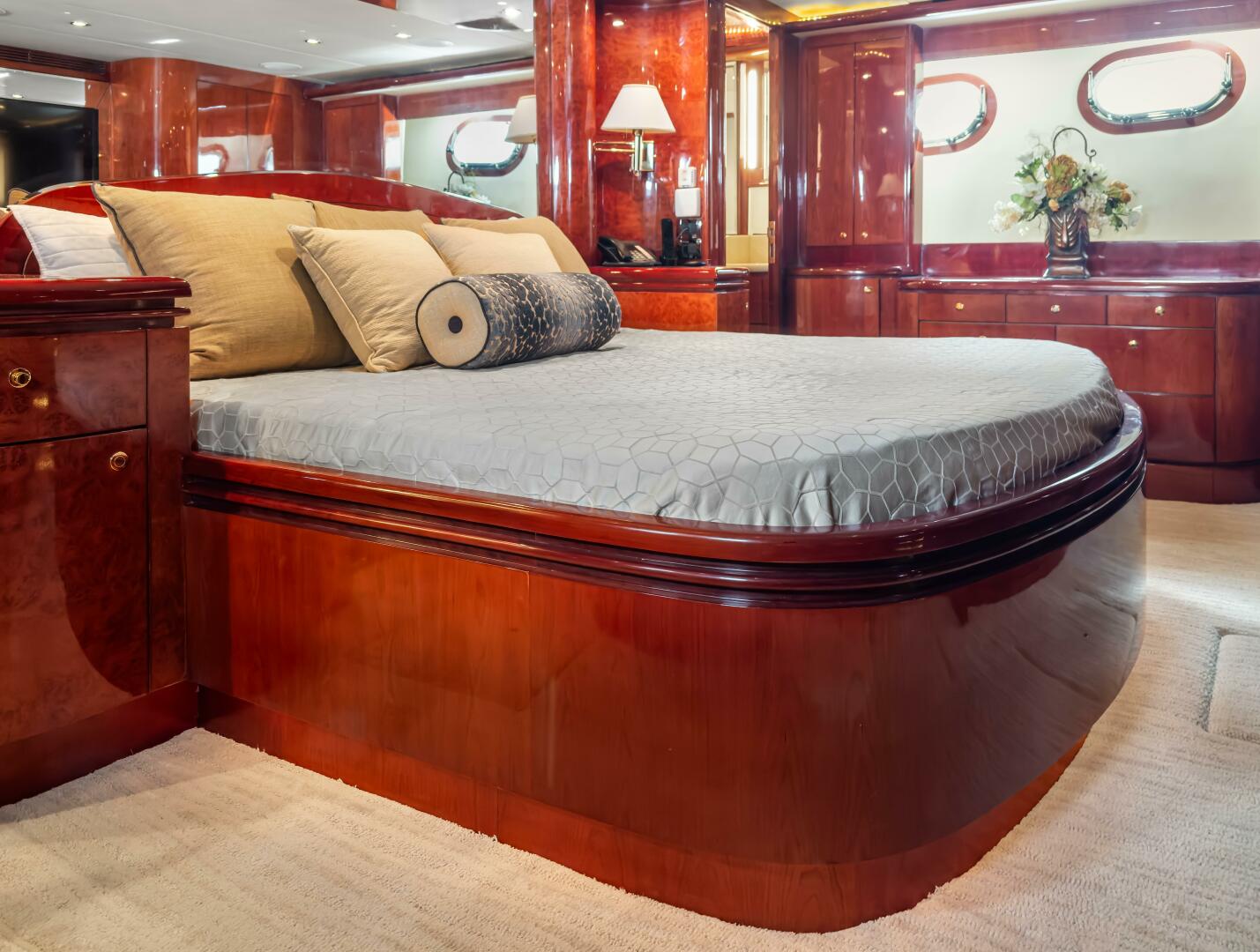

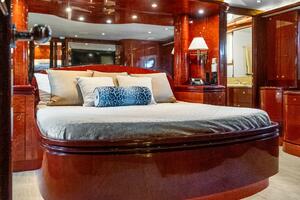

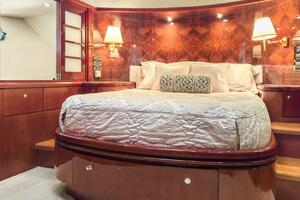

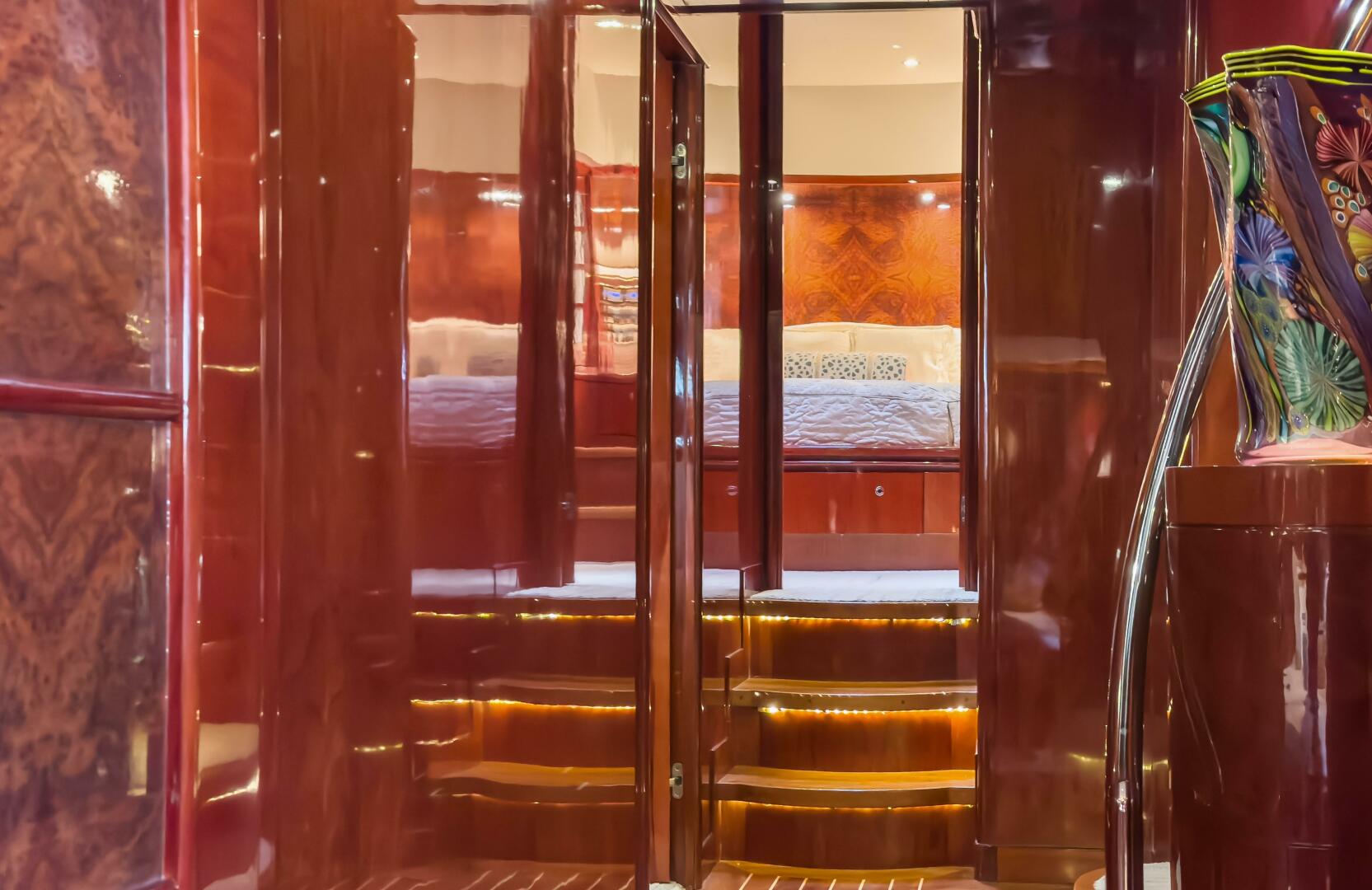

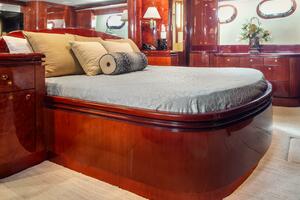

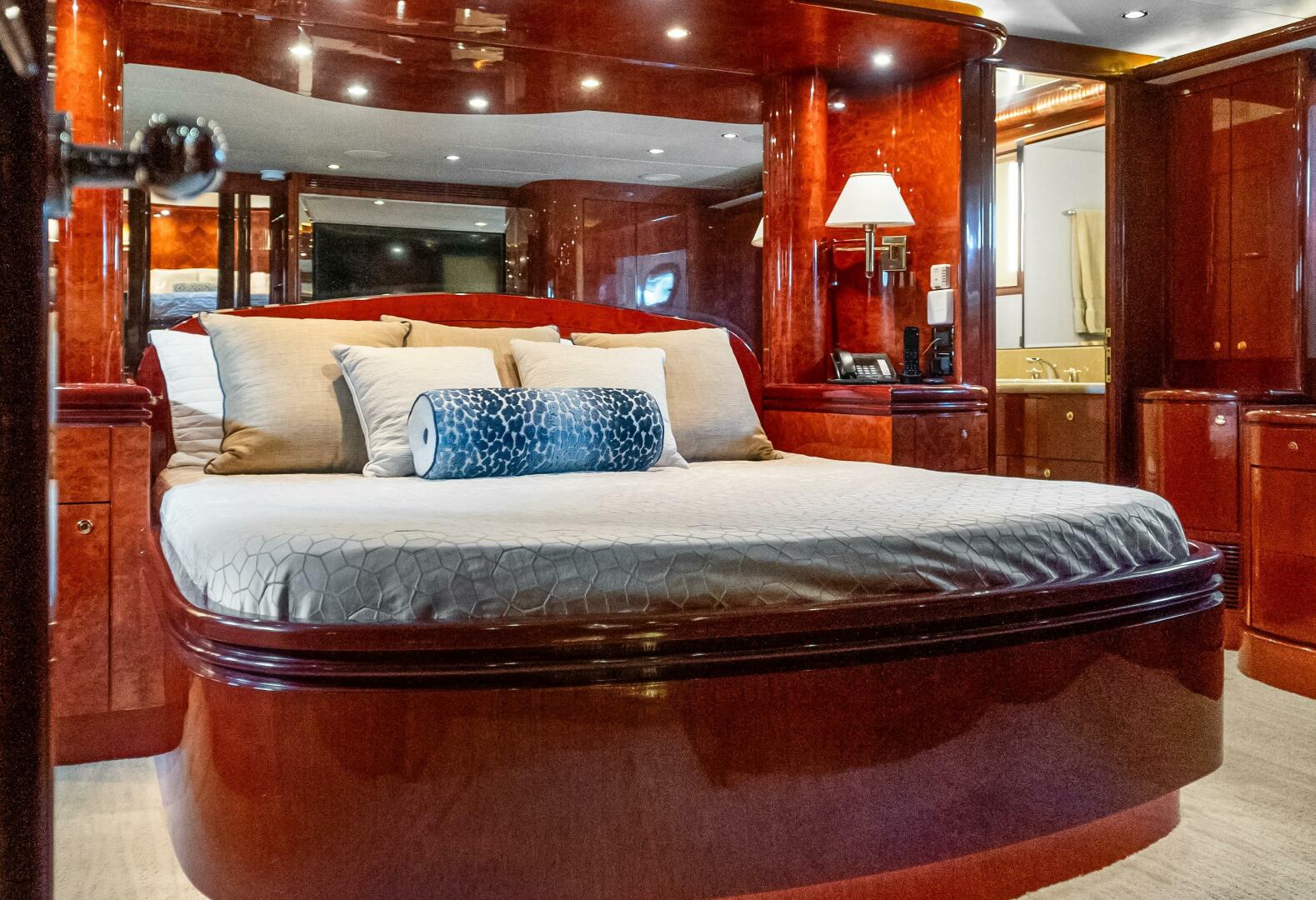

Owners cabin – 1 king

REFIT 2022
• New Galley Appliances, Granite and flooring
• New AC compressor and air handlers

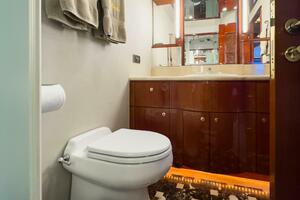

• New toilet system and new toliets
• New carpeting, soft goods and upholstery
• New Seadeck Teak Decking on the exterior
• New exterior soft goods
• New washer and dryer
• New cordless remote
• New electric blinds – Salon and Master
