LOON
Yacht for Sale

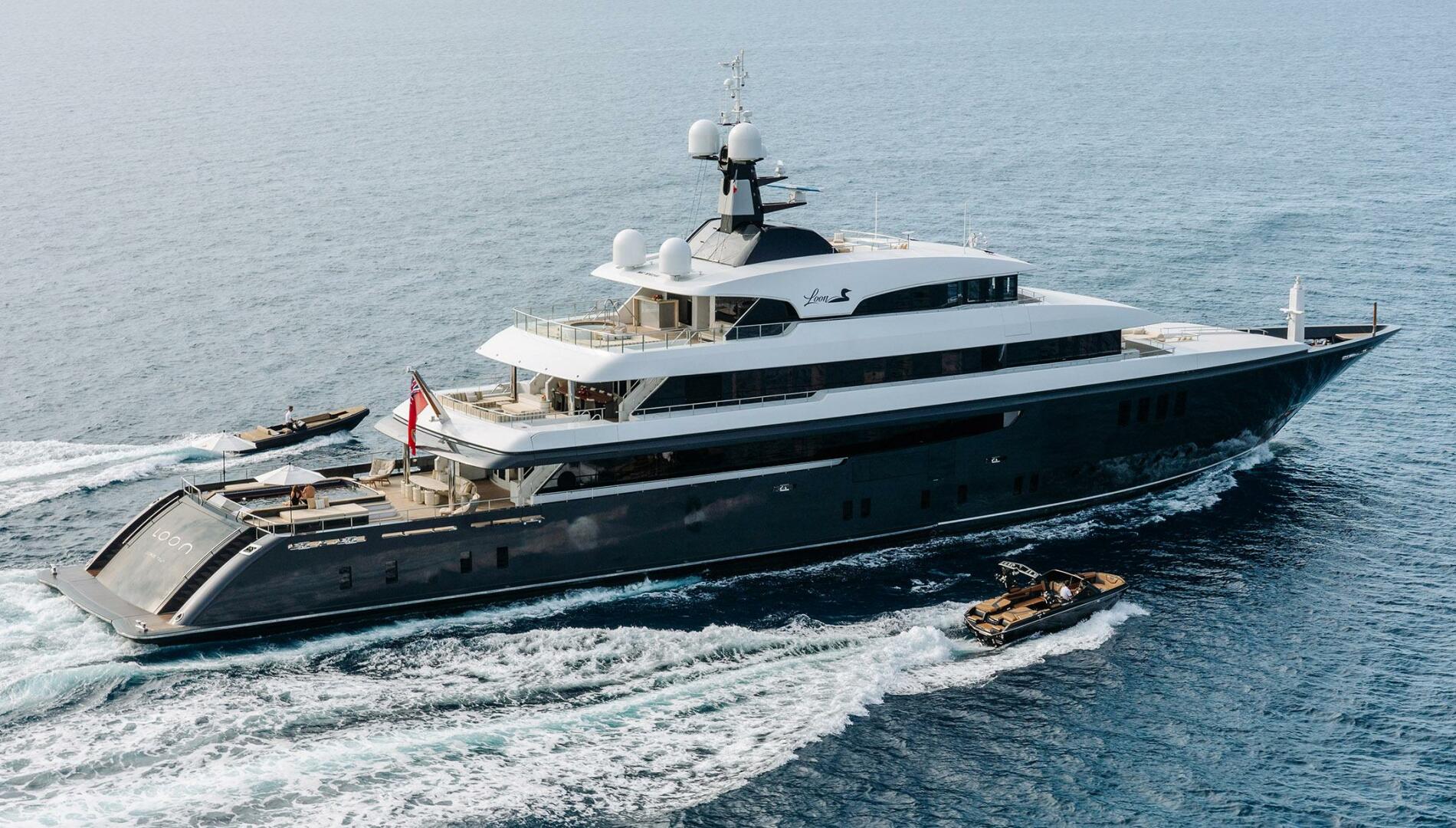

LOON is a 221’ Icon motoryacht with 6 decks and 7 staterooms, and is considered the most famous and marketed charter yacht in the world.
Combining comfort and luxury, Studio Linse (Interior Designer) created the interior with a minimalistic and refined elegance. The subtle colors and elegant furnishings create a serene atmosphere for relaxed ocean living. While Redman Whiteley Dixon Design (Exterior Designer) perfected a true design masterpiece with incredible exterior comfort.
A few outstanding features are her main deck master with a private staircase up to her 180-degree view private lounge and/or office with a private exterior sunning area (this lounge and/or office could one day be easily transformed into a separate VIP stateroom similar to her sistership allowing for an 8-stateroom configuration).
In 2014 the Icon factory extended her hull by 16.40’ (5m) allowing for the largest beach club ever seen on a vessel of this size; one of the coolest features only found on Icons is the private hallway between the beach club and the lower guest accommodations. In addition, this extension made for an aft deck playground including a 24.60’ x 11.48’ (7.5m x 3.5m) saltwater or freshwater pool surrounded by sunbeds. There is also an additional exterior sofa and dining area forward of the pool.
Forward of the Owner’s lounge and/or office is a large tender garage, which is one of the largest garages on similar size vessels! LOON’s garage fits 3 tenders, 3 jet skis and several toys. The garage’s location and size were incredibly thought out because it keeps the tenders off the decks, keeps them weather-protected, and allows for the massive beach club where a tender garage is usually located; this also allows for easier toy removal while stern in, and allows for guests’ immediate access to the water without waiting for the typical aft garage set up.
LOON’s spacious interior can accommodate up to 13 guests in 7 staterooms. The Owner’s master stateroom spans over two decks. There are 2 additional guest staterooms on the skylounge deck which is forward of the skylounge. On the starboard side there is a spacious VIP guest stateroom with a queen size bed, and forward to the port is a smaller stateroom with a single berth, perfect for a child or nanny. There are 4 comparable sized staterooms on the lower deck, all with queen berths, 2 of these berths can easily convert to singles.

LOON was built for long-range cruising and boasts a range of 6,000 nautical miles at 12.5 knots. She is equipped with zero speed stabilization both at anchor and underway to ensure a comfortable voyage in all weather conditions.

• Hull Material: Steel
• Bulb: Steel
• Superstructure Material: Aluminum
• Deck Material: Teak, Grey Caulking
• Paint: Awlcraft
• Hull Configuration: Full Displacement Oceangoing Motoryacht
• Number of Decks: (6) Decks

General

• Length Overall (L.O.A.): 221.46 feet (67.50 meters)
• Length at Waterline (L.W.L.): 168.64 feet (51.40 meters)
• Beam (molded): 37.40 feet (11.40 meters)
• Draft (loaded): 12.47 feet ( 3.80 meters)
• Tonnage: 1,295 gross

Capacities

• Fuel Capacity: 42,267 US Gallons (160,000 liters)
• Water Capacity: 7,661 US Gallons (29,000 liters)

• Watermakers: 4,226 US Gallons (16,000 liters)
• Lube Oil: 818 US Gallons (3,100 liters)
• Waste Oil: 1,347 US Gallons (5,100 liters)

Decibel Noise Readings

• Skylounge Deck Aft Lounge
  • Cruise Speed dB(a): 42
  • Anchor dB(a): 40

• Skylounge Deck Forward
  • Cruise Speed dB(a): 42
  • Anchor dB(a): 40

• Master Cabin
  • Cruise Speed dB(a): 41
  • Anchor dB(a): 41

• Master Bath
  • Cruise Speed dB(a): 42
  • Anchor dB(a): 42

• Main Saloon Forward
  • Cruise Speed dB(a): 47
  • Anchor dB(a): 43

• Main Saloon Aft
  • Cruise Speed dB(a): 53
  • Anchor dB(a): 46

Sea Trial Fuel Burn (Per Engine)

• Engine RPM 1,250
  • SOG: 12 (knots)
  • Fuel Consumption: 98 L/p/h
  • Fuel Consumption: 26 G/p/h

• Engine RPM 1,450
  • SOG: 13 (knots)
  • Fuel Consumption: 140 L/p/h
  • Fuel Consumption: 37 G/p/h

• Engine RPM 1,650
  • SOG: 14.3 (knots)
  • Fuel Consumption: 247 L/p/h
  • Fuel Consumption: 65 G/p/h

• Engine RPM 1,850
  • SOG: 15.9 (knots)
  • Fuel Consumption: 390 L/p/h
  • Fuel Consumption: 103 G/p/h

• Engine RPM 2,000 MAX
  • SOG: 16.9 (knots)
  • Fuel Consumption: 465 L/p/h
  • Fuel Consumption: 123 G/p/h

Main Engines

• Engine Type: (2) MTU 12V-4000-M71 @ 2,480 Hp each
• Engine Hours:

• Port: 17,896 as of Sept. 17, 2024
• Stbd.: 18,419 as of Sept 17, 2024

• Gearboxes for Main Engines: ZF model 7561 (reduction 4.9:1)
• Drive: (2) Wartsilan Propellers – 5 Blades
• Fuel Type: Diesel
• Batteries: (2) 24V main engine start batteries

Generators

• Port and Starboard Generators: (2) 269 kW Scania generators new in 2014
• Port and Starboard Generator Hours:
  • Port: 28,541 total hours as of Sept. 17, 2024 - Rebuilt in July 2024: 814 Hours since major overhaul
  • Starboard: 28,526 as of Sept. 17, 2024 - Rebuilt in June 2024: 1,451 Hours since major overhaul
• Middle Generator: (1) 217 kW Scania generators new in 2014
  • Middle Generator Hours: 24,356 total hours as of Sept. 17, 2024 - Rebuilt in July 2024: 688 Hours since major overhaul
• Emergency Generator: (1) Sisu Diesel model 49.492.CTAG-4V
  Fly bridge / Port side
• Catalytic SOOT Filters DPF: All 3 main generators have HUG's (low to zero emissions) for clean above-water exhaust at waterline
• Generator Start: (3) Batteries 24V 200AH for main generators


Electricity

• Output: Main power supply 230/400 volt, 50Hz, 3- phase for wire system with grounded neutral
• Shore Power: (2) 150Kva Zeus shore power converters, capable of receiving and processing inputs ranging from 330-520 VAC and 40-70Hz and outputting 50Hz, 400V, 220 AMPs
• Batteries: 24-volt emergency batteries
• Battery Chargers: Mastervolt Mass 24/50
• Inverter: Mastervolt Mass 24/2500


Air Conditioning

• Type: Heinen & Hopman air conditioning system
• Air Compressor: (2) Kaeser Airtower 6


Other Machinery

• (2) Watermaker: Hydro Electrique Marine Duplex H40/4200
  • 750 liters (198 US Gallons) per hour
  • 18,000 liters (4755 US Gallons) per hour
• Trim Tabs/Stabilizers: (2) Quantum zero speed stabilizers
  Model QC 1800 gyro controlled non-retractable two-fin stabilizer system, designed for peak performance at 15 knots while underway and optimum roll damping while at anchor
• Bow Thruster: Veth tunnel thruster VT-240
• Steering System: Van Der Velden Marine Systems (hydraulic)
• Steering Gear:
  • Rubber design oil bath shafts
  • Wartsila/Lips 5-blade fixed pitch nibral bronze propellers
• Emergency Steering: Van Der Velden Marine Systems
• Fuel Separator & Filtration: Alfa Laval PU 150 / Alfa Laval
• Fuel Transfer Pump: Alfa Laval ACP 32
• Fuel Filling Pump: Azcue CA50/2A
• Sewage System: Biological sewage treatment unit HMSA MS-II
• Fresh Water System: (2) HEM Hydro Electric Marine H40 series RO water makers (20,000 liters per day)
• Fresh Water Treatment:
  • (2) HEM reverse osmosis freshwater system , each with water softener
  • (2) HEM UV water sterilization system / HEM
    charcoal filtration system
• Bilge Water Filtration: Facet bilge water filtration system and silver ION
• Air Compressor: Mariner 200 EPR diving/firefighting air
  compressor rated at 330bar (200bar for diving and 300bar for firefighting)

• Wi-Fi: STARLink
• INMARSAT-C:
  • (1) Furuno Inmarsat CTT 3606E GMDSS system
  • (1) Inmarsat Fleet 500 with internet and
    emergency worldwide communication
• SSAS: (1) TT-3000E
• Telecom: 2N VoiceBlue Max
• VHF: (1) Sailor 6222 VHF/DSC radio
• Potable VHF: (3) Jotron handheld VHF radios
• Satellite Phone: (1) Iridium
• Intercom: Phontech CIS
• Telephone System: Cisco CME
• Radar Transporters: (2) Jotron Tron SART20
• SSB: (2) Sailor SSB radio TT3042C
• ECDIS: Full ECDIS Transas 4000 paperless bridge
• Radiotelephones: (20) Icom IC-F2000S UHF radio
• Portable GMDSS VHF: (1) Sailor 6110 Gmdss system
• GMDSS Battery Plant: (2) 12V PowerSafe monoblocs
• Guest Phones: (15) Cisco IP Phone 7945
• Internal Ship Communications: Cisco CME, 20 X Icom IC-F2000S UHF radio
• IP Phones: Cisco IP phones in every room
• Portable Phones: (1) Wireless Cisco portable phone
• GSM Phones: (4) Cellular GSM/data phones
• Note: Each cabin has a wired & wireless LAN connection

• Navigation Bridge:
  • Full ECDIS
  • Transas 4000 paperless bridge

• Monitors: (5) Hatteland – New 2023
• X-Band Radar: (1) Furuno X-band radar FAR-2117BB
• S-Band Radar: (1) Furuno S-band radar FAR-21375BB
• Multifunctional Workstation: Radio Zeeland
• Laser Plotter: (1) Transas Laser Plotter
• Also runs with a MaxSea Unit
• UPS: APC Smart 3,000
• Magnetic Compass: (1) Cassens & Plath 33001
• Gyrocompass: (1) Raytheon standard gyrocompass STD22
  (ETO office)
• Auto Pilot: (1) Raytheon 102-886
• Speed Log: (1) Furuno Wind/Speed Log DS80
• Depth Sounder: (1) Furuno Depth Sounder Fe700 with second backup unit
• GPS:
  • (1) Furuno GPS GP-170
  • (1) Furuno GPS GP-150-DUAL
• AIS: (1) Furuno AIS FA 150
• Navtex: (1) Furuno NX 700 Navtex
• Wind: Vaisala Weather Transmitter WXT520
• Horn: (5) Tone Air Horns (Manual and auto functions)
• Search Lights: Sanshin PP208
• BNWAS: Watchkeeper

TV Equipment

• Apple TV is all guests' areas
• Main Salon:
  • Bang & Olufsen BeoVision Avant
  • (1) 85" 4K Ultra HD LED TV with surround sound
• Skylounge Deck: (1) 80" Samsung 8K QLED TV with surround
  sound – New 2023
• Master Stateroom:
  • (1) 49" Samsung LCD TV with surround sound
  • IPOD docking station which can be used for
    personal iPods
• Guest Staterooms:
  • (4) 48" LED Samsung Frame TVs - Lower deck
  • (2) 43" LED Samsung TVs – Skylounge deck
  • IPOD docking station in each guestroom which can be used for personal iPods
• Beach Club: (1) 43" Samsung LCD TV on a TV lift
• Gym: (1) 32" Samsung LCD TV
• Crew Mess: (2) 43" Samsung LCD TVs linked to satellite and entertainment systems and surround systems

Other Equipment:

• PS4 and PS5 gaming console
• The guest staterooms and saloons are equipped with automatic lights, curtains with 100% light shut, and air conditioning controls
• Wi-Fi coverage throughout the vessel


Audio Equipment

• Stereo’s: Sonos throughout the yacht allowing guests to stream or airplay from their phone

Main Galley Equipment

• Cooking Equipment: Professional MKN cooking equipment, fully
  integrated in seamless stainless steel work surface
• Refrigeration/Freezer:
  • (1) Walk-in fridge 6m2
  • (2) Walk-in freezers 6m2 (can be raised to fridge temperature)
• Dishwasher: Hobart industrial dishwasher
• Dumbwaiter: (2) Dumb waiters by Holland Marine which together serve all decks. Innovative lift cage with two compartments, one standard for trays and a large lower compartment for trolleys


Crew Galley/Mess Equipment

• Cooking Equipment:
  • (2) Ovens
  • (1) Microwave
  • (1) Hot Oven
• Refrigeration/Freezer: Frigoboat
• Dishwasher: Hobart industrial dishwasher
• Other: Panasonic professional combi microwave


Additional Galley Equipment

• Cooking Equipment:
  • Weber BBQ
  • Buffet cabinets with refrigerator, ice maker, and plate warmer
• Refrigeration/Freezer: 60L Fridge Frigonautica
• Other:
  • (1) Fridge wine storage
  • (1) Storage room


Pantries

• Skylounge Deck:
  • Nespresso coffee machine

  • Quooker instant boiling water tap
  • Mixer tap
  • Inskinkerator

  • Stainless steel sink
• Beach Club:
  • 60L Drinks fridge
  • Foster Ice maker
  • Bar
  • Marble sink
• Bridge Deck:
  • Nespresso coffee machine
  • Quooker instant boiling water tap
  • Mixer tap
  • Inskinkerator
  • Stainless steel sink
  • 60L drink fridge

• Main Deck:
  • Foster Icemaker
  • Santos citrus juicer
  • Panasonic professional combi microwave
  • 4 Zone hob
  • 60L drink fridge
  • Griddle
  • Pasta Cooker
  • Deep fryer
  • Static oven
  • Combination steam oven
  • Salamander grill
  • (1) Walk-in garbage fridge 6m2
  • Custom stainless steel exhaust hood with 3 variable frequency intakes and 1 extraction fan to ensure slight under pressure over cooking range to minimize smells and cold air extraction

Laundry Equipment

• Miele Professional
  • (4) PW6065 washing machines
  • (4) PT7136 dryers
  • (1) PW6133 washing machine
  • (1) PT7331 dryer
  • (1) HM 16-80D rotary ironer

• Tenders:
  • (1) 23.62’ (7.20m) 2022 Super Air Nautique Ski Boat
  • (1) 24.61’ (7.50m) 2022 X-Craft Beachlander
  • (1) 11.81’ (3.60m) Narwhal unsinkable rescue boat – New engine and tubes 2024

• Jet Skis:
  • (2) 2023 SeaDoo Sparks
  • Yamaha Superjet standup jet ski

• Toys:
  • (2) Seabob F5S
  • (2) Lift efoil
  • (1) 13.12’ (4m) new custom FunAir inflatable waterslide - 2024
  • (1) 40’ (12.19m) new custom FunAir inflatable beach club - 2024
  • (2) Inflatable paddleboards
  • (2) Wakeboards
  • (1) Foil board
  • (2) Wake surf boards
  • (2) Water skis
  • (1) Mono ski
  • (2) Inflatable donuts
  • (4) Inflatable sun loungers
  • (1) Beach setup including marquee, chairs, tables and Weber BBQs Sets of PFDs, helmets, gloves, snorkels and fins

  • Diving Compressor: Mariner 200 EPR diving/firefighting air
    compressor rated at 330bar (200bar for diving and 300bar for firefighting)

• Anchor Windlass System: (2) Ten horn Winches model EACV 28U3
• Aft Warping Capstans: (3) polished Stainless steel Maxwell 8000
• Anchors: (2) POOL fully balanced high holding power
• Anchor Chain: 190 meters x 28mm of anchor chain for each anchor
• Boat Crane and Davits:
  • (2) Cramm lifting cranes,
  • (1) rated at 4 ton lifting Capacity for the 23.62’ (7.2m) Super Air Nautique – Stbd.
  • (1) rated at 4 ton lifting capacity for the 24.60’ (7.5m) X-Craft Beachlander, rescue boat and 3 jet skis
• Passerelle: (1) Aft Cramm passerelle with 90 degrees or
  possible rotation, plus up and down feature
• Stern Boarding Gangway: Cramm hydromar hydraulic
• Swimming Platform: Fold down transom
• Swimming Ladder: Stainless with teak steps


OTHER EQUIPMENT

• Pool: Filtered salt water + fresh water
• Spa Tub: Hoesch Alabama whirlpool on bridge aft deck
• Sauna: (1) Sauna
• Massage Room: (1) Massage room
• Gym Equipment:
  • (1) Technogym Kinesis Personal Multi Functional Gym - Peloton Equipment
  • (1) Technogym Unica Compact Multi Gym

• Sun Awnings: (1) Upper Deck Aft

Security Equipment

• Security System: AXIS
• CCTV System: (19) CCTV cameras with motion sensors
• Monitors:
  • (1) Surface
  • (2) Ipads
  • (3) Hattelands

Fire Fighting Equipment

• Fire Control System: Hi-Fog firefighting system throughout boat and
  a co2 system in galley duct
• Fire Extinguishers: (52) Portable extinguishers
• Fire Hoses: (22) Fire hydrants/hoses
• Fire Alarms: Tyco Minerva T2000
• Gas Detection: (2) Monicon S-500
• Smoke Detention: (150) Tyco smoke and heat detectors
• Alarms: E2S System Horns

Safety Equipment

• Life Rafts:
  • (4) 25-person
  • (1) 8-person
• Lifejackets: (37)
• Life Rings: (8)
• Line Thrower: (2) Pains Wessex 250
• MOB Boat: (1) Narwhal SV420
• Breathing Apparatus:
  • (4) BA
  • (8) Bottles
• Immersion suits: (37)
• EPIRBS: (2) Jotron 40S
• SART: (2) Jotron SART-20
• Flares: (12) Parachutes
• Medical Equipment: MSOS class B



General

• Accommodation for up to 13 guests including an Owner's two-level master stateroom, three double staterooms, two twin staterooms that can be converted to doubles and an additional single cabin


Owner

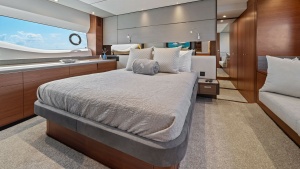

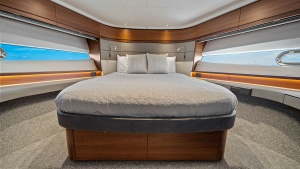

• The Owner’s two-level master stateroom includes a master suite and office on the main deck, and lounge area on the skylounge deck


Guest

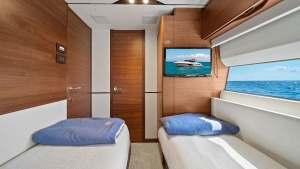

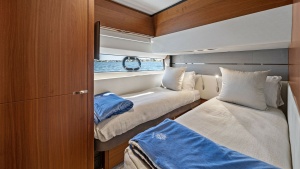

• Lower Deck: Four queen staterooms, including two that convert from queens to singles
• Skylounge Deck: One double VIP stateroom and one single berth cabin


Crew

• Bridge Deck: Captain and Chief Officers Cabin
• Lower Deck: A chief engineer's cabin, 6 shared cabins for crew with direct access to the guest accommodations’ corridor for service
• Tank Deck: Crew mess room and relaxation area and 2 additional crew cabins

• Exclusion:
  • 48’ Towable Tender named “ANVERA”
  • “LOON” name reserved for Seller
  • All LOON monogrammed items on board
  • Scale model (mock-up) of Loon

2023 and 2024

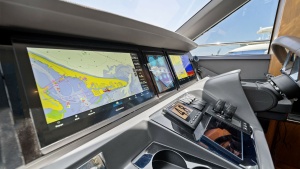

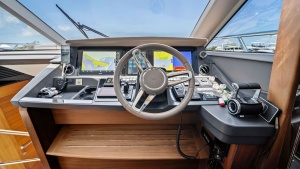

• Complete bridge refit in 2023 which included completely rebuilding the console and
  navigation desk
• 5 New Hatteland displays
• Conversion of main deck pool to fresh water with a drop tank and water heater
• New pool deck cushions 2024
• Hull wrapped in 2023
• All 3 generators were rebuilt in 2024
• 15-year survey is due the 1st quarter of 2025 – Scheduled to start on January 4th, 2025, at Rybovich Super Yacht Marina in West Palm Beach, FL
