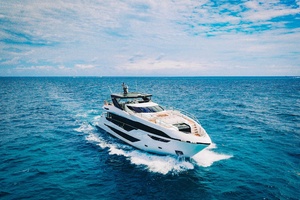

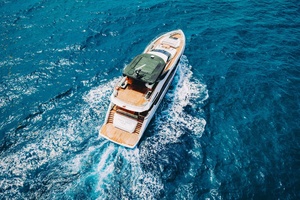

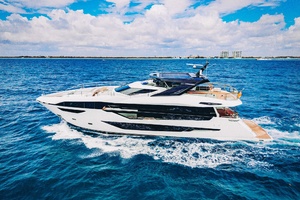

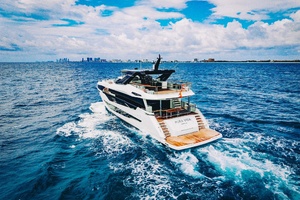

PURA VIDA
Yacht for Sale
Length:
54' / 16.46m
| Builder: Cnm - Cantieri Navali Del Mediterraneo
| Year: 2024
PURA VIDA Yacht for Sale - 54' Cnm - Cantieri Navali Del Mediterraneo
Contact Us For More Information
Detailed Information
Description
General
Overall length | 16.03 m |
Overall beam | 4.50 m |
Maximum draft (below propellers at full load) | 1.15 m |
Estimated displacement in standard configuration | 22,000 kg |
Fuel tanks (Aluminium) | 2 x 2,000 lt |
Max speed of 44 knots in standard configuration & standard test conditions | 44 kts |
Range at cruising speed of 33kts in standard conditions | 300 nm |
CE Design Category | A |
Fresh water tank (PVC) | 400 lt |
Black water tanks (GRP) | 100 lt |
Grey water tanks (GRP) | 100 lt |
Maximum number of persons on board | 12 |
Safety equipment standards CE | 12 |
Maximum power | 1,700 hp |
Propulsion | Surface drives |
Propeller | Surface piercing 5 blades |
Construction Material
- Hull - Construction on female mould with traditional skin-coat lamination on gelcoat and vacuum technique, vinyl-ester resin and PVC cored sandwich.
- Superstructure - Construction on female mould with traditional skin-coat lamination on gel coat and vacuum technique, vinyl-ester resin and PVC cored sandwich.
- Bulkheads - Structural sandwich laminated using vacuum technique.
- Roll Bar / Hard Top - Carbon fibre with vacuum technique and PVC cored sandwich
Coating
- Hull bottom - Double antifouling application for “high speeds” with anti-osmosis treatment
- Topsides and superstructure - Full Axalta / Awlcraft cycle (epoxy)
- Deck - Teak / Anti-slip
- ‘Lucido Diretto’ - topsides and superstructure
- Double anti foul and anti osmosis treatment - hull bottom
- Bilges painted white
General Arrangement

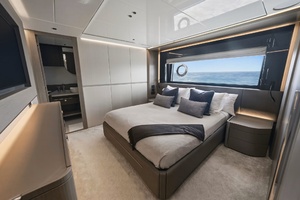

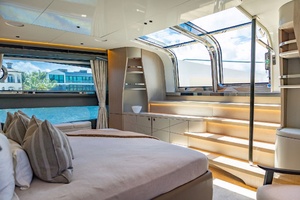

- Owner cabin with (1) one double bed

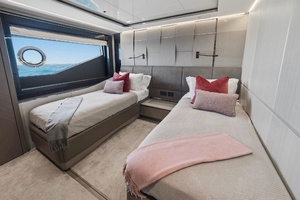

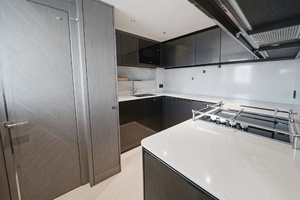

- Guest cabin with (1) single bed / Galley

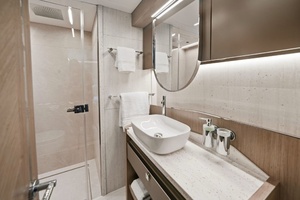

- Head with toilet, washbasin and shower
- Lacquered cupboards and bulkheads
Systems
- Generator exhaust with gas/water separation muffler;
- Pump out connection on deck & outboard for black waters – outboard only for gray waters
- Specification of wiring, terminations, electrical panels and earth leak protection compliant to Rina CE certification
- Specification of pipe work, valves and manifolds compliant to Rina CE certification
- Boening ship automation
- Shore power voltage 215V - 235V
- Shore power amperage Max 50 Amp

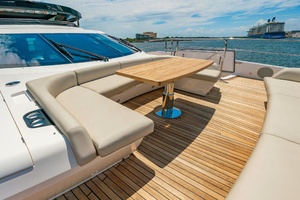

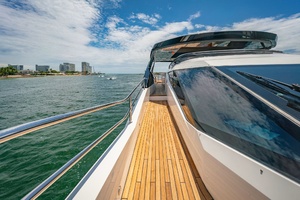

Exteriors
- Tempered glass windshield (dark)
- Tempered glass skylights (dark)
- Carbon fibre windshield structure (Super Jet Black)

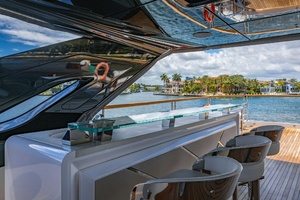

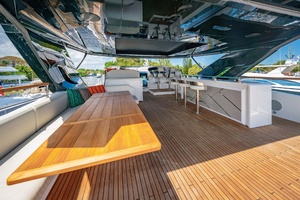

- Exterior wet bar with Corian worktop

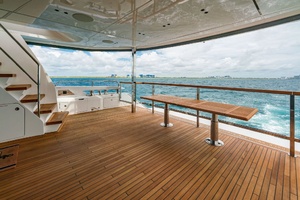

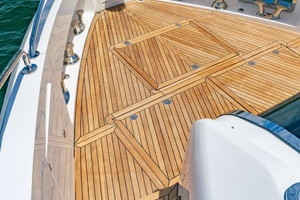

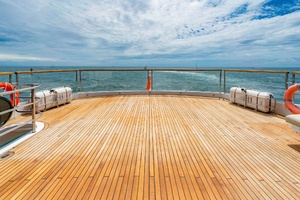

- Teak decking with black caulking
- Premium upholstery (Spradling leatherette or Sunbrella fabric)
- Courtesy lighting 2,000K - 3,500K (if applicable)
- Custom AISI 316 gas springs

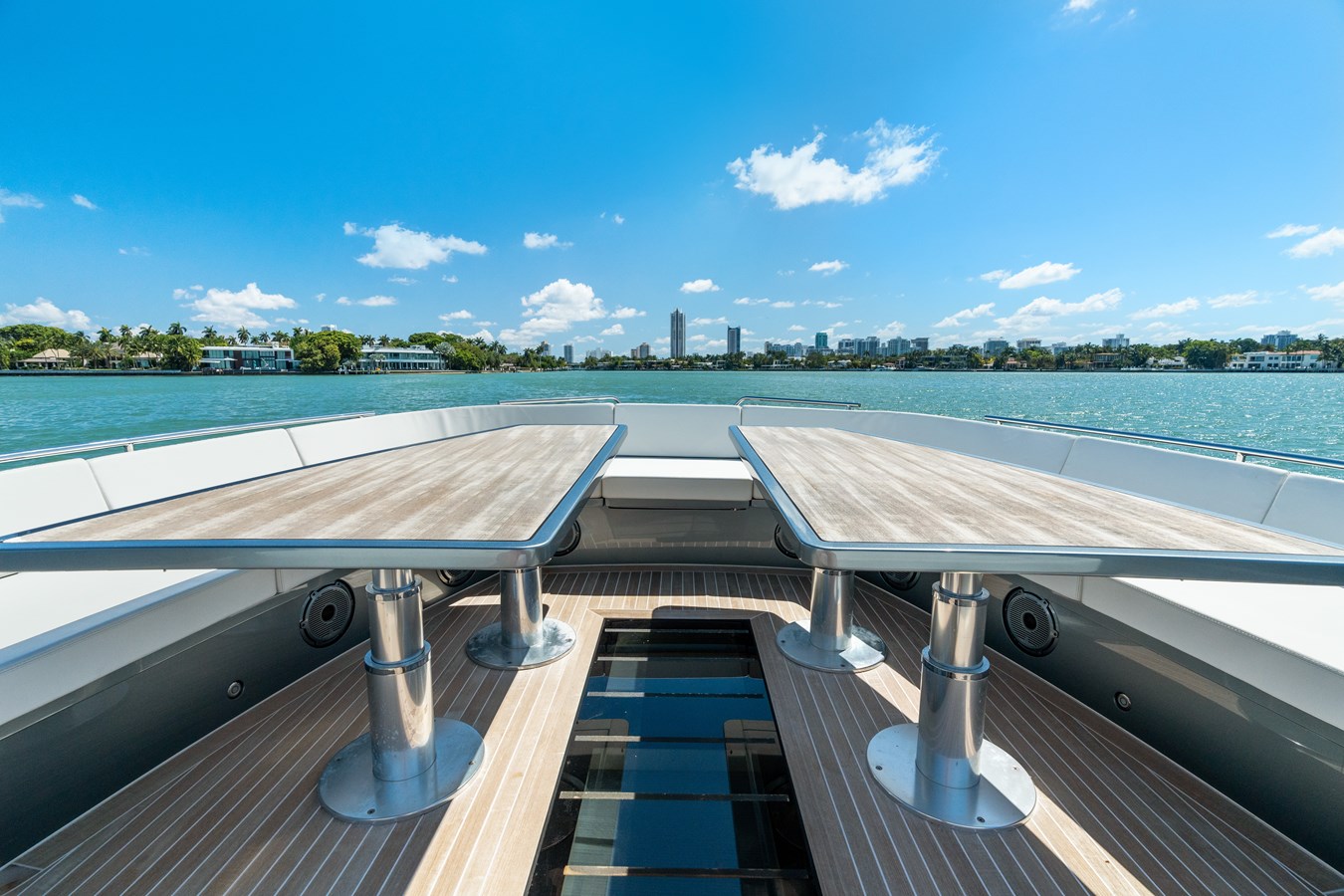

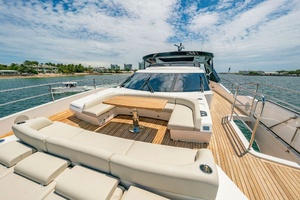

- Fore tables teak center finish
- Fore tables with electric base
- CNM dragon on windshield
- CNM wordmark on stern

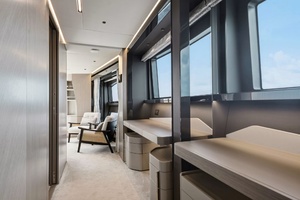

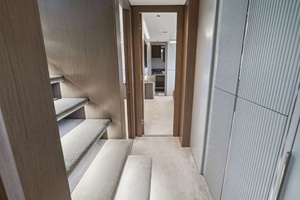

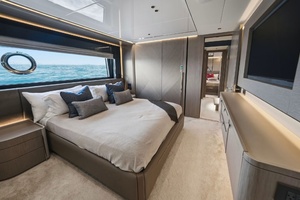

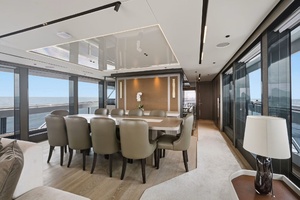

Interiors
- Loro Piana® Passepartout package
- Bulkheads and cupboard in solid RAL lacquer - satin finish
- Besana premium carpeting - silk 18
- Master stateroom ceiling in Dolce leatherette
- Guest stateroom / head ceiling in solid RAL lacquer - satin finish
- Head flooring and top in premium Burmese teak
- Head fittings and faucets with bespoke finish
- Tecma ELEGANCE toilet
- LED lighting 2,000K - 3,500K
Entertainment
- 32” LED/LCD TV
- Fusion Apollo RA770 receiver
- JL Audio MMR-20-BE remotes (3)
- JL Audio M880 loudspeakers (10) (black or white)
- JL Audio MHD600/4-24V (4)
- Bowers & Wilkins® AM-1 Loudspeakers (2)
Appliances
- Exterior fridge 60 lt
Electronics
- GARMIN multi function display
- GARMIN gps receiver
- GARMIN marine vhf radio telephone
- GARMIN navpilot (integrated in böning panels)
- GARMIN transducer
- GARMIN—integrated heading sensor

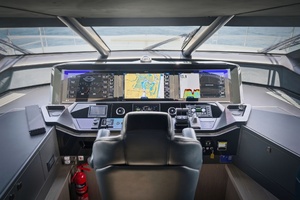

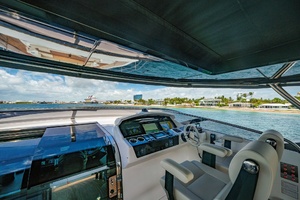

- BÖNING custom helm panels package
Technical Equipment / Machinery
- 2x MAN I6 – 850
- ZF 400A; Gears with trolling valve
- Kohler 7EFKOZD
- Air Conditioning System Frigomar 18,000btu
- RACOR 1000 MA
- Arneson by Twin Disc ASD 11
- Rolla 5 BLADE Surface Piercing
- BCS MAN ASD11
- Rule 2000
- Lopolight LED COLREG compliant running lights
Hydraulic Systems and Pumps
- Gianneschi ECOJET 2B 24V P.MAX 3.5 bar or equivalent
- Whale GULPER TOILET PUMP 24v
- Whale GULPER TOILET PUMP 24v
- Rule A MATIC SWICHT 35°
- Whale UNIVERSAL UF1825
- Gianneschi MP/C801779 or equivalent
- Rule 2000
Electrical System
- Victron SKYLLA 24V / 100A service battery charger
- Victron BLUE SMART 12V /15A generator battery charger
- Victron SKYLLA 24V / 30A engine battery charger
- Nautik 12V 140 Ah - Dual terminal service batteries (8)
- Nautik 12V 120 Ah - Dual terminal engine batteries (4)
- Nautik 12V 80 Ah - Dual terminal generator battery (1)
Mooring and Anchoring
- Trefoil AISI 316L 30 Kg
- Stainless steel chain Caliber 10 mm - Length 75 m
- Chain wash system
- Lofrans PROJECT 1500
- Cleats In stainless steel
- Fairleads in stainless steel
Safety Equipment
- Portable fire extinguishers 0029 MED 96/98/EC
- Firecom Mare 15
- Liferafts ISO96500CE
- Lifebuoys and lifejackets ISO12401CE
- Flares kit CE
- First aid kit CE

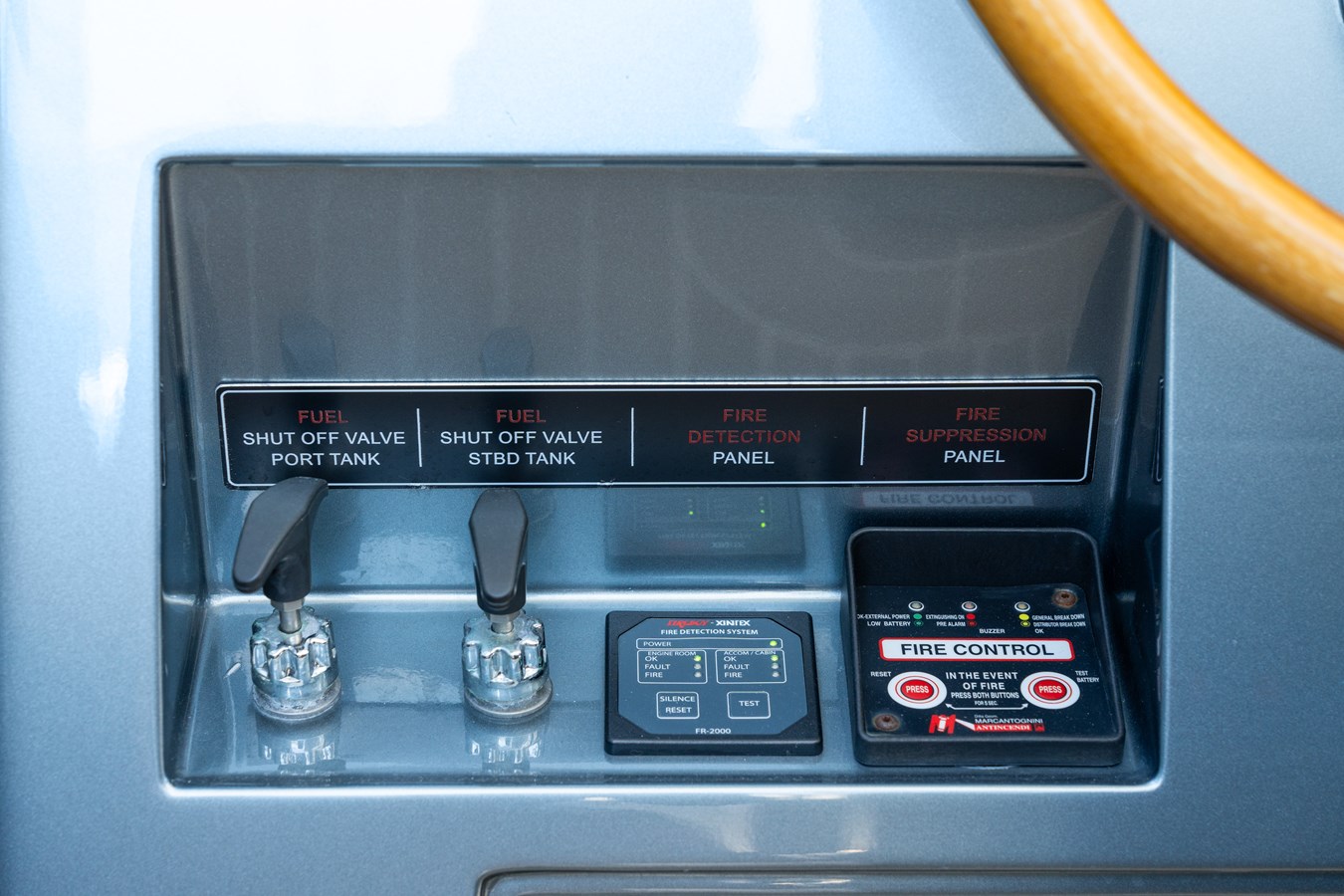

- Manually activated fuel shutoffs
Accessories
- Boat hook
- USB port at helm
Awnings
- Soft enclosures (front and sides) (Sunbrella Plus)
Options
GENERAL ARRANGEMENT OPTIONS
- Crew cabin
COATING
- Special order colours and metallic colours
- Bespoke Colour Mix (color matching)
- Painted loudspeakers
- Painted instruments in Super Jet Black
EXTERIORS
- Carbon fibre Hard Top with navigational awnings / soft helm enclosure
- Automated side balconies
- Automated engine room hatch
- Opacmare transformer platform package (black)
- Teak decking on anchor hatch
- Teak decking with white caulking
INTERIORS
- Loro Piana® Summer Interiors (cotton/linen)
- Natural wood veneers (satin finish - excluding cost of materials)
- Loro Piana® Southbury 100% llama wool carpeting
LIGHT DESIGN
- LED underwater lighting (7 lights)
- LED exterior courtesy lighting (32 lights)
- LED interior light design package
ENTERTAINMENT
- Additional 2 x JL Audio M-Series subwoofers (black/white)
- 2 x JL Audio MHD900/5-24V2
- 2 x JL Audio MHD600/4-24V
- Apple® Apple TV 4th Generation
- Bang & Olufsen® BeoVox 2.1 Loudspeakers (black or white)
- Wi-Fi access point with dual sim 4G technology
APPLIANCES
- Additional refrigerator
- Cooktop
ELECTRONICS
- Garmin Radar 4 kW 36 nm (package)
- Garmin FA50 Class B AIS transponder
- Additional VHF antenna
- Böning backup DPU
- Redundant steering indicator
- Redundant fuel monitoring system
TECHNICAL EQUIPMENT / MACHINERY
- MAN i6-850 (625 kW @ 2300RPM) / Twin Disc MGX with QuickShift / ASD11
- Humphree X750 with Automatic List Function
- Side-Power SE 120/215 TC stern thruster
- Red Dot Award Cover (engines)
- CNM Platinum engine finish (RAL 9007)
- Kahlenber air horn
- Additional bollards (2)
- Electronic chain counter
- Direct water pressure connector

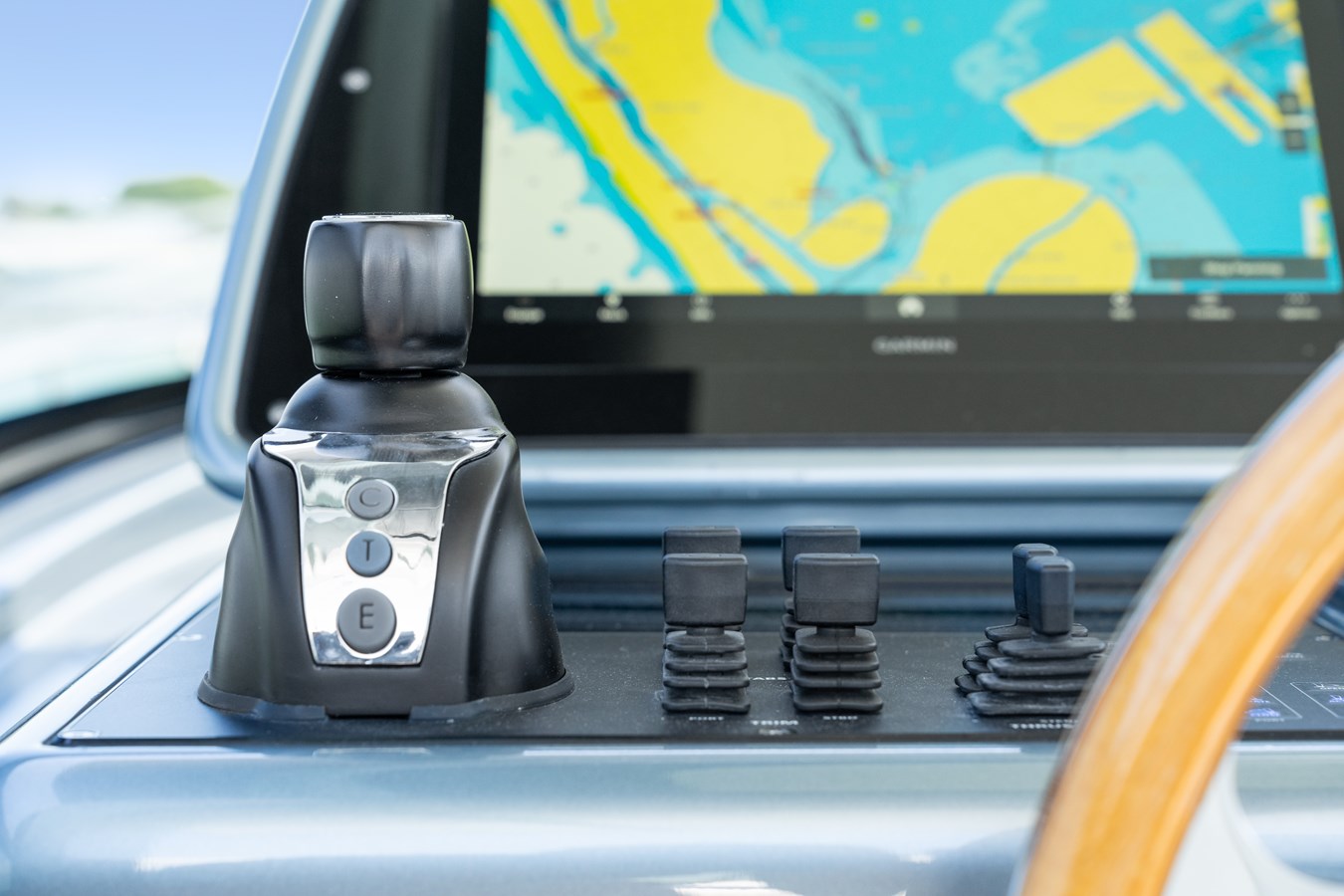

- Advanced Joystick System
- Upgraded Thrusters
- Dynamic Positioning Module
AWNINGS
- Premium fore awning with carbon fibre supports
- Premium aft awning with carbon fibre supports
ACCESSORIES
- Carbon fibre premium design swim ladder
- Carbon fiber C1 standup stern shower
- Boffi® hand held premium shower
- Fender kit
- Custom fender covers
BESPOKE
- Metallic / pearl lacquered interiors
EXPORT PACKAGE
- Owner's manual - English version
- Kohler 60Hz - auxiliary generator
- Victron PHOENIX 24/3000 120V 60 Hz
- Isolation transformer
- USA 110v-130v outlets
- Dometic Microchiller 30 - Tropical AC (US model - 30,000 btu)
SERVICES
- Factory Collection
